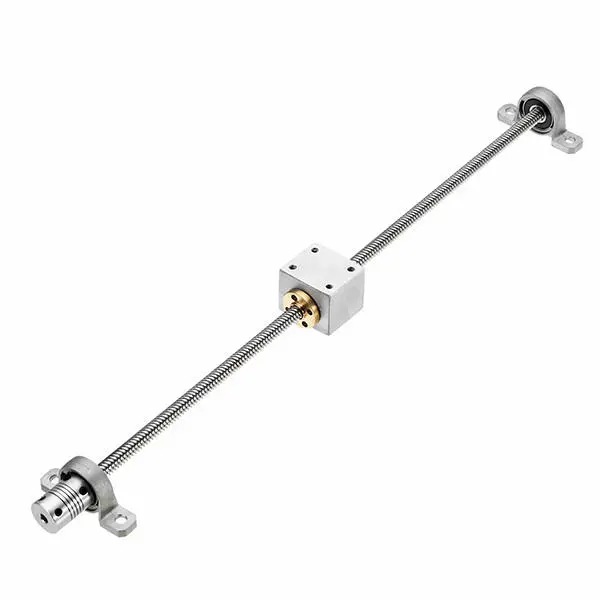

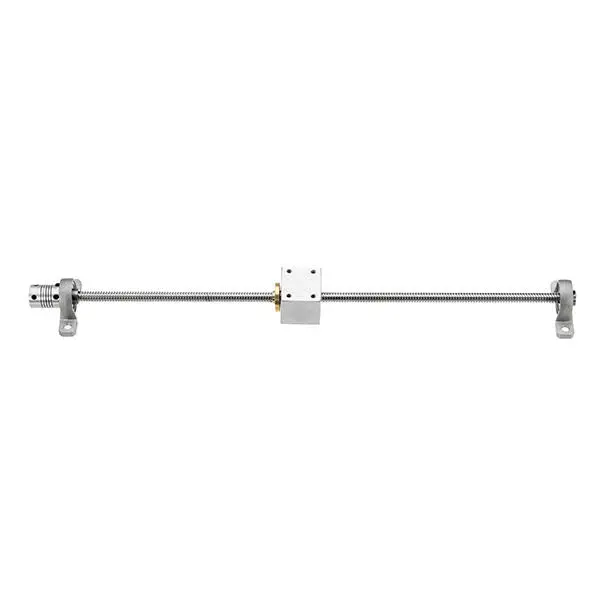

Machifit T8 500mm Lead Screw Set - with Nut Housing Bracket & Coupling for CNC

Product Description

Description:
Machifit T8 500mm Lead Screw Set with Nut Housing Bracket and Shaft Coupling for CNC
Specification:

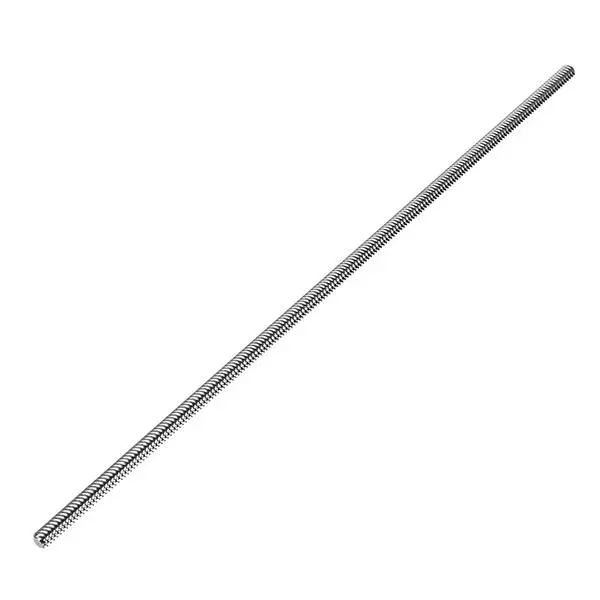

Lead Screw:

Material	Stainless Steel
Diameter	8mm
Length	500mm
Lead	8mm

Nut:

Material	Brass
Diameter	8mm
Pitch	2mm

Mounted Ball Bearing:

Material	Zinc Alloy
Model	608RS
Bore diameter	8mm
Total size	Approx. 55x13x28mm
Hole diameter	Approx. 4.6mm
Holes centre distance	Approx. 42mm
Quantity	2pcs

Shaft Coupling:

Material	Aluminium
Shaft	6.35mm x 8mm
Length	25mm
Diameter	20mm
Size	20mm x 20mm x 25mm

Nut Housing Bracket:

Material	Aluminum alloy
Inner hole diameter	10mm
Overall size	30x30x34mm

Mechanical Dimension:
Features:
Easy to install. Durable with high precision. Can withstand great weight. Suitable for cnc and other mechanical working. The lead of this screw is 8mm.
Package Included:

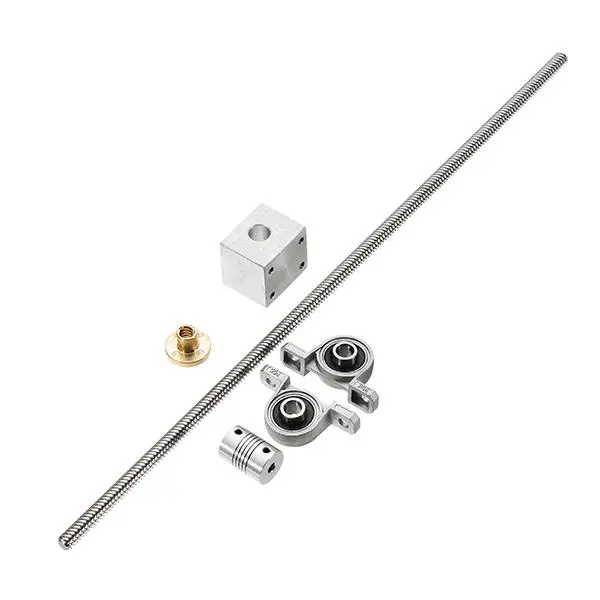

1 x 500mm T8 Lead Screw 1 x Nut 2 x Mounted Ball Bearing 1 x Shaft Coupling 1 x T8 Screw Nut Bracket
