Machifit T8 100-1000mm Stainless Steel Lead Screw | with Coupling & Support
$19.00
$23.98
-21% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:

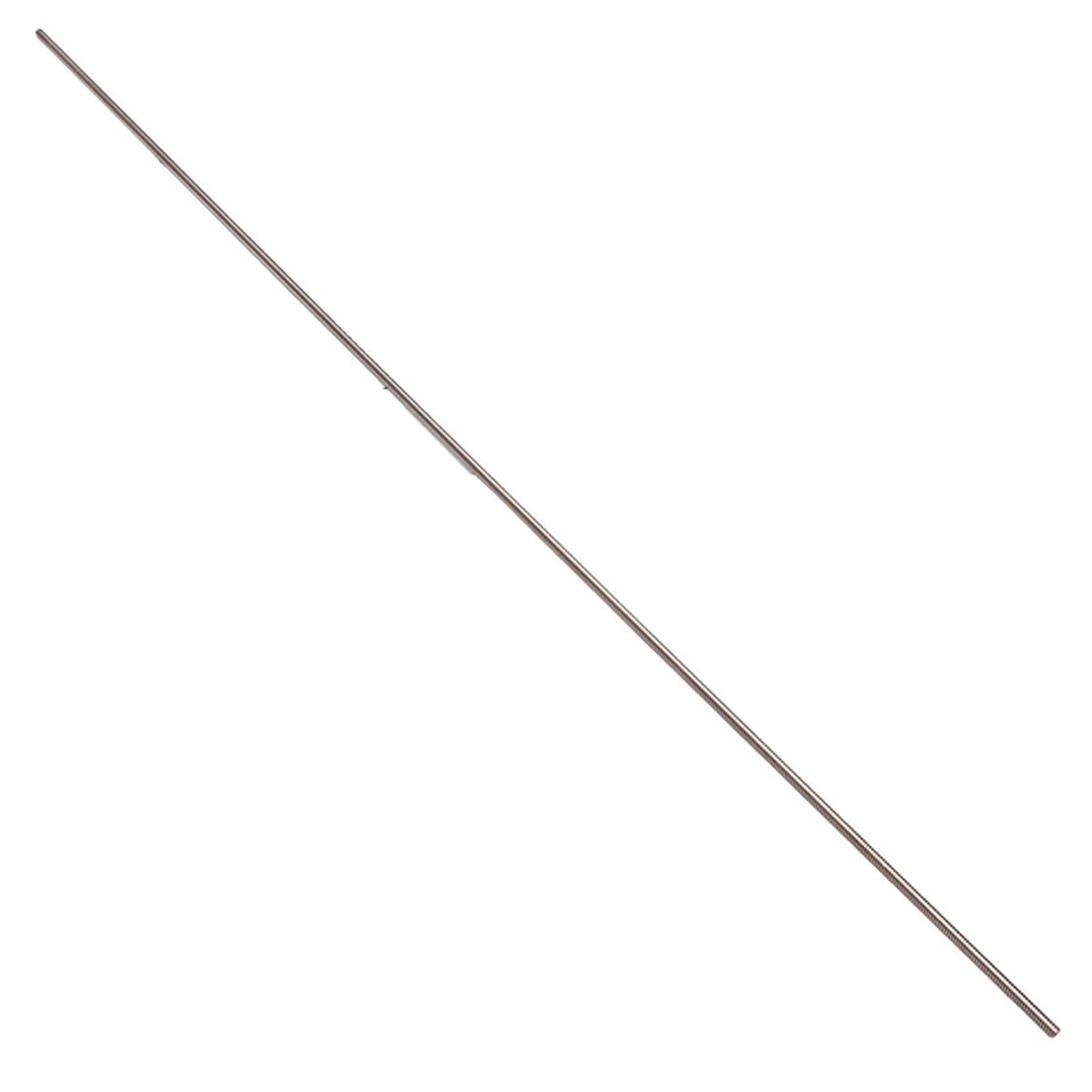

Machifit T8 100-1000mm Stainless Steel Lead Screw with Shaft Coupling and Mounting Support CNC Parts
Specification:

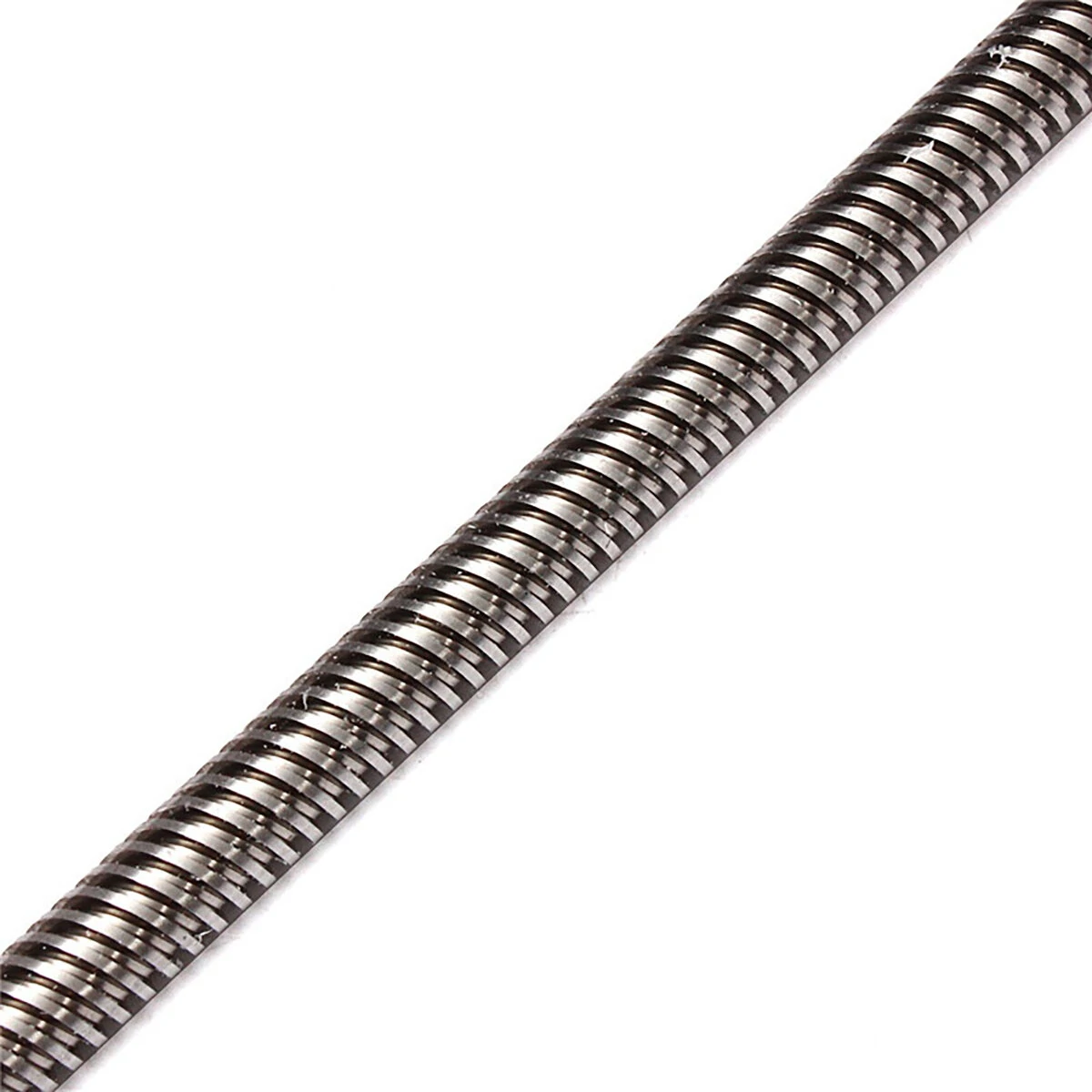

| Lead screw | |
| Material | stainless steel |
| Diameter | 8mm |
| Pitch sapcing | 2mm |
| Lead thread | 8mm (move 8mm per turn) |
| Total Length | 100mm/200mm/300mm/400mm/500mm/ 600mm/700mm/800mm/900mm/1000mm |
| Quantity | 1pcs |
| Screw nut | |
| Material | brass |
| Diameter | 8mm |
| Pitch sapcing | 2mm |
| Lead thread | 8mm |

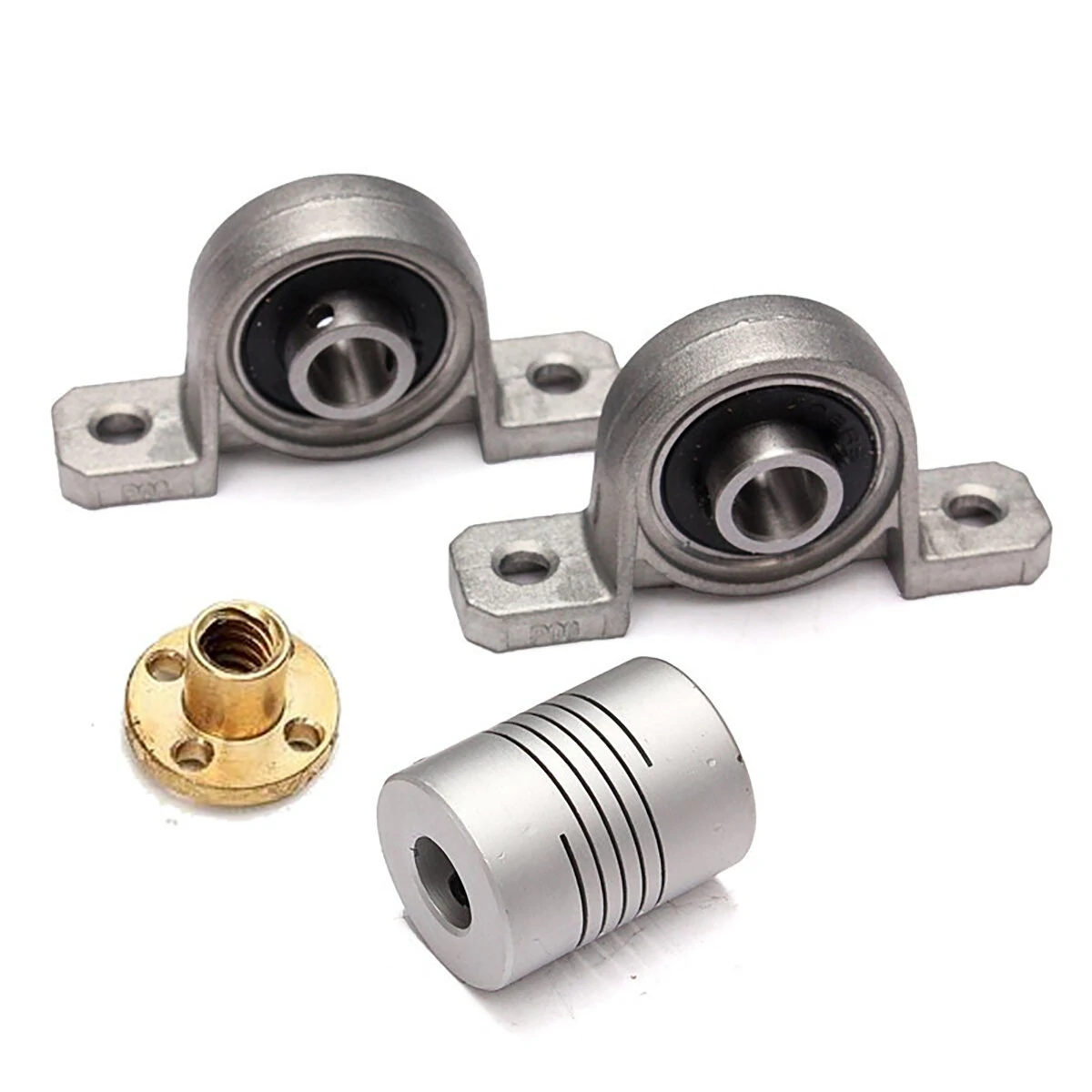

| Mounted ball bearing | |
| Material | zinc alloy |
| Bore diameter | 5mm |
| Hole diameter | 8mm |
| Total length | 55mm |
| Height | 29mm |
| Shaft coupling | |
| Material | aluminium |
| Shaft | 6.35 x 8mm |
| Length | 25mm |
| Diameter | 18mm |

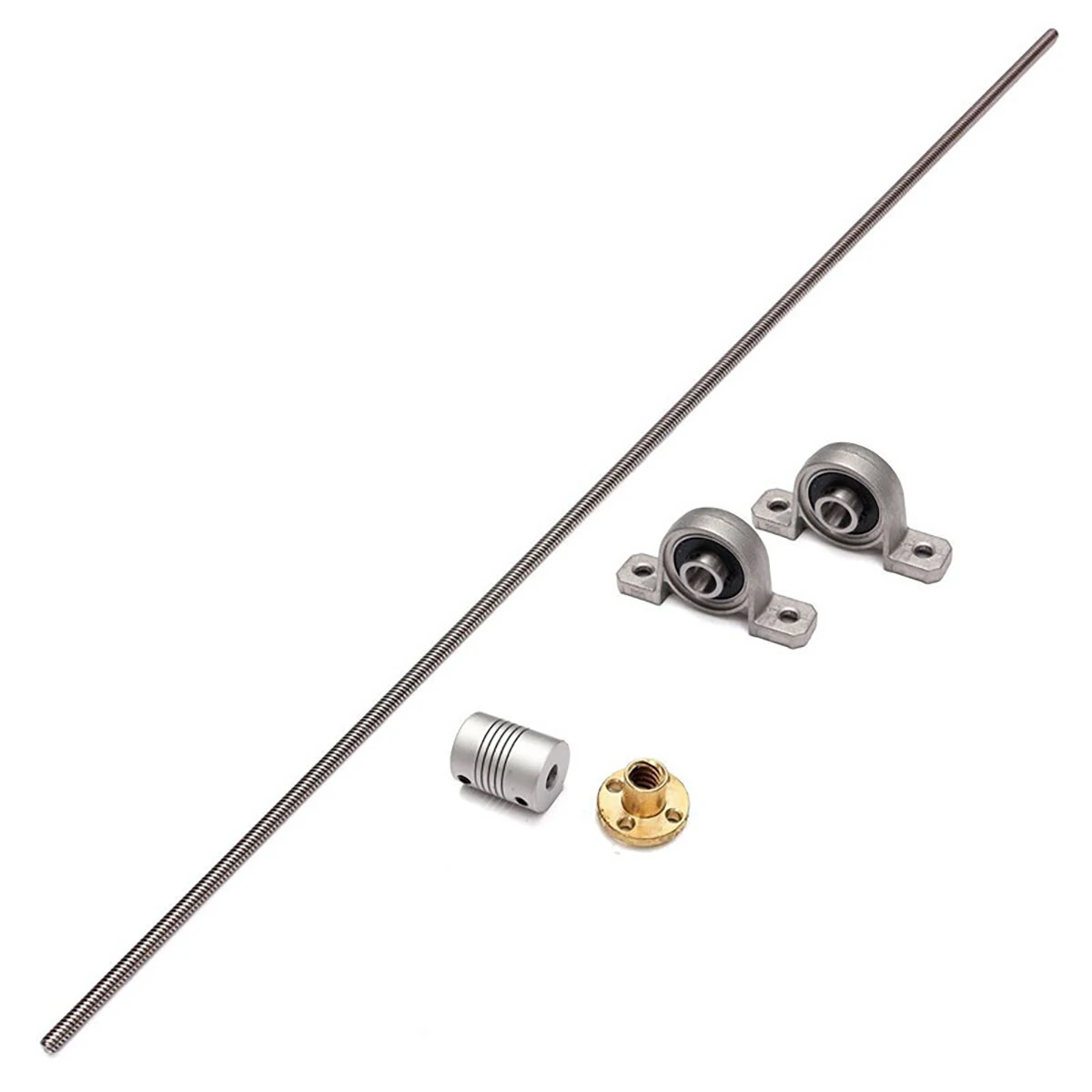

| Quantity | 1 set ( 1 screw + 1 Screw nut + 2 Mounted ball bearing + 1 shaft coupling) |
- Move 8mm for each rotation.
- Screw mainly used in stepper motor, Machine Tool, and other equipment. - Screw without processing, direct connected to bearing. Lead screw was PVC tube packaging. - Suitable for Industrial automation equipment, stepper motor rails; such as 3D printers; engraving machine; XYZ module; slider; lifts etc.
Package Included:
| 1 x | Lead screw |
| 1 x | Screw nut |
| 1 x | Mounted ball bearing |
| 2 x | Shaft coupling |
