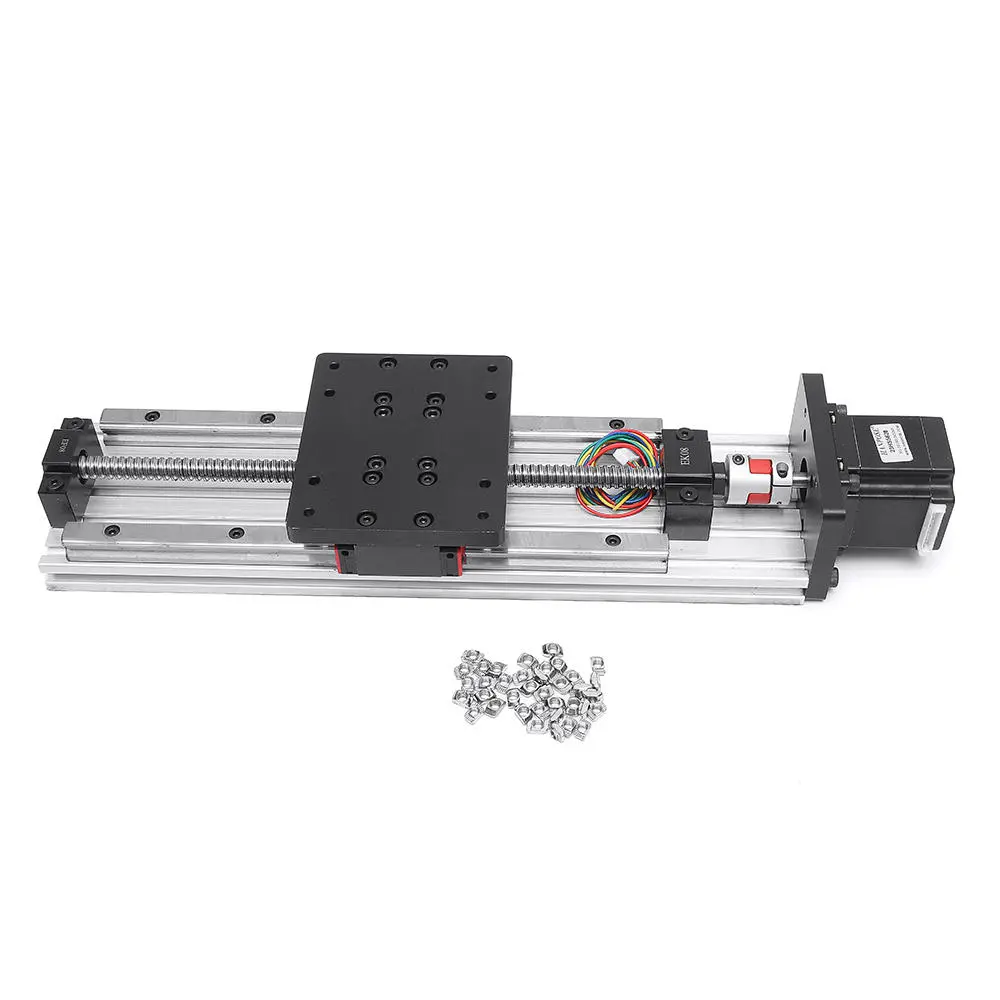

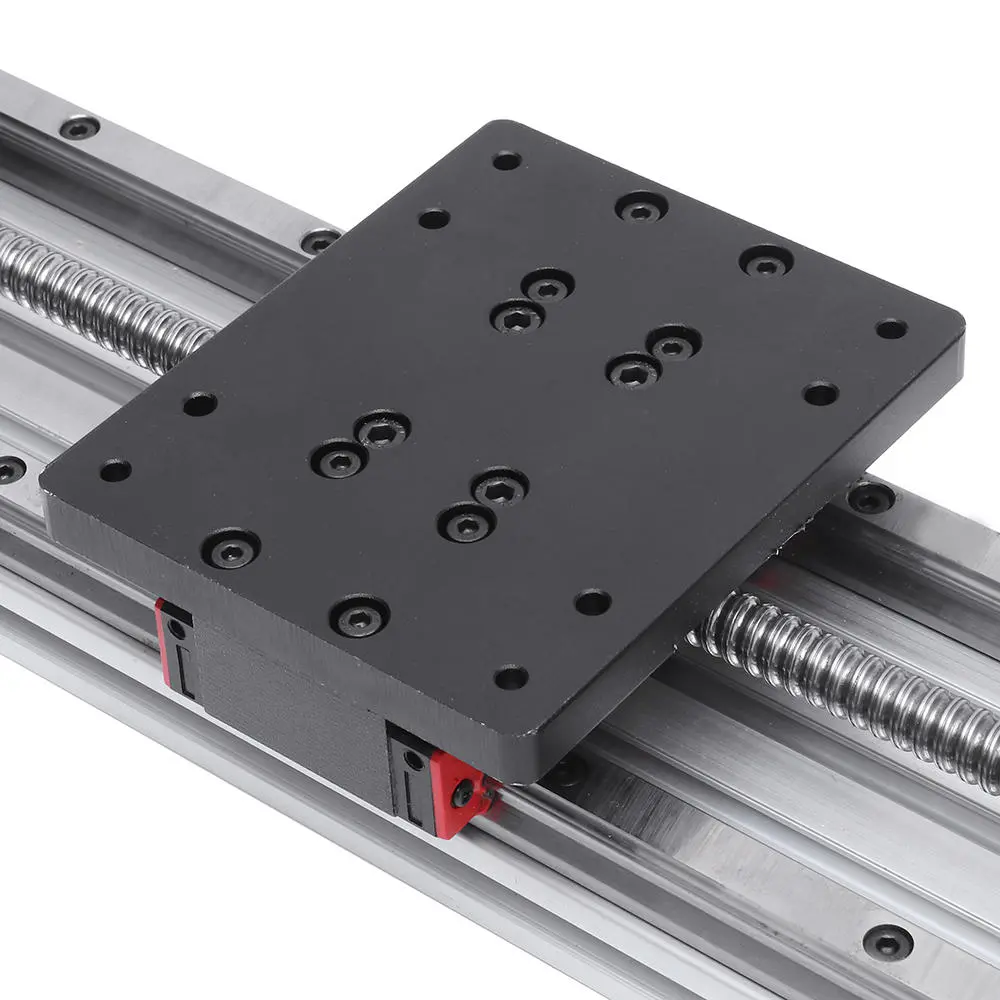

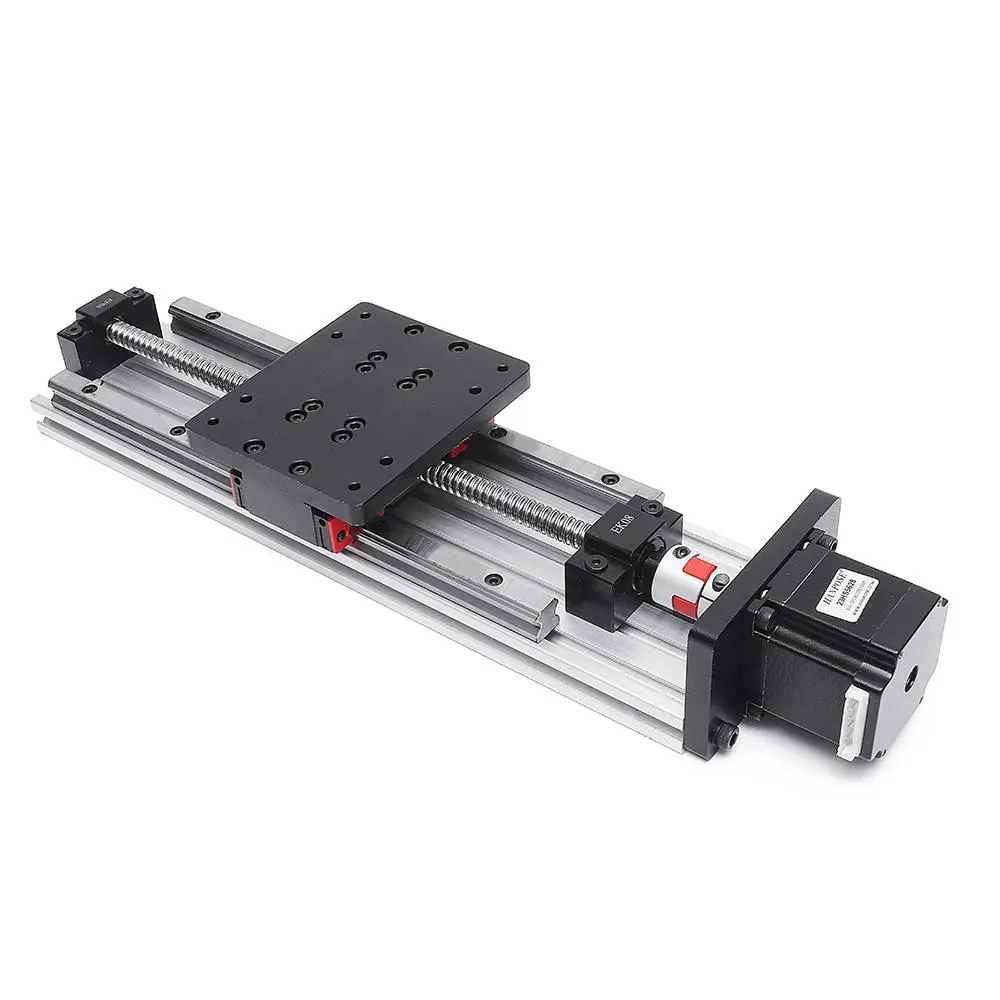

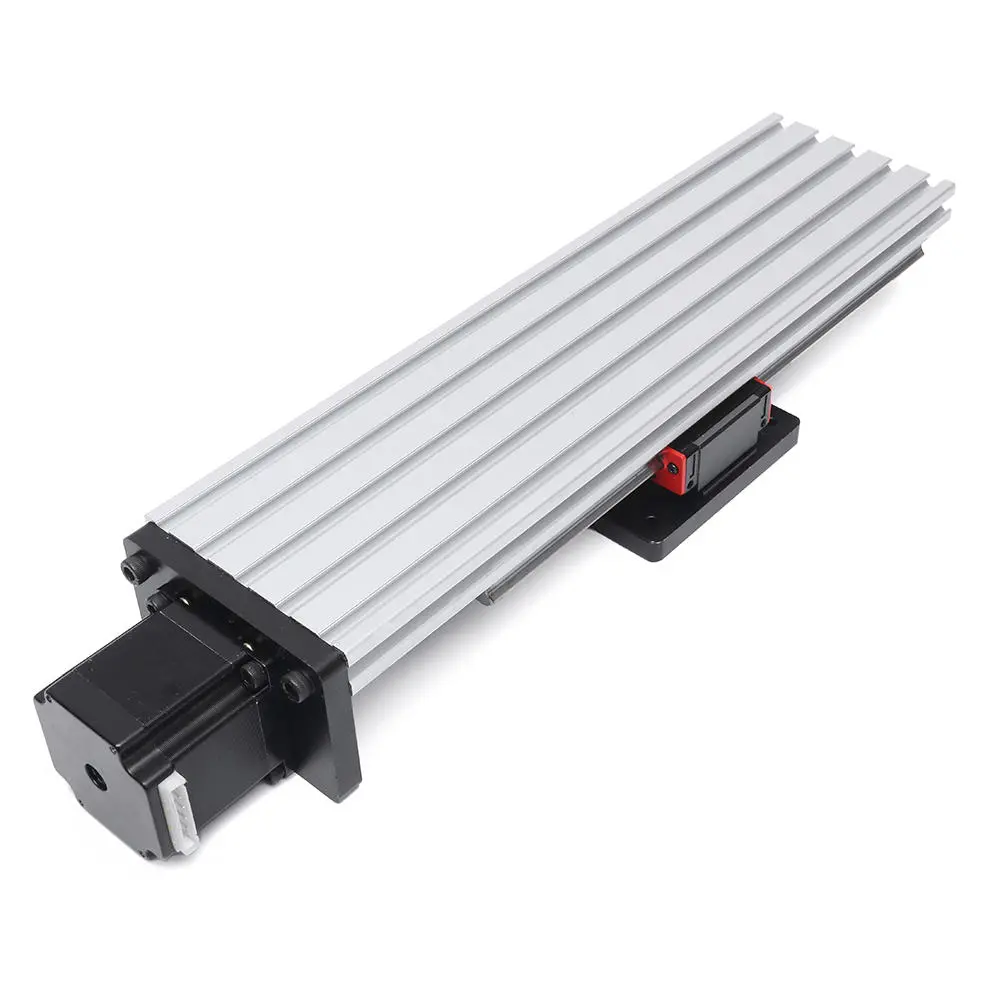

HPV6 SFU1204 Ball Screw Linear Actuator | HGR15 Guides & NEMA23 Stepper Motor

Product Description

Description:
HPV6 Linear Module SFU1204 Ball Screw Linear Actuator with HGR15 Linear Guides with NEMA23 2.8A 56mm 57 Stepper Motor
Specification:
Model: HPV6
Base: 20100 Aluminum Extrusions Linear Guide: HGR15
Ball Screw: SFU1204
Effective Travel: 100-1000mm
Motor: 23HS5628 Stepper Motor Motor leads: 30cm
Total lenght= Effective stroke+134MM
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser
engraving, Automation Equipment, Non-standard Equipment, Placement machine ect.
23HS5628 Stepper Motor:

Model	23HS5628
Phase	2
Step Angle	1.8??
Motor Frame Size	57 x 56mm
Outlet way	"4" plug line
Motor leads	30cm Wire
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Voltage	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	Lead
	( ??)	(L)mm	(V)	(A)	(??)	(mH)	(N.cm)	(G. cm2)	(No.)
23HS5628	1.8	56	2.5	2.8	0.9	2.5	126	300	4

General Specification:

Precision angle step	??5% (full step, no charge)
Resistance accuracy	??10%
Precision inductance	??20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20??)-(+ 50??)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Package Included:
1set x HPV6 HGR LINEAR ACTUATOR
