YIHAOGD YH 2/3 Axis CNC Milling DRO Display | TTL 50-1100mm Linear Scale Encoder for Lathe

Product Description

Description:
YIHAOGD YH 2/3 Axis Grating CNC Milling Digital Readout Display / 5?? 50-1000mm TTL Electronic Linear Scale Lathe Tool

Specification:

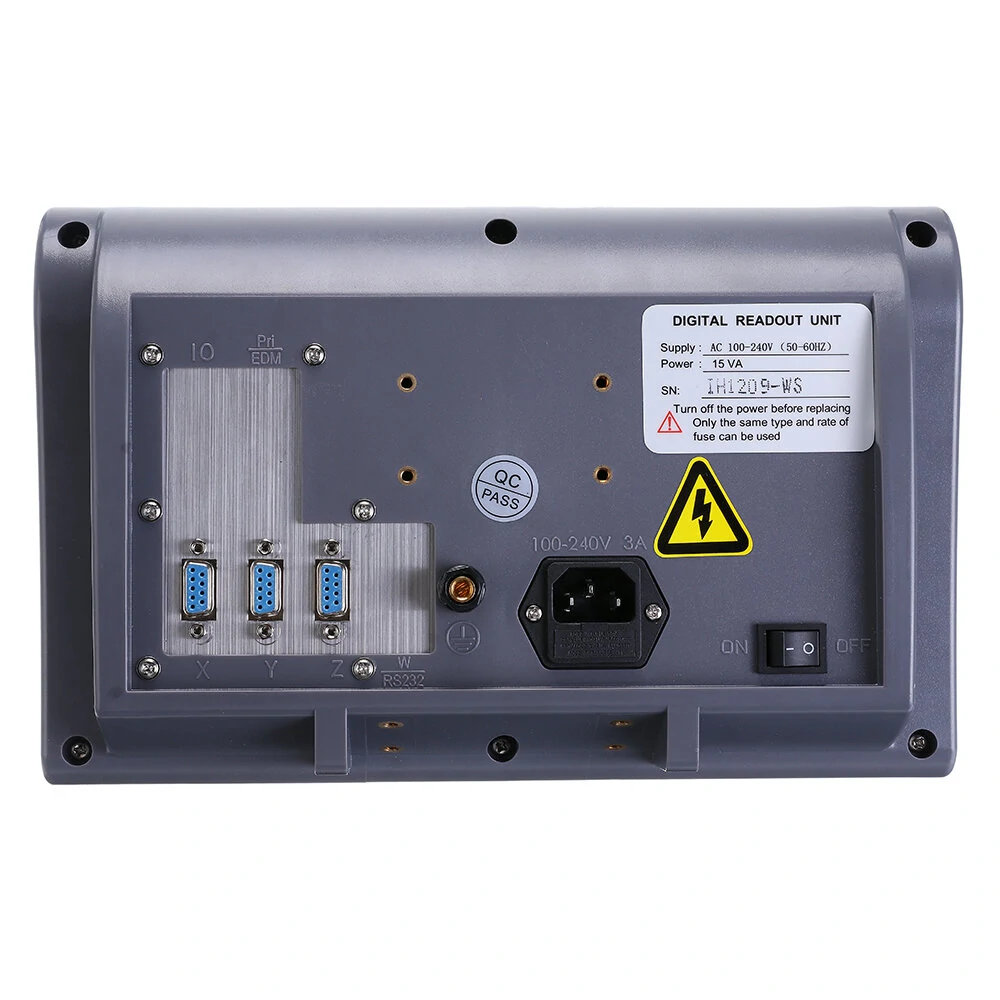

Dro Digital Readout Display System Parameter Model: 2 Axis/3 Axis
Voltage Range: AC 100V~240V/50HZ~60HZ Digital Readout Display Acceptable Signal: TTL Plug: DB9 Acceptable resolution: 10??m, 5??m, 2??m, 1??m, 0.5??m.
Size:

The optional length is measuring effective lengthTotal length = measuring effective length+142mm

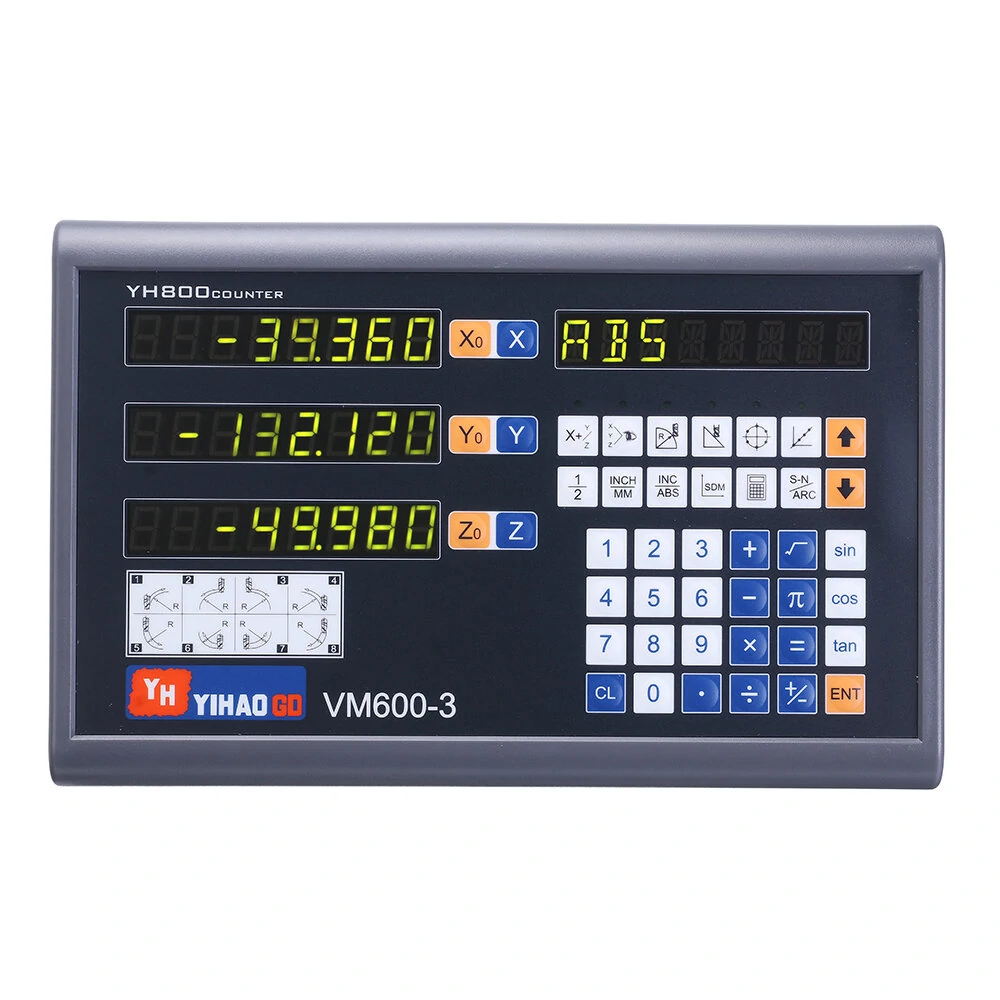

Dro Digital Readout Display System Functions 1:Zero clearing 2:Reset 3:mm/inch mode 4:ABS/INC coordinate conversion 5: 200sets sub datum 6:Power off Memory; 7:Center of 1/2 8:Liner error compensation 9:Sleepping mode 10:Clear 200 sets Sdm datum; 11:ABS/INC mode 12:Calculator 13:Drilling of circumference 14:Drilling of oblique line 15:Machining of inclined plane 16:Machining of circular arc 17:Lathe function(match) 18:Rectangular lumen gradual processing 19:Digital filtering 20:Vibration filtering 21:R /Diameter fucntion 22: Lathe function
5U TTL Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters

1. Travel (measuring) length: 0-1000mm / 0-40inch 2. Total (overall) length: Travel length + 142mm (0-1142mm) 3. Plug: DB9 4. Resolution: 0.005mm(5??) 5. Input voltage: 5V 6. Grating pitch: 0.02mm (50LP/min) 7. Cable length: 3 Meter 8. Normal size: About 22*34 9. Protection class: IP54 10. Signal: TTL

The Signal of 5?? Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor
Pin 2 Black 0V Pin 6 Green A Pin 7 Red 5V Pin 8 White B Pin 9 Orange Z

Features:
Why buy YH digital readout systems?

1.Systems increase productivity, save time and provide higher precision by translating the values measured by linear encoders, length gauges, rotary encoders or angle encoders into an easy-to-read format. 2.They can be installed on new equipment or retrofitted to machines already in operation. 3.Systems work with any machine where axis slides are traversed manually. 4.Data interface allows for additional processing or printouts of the measured values (most models).
Why buy 5u YH Linear Encoders?(Dust-proof, IP54 waterproof design,High quality bearing and reliable) 1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more. 2.High long-term speed stability. 3.Sturdy construction and high resistance to vibration. 4.Finer signal periods offer highest interpolation accuracy. 5.Compact, lightweight and easy to install. 6. Dependable??functions properly even after many years of operation. 7.Sealed or enclosed linear designs available.
Package Included:??optional??
3 Axis Digital Readout Package Included:

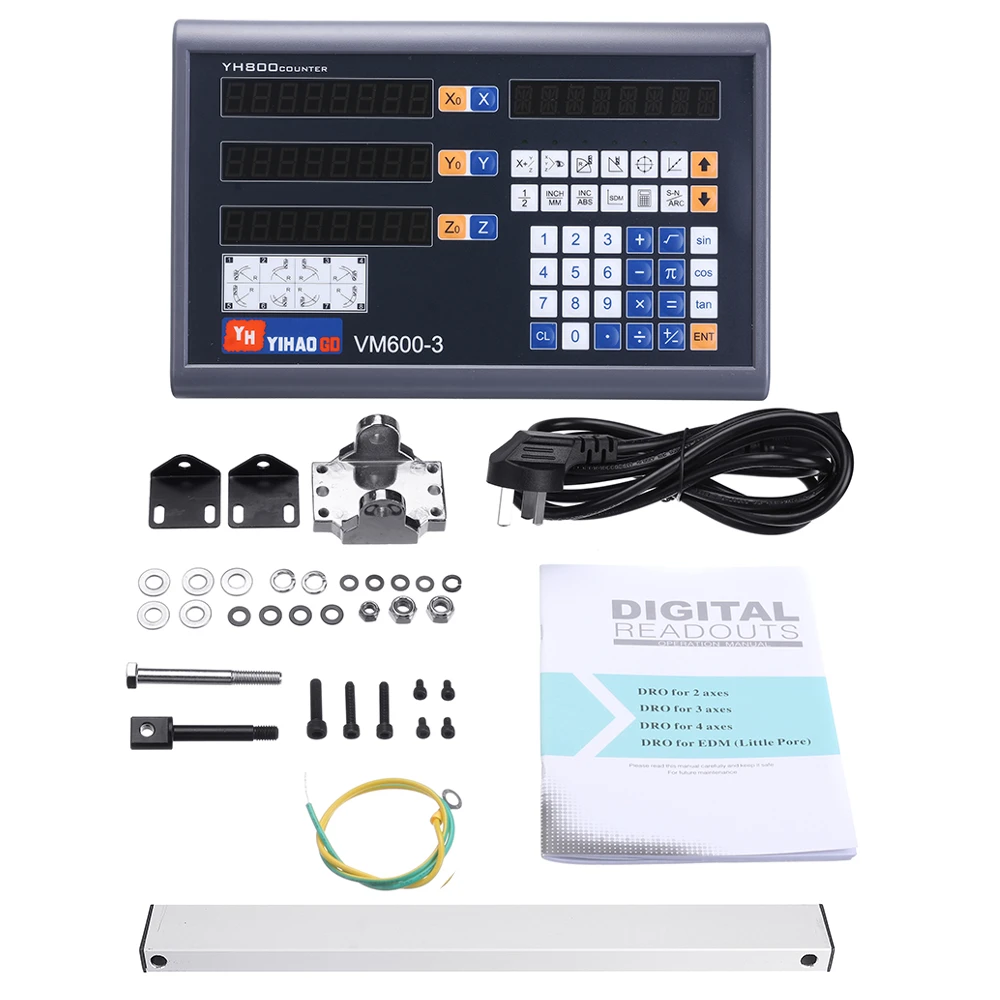

1 Pcs x 3 Axis Digital Readout 1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country) 1 Set x Bracket and Accessories 1 Pcs x Manual

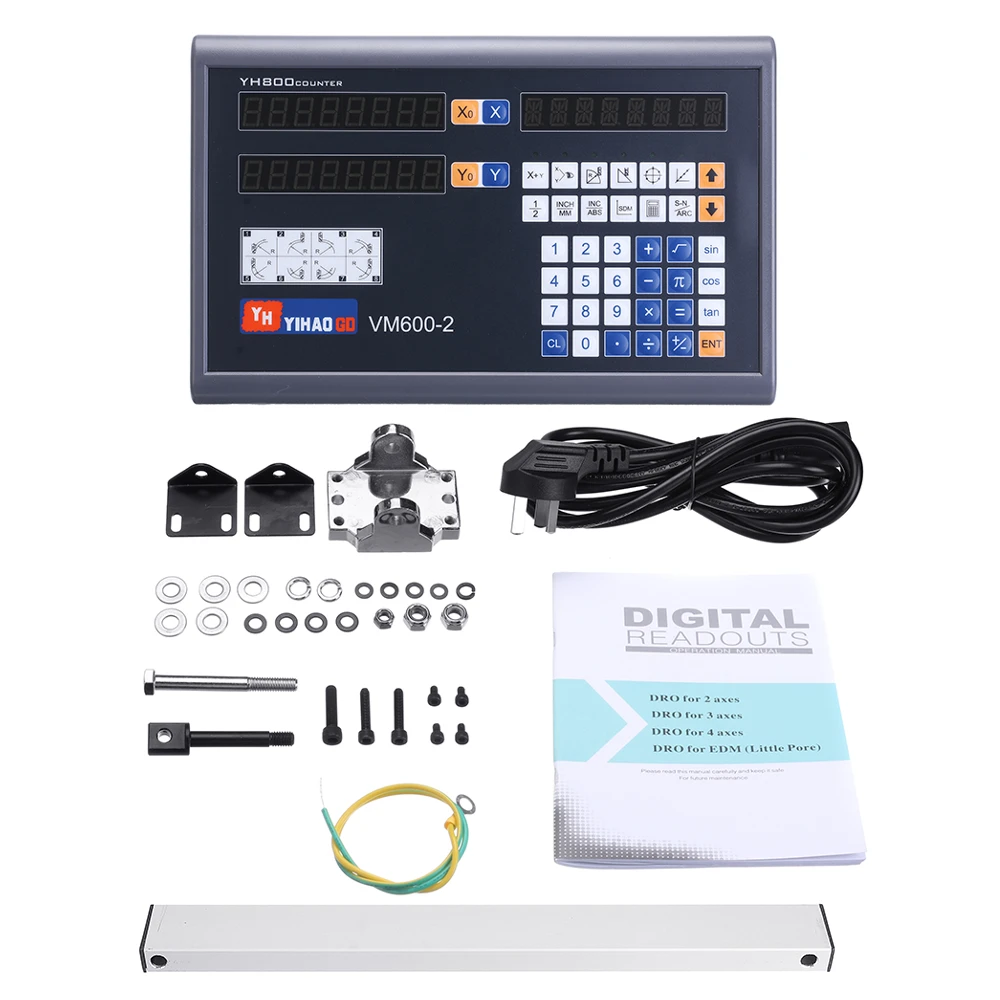

2 Axis Digital Readout Package Included:
1 Pcs x 2 Axis Digital Readout 1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country) 1 Set x Bracket and Accessories 1 Pcs x Manual
Linear Scale Package Included:
1 Pcs x Linear Sacle 1 Pcs x L plate 1 Pcs x Bracket 1 Pcs x Bag of screw
