Machifit DT02-3 Wireless CNC Tool Setter | Z-Axis Height Controller for Router
Product Description
Features:
- [Working application]: The receiver Working voltage: 5~24V DC, and the working current is less than 20Ma, low-power wireless tool setting instrument, suitable for various CNC machining centers.

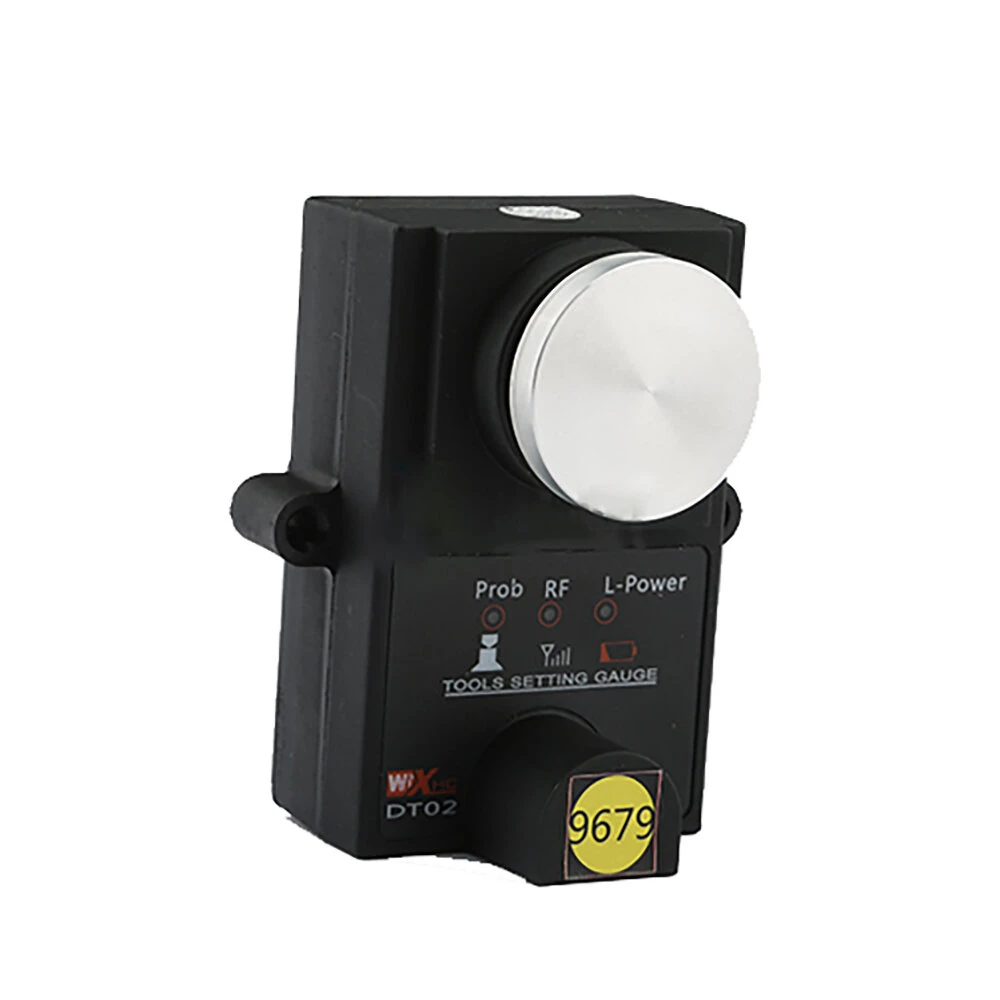

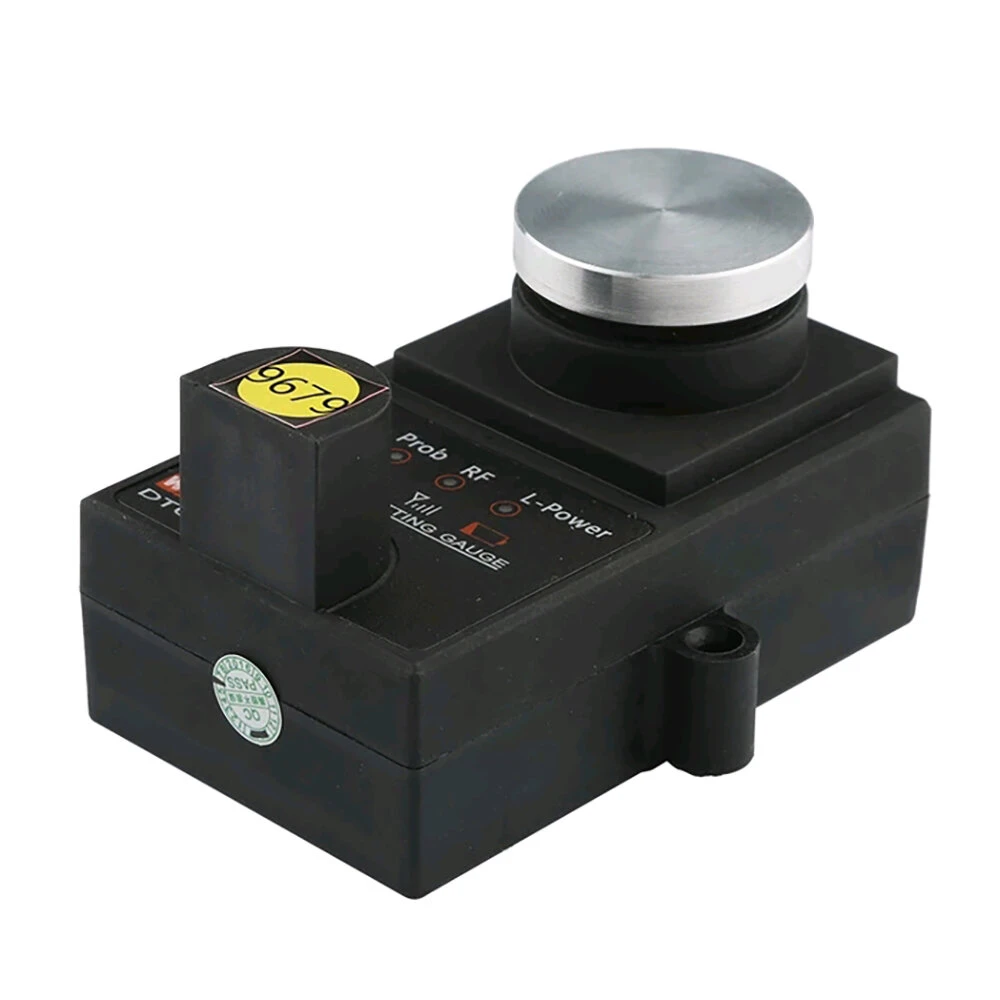

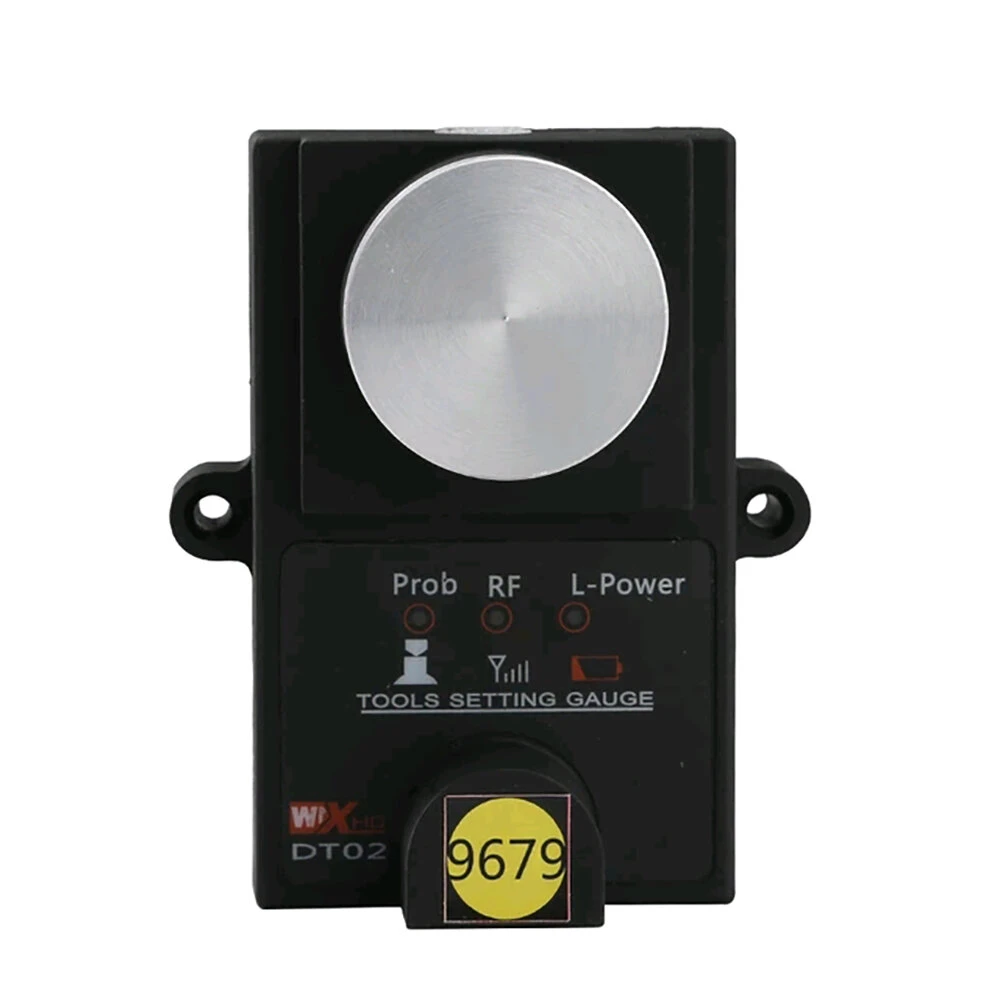

- [Pressing down the contact]: Lightly press the tool setting instrument, that is, when the tool triggers the tool setting instrument transmitter contact, the tool setting instrument transmitter will immediately transmit a trigger signal to the tool setting instrument receiver.

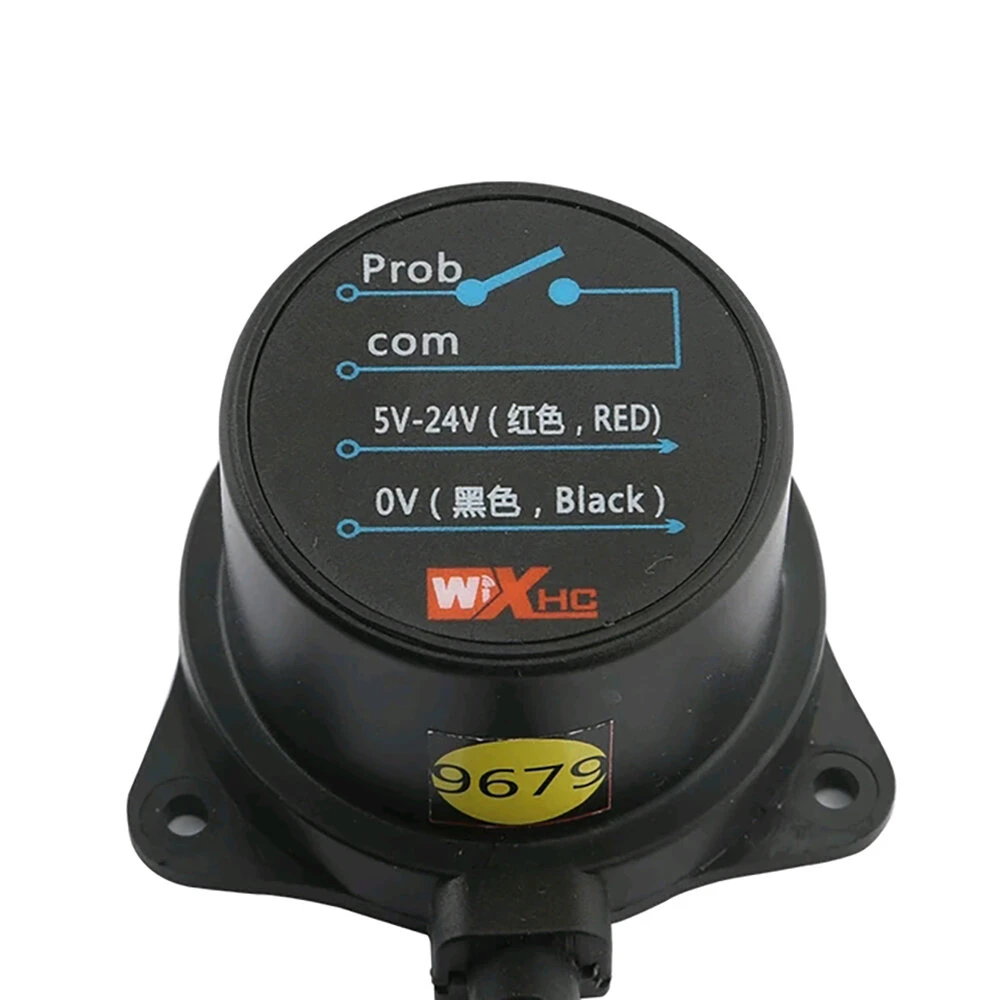

- [Wireless connection]: The wireless link distance is 20m, the cable length is 1.5m, and it is linked with the internal tool setting interface of the machine moment.
- [Battery description]: Install the 2PCS AAA batteries to the terminal device. Open the the battery door->install the 2pcs AAA, our parcel not include batteries.
Specification:
Produce name | NC Studio tool sensor |
Model | DT02-3 |
Working voltage | DC 2.4-3.6V |
Working current | The average current is less than 20Ma |
Working DC | 5-24V |
Tool setting accuracy | 0.01mm |
Size | 78x68x47mm |
Wireless distance | 20m |
Battery installation | 2 AAA batteries |
Low pressure warning | The battery voltage of the tool setter is lower than 2.4V, prompting to replace the battery |
Cable length | 1.5m |
Internal relay output | Support 250V/50mA load |
Type | NC |
??User's Manual??click to check
Produce Included:
1 Pc x | NC tool sensor |
