Machifit 6 Axis CNC MPG Pendant - Manual Pulse Generator with Emergency Stop

Product Description

Description:
Machifit 6 Axis CNC MPG Pendant Handwheel with Emergency Stop Switch Manual Pulse Generator for CNC Machine
Specification:
- x1, x10, x100 switch - X, Y, Z, 4th axis selector switch (5th, 6th) - LED indicator - High quality professional chassis - 6ft extendable high quality shielded cable cord - Magnetic base holder can place anywhere on the machine steel surface - Required 5V+, 150mA, power for MPG - Phase output is A ,/A and B,/B; - TTL output, drive capability +-20mA; Support CNC system: - Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC,GSK,opened NC, KND,Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.
Note:
Please note that the type used in 5V. (A, A-, B, B-)
Wiring: - User can wire this unit to the CNC system with easy.
- Red: +5V - Black: 0V - Green: A - White: B - Purple: A - Purple/Black: B - Black/Green: + - Black/White: - - Yellow: X - Black/Yellow:Y - Brown: Z - Black/Brown: 4 - Pink: 5 - Pink/Black: 6 - Gray: X1 - Black/Gray: X10 - Orange: X100 - Black/Orange: COM - Blue: C of Emergency Switch - Black/Blue: CN of Emergency Switch
Features:
- 6-Axis pendant handwheel with an emergency switch. - You can adjust its pulse manually X1 X10 X100 . - 3m/9.8ft Extendable spring cord can withstand more than 300,000 times of stretching. - Its illuminescent tube is made in Taiwan and its band-switching is FD switch, ensuring high quality . - Durable ABS housing not easy to break. - Built with LED indicator .
Package Included:

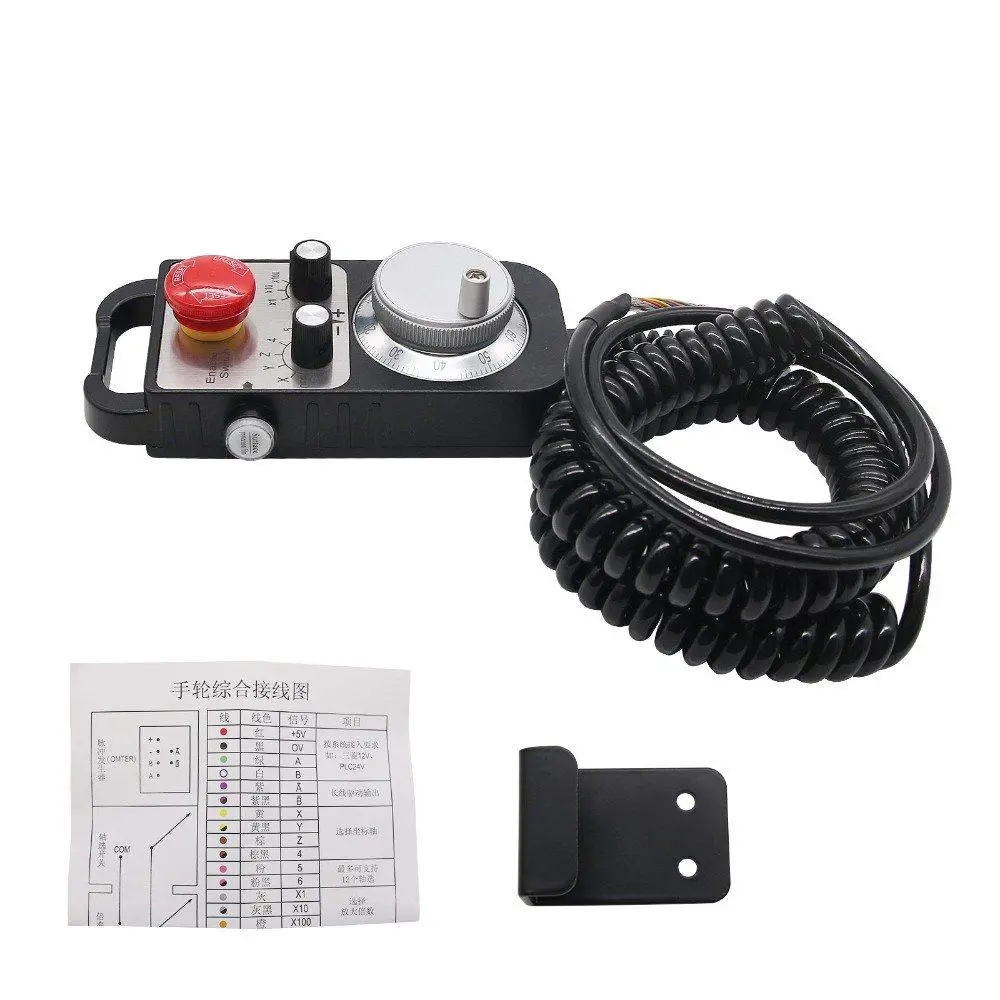

1 x 6-Axis CNC Pendant Handwheel
More Details:
