MACH3 Ethernet Motion Control Card | 3/4/6 Axis CNC Controller for Lathe & Engraver
Product Description
Description:

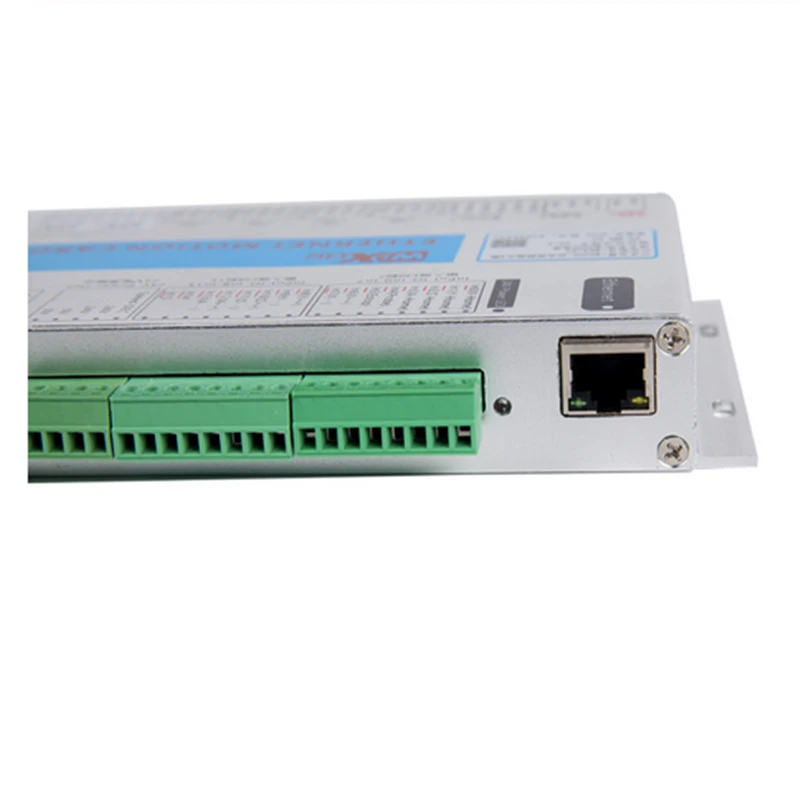

MK3-ET MK4-ET MK6-ET MACH3 Ethernet Port Motion Control Card Interface Board 3/4/6 Axis Motion Controller for CNC Lathe Engraver
Specificatinos:
Product Name | XHC Mach3 Ethernet port 6axis motion control card |
Model | MKX-ET |
Size | 184*127*30mm |
Axis Type | 3 axis: MK3-ET3 4 axis: MK4-ET4 6 axis: MK6-ET6 |
Axis Output Control | Drive Current Isolated open collector output; 5V, 20mA Drive Pulse+direction output Output Frequency 2000KHZ Isolation Voltage 3.5KV |
Spindle Inverter Output | Analog Voltage Output 0-10V PWM Output 5V, 1KHZ, Duty; 0-100% Pulse+Direction Output 5V, 15HZ to 4KHZ |
8 IO Output | Drive Current Isolation: 50mA, 25V Isolation Voltage 3.5KV |
16 IO Input | Input Current Isolated inputs, 5mA, maximum voltage 25V Isolation Voltage 3.5KV |
Quantity | 1 Set ?? XHC Mach3 Ethernet port 6axis motion control card |
| Manual(click to check) | Manual 1 Manual 2 |
More to search:
MACH3 USB ID: 1742678
MACH4 USB ID: 1742682
Features:
- Fully supporting all Mach3 versions, suppor Windows PC.
- Only support Ethernet interface, Need to set IP address (Please read the last page for reference).
- Support save data when power off.
- Support spindle speed feedback.
- Support 10 meters Ethernet interface cable.
- Supports Up 6-axis.
- Maximum step-pulse frequency is 2000KHz 16 general-purpose input, 8 output.
- Speed feedback fuction, Spindle speed display in real time.
- All IO-port isolation, interference, stable performance.
- Support servo motor and step motor.

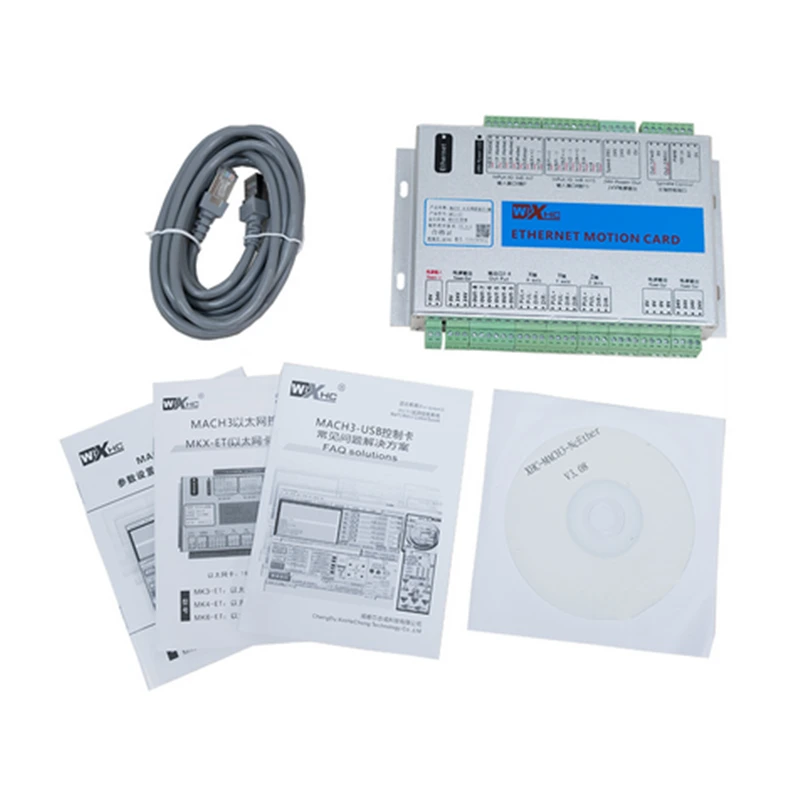

Package Included:
| 1?? | MKX-ET motion card |
| 1?? | Ethernet cable |
| 1?? | Driver disk |
| 1?? | MACH3 trouble shooting |
| 1?? | MACH3 config and driver installation |
| 1?? | MKX ?CET user Manual |
