Machifit SFU1204 Ball Screw 300-650mm | BK/BF10 Supports & 6.35x8mm Coupler for CNC
Product Description
Specifications: | |
Name | 7pcs Ball Screw Set |
Manufacturing Process | Rolled Thread |
Precision | C7 Grade |
Material | Carbon Steel |
Model | SFU1204 |
Diameter | 12mm |
Pitch | 4mm |
Lead | 4mm |
Features:
?? FINE WORKMANSHIP

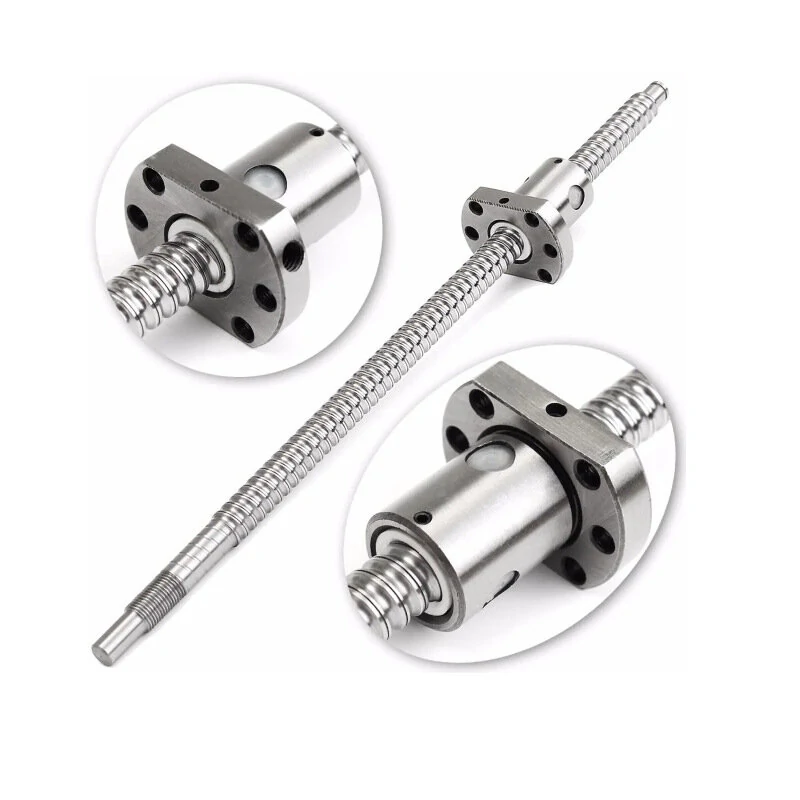

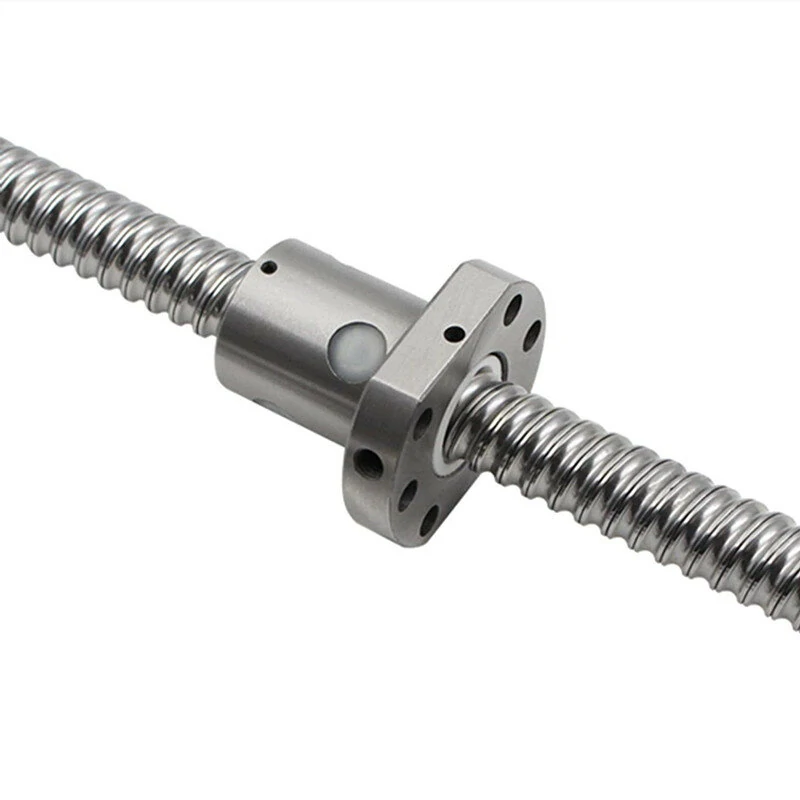

This ball screw is with End machined. Diameter 12mm(0.36inch), Lead 4mm(0.12inch).
?? ADVANTAGE
The ball screw is made of high-quality and durable CF54 steel that is wear-proof and resistant to high temperatures. It provides a helical raceway for ball bearings, which act as a precision screw, playing an essential role in situations where high precision is necessary.
?? MUTE OPERATION
The ball screw kit features an accuracy grade of C7 with bearing fits less than 0.03 mm, making little noise while running.
?? WIDE APPLICATION
The linear motion actuator is widely applied to CNC router, machine tools, robots, precision assembly equipment, etc.

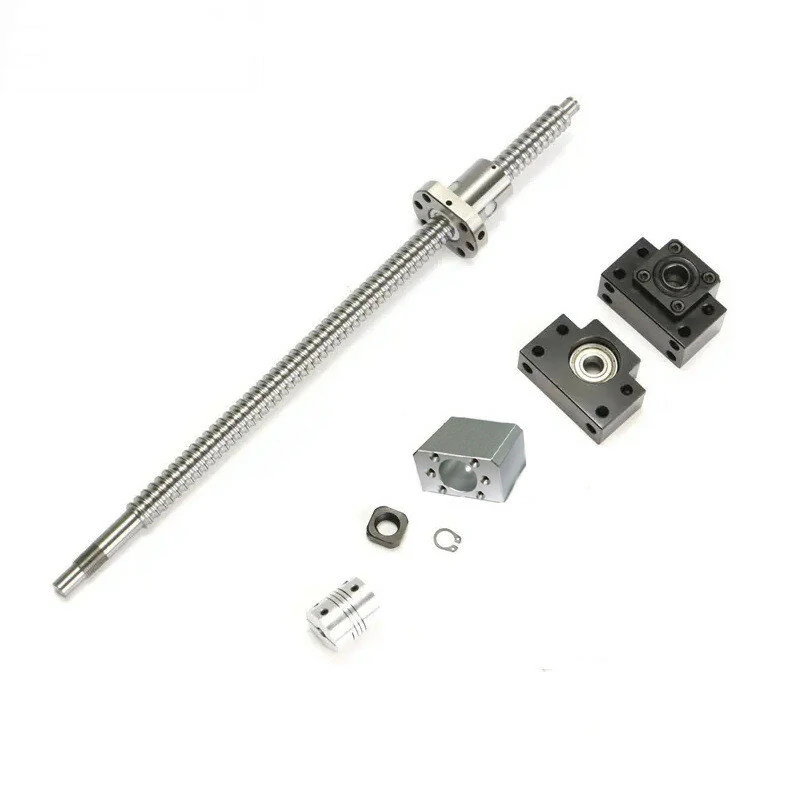

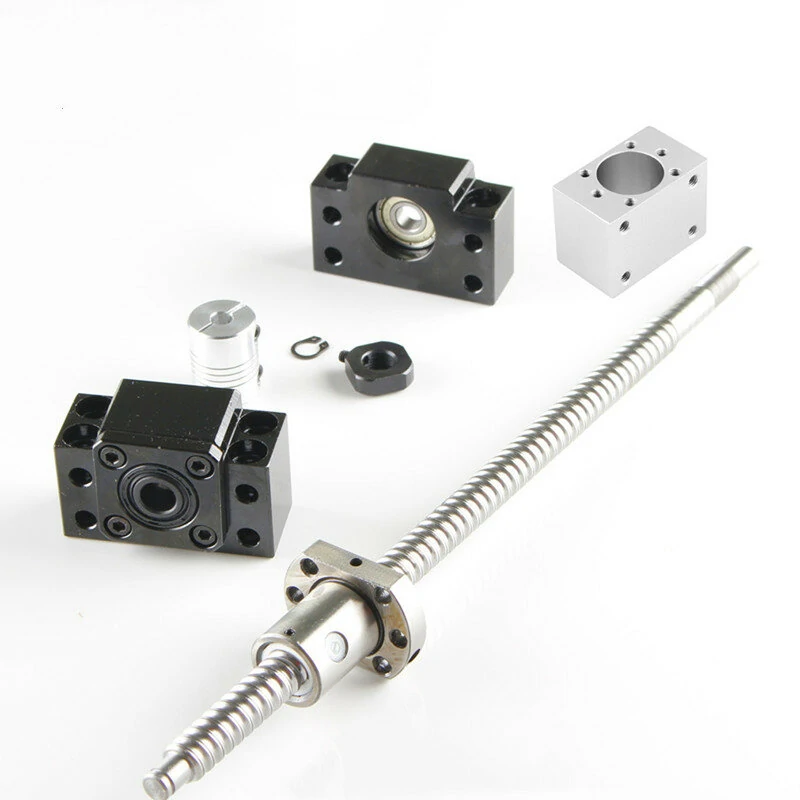

Package Included:
1 x SFU1204 Ball Screw
1 x SFU1204 Fixed Holder
1 x BK10 End Support
1 x BF10
1 x Lock Nut
1 x Circlip
1 x 6.35*8mm Coupling
