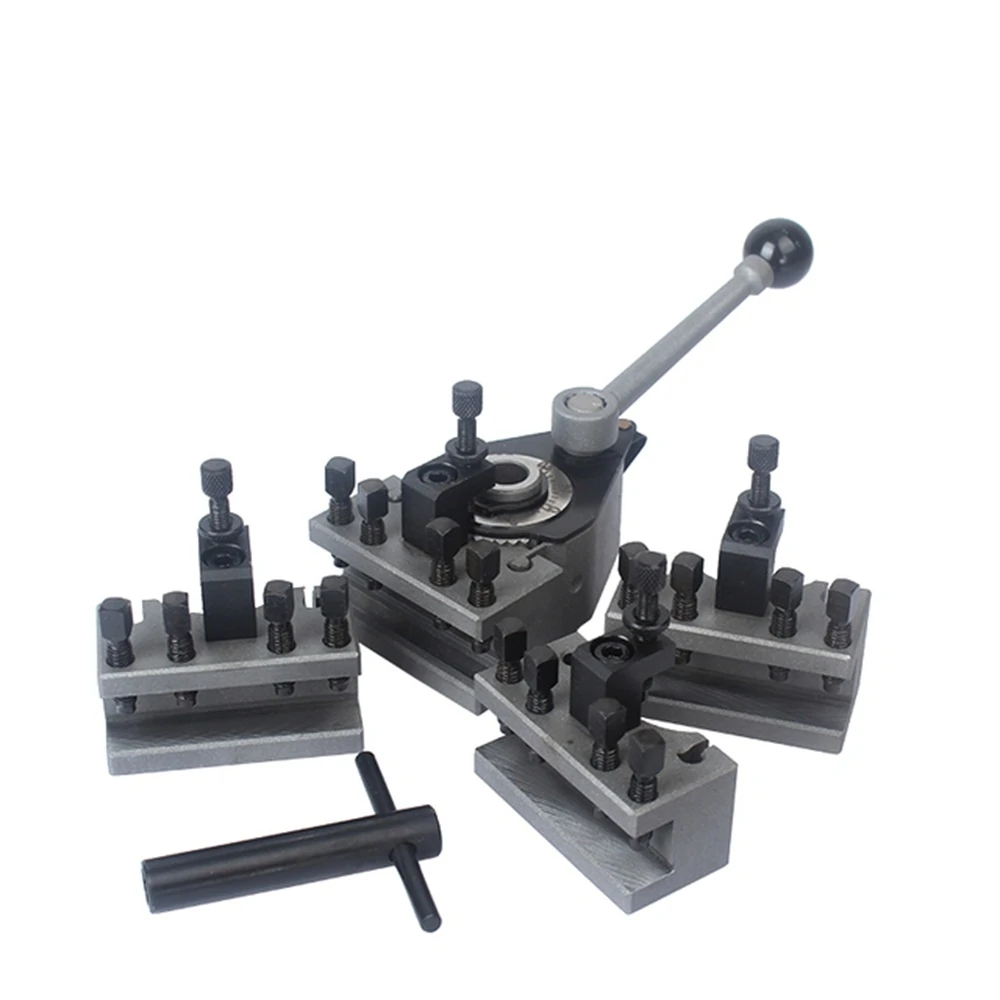

Machifit WM210V Quick Change Tool Post Set | 15x15mm Tool Rest for 120-220mm Swing
Product Description
Description:
Ec Ed Lathe Quick Change Tool Post Set WM210V 15x15mm tool rest for Swing over bed 120-220mm
Feature:
-Process workpieces of various angles. Using the dial, the tool holder can be rotated by 9?? or multiple angles of 9?? each time. Can process various angle workpieces.
-Height adjustable. The tool holder uses adjusting screws and nuts to adjust the installation height of the props, which is easy to operate.
-High efficiency. It only takes a few seconds to change the tool once, and only the tool holder is required to change the processing procedure. high working efficiency.
-High accuracy. The positioning accuracy of the replacement tool post is high, and the resetting accuracy is within 0.01m.
-High stability. The quick-change tool post is set at one time, and the processing stability is high.
-Application: Can be installed on WM210V lathes, etc.
For turning diameter is from 120mm to 220mm(4.7??--8.7??)
The tool post can fit 180mm(7") swing bench lathe well. From cross slide surface to spindle center line height is 56mm.
Specification:

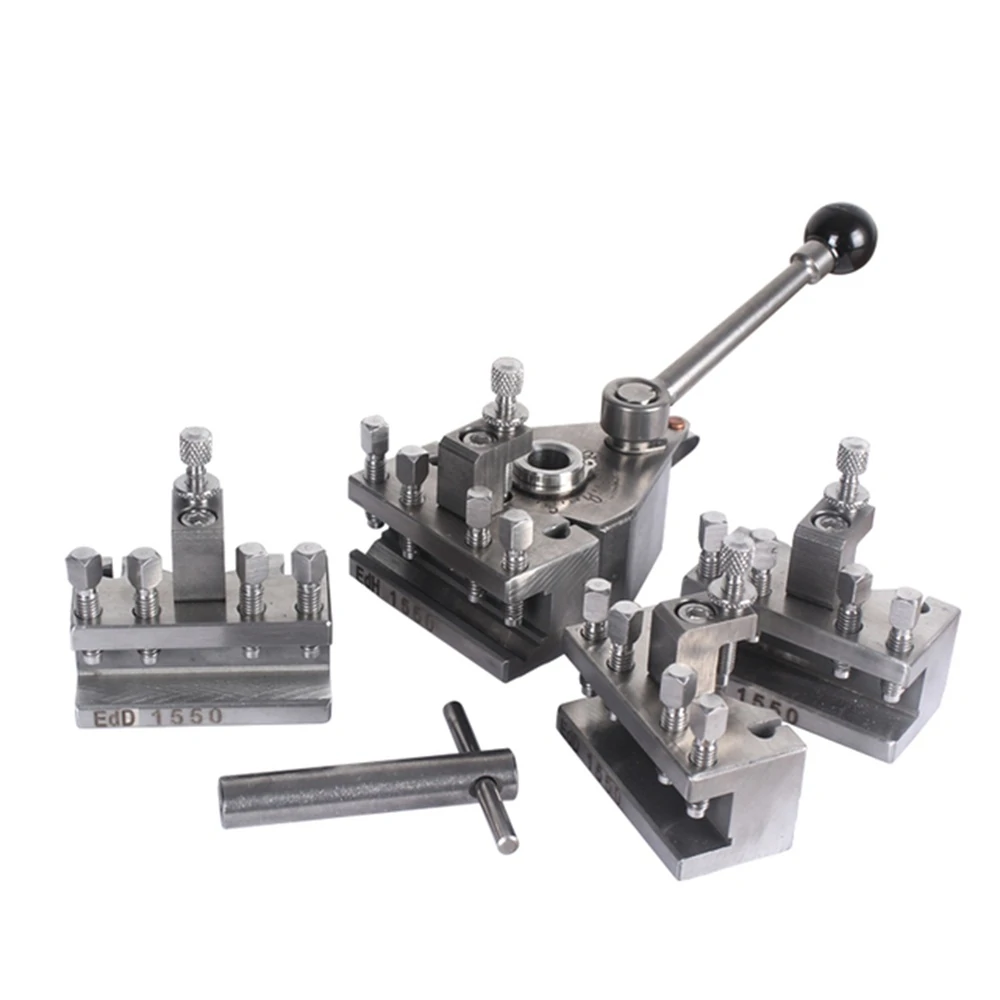

Type(Optional) | Ec(45#steel)/Ed(304 stainless steel) |
Repeatability [mm] | 0.01 |
Recommended top slide width [mm] | 45-60 |
Adjustable turning tool height [mm] | 4-15.5 |
Turning diameter [mm] | 120-300 |

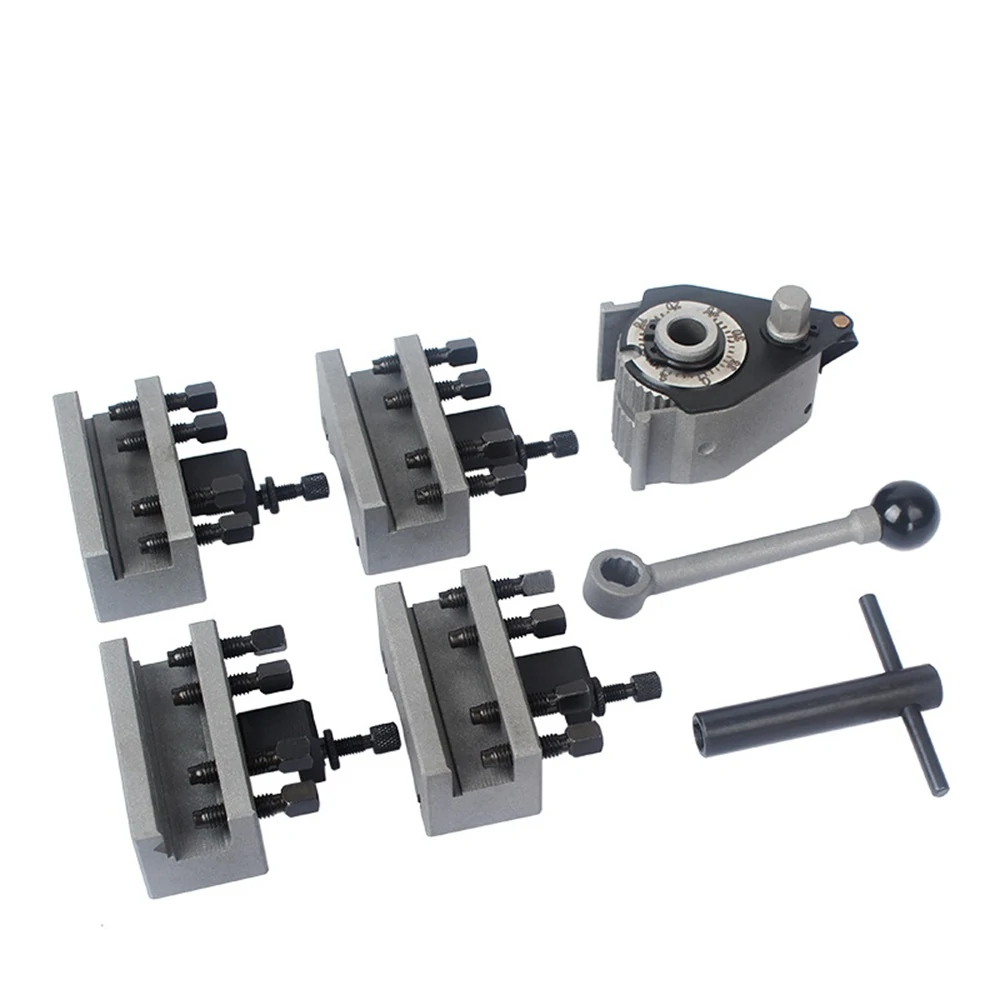

Package Included: (Ec(45#steel)/Ed(304 stainless steel) optional)
1 X | Basic Body |

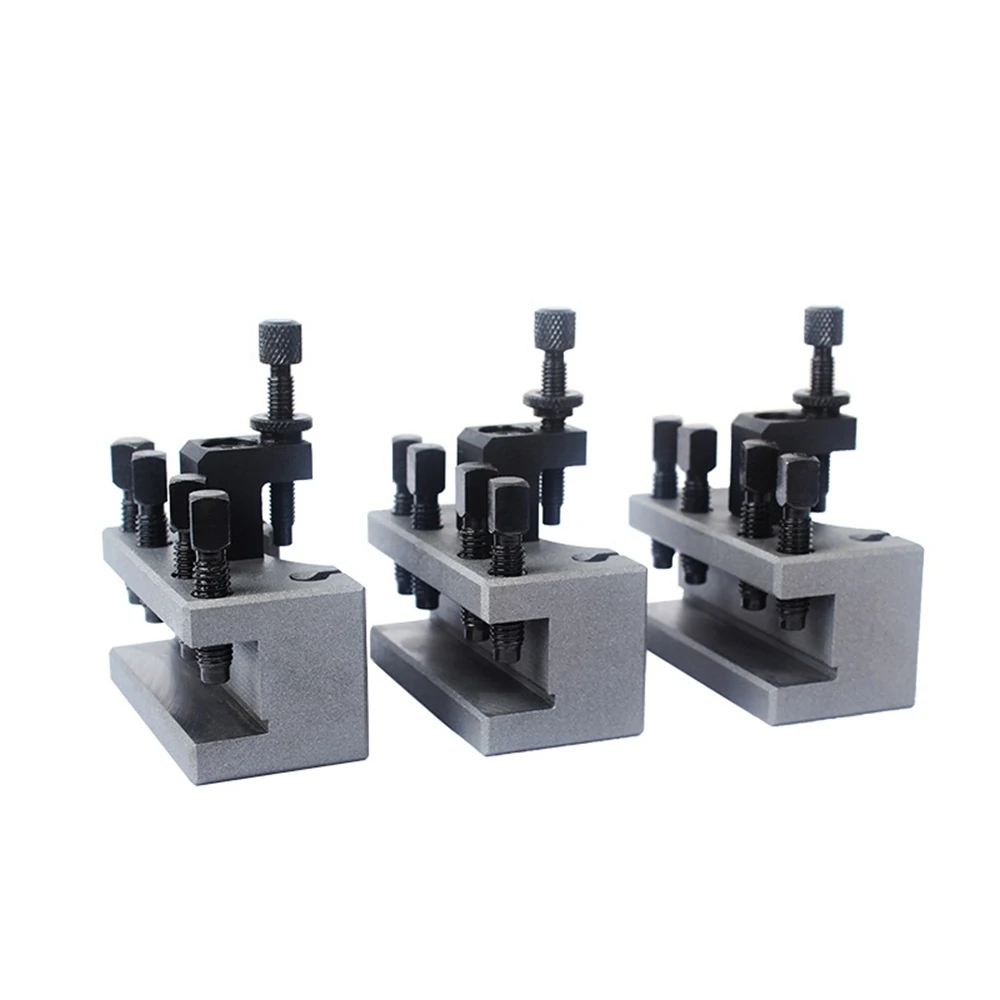

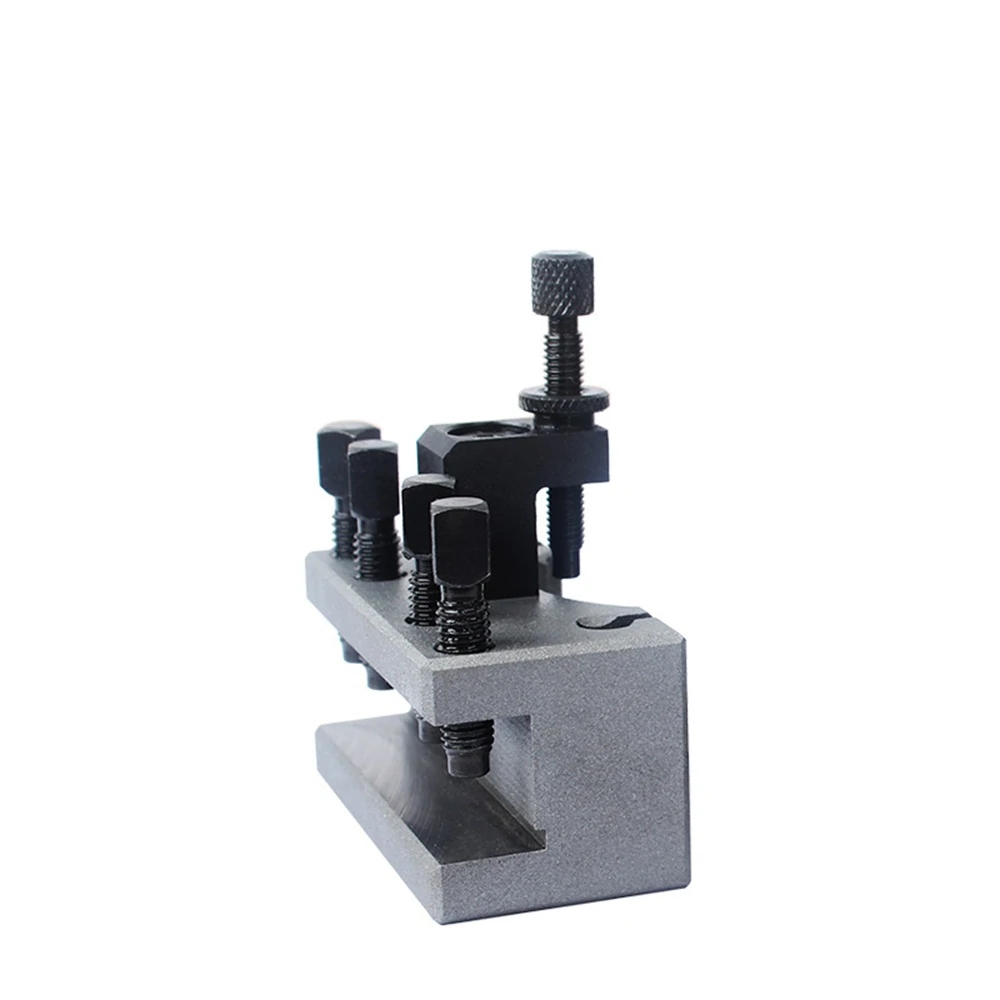

3 X | Steel Holder(EcD/EdD) |
1 X | Steel Holder(EcH/EdH) |
1 X | Wrench |
1 X | Square Key |
More to search Aa Eb lathe quick change tool post holder ID: 1873417
More Detail:
