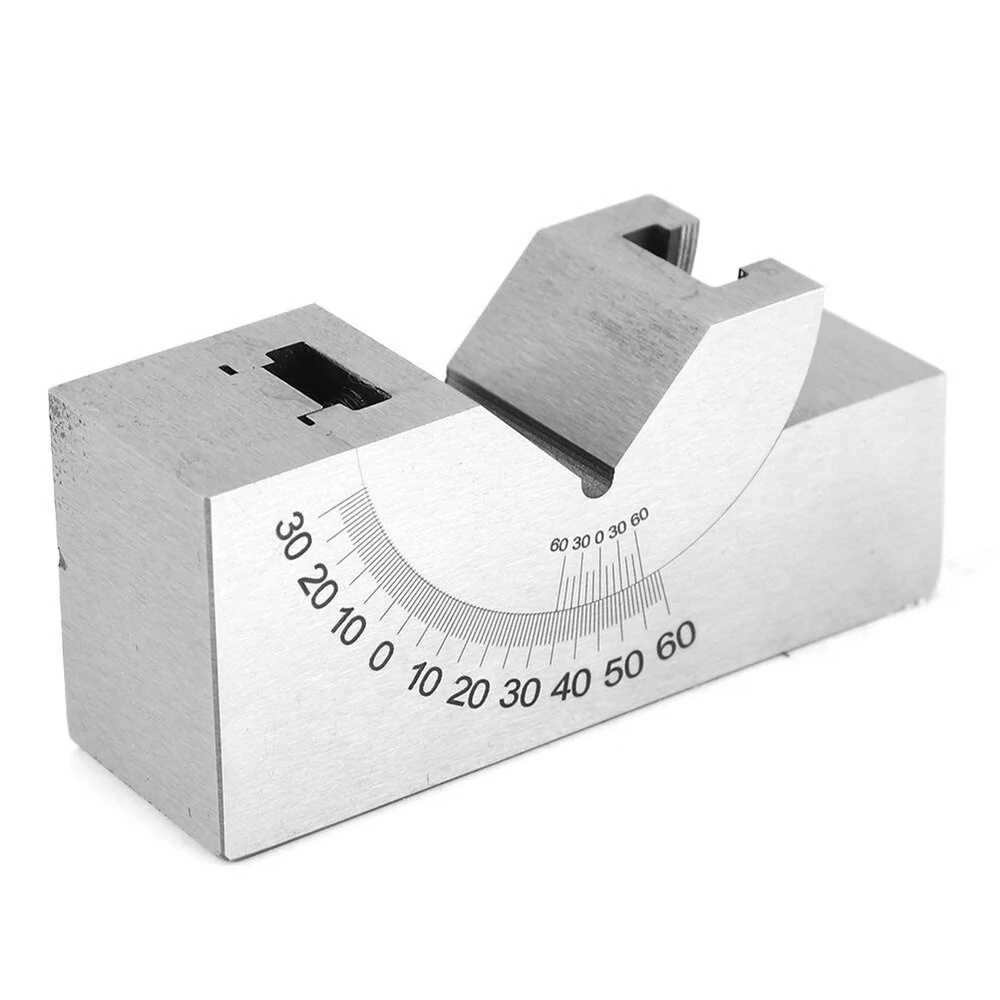

KP30/KP46 Adjustable Micro Angle Gauge - High Precision 0-60° V-Block for Milling & Lathe

Product Description

Features:

- [High precision]: Nickel plated, parallel level of rust, and vertical precision grinding up to 0.01mm of each work surface.

- [Easy to use]: This Angle V-block features high precision and is easy to operate. The cursor indicates stepless tilt adjustment angle, then fixed with screws to create various fixed angle processing and test workpieces.

- [Wide Applications]: Uses in the milling machine, planer, grinder, and drilling with adjustable angle on the knife, crossed or with other fixtures will be the workpiece after the workpiece clamping, such as processing slopes, drilling oblique and so on.

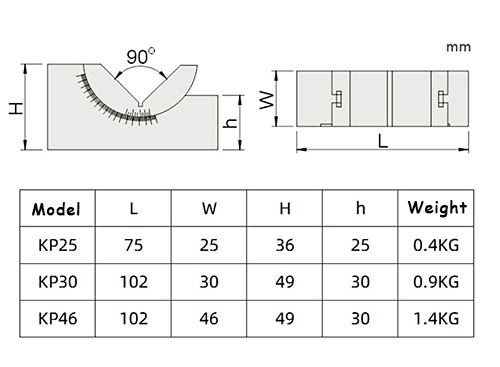

Specification:

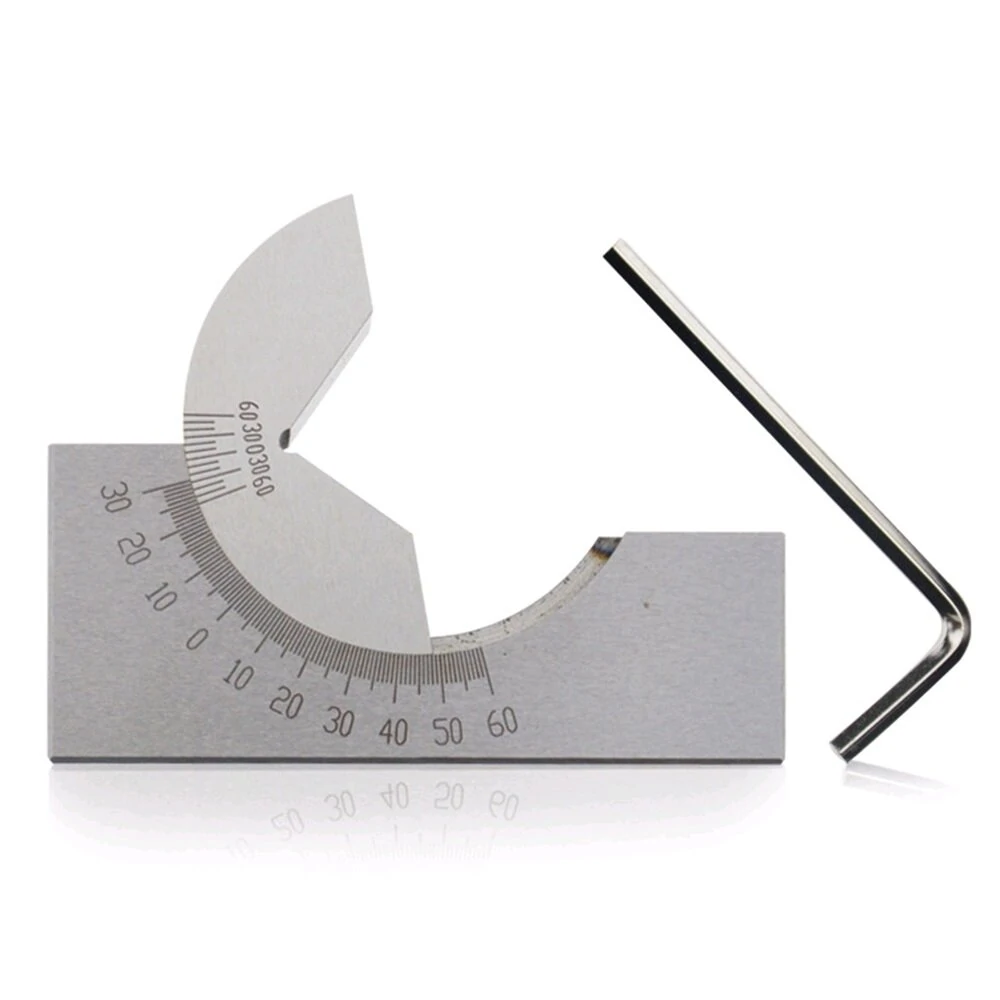

How to Use:

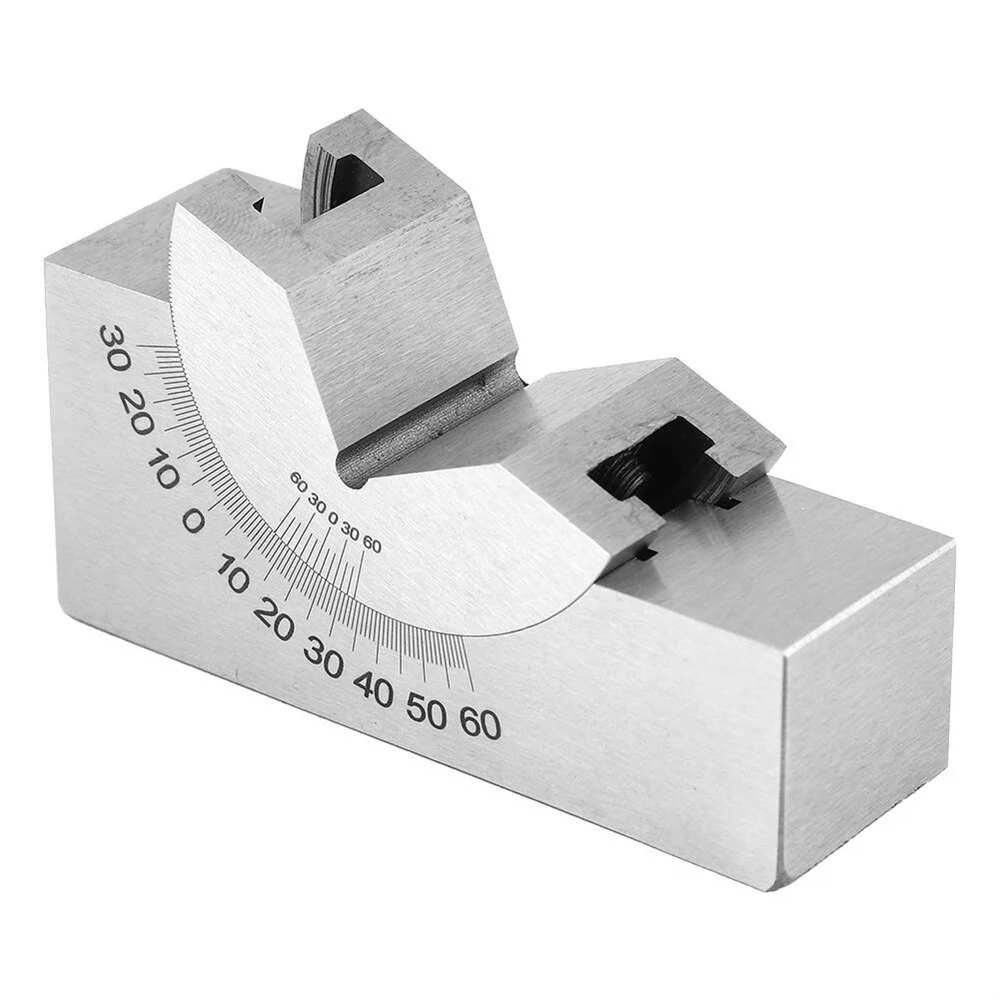

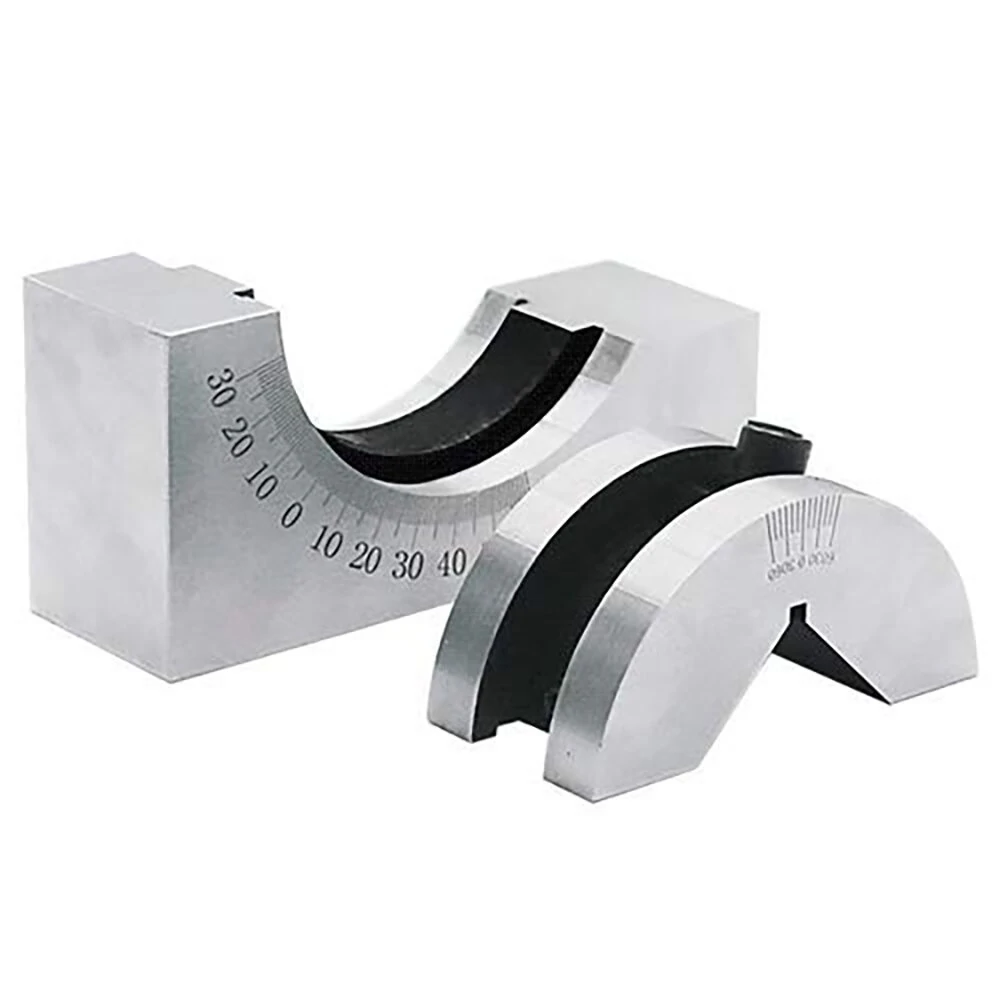

1. Loosen the screw, pull the V-shaped block along the base of the guide wheel rotation, looking for the target angle.

2. The use of the principle of reading the cursor, the main scale on the index of 1??, the cursor index of 10'. The ''0'' line on the cursor is aligned with the ''0'' line on the main scale to indicate that the A measurement plane is parallel to the reference plane and the B reference plane is perpendicular to the reference plane.

1) When the cursor ''0'' line is on the right side of the main scale ''0'' line, the degree is read out with the cursor ''0'' line, and the score is read out with the scale of the right of the cursor ''0'' line (reading is the same as the vernier caliper) Degrees (??), minutes (') that A, B measuring surface counterclockwise turn the angle.

2) When the cursor ''0'' line is left at the left of the main scale ''0'' line, the degree is read out with the cursor ''0'', and the score is read out with the left scale of the cursor ''0'' line. Read out the degree (??), points (') said

A, B measuring the angle of the clockwise turn.

3) After the angle is adjusted to the target value, tighten the V-block to the base.
