Time Pulse Controller for 220V TIG Welding | Modified Argon Arc Welding Machine

Product Description

Specifications:

Voltage: AC 220V ?? 20%

Frequency: 50HZ/60HZ

Power consumption: <15W

Welding time: 1-99MS

Interval: 1-999MS

Pulse frequency: 1-20HZ

Pulse duty cycle: 85

Intelligent memory preservation: 1-20 groups

Suitable for: More than 90% of welders

Working mode: TP21

Welding methods: Single point / continuous

Size: 180x160x120MM

Weight: 3KG

Note:

This controller needs to be used with an argon arc welding machine, mainly to control the welding time. After the welding is completed, the solder joint has a temperature and needs to be polished.

Package Included:

1 x Argon arc weldeing pulse controller

1 x Foot switch

1 x Control line

1 x Power cord

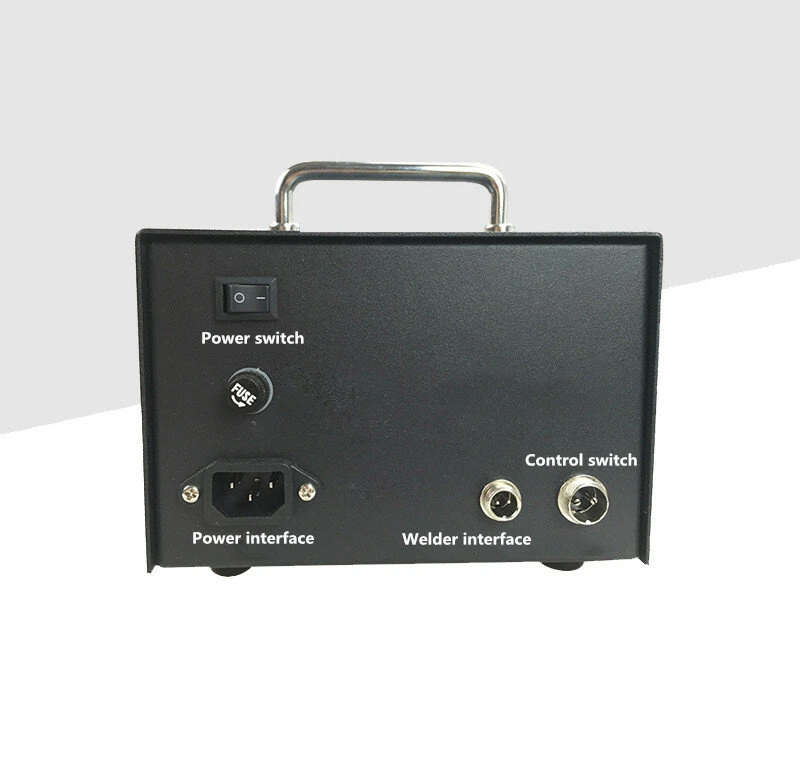

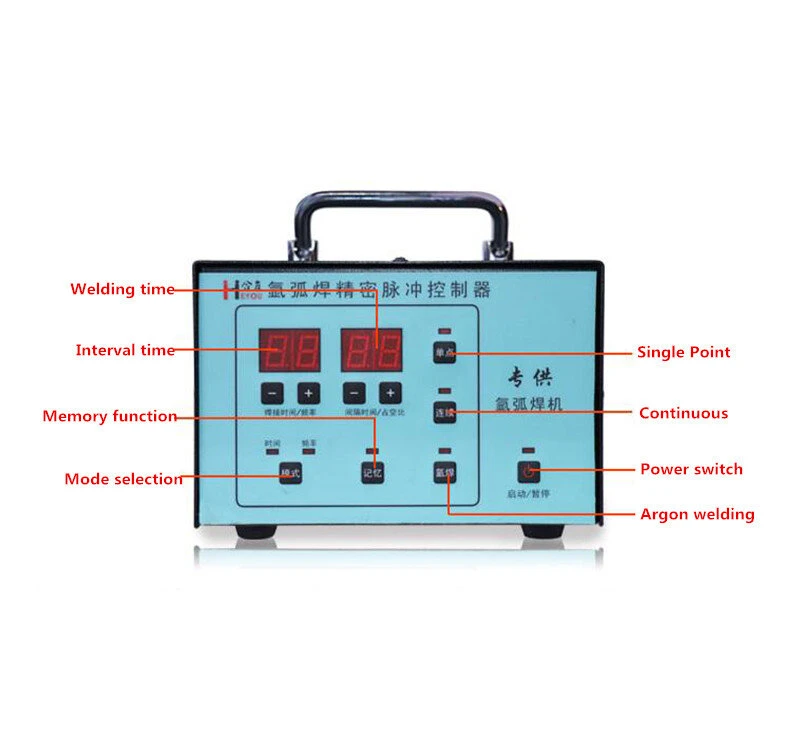

Detail Pictures:
