Kafuter K-5202 High Temp Thermal Grease - 80g Heat Sink Paste for CPU LED PCB

Product Description

Features:

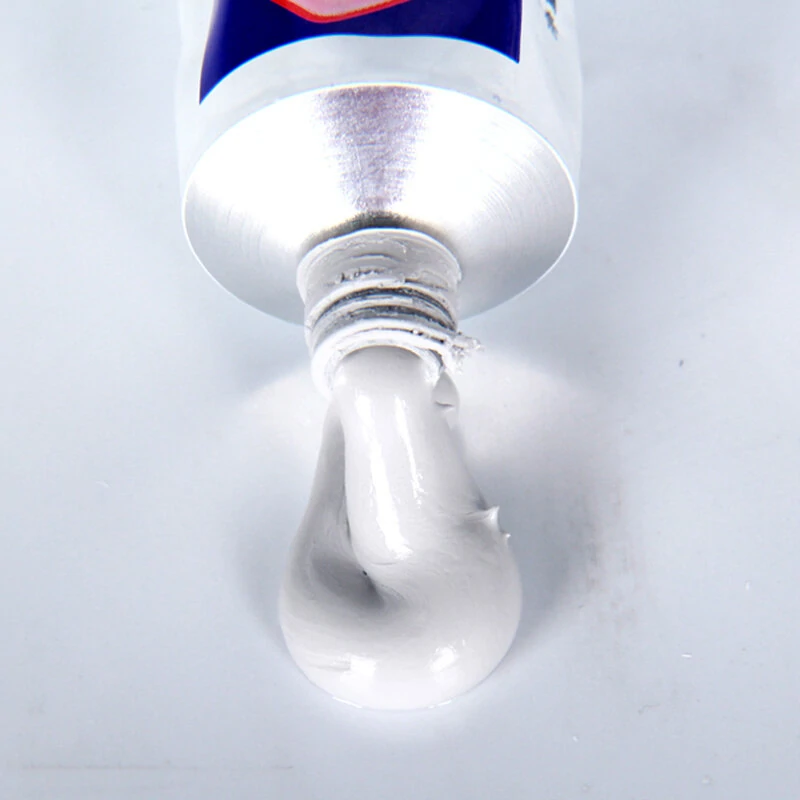

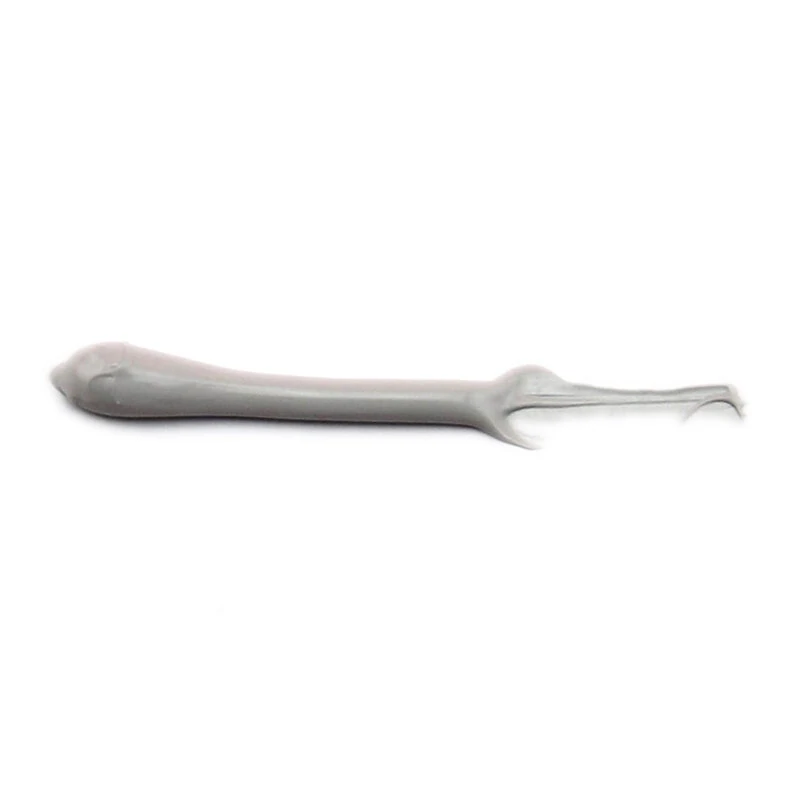

White thixotropic elastomer

One-part,room cure

Good cold and hot tolerance

Thermal conductivity 1.2

K-5202 is a reinforced thermally conductive silicone elastomer with great adhesion, insulation and dissipation

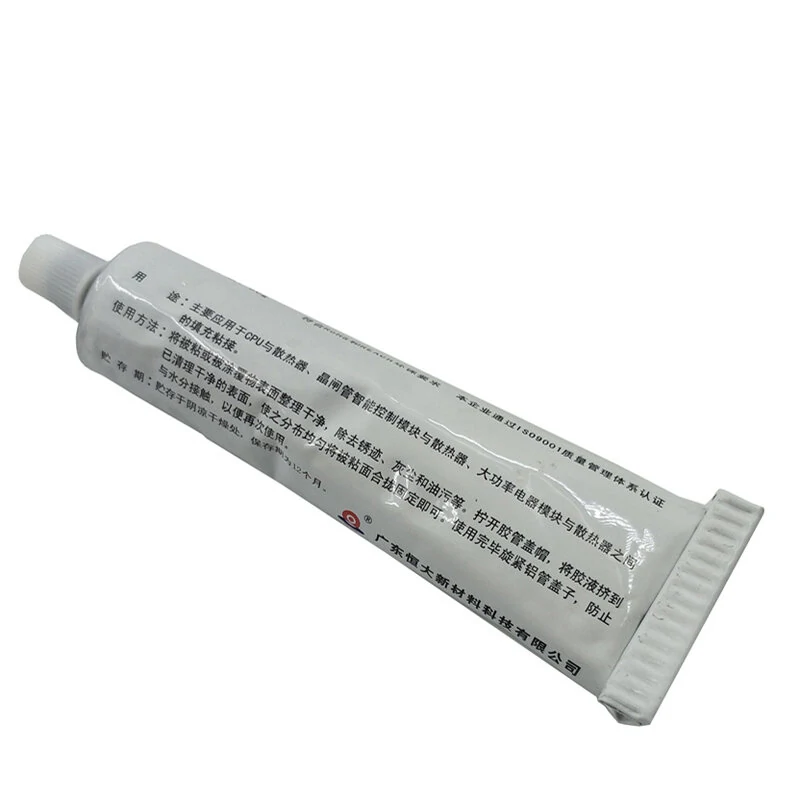

One part, room cure, packing in soft metal tube

Excellent in cold and high alternating resistance (-60~ 280??)

No peeling and good disassemble after long time usage

The elastomer with high bonding strength , the shear strength is 30kg/cm3

Specification:

Property Name: K-5202

Appearance: White

Viscosity (cp): Thixotropic elastomer

Density(g/cm3): 2.0~3.0

Initial Curing Time(25c, min): <=10

Cured Mechanical Properties Tensile Strength (Mpa): >=2.5

Elongation At Break (%): >=100

Shear Strength (Mpa): >=1.5

Hardness(shore A): 50~65

Working Temp ( c): -60~280

Electrical Properties Dielectric Strength(kv/mm): >=18

Permittivity (@60Hz): 2.8

Volume Resistivity (?.cm): 1??1015

Coefficient of Thermal Conductivity(w/m.k): 1.6

Application:

Fill, bond, and seal in electronics

The gap between CPU and radiators

The gap between thyristor control modules and radiator

The filling of high-power electronics modules and radiators etc.

Purpose:

The main application is to replace thermal conductive silicone (cream) for CPU and radiator, thyristor module and intelligent control radiator, high-power electric filling adhesive between the module and the radiator. After using this glue, can get rid of the traditional CARDS and screw connection way, the result is more reliable to fill the cooling, simpler process and more economic cost.

How to Use: Clean the un-bonded or uncoated surfaces by removing the rust, ash, and oil, etc.

Application: Pierce the opening with the tip of the cap. Fix the nozzle, and coat the clean surface evenly with the adhesives, then bond the two surfaces.

Curing Condition:

The curing progress is from outer surface into inner surface.

The elastomer get cure with the depth of 2~4mm in 24 hours (at room temperature, 55% moisture). if the bonded parts is too deep (especially the parts not easy to contact with air) or the temperature is too low, the full curing time will be extend.

Advise user preparing enough time to let elastomer get full cure in order to keep the properties stably.

Packing Included:

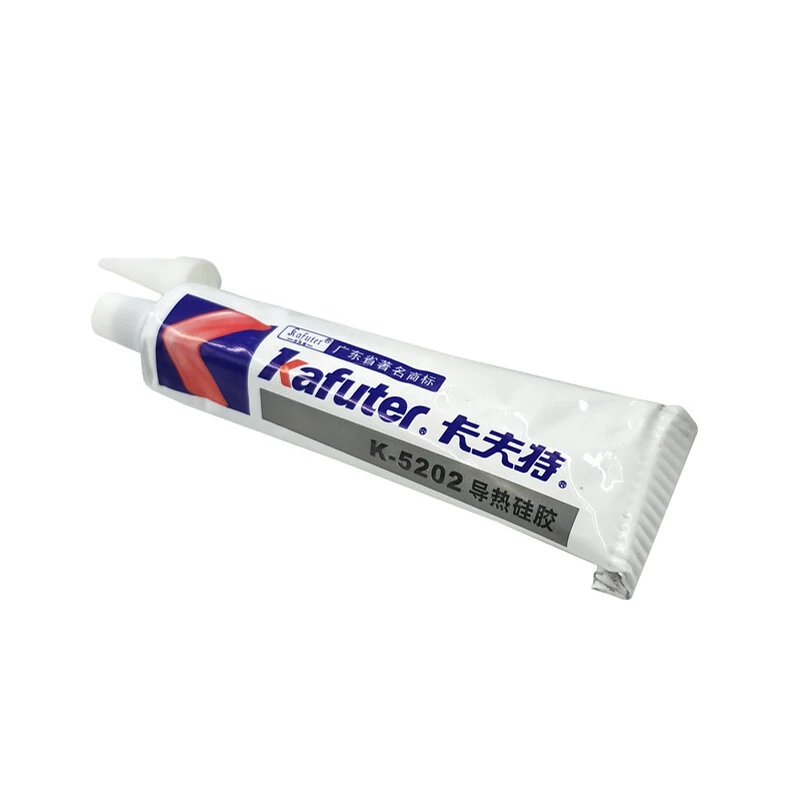

1 x Kafuter K-5202 80g Thermal Grease

Detail Pictures:
