Welding Fixed Test Probe Tool Kit | Pressure Needle for IC Chip CPU PCB Repair

Product Description

Description:

Welding Fixed Test Probe Pressure Needle Burning Tool Kit for Components IC Chip Module CPU Circuit Board PCB Electronic Production Features:

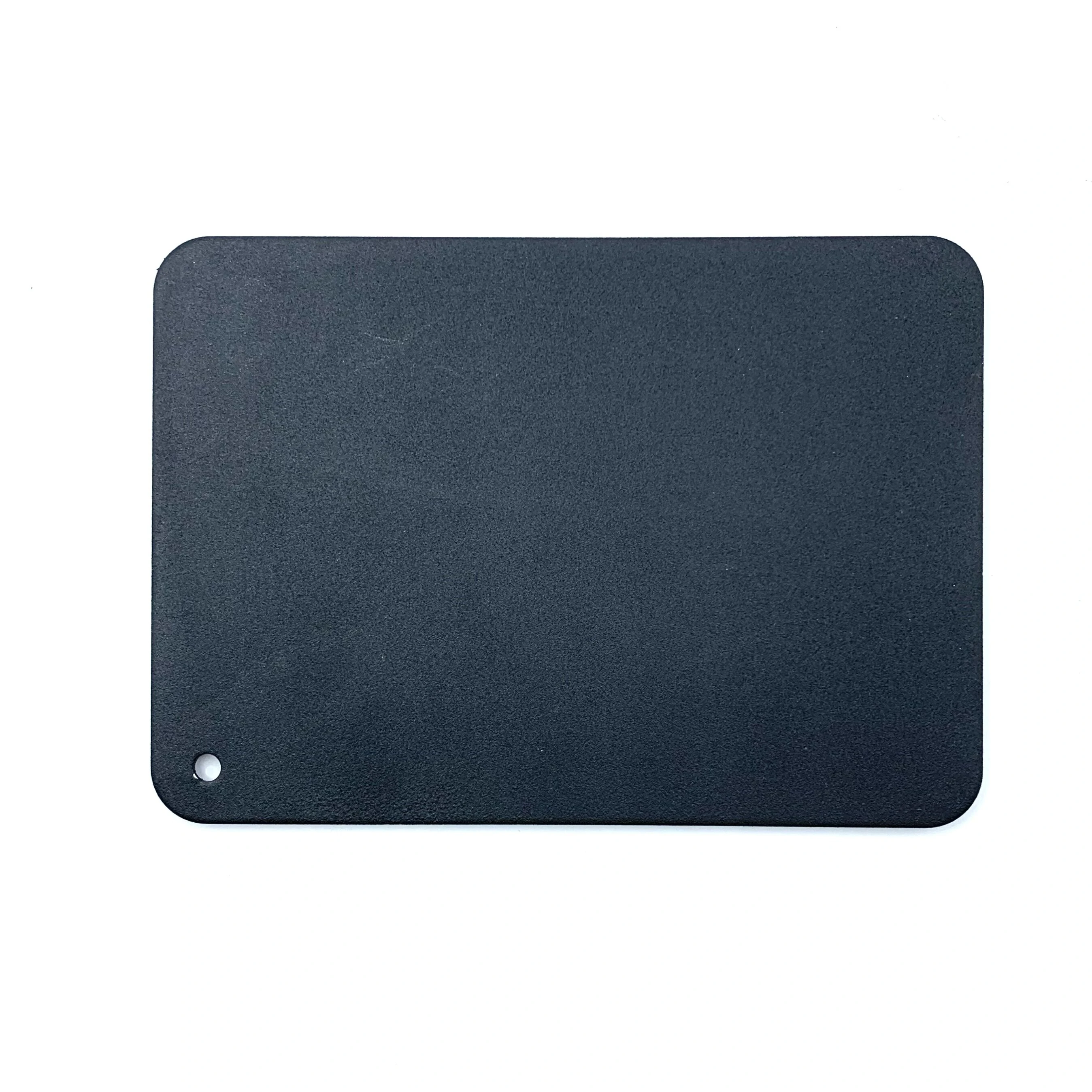

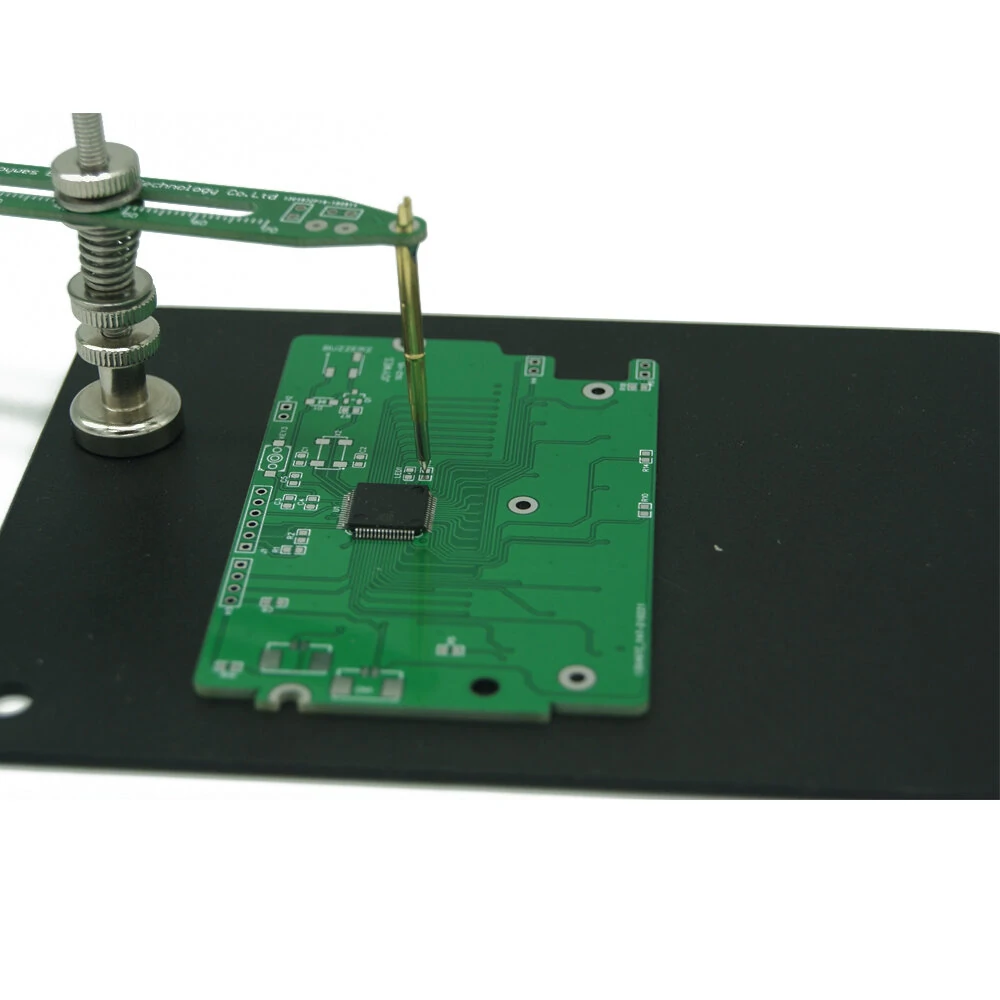

1. When manually soldering ICss, especially ICss with thin feet, it is easy to cause soldering failure due to IC movement. With this product, the IC can be pressed and fixed, and it is much easier to solder. 2. The upper part of the probe can be drawn out, and the height and length of the control needle can be adjusted back and forth, and multiple sets of combinations can be used as a universal test fixture. 3. Bottom plate size: 105mm*145mm (4.13*5.7 inches) 4. The boom can be adjusted up and down, left and right, and can rotate 360 degrees 5. The weight of the fixed tool is 70g, the weight of the base is about 230g. Package include:

1 * Fixture

or

1 * Fixture + Base Plate

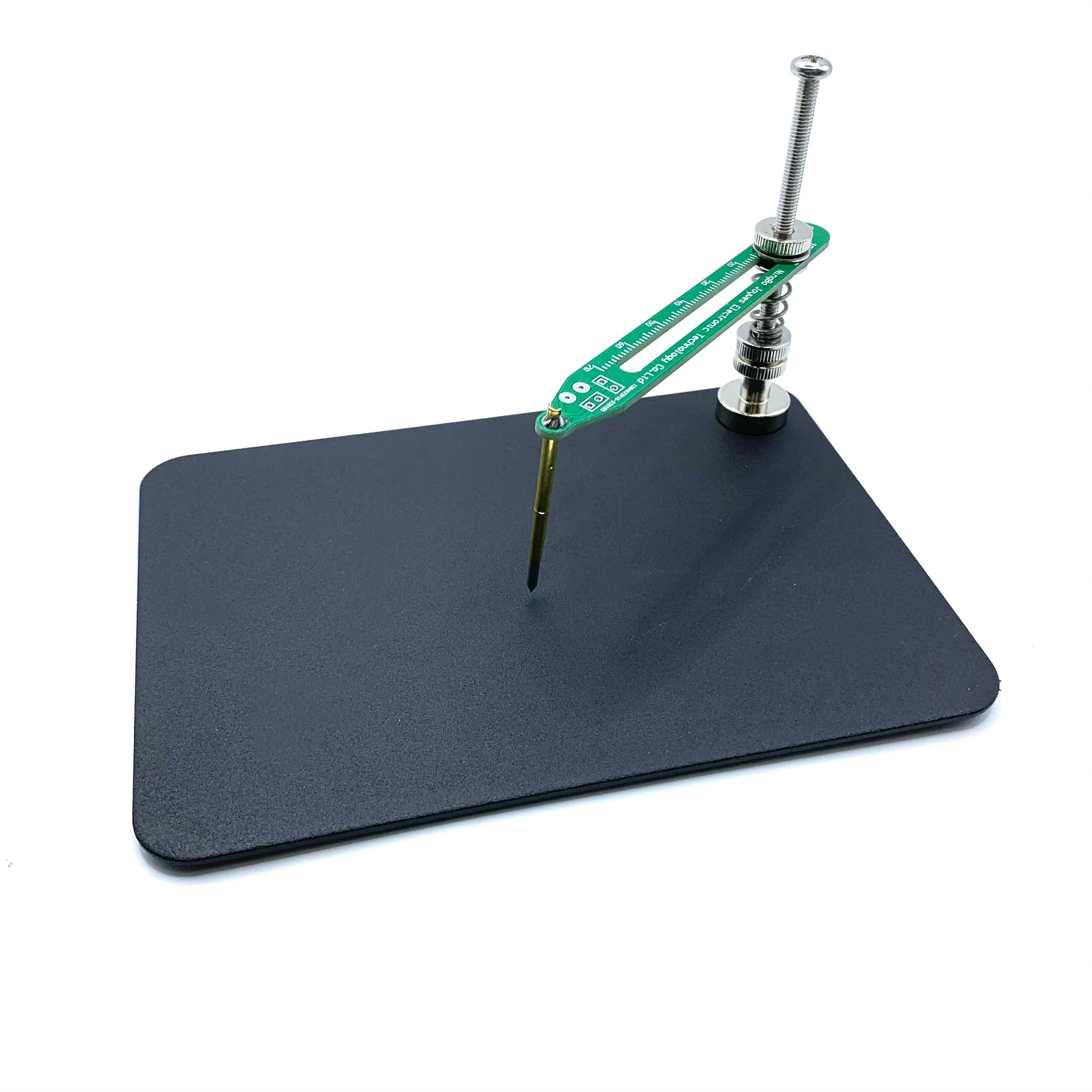

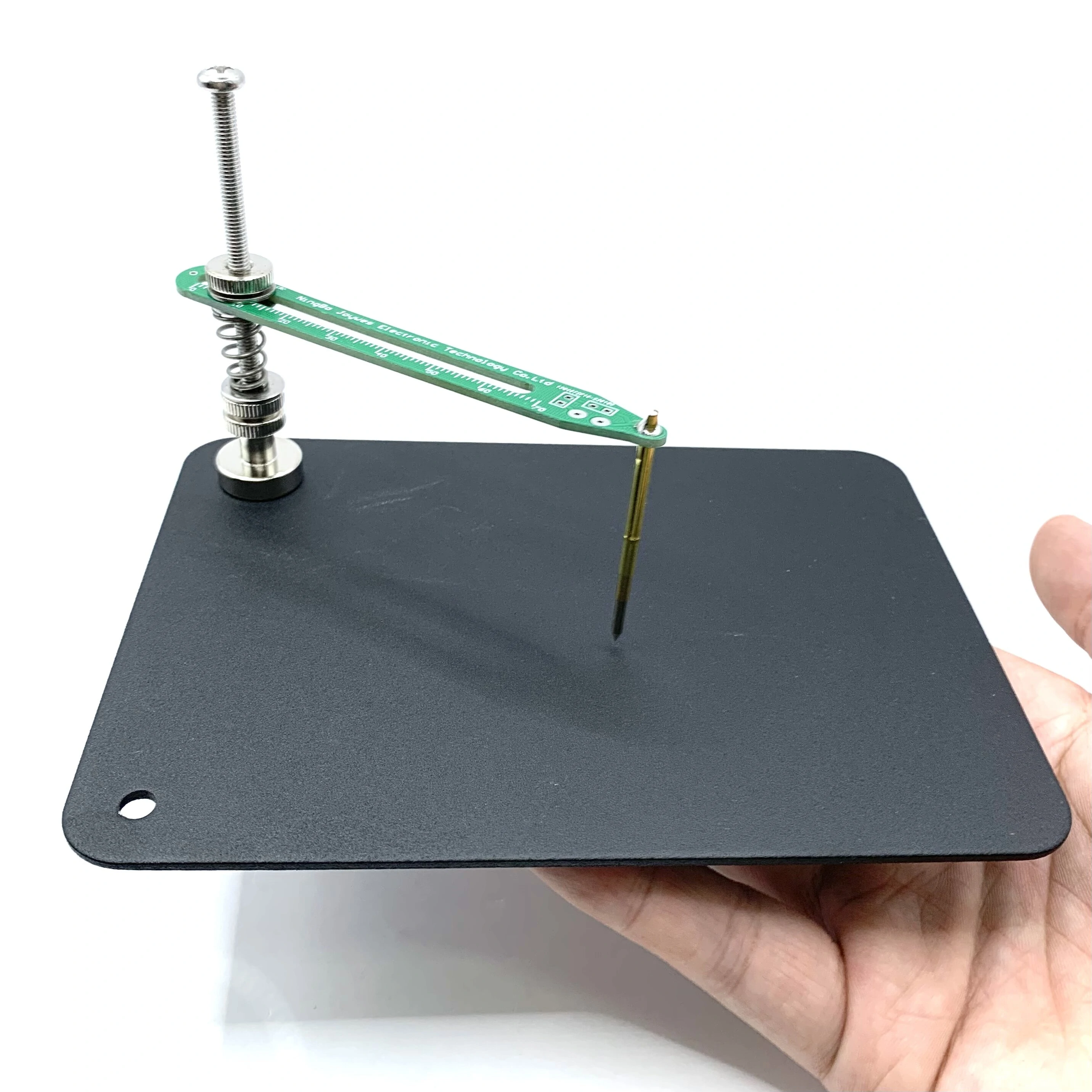

Detail Pictures:
