K23 Dual-Bearing BGA Chip Repair Fixture - High Temperature Resistant Motherboard Platform

Product Description

Description:

Product name: Mobile phone motherboard bracket holder

Unit weight: 0.5 kg

Product volume: 15.0 cm * 10.0 cm * 10.0 cm

Model: K23

Material: Alloy steel

Number of kits: 1

Scope of application: telecommunications

System: Metric

Specifications: Mijing K23 fixture

Feature:

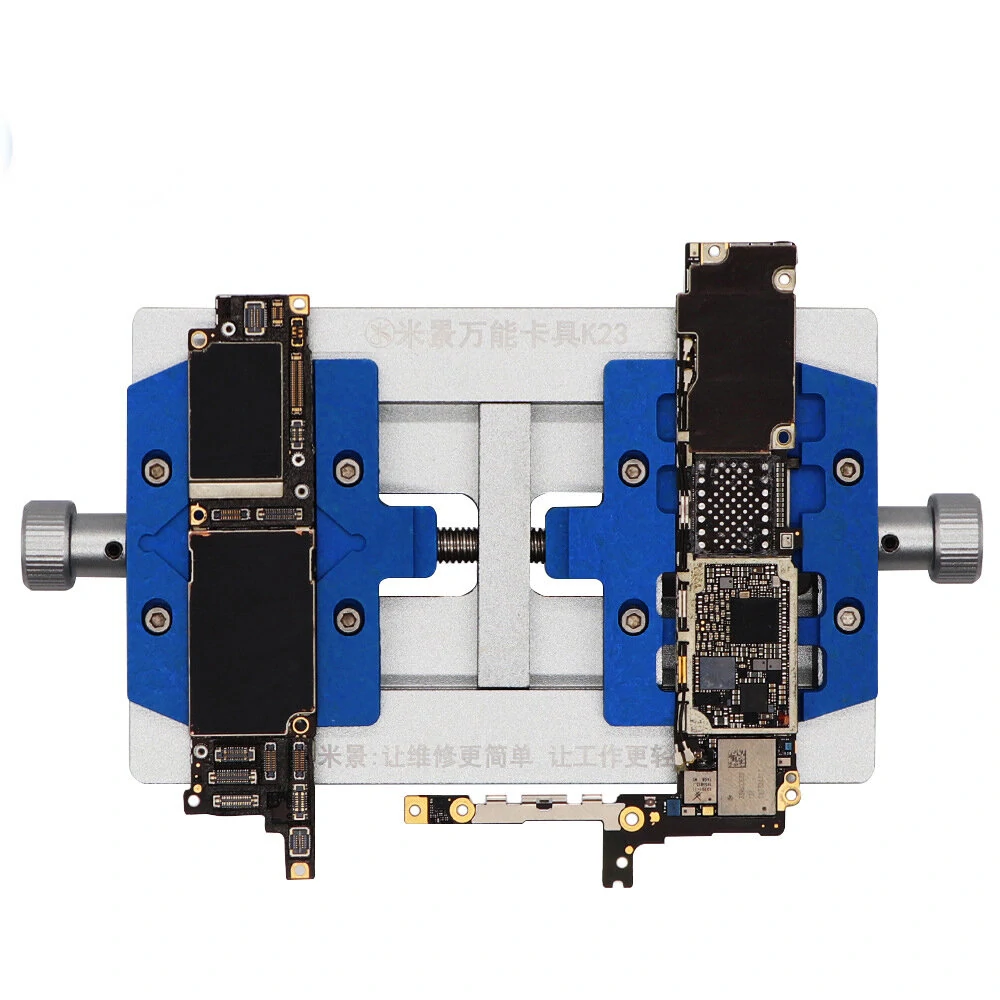

- Universal mobile phone motherboard bracket holder, used for welding repair, rotating fixed design, no rebound, firm fixation! The design has three adjustable distances.

- In order to prevent heating during use, please prevent the fixture from moving and use a special anti-slip mat. Allows hot air to be discharged more effectively. Add the heat sink to the bottom of the fixture

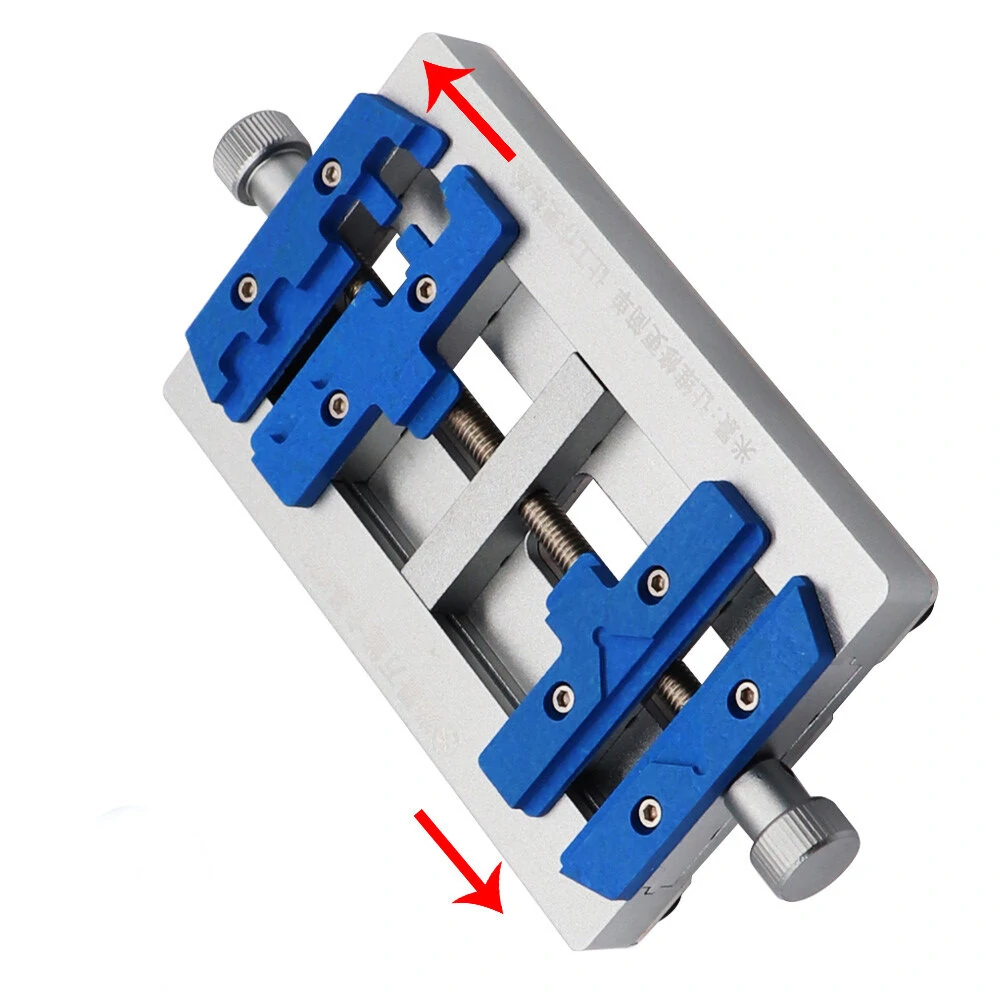

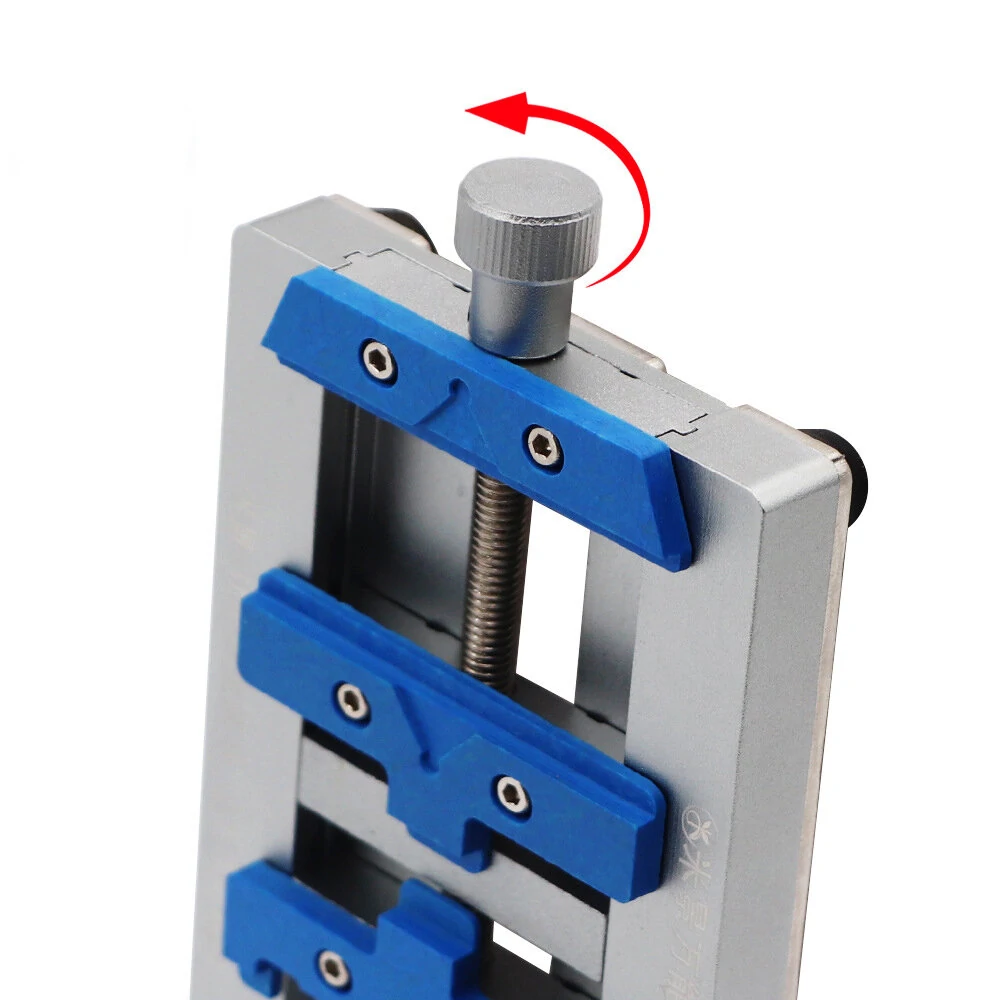

- The rotating shaft locks the motherboard or IC more effectively, and is well fixed without rebound.

- The K23 fixture also supports fixing the IC-type fixture used to remove the adhesive.
- The fixture is designed to withstand the force of the IC beam, which can well support the blank part of the IC and avoid IC breakage when removing the black glue.

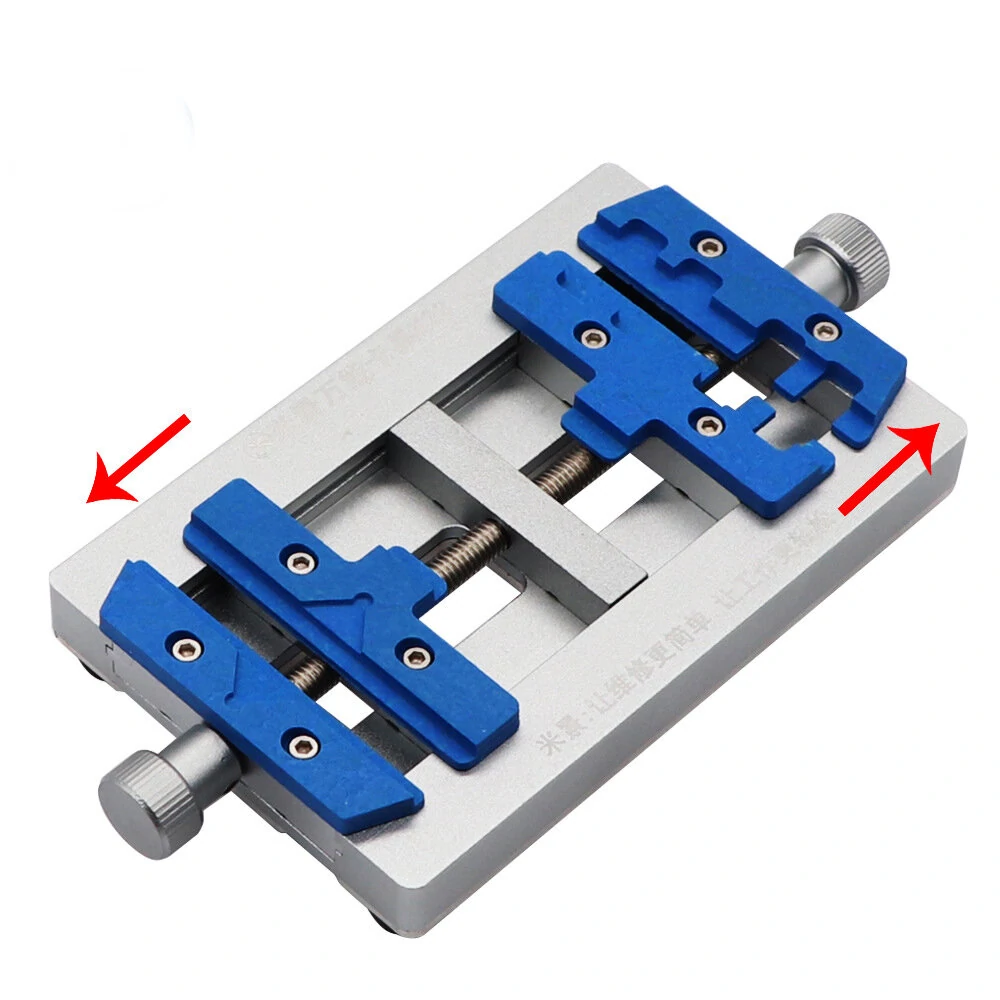

- The K23 PCB welding fixture can be adjusted at different distances from high, medium and low levels.
- You must loosen the two screws at the bottom, move the fixing plate to the appropriate gear position, and then tighten the screws at the bottom to lock it.

Package Included:

1 x Mobile phone motherboard bracket holder
Detail Pictures:
