LM8-RRD Digital Weighing Controller - 1-4 Load Cell Input | 2 Relay Output

Product Description

Description:

The instrument provides isolated auxiliary power(regularly 5V/80mA) which allows 1-4 loadcells connection directly. Up to 6 outputs control are available for group ingredients weighing or fast/slow weighing; Data/Peak value holding function for choice.

Features:

High precision, steady performance and easy operation.
Dual LED nixie tube digits for display, clear for reading.
1-4 load cell signals input and 2 RELAY output alarms.
The instrument has functions of clearing zero & PV modification.
Work with various pressure sensor and weight sensor.
Suitable for for weight control, auto accumulation/mean for up/down batch control, etc.

Specifications:

Model: LM8-RRD(4 Digits)
Display: LED Display
Power Supply: LM8-RRD: 220V/110V AC; LH86-RRD: 90-260V AC/DC
Accuracy:0.2%F.S??2dgt
Power Consumption: ??5VA
Sampling Rate: ??16 times/second
Input: Regular: mV(Load Cell), 1-4 pcs Load Cell
Output: 2 RELAY
Relay: Open Contract 250V AC 3A or 30V DC 3A COS??=1
Auxiliary Power: DC 5V
Item Size: 95 * 85 * 46mm / 3.74 * 3.35 * 1.81in
Item Weight: 258g / 9.12oz
Package Size: 11 * 10 * 5.5cm / 4.33 * 3.94 * 2.16in
Package Weight: 294g / 10.4oz

Package included:

1 * Weighing Controller
2 * Bracket
1 * User Manual

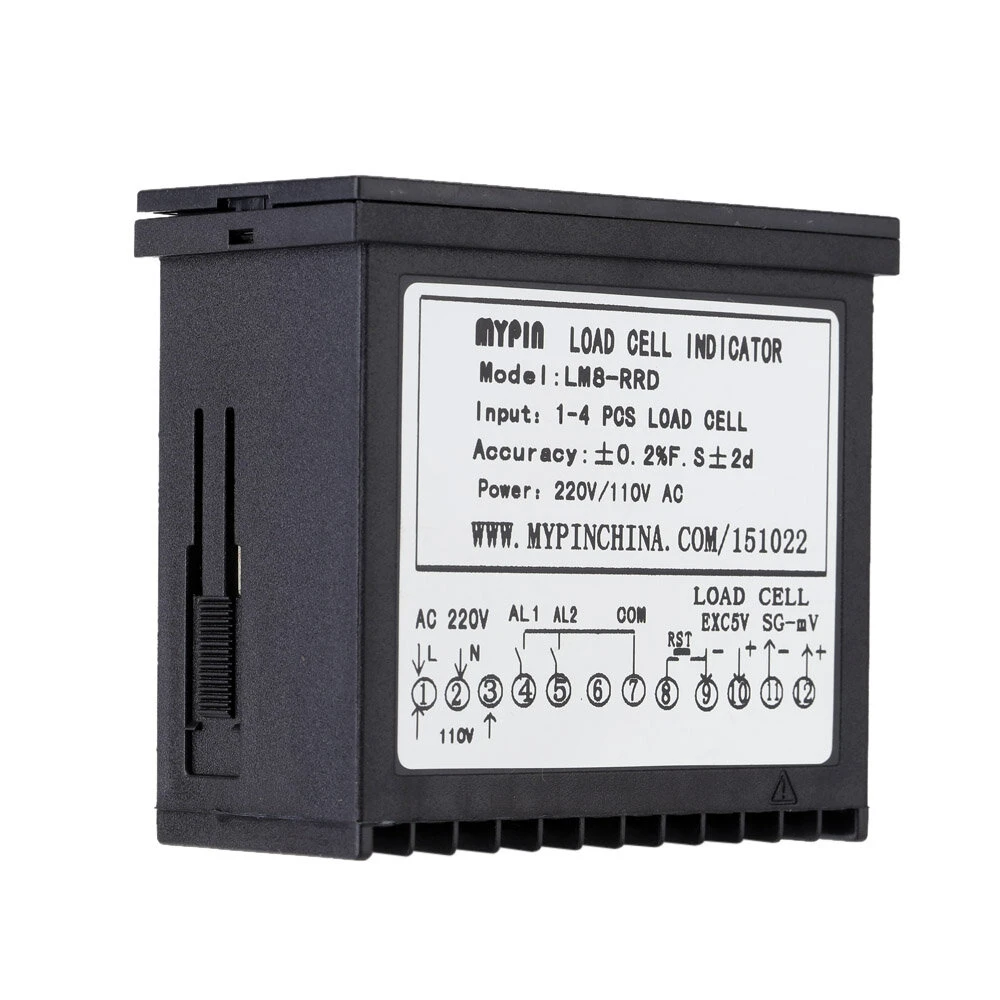

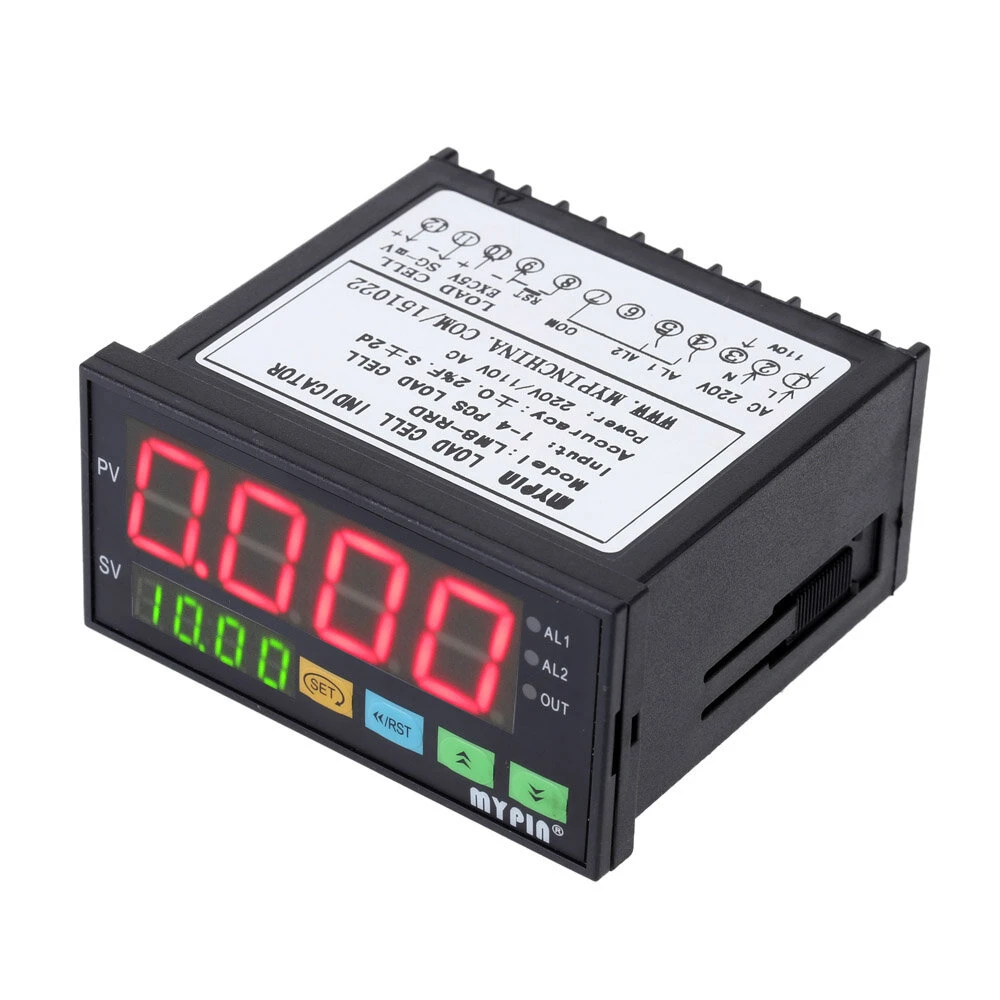

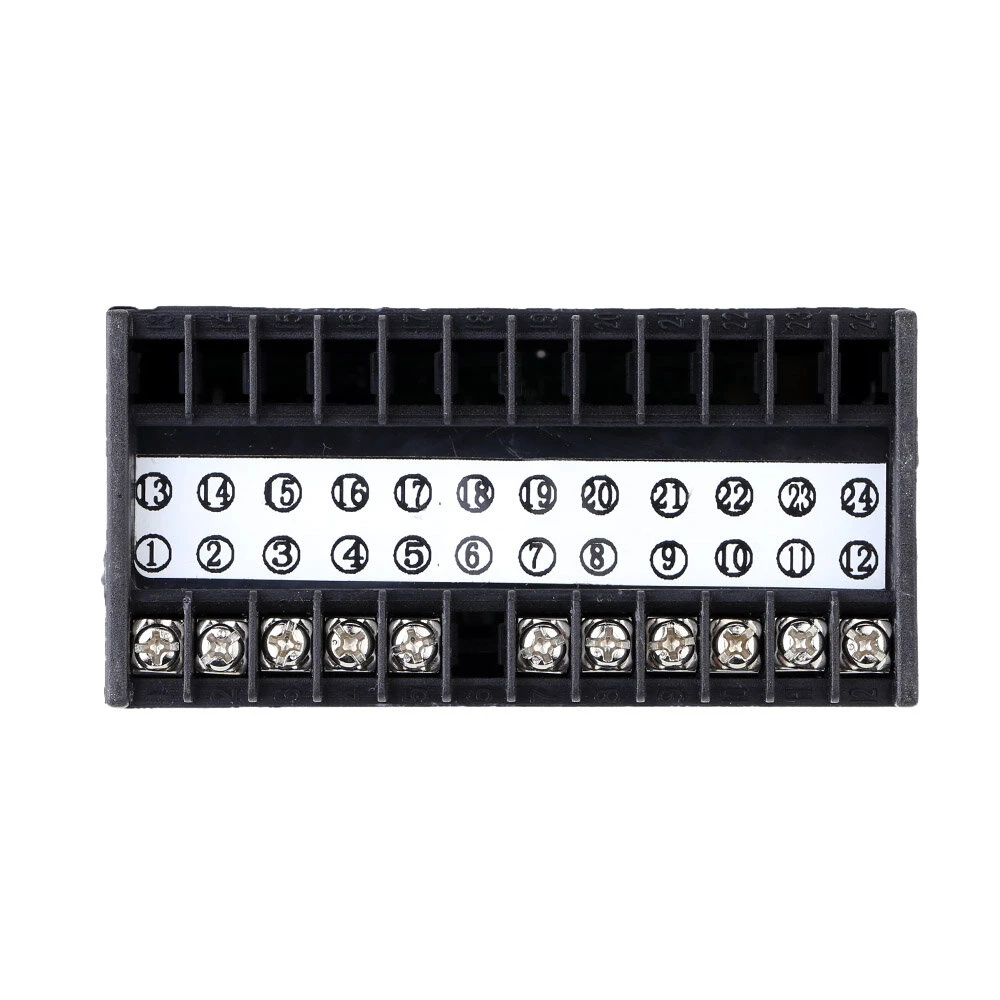

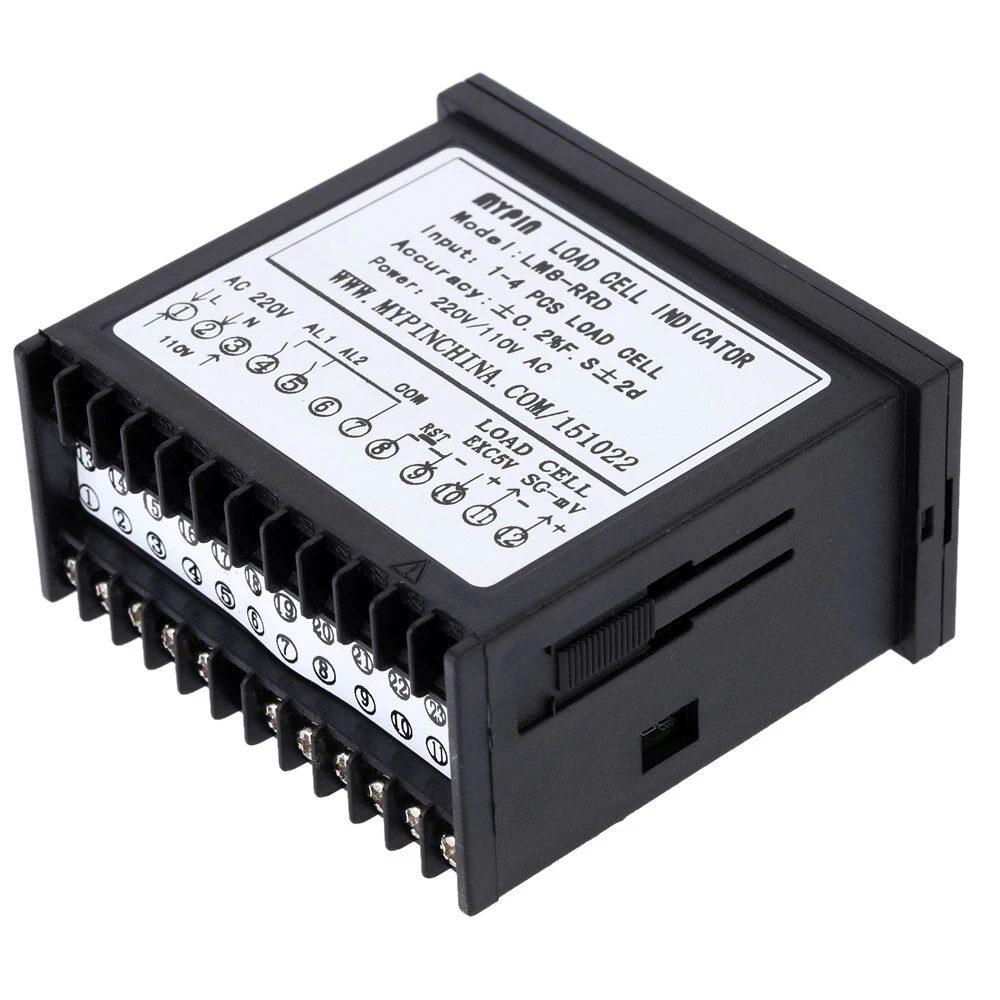

Details pictures:
