Multi-functional Dual LED Display Digital Counter - 90~265V AC/DC Length Meter with 2 Relay Output
$71.00
$87.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:This is a dual display digital counter that can be used as a industrial counter to count the quantity of objects in a single batch and the production line, and also can be used as length counter. It is widely applied in machine, light industry, electronic, food, package, leather, cloth weaving industry for counting, length, batch counting.
Features:
Dual 6 digits LED Display for clear reading.NPN and PNP sensor input is switchable. Includes 4 kinds of input mode, 6 kinds of output mode for option.Input and output is optional isolated.Counting Range: -199999??999999; Preset Range: 0.00001-999999. Can set alarm value for relay output.Can be connected with encoder, length counting wheel, proximity switch, photoelectric switch, optical sensor, laser sensor, etc.Widely applied in chemical, machine, light industry, etc.
Specifications:
Model: FH8-6CRRBMaterial: ABSPower Supply: 90~265V AC/DC Auxiliary Power: 24V DCInput: Pulse Signal: Square Wave and Sine Wave: 5V??H??30V 0??L??2V up edge activeInput Impedance: ??10K??Counting Speed: 30/5000CPSCounting Range: -199999??999999Preset Range: 0.00001-999999Response speed: switch type input 0~5000hz, incremental encoder input 0~2000hzAccuracy: ??0.1%F.S Output: 2 Relay Contact Output Environment Temperature: 0??50??Storage Temperature: -10??60??Environment Humidity: 35??85%RHInsulation Resistance: ??10M??Power Consumption: ??5W Contact Edge: Up edge activeItem Size: 9.5 * 8.5 * 4.7cm / 3.74 * 3.35 * 1.85inItem Weight: 167g / 5.89ozPackage Size: 11 * 10.1 * 5.5cm / 4.33 * 3.98 * 2.17inPackage Weight: 203g / 7.16oz
Package included:
1 x Counter2 x Brackets1 x English User Manual

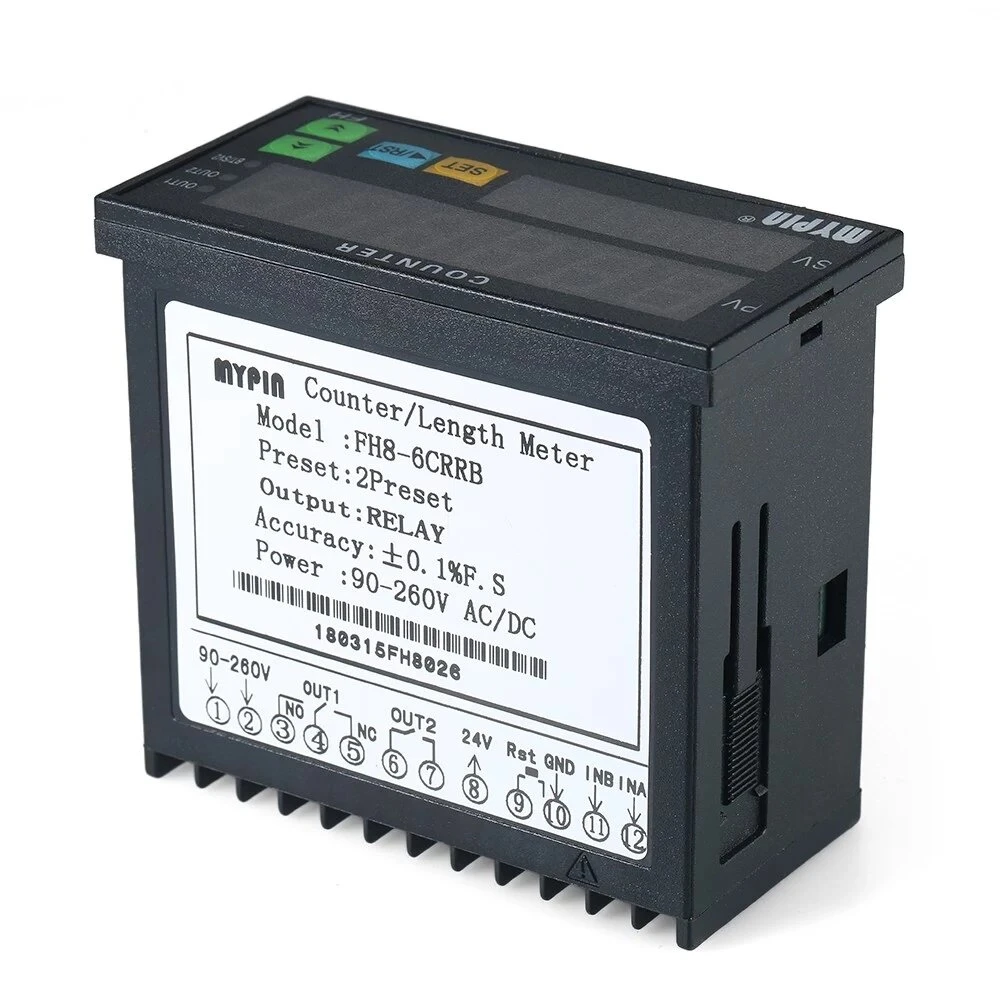

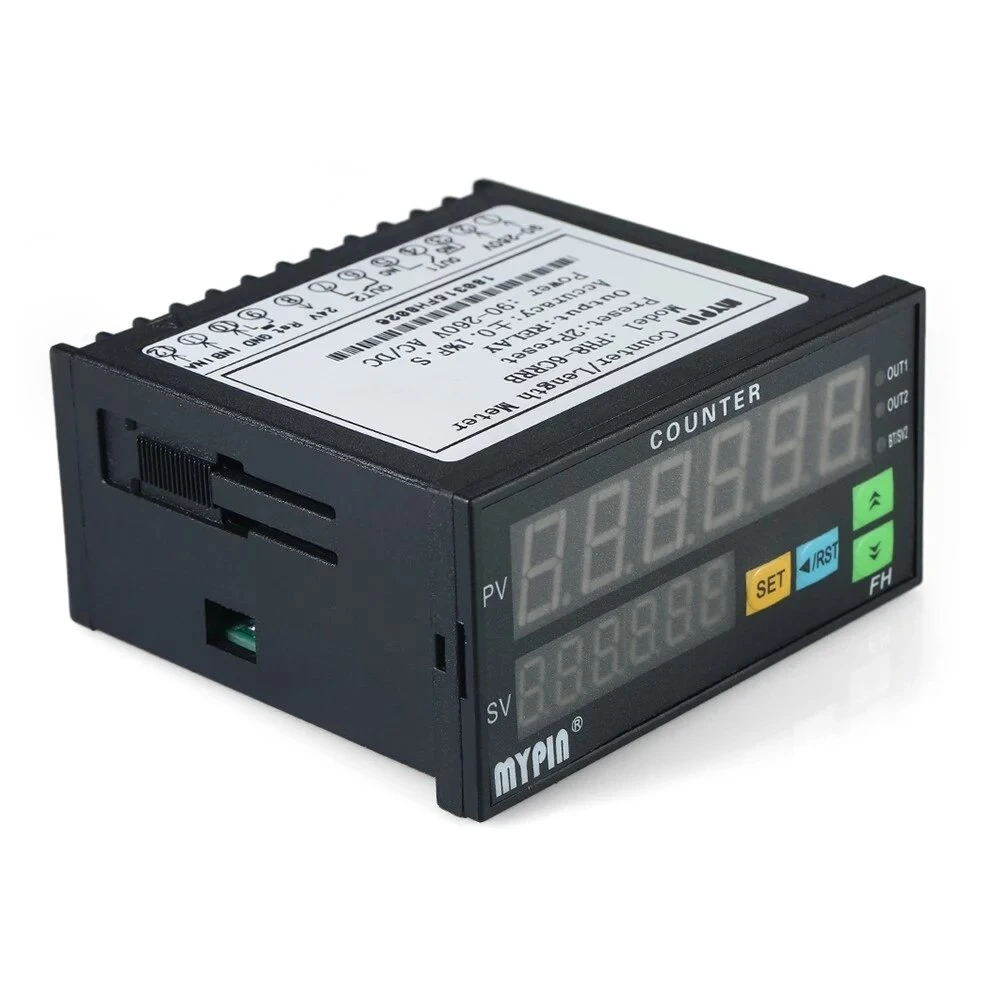

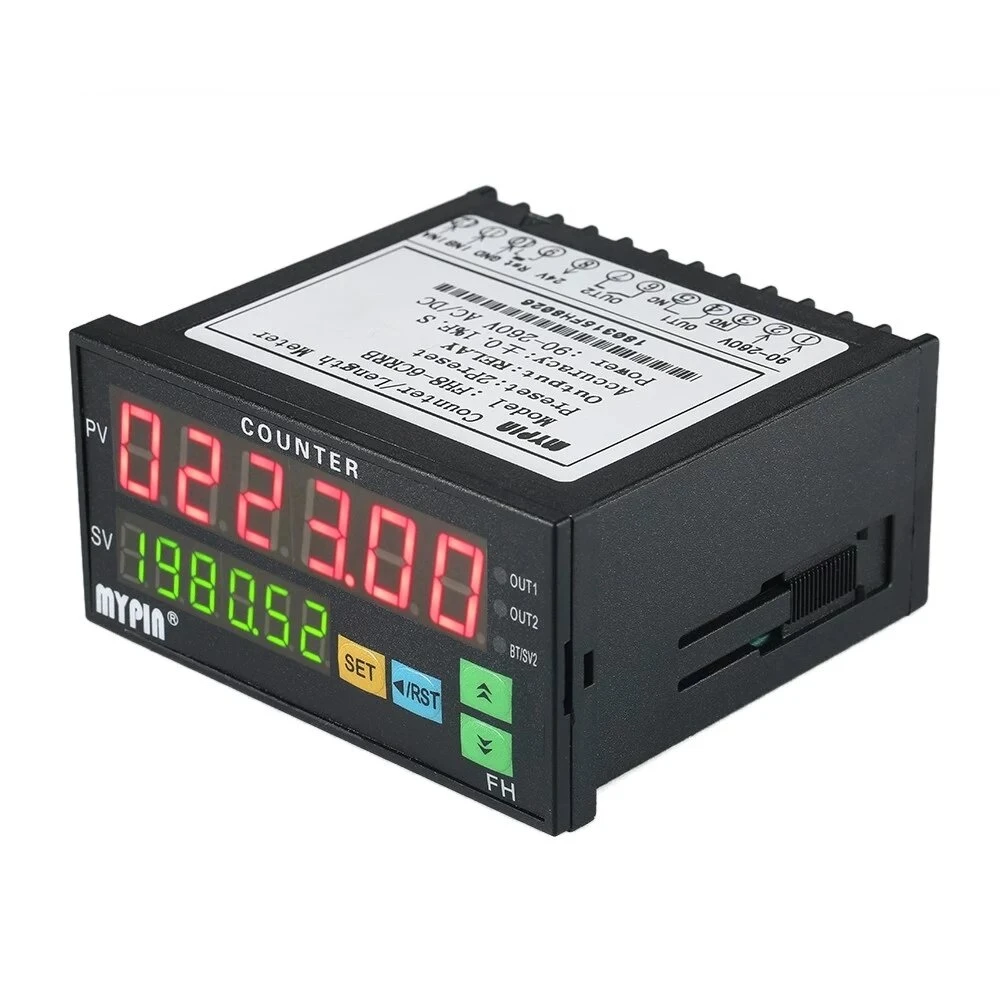

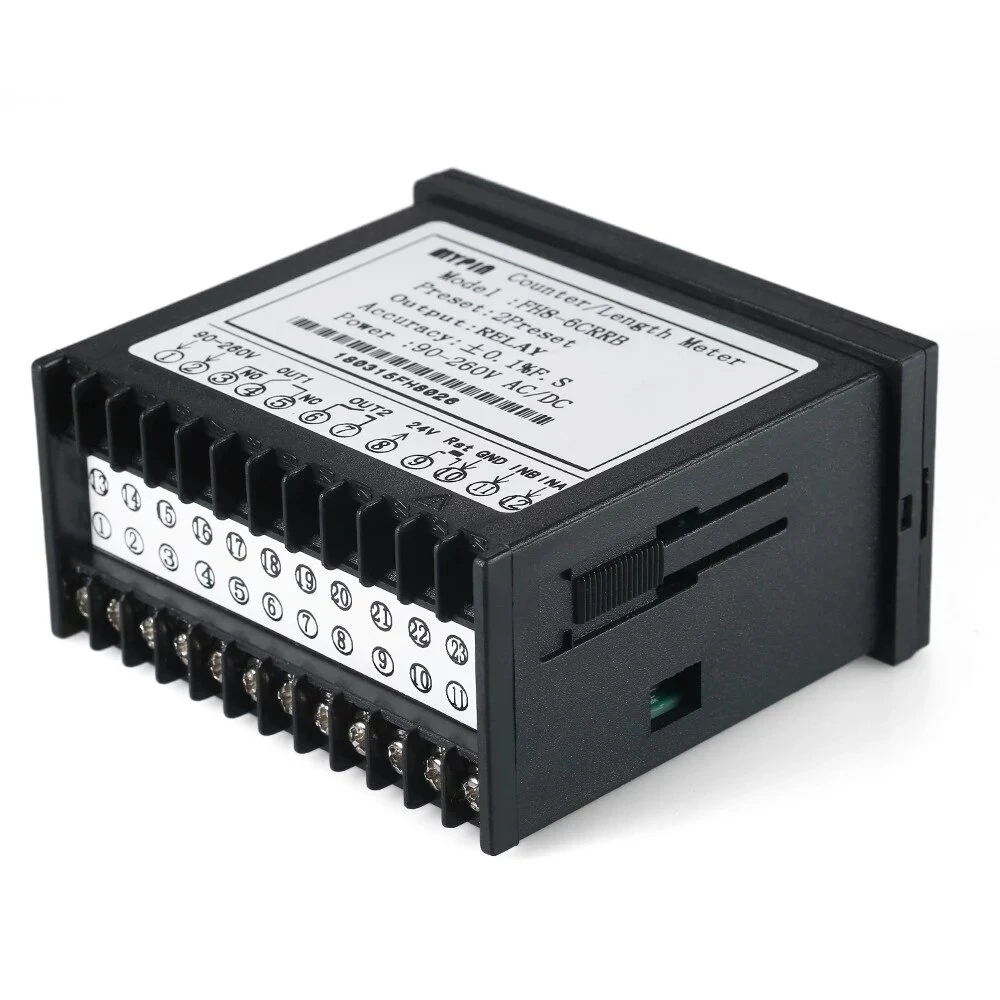

Details Pictures:
