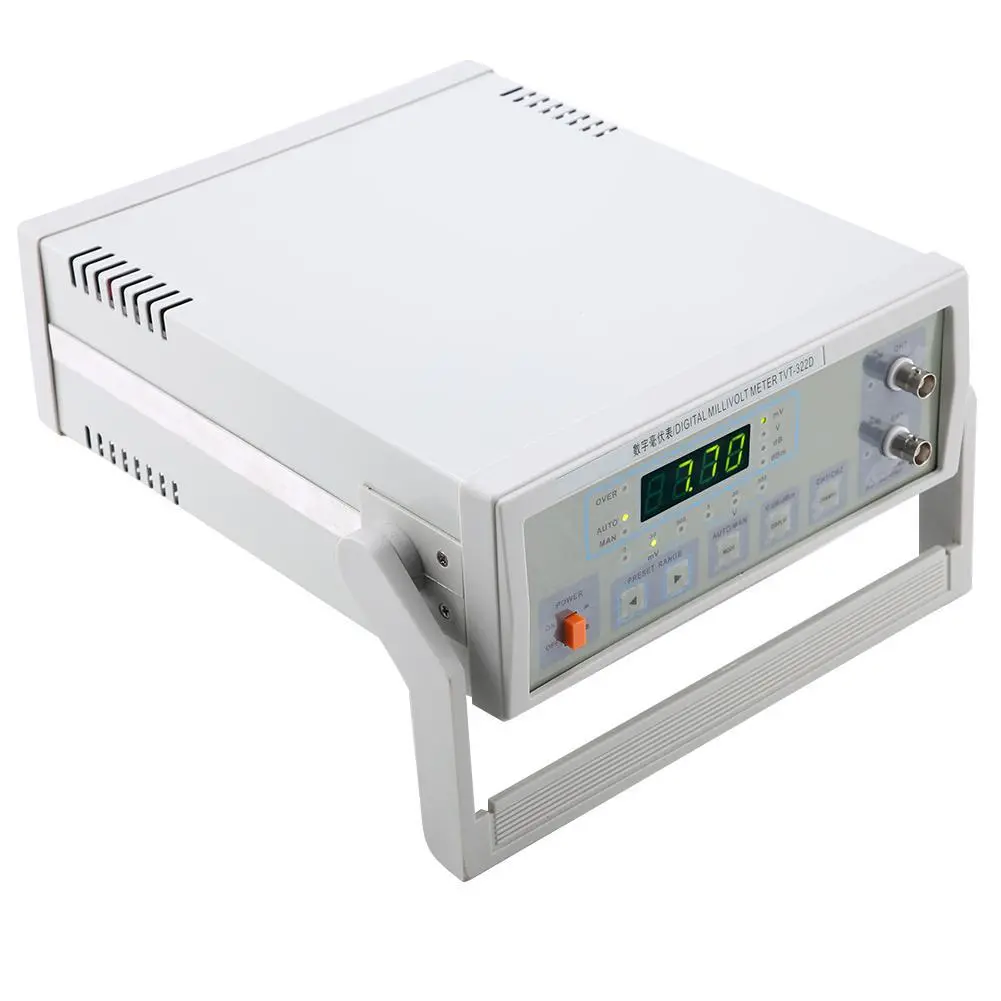

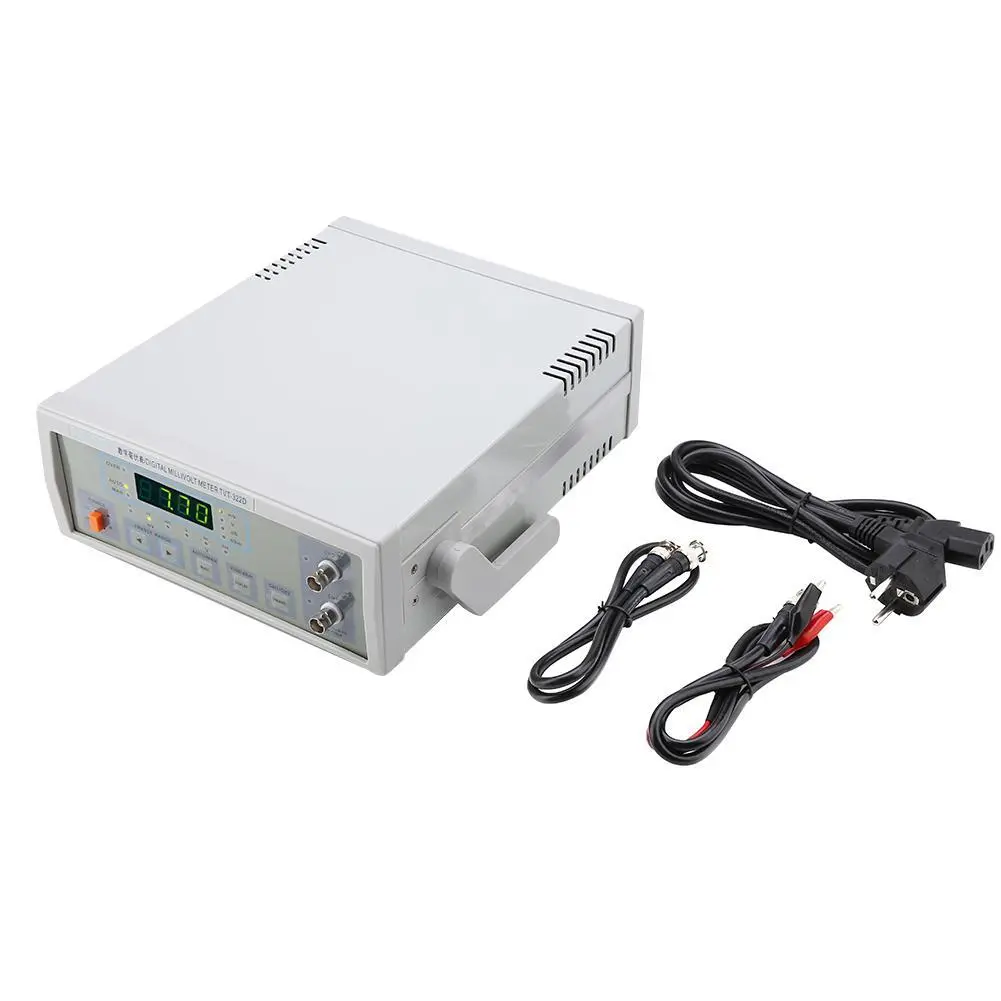

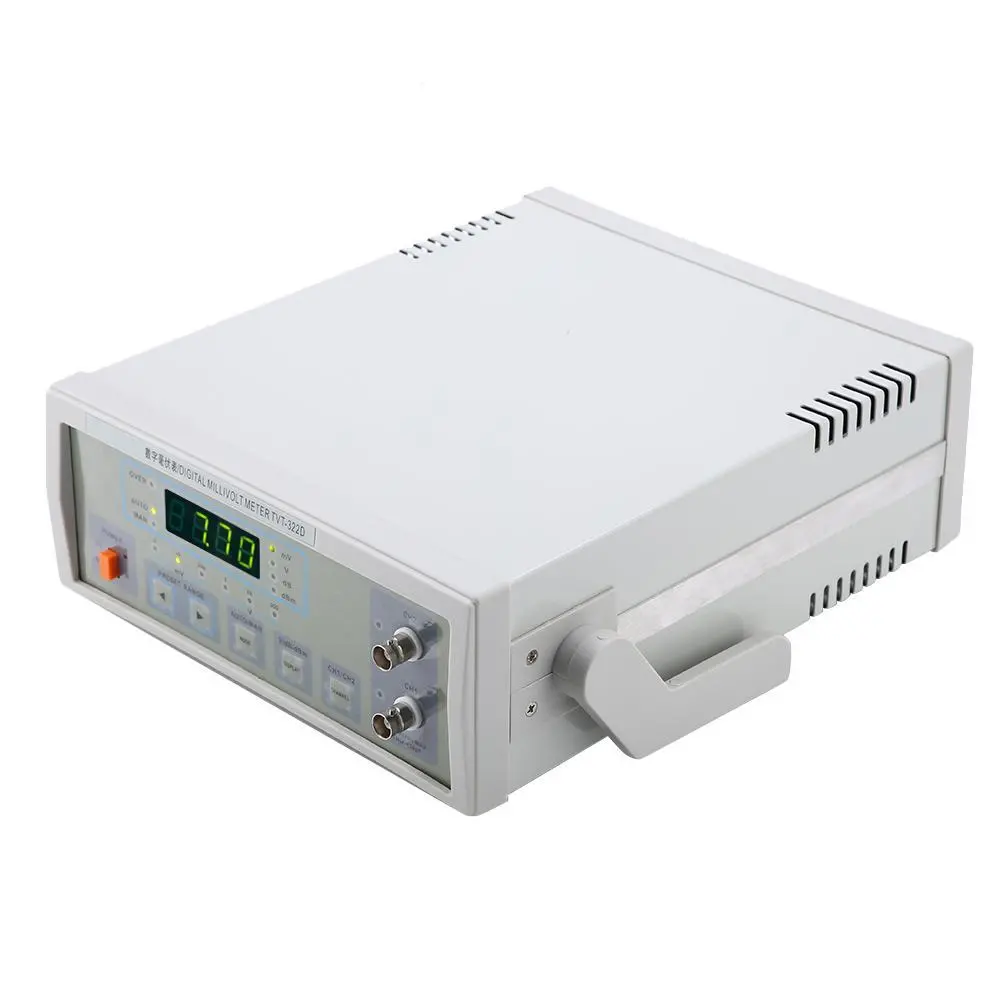

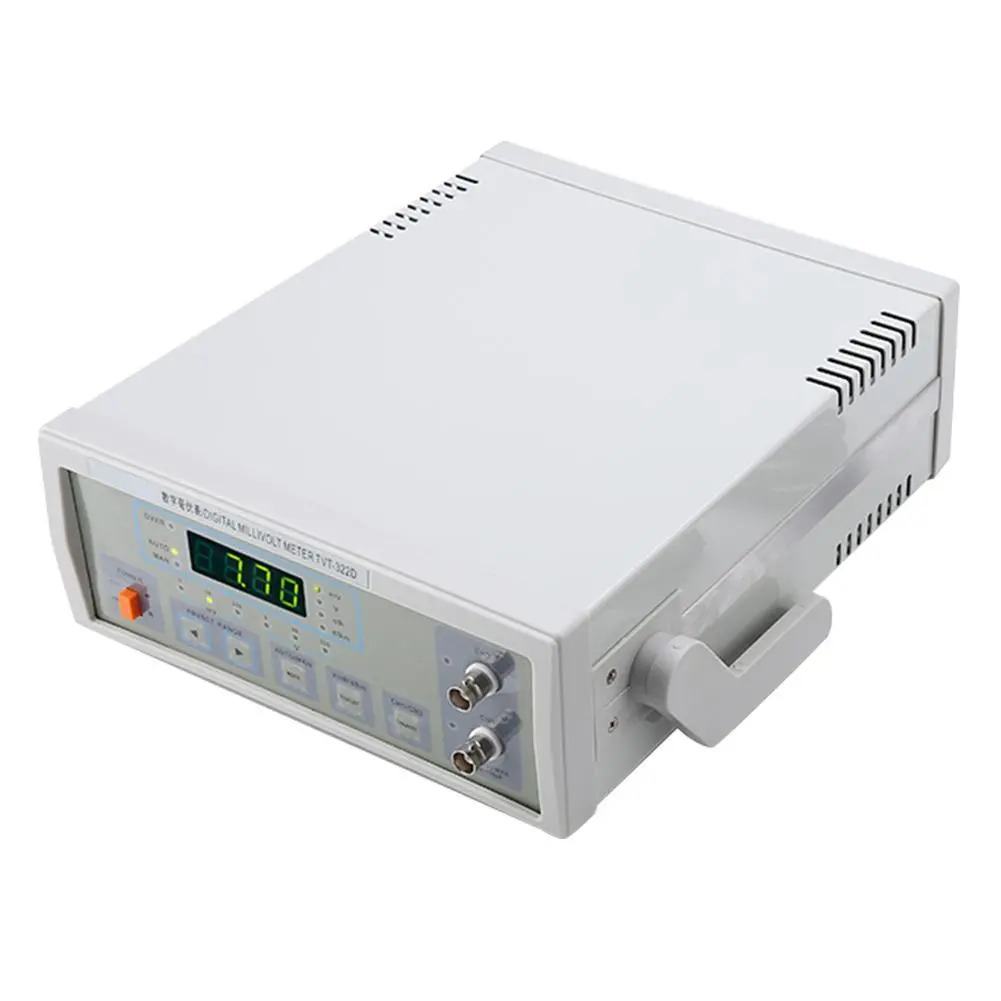

LW-322D Digital Millivoltmeter | 10Hz-2MHz Auto/Manual | CH1/CH2 Voltmeter
$218.00
$268.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features: 1. The measuring voltage is 100uV~400V. 2. 10Hz~2MHz measuring frequency, up to 5MHz 3. Auto and manual mode of measuring 4. Measuring ranges: mV/V/dBm 5. CH1 and CH2 can be selected Specification: Condition: 100% Brand New Model: LW-322D Weight: Approx. 3371g / 118.9oz Size: Approx. 270 * 225 * 90mm / 10.6 * 8.9 * 3.5in| Specifications | TVT-322D Digital Millivoltmeter |
| Measuring range | Voltage:30uV-300V dB:-79dB to +50dB dBm:-77 to +52dBm (0dB=1mV, 600ohm) |
| Frequency range | 5Hz-2MHz |
| Voltage error | 5Hz~2MHz:??4%??8digit 50Hz~100KHz:??2.5%??10digit 50Hz~100KHz:??1.5%??20digit Readout at 1KHz as a reference |
| dB Error | Voltage error??1digit |
| dBm error | Voltage error??1digit |
| Input impedance | 100Mohm??10%,30pF |
| resolution | 1uV |
| Noise | Less than 15 digit(30mV~300V) |
| Ambient | 10??C~40??C 85% RH |
| Power supply | 220V/110V??10% 50Hz/60Hz |
