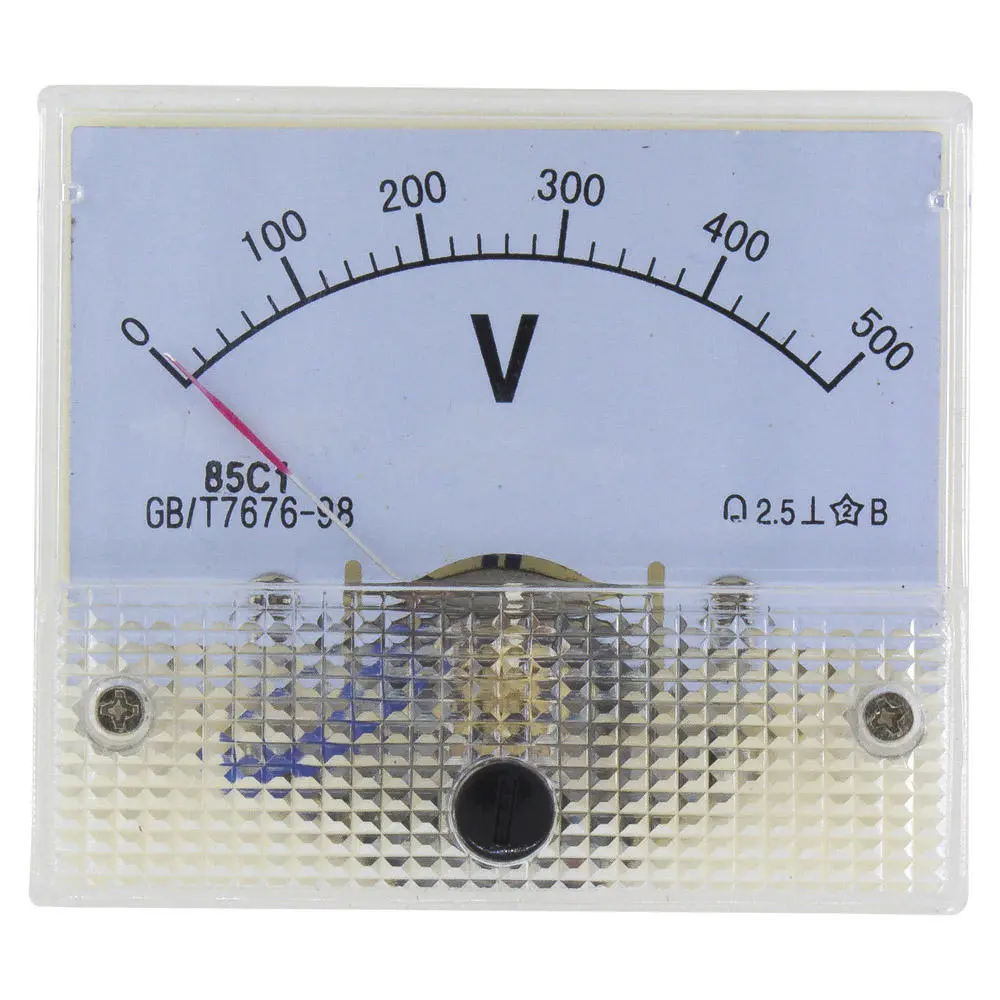

85C1-V Analog Voltmeter - 5V/50V/100V/250V DC Pointer Voltage Meter | 85C1 Series
$13.00
$15.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Specification:85C1 DC voltage meter Model: 85C1-V Range: 0-5V/50V/100V/250V direct access Dimensions: 64*56*60mm
| Model number | Type | Range |
| 85C1-UA | Ammeter (?̦?) | Connect directly: 50, 100, 150, 200, 300, 500?̦? |
| 85C1-MA | Ammeter (mA) | Connect directly: 1, 2, 3, 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 300, 500mA |
| 85C1-A | Ammeter (A) | Connect directly: 1, 2, 3, 5, 7.5, 10A, 20A Need shunt: 15, 20, 30, 50, 75, 100, 150, 200, 300, 1000, 1500A |
| 85C1-V | Voltmeter | 5, 10, 15, 20, 30, 50, 75, 100, 150, 250, 300, 450, 500, 600, 750, 1000V |
| 85C1-HZ | Frequency meter | 50Hz: 10V, 20mA, 4-20mA |
| Model number | 85C1 series |
| Accuracy level | 1.5/2.5 level |
| External dimensions | 64x56x60 mm |
| Perforation dimensions | 49 10 |
| Matched shunt | FL-2 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 50 ??C |
| Operating humidity | 85% RH max, non-condensing |
Package includes:
1 x 85C1 DC voltage meter

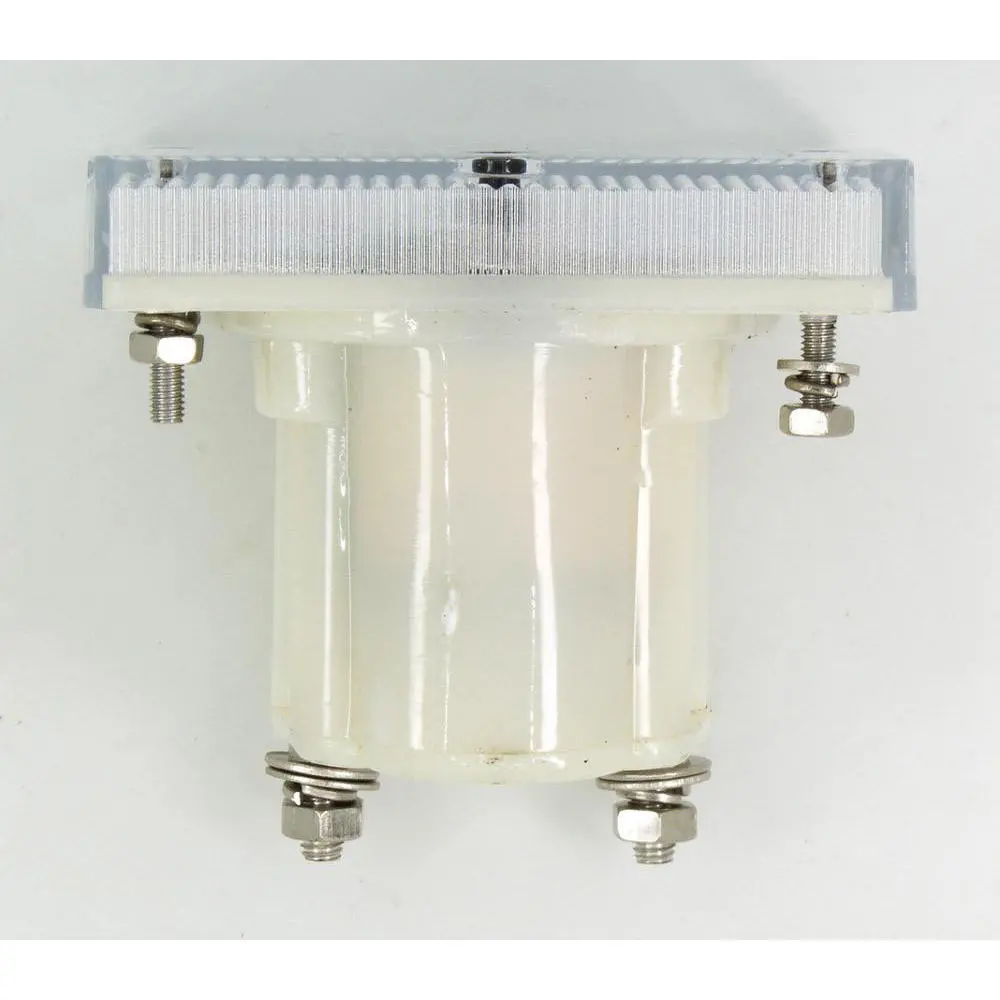

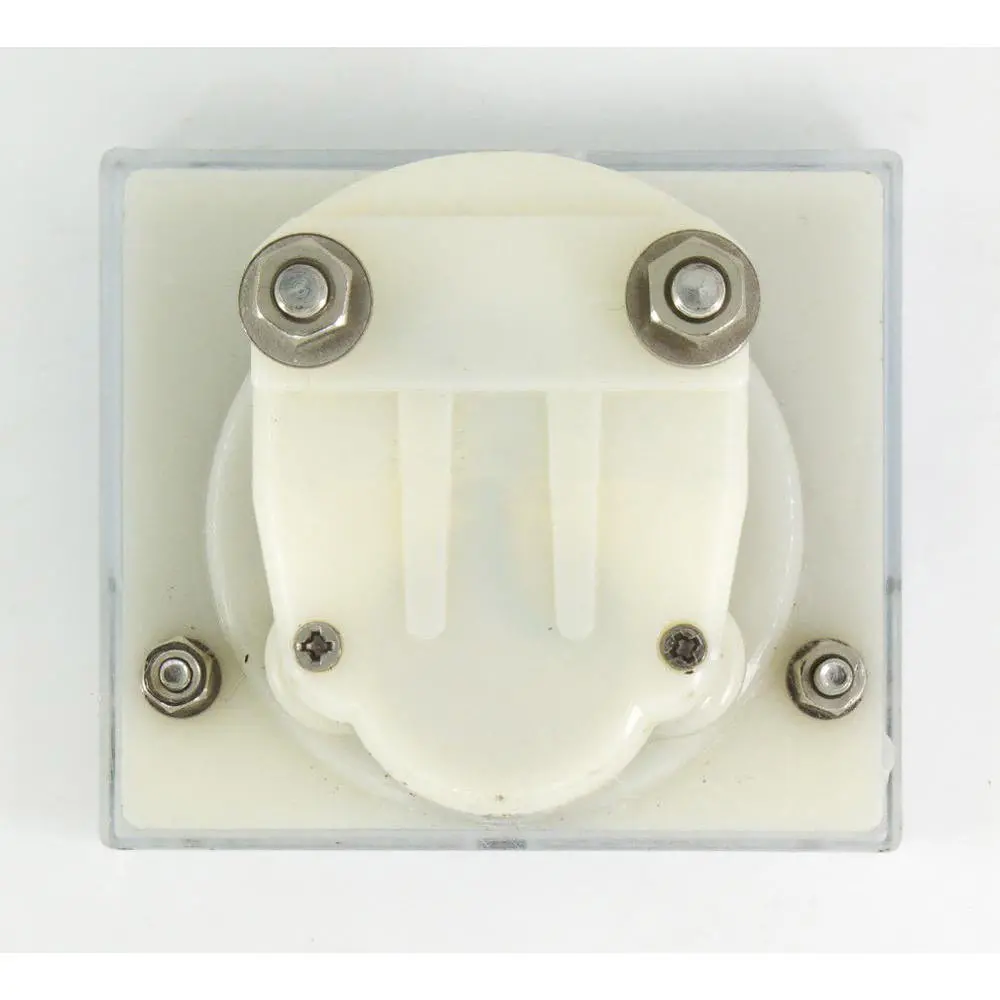

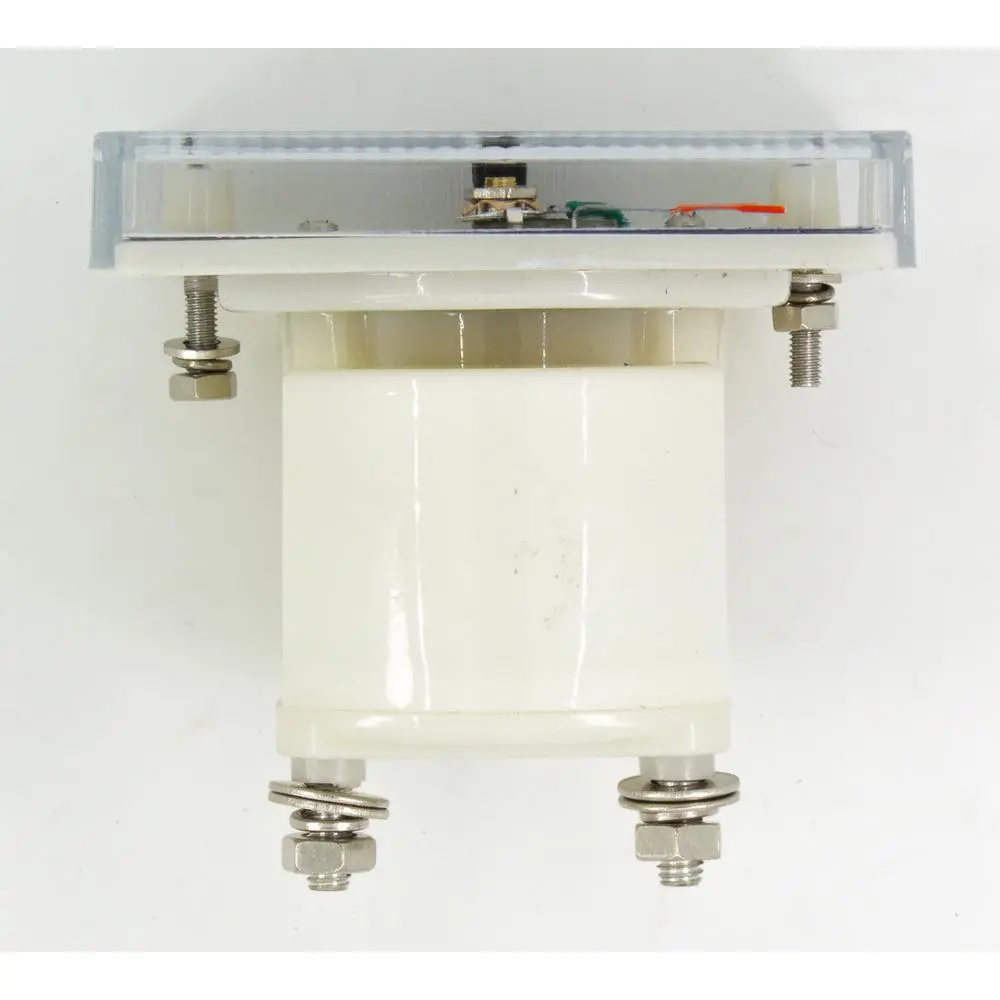

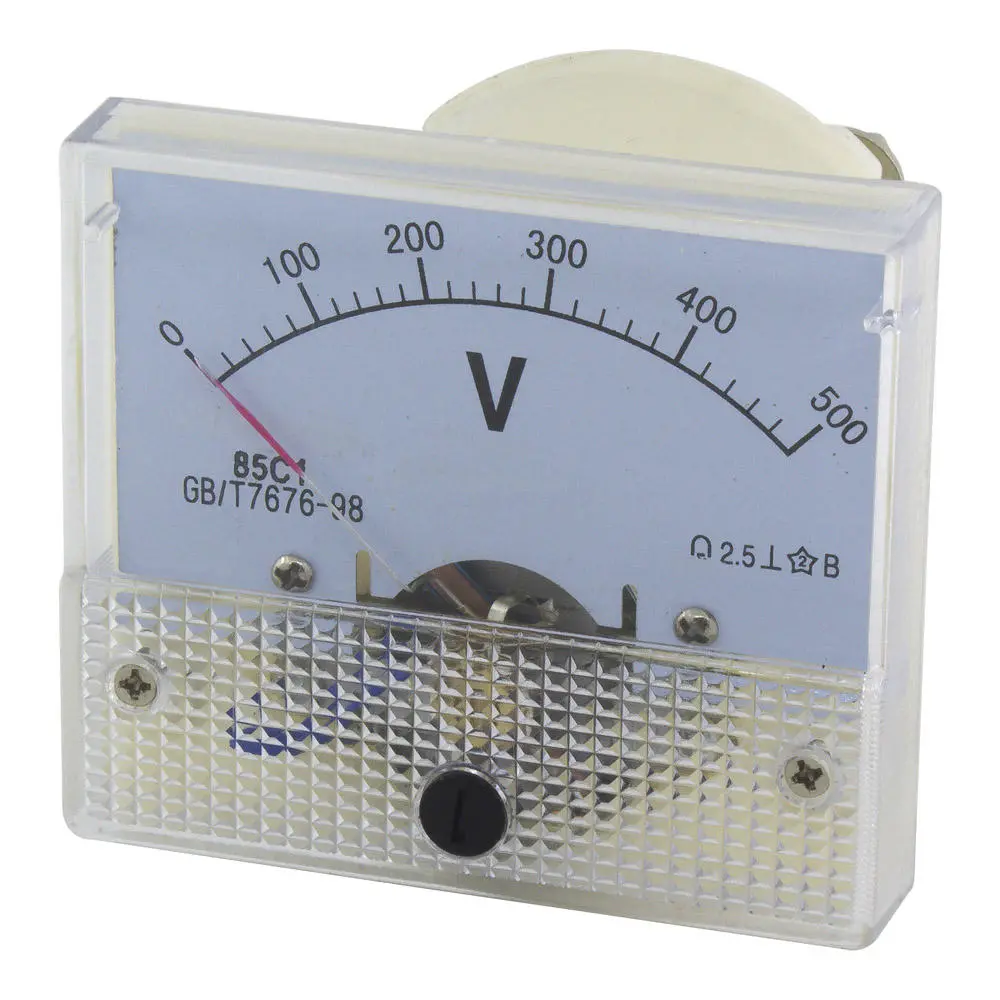

Details pictures:
