Product Description
Specification:65 w adjustable constant current load - UD18L Chinese parameters:
Input interface: USB - A common input/android Mirco USB female bridge input/mother Type - C input
Discharge tube models: IRFP260N (50 a / 200 v)
Adjust potentiometer: precision adjustable potentiometer
The cooling way: intelligent temperature control fan + whole aluminum heat sink
The input voltage: DC5 ~ 24.0 V
Adjustable current: 0.1 ~ 4.8 A (maximum current to follow the law of conservation of energy input voltage control within the 65 w, according to the P = UI calculation principle)
Constant current precision: : plus or minus 2%
Current adjustment method: adopt many resistance way of fine adjustment
Aging wattage rating: 45 w (sustainable);
Limit the aging power: 65 w (short time within 3 minutes)
Fan control mode: temperature intelligent control (the higher the temperature the greater the power the fan automatically increase speed to the faster)
Highest fan speed: MAX12000 plus or minus 10 RPM (using large wind speed adjustable high-speed fan)
Product size: 77 x 63 x 45 mm
Since the power flow: < 0.02 A
Working temperature: - 10 ~ + 60 degrees Celsius - 10 ~ + 60 ??
Working humidity: 10 ~ 80 (dew) undoubtedly 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
Package Includes:
1 x USB Tester

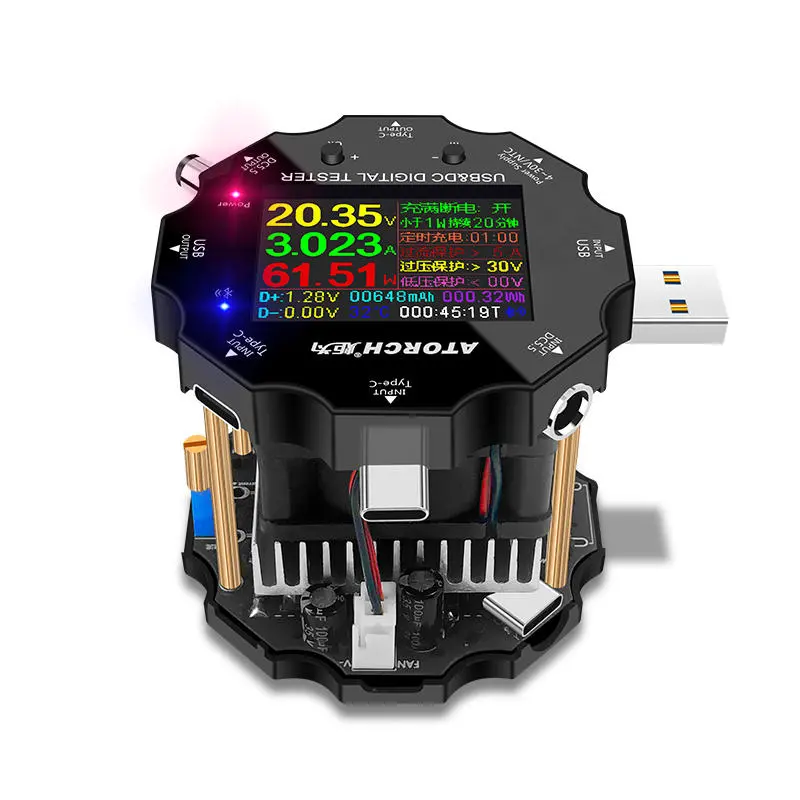

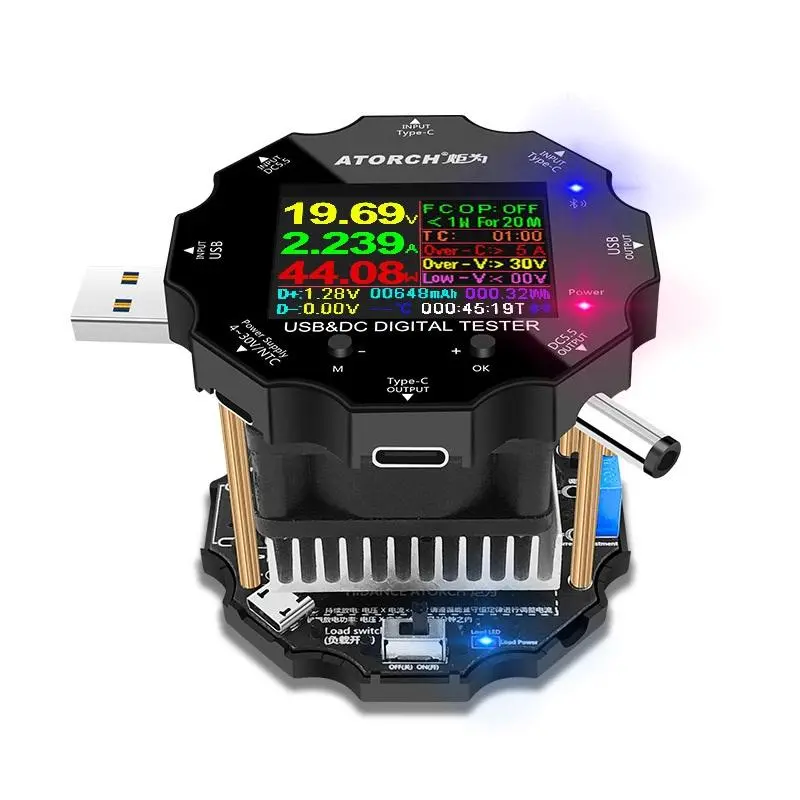

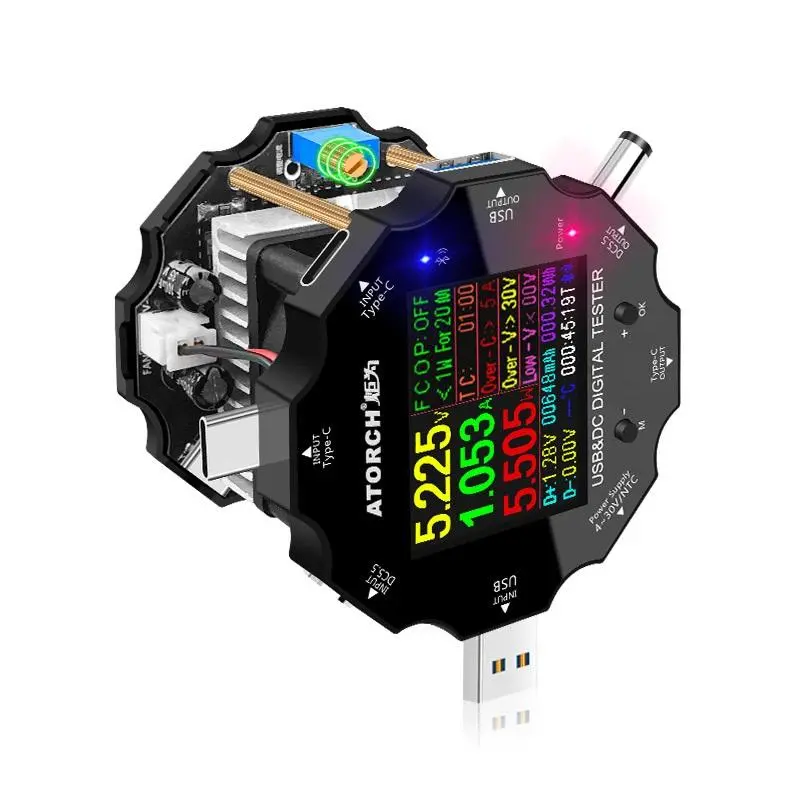

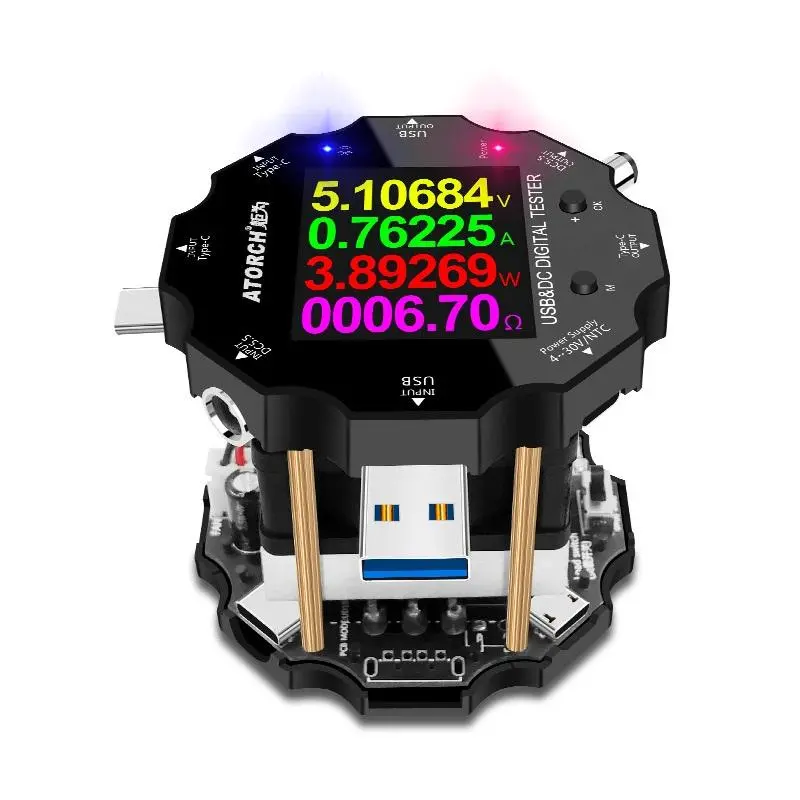

Details Pictures:
