UNI-T UTi260V Thermal Camera | 256x192 IR & 5MP Visible -20°C to 550°C

Product Description

Click to download the instruction manual

Features:

High-Resolution Imaging: With an infrared resolution of 256 x 192 and a visible light resolution of 5 million pixels, this thermal camera provides clear and detailed images, aiding in accurate temperature measurement and fault diagnosis.

Wide Temperature Range & Measurement: The camera supports a wide temperature measurement range of -20~550 ?? and offers high accuracy (?? 2 ??/?? 2%), making it suitable for diverse applications.

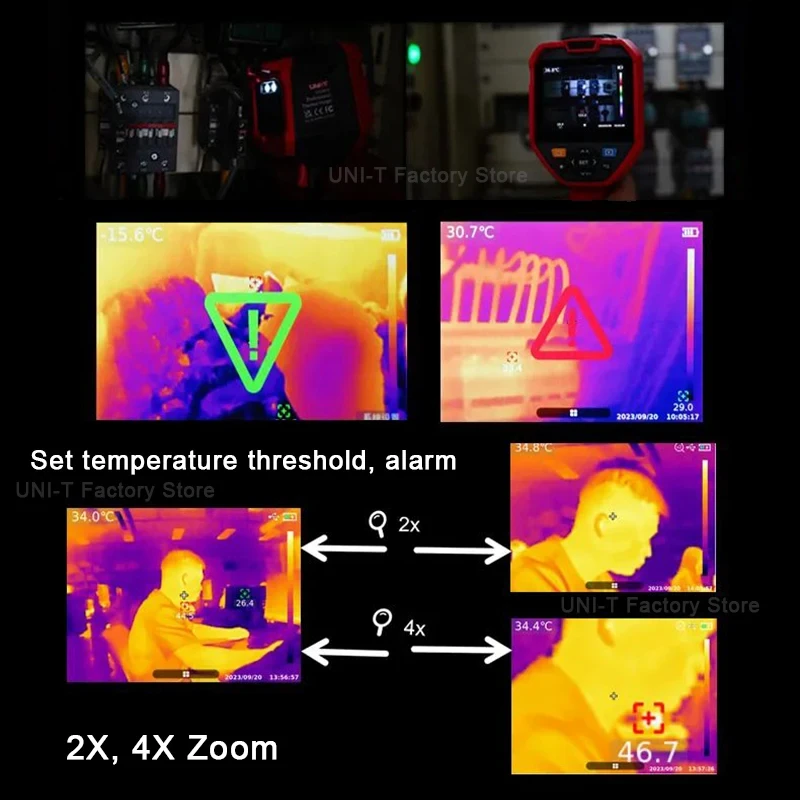

Advanced Image Modes: Offers multiple image modes including thermal imaging, visible light, T-Mix/dual light fusion, and picture in picture, giving users flexibility and enhanced detail in various environments.

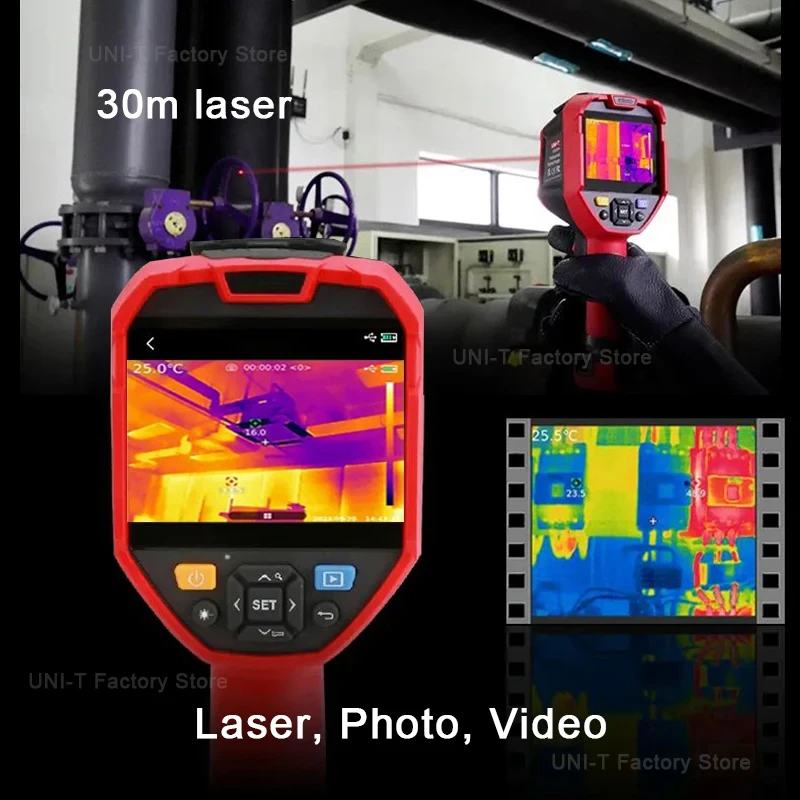

Integrated Laser Ranging: Equipped with a laser ranging function that measures distances up to 30m, allowing users to maintain safe distances while capturing accurate measurements.

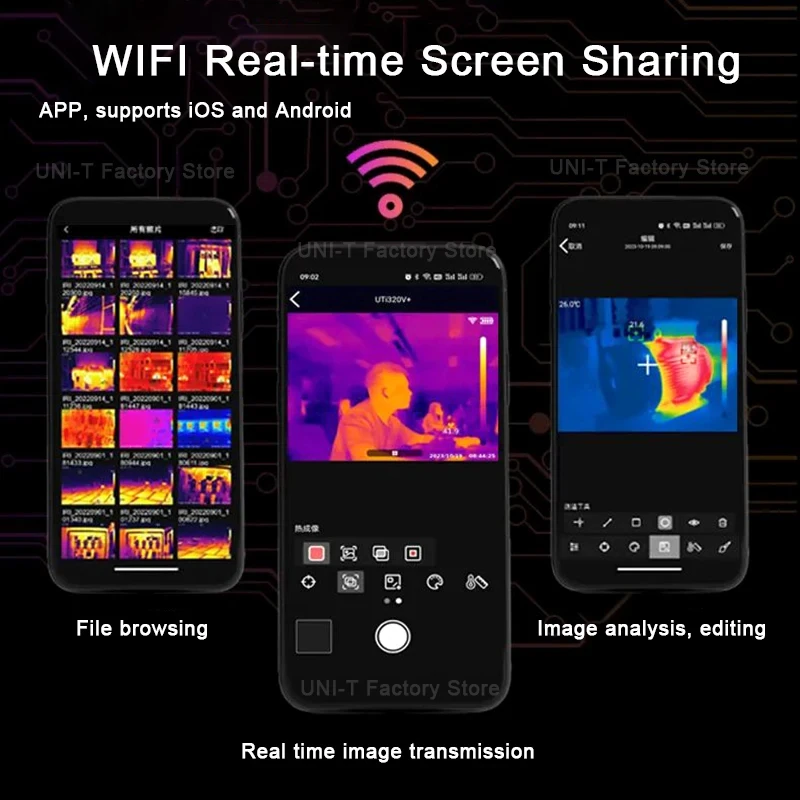

Comprehensive Analysis & Connectivity: Features real-time image transmission via mobile app and PC software, with support for photo and video storage, making it easy to conduct post-image analysis and report generation.

Specifications:

Brand Name: UNI-T

Model: UTi260V

Infrared Resolution: 256 x 192

Visible Light Resolution: 5 Million Pixels

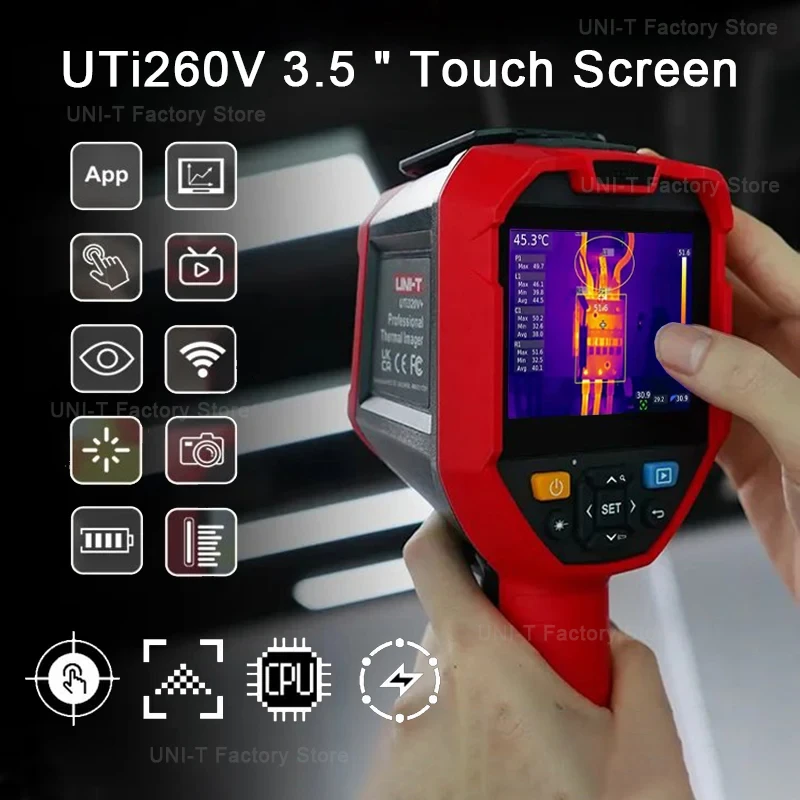

Display: 3.5" LCD touch screen, 640 x 480 resolution

Temperature Range: -20~550??

Laser Ranging: 0.3 to 30m

Battery: 3.7V, 5200mAh replaceable

Protection Level: IP54, 2m drop protection

Dimensions: 620 x 98 x 96.5mm

Weight: 665g

Package Included:

1 x Infrared Thermal Imager

2 x Batteries

1 x USB Cable

1 x Micro SD Card

1 x Instruction Manual

1 x High-Strength Impact Resistant Portable Case
