Infrared Thermal Analyzer | 3D PCB Circuit Board Repair | High-Definition Precision
Product Description
??Features:
1.Find PCB Hot Spots At A Glance - An Effective & Time-Saving Tool to Debug Complex PCB - With this 260x200 highly sensitive IR thermal camera, you can quickly non-contact identify all of hot spots and focus your time-consuming testing at fewer points with greater confidence that none was missed. Say Goodbye To the "Guessing Game" of Electronic Repair.

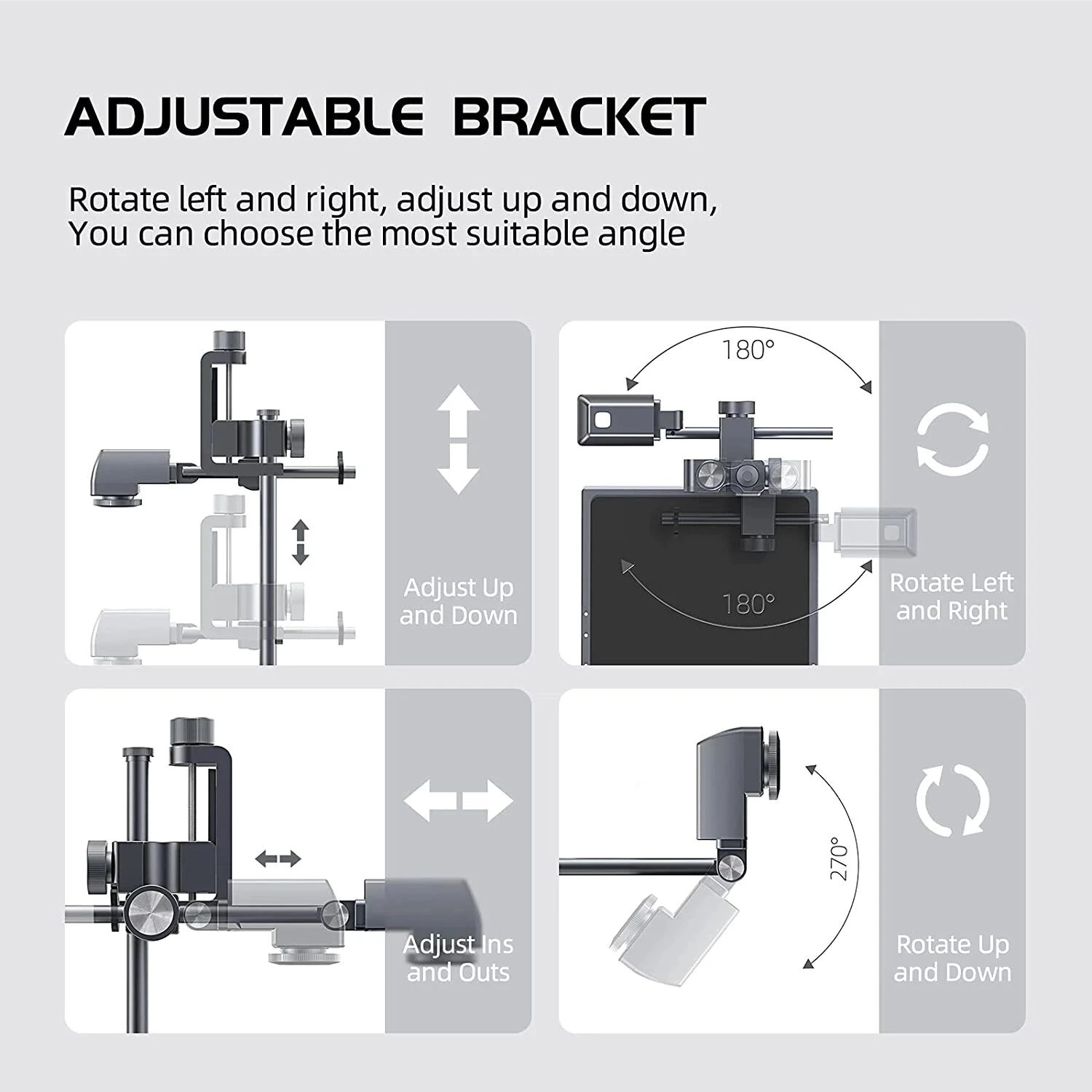

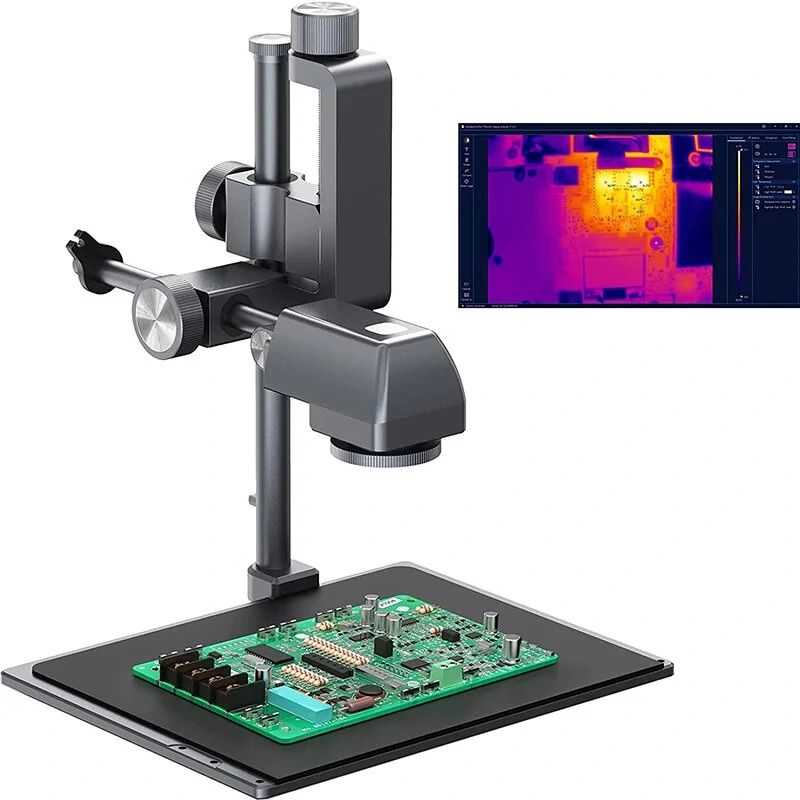

2.Designed For PCB Repair - Unlike handheld thermal imaging camera, this desktop thermal camera has a metal adjustable bracket and offers hands-free operation that allow you to focus on your work without the needs of continuously holding the thermal camera, which is more suitable for long hours testing and repair operations.

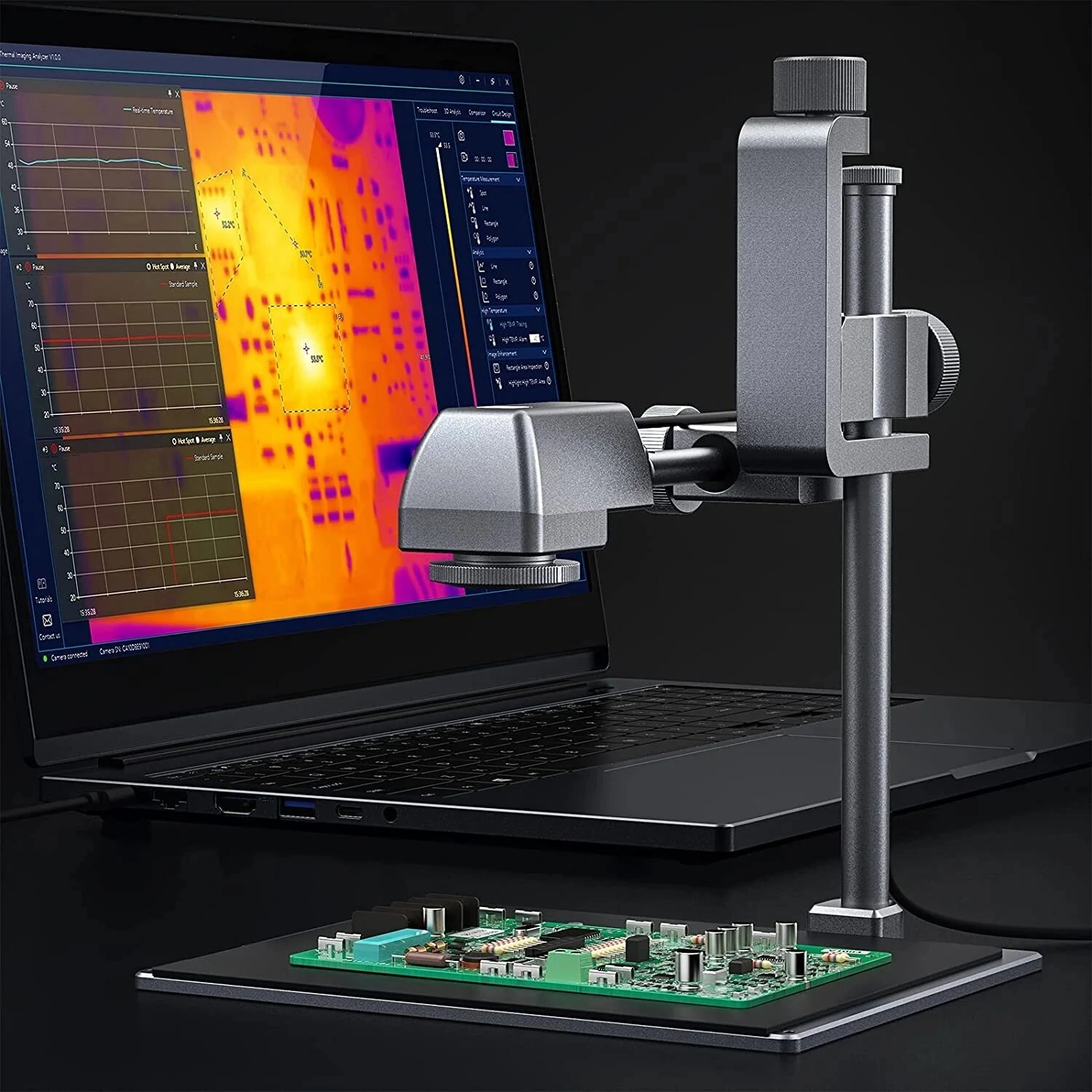

3.Real-Time Depth Analysis - Only Works With Windows PC - The free PC software has many useful functions. It can not only measure the temperature of the target, but also measure the temperature of multiple points or areas on the image, and record the temperature changes.
4.3D Graph Function - Easy To Detect Subtle Temperature Differences - The software can convert the flat thermal imaging picture into a 3D temperature change graph that the detect ultra-small current leakage can be easily observed, very useful for research and development professionals.
5.Repair While Watching - Heat Resistant & Anti-static Bottom Plate - In order to facilitate PCBA engineers to perform repairs during electronic testing, the bottom plate is made of high-temperature resistant silicone material, which protect your workbench from being damaged or burnout by high temperature. It is also can protect your sensitive electronic devices from static damage.
Specifications:

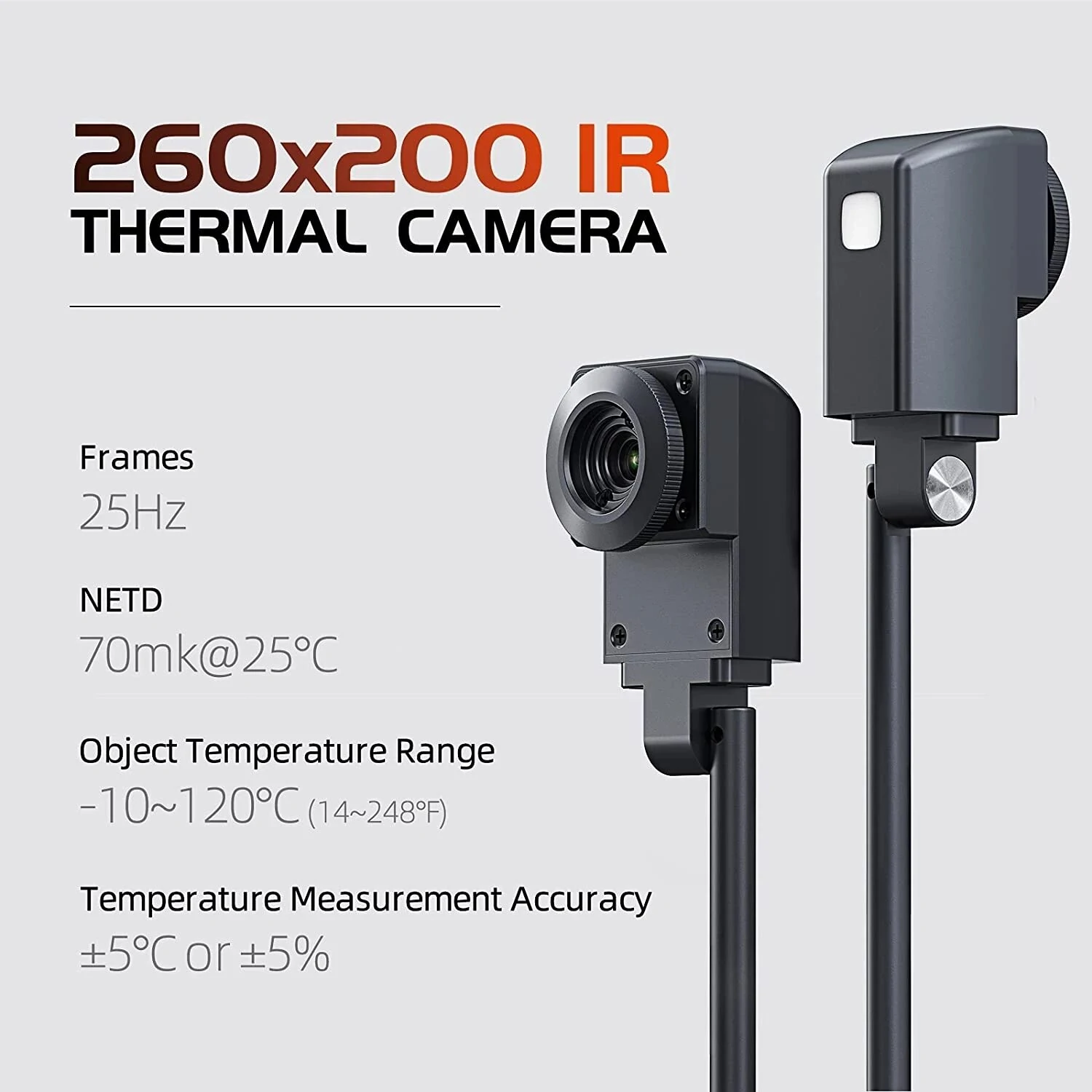

Thermal imaging resolution | 260*200 | |
Frames | 25Hz | |
NETD | 70mK@25?? | |
FOV | Horizontalangle 34.4??Verticalangle 25.8 | |
Lens | 4mm Adjustable focus lens | |
Temperature range | -10~120??(-23~112?H) | |
Temperature measurement accuracy | ʿ3?? | |
Power | DC5V(USBType-C) | |
Power on/off | Press and hold the button for 1 second to turn on,3 seconds to turn off | |
Connection method | USB Type CCable | |
Size | Standard:220mmx172mmx241mm | |
Assemble additional accessories:346mmx220mmx341mm | ||
Item Weight | Standard:1.6kg | |
Additional bottom plate: 0.5kg | ||
Work Environment | Temperature | -10??~55??or-23?H~13?H |
Humidity | <95% | |
Minimum software and hardware requirement | System | Win10(recommended)/Win7 |
CPU&RAM | i3 | |
Update | Manual or automatic update via internet |
Package Included:
1 x Thermal Analyzer
