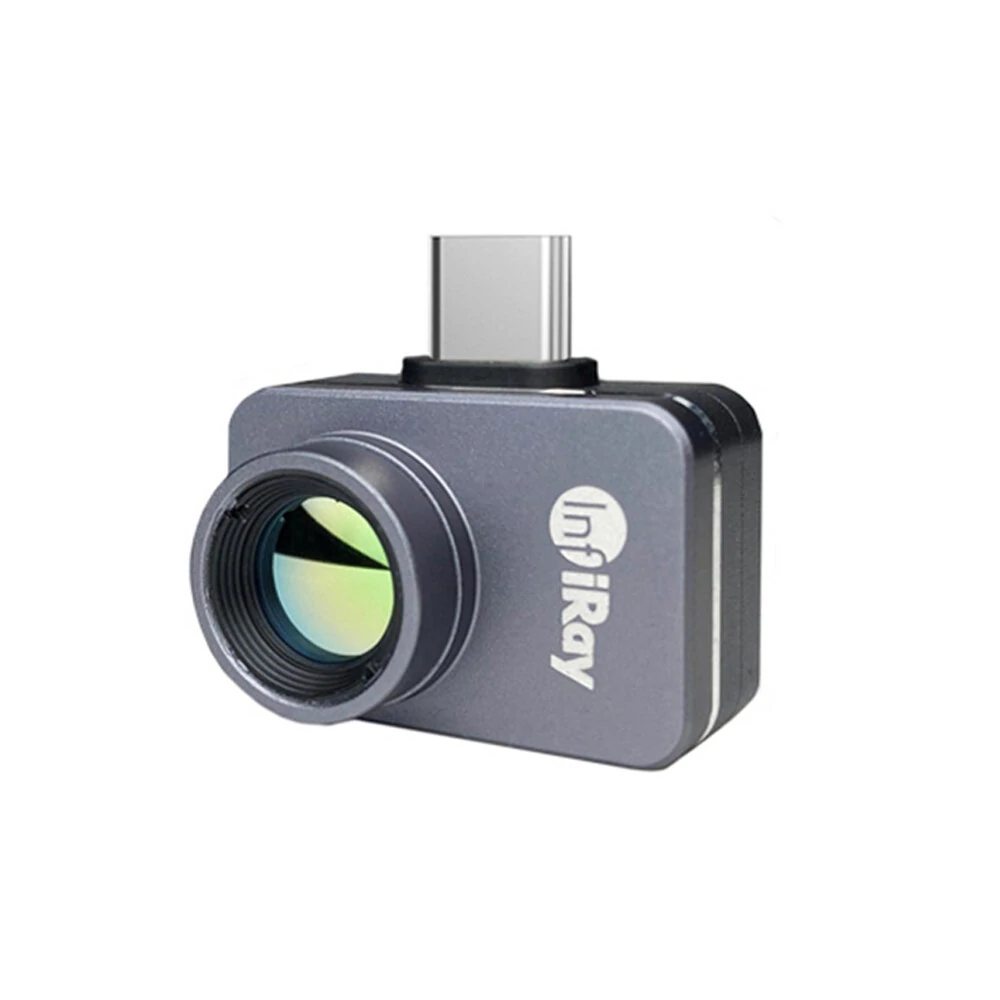

INFIRAY P2 Pro Thermal Camera | Mobile Phone Infrared Imager for PCB & Heating

Product Description

Additional coupons BGbf9843 For Poland

Tips: P2 PRO is an upgraded version of P2.

Please note: This product is an Android version.

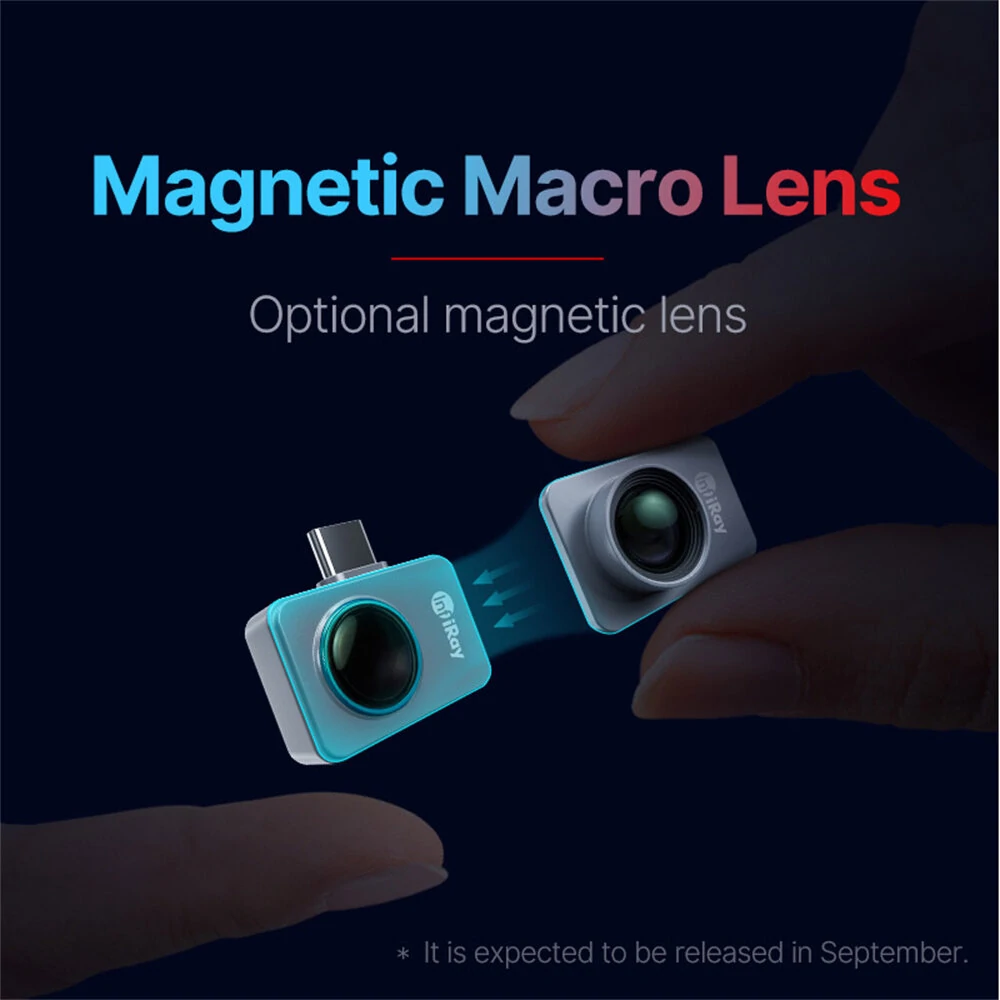

P2pro has an extra macro lens, and the temperature measurement range is higher than that of P2.

Features:

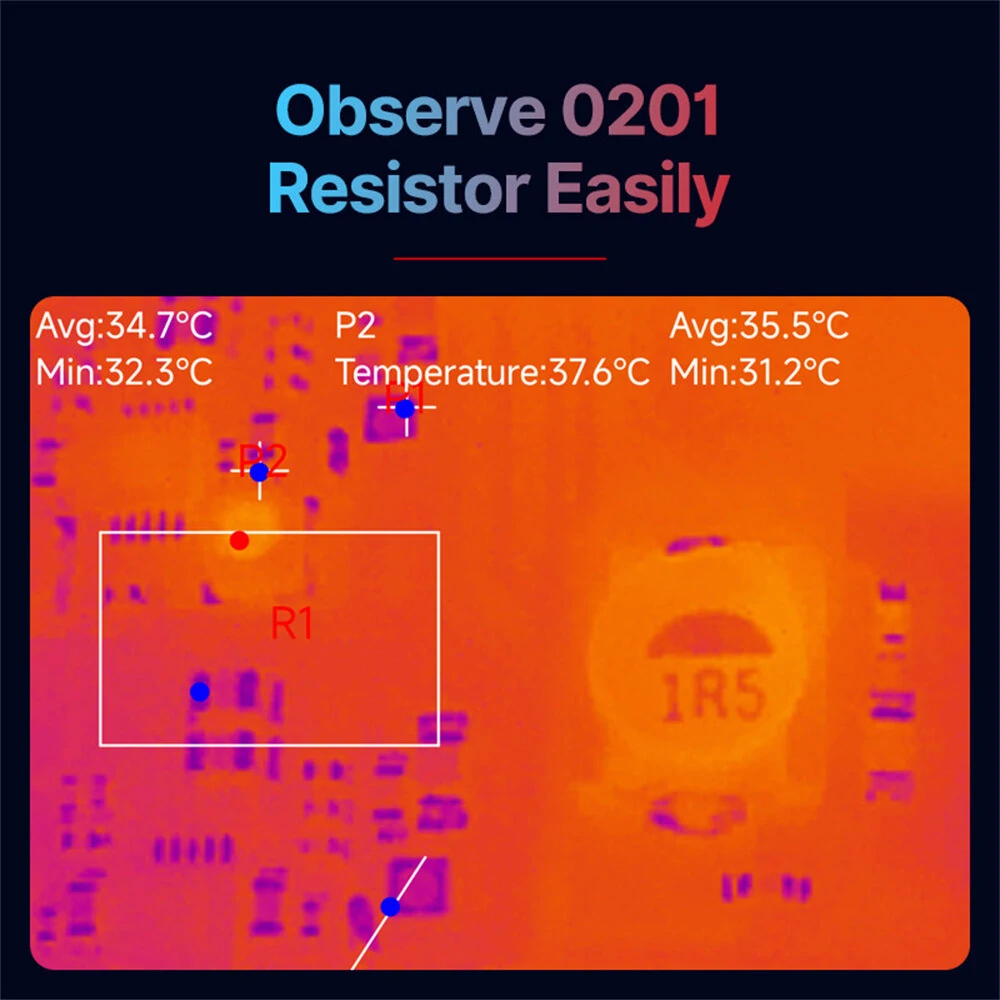

High Resolution Imaging: Our P2 Pro Mobile Phone Infrared Thermal Imager, with a resolution of 256x192, provides clear and detailed thermal images for all your needs.



Extended Battery Life: With a battery life of over 300 minutes, you can carry out extensive tests without the worry of frequent recharging.

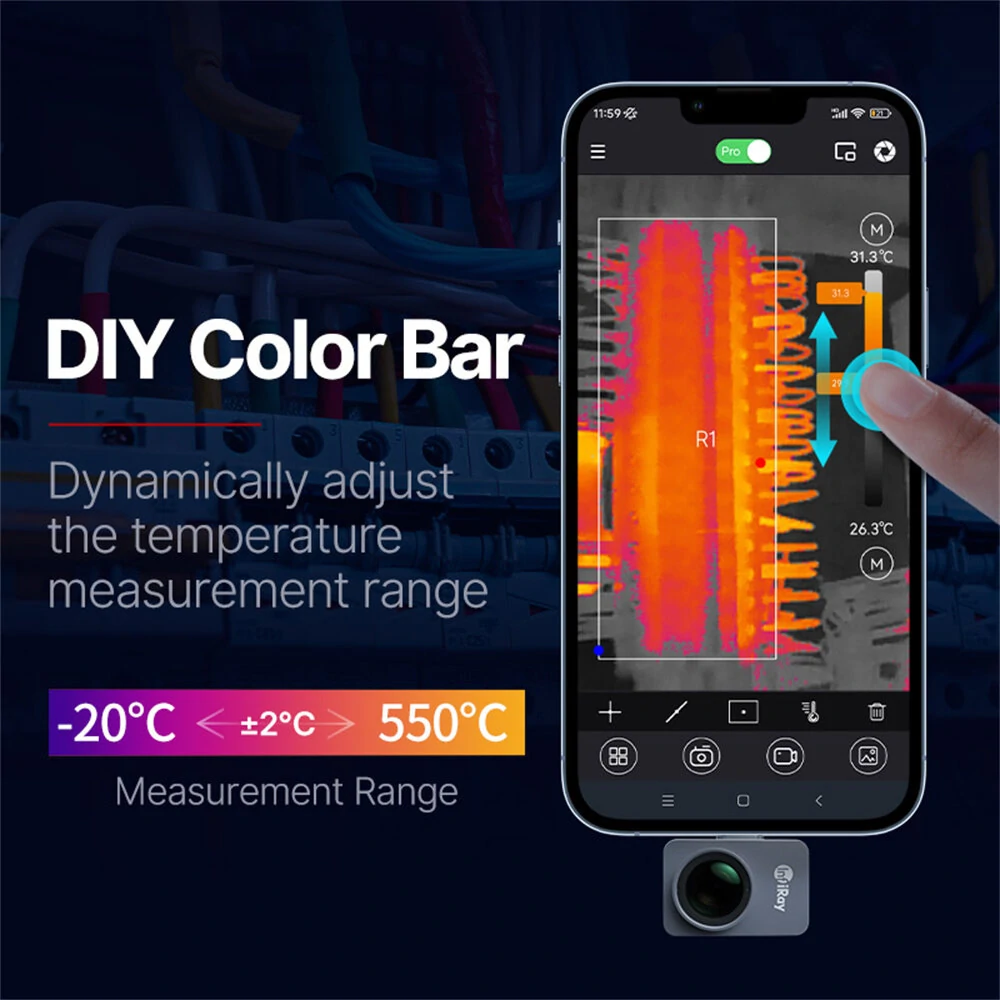

Wide Measurement Range: Capable of handling a wide temperature measurement range from -20??C to +550??C, this thermal imager is ideal for various industrial applications.



Compact and Lightweight: Weighing only 9g and compact in size, it is portable and easy to handle during long periods of use.



Advanced Processor: Equipped with a self-developed ASIC chip processor, our thermal imager ensures fast and accurate processing of thermal data.



Specifications:

Product: Infrared Thermal Imager

Model: INFIRAY P2 Pro

Resolution: 256x192

Battery Life: >300min

Measurement Range: -20??? to +550???

Frame Rate: 25Hz

Operating Temperature: -10???~+55???

Storage Temperature: -40??~+85???

Power Consumption: 350mW

Processor: Self-developed ASIC chip

Lens Focal Length: 3.2mm

Aperture: F1.1

FOV: 56.0???42.2??

Focusing Mode: Athermalized fixed focus lens

Shell Size: 27??18??9.8(mm)

Color: Silver

Interface: USB type C

Weight: 9g



Package Included:

1 x P2 Pro Infrared Thermal Imager

1 x Macro Lens

1 x Conneting Line

1 x Protective Carrying Bag

1 x User Manual
