DALI T1 Thermal Imaging Camera | 160x120 IR 3.2 LCD | Rechargeable Infrared Thermometer
$312.00
$383.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
This product is a versatile, rugged, and ergonomically designed thermal imager with great performance. It adopts sensitive detector and clear TFTF screen to ensure great infrared resolution and a rich variety of color modes. In addition, it also has the functions of visual light, temperature alarm, and image transmission, which is convenient for various applications.Features:

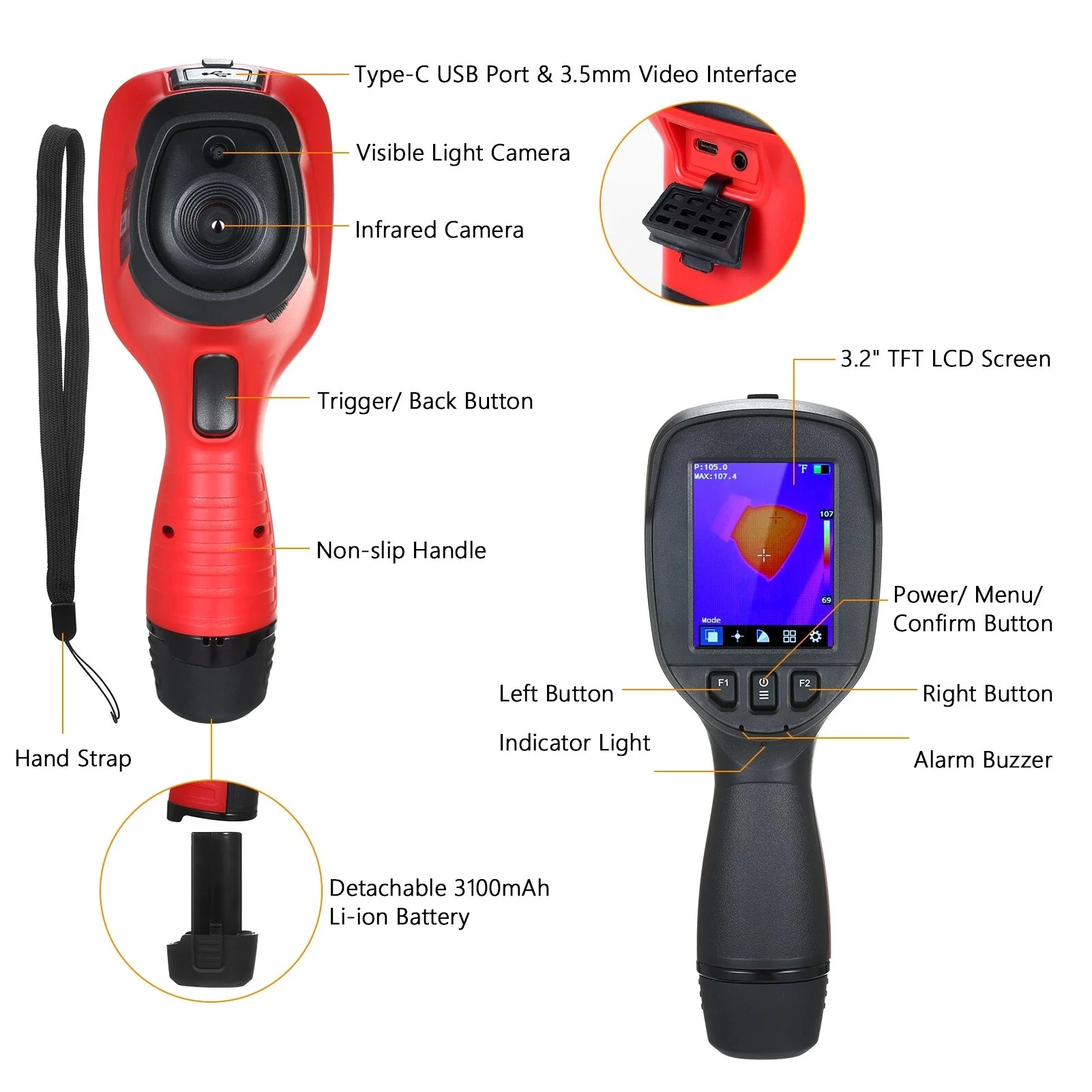

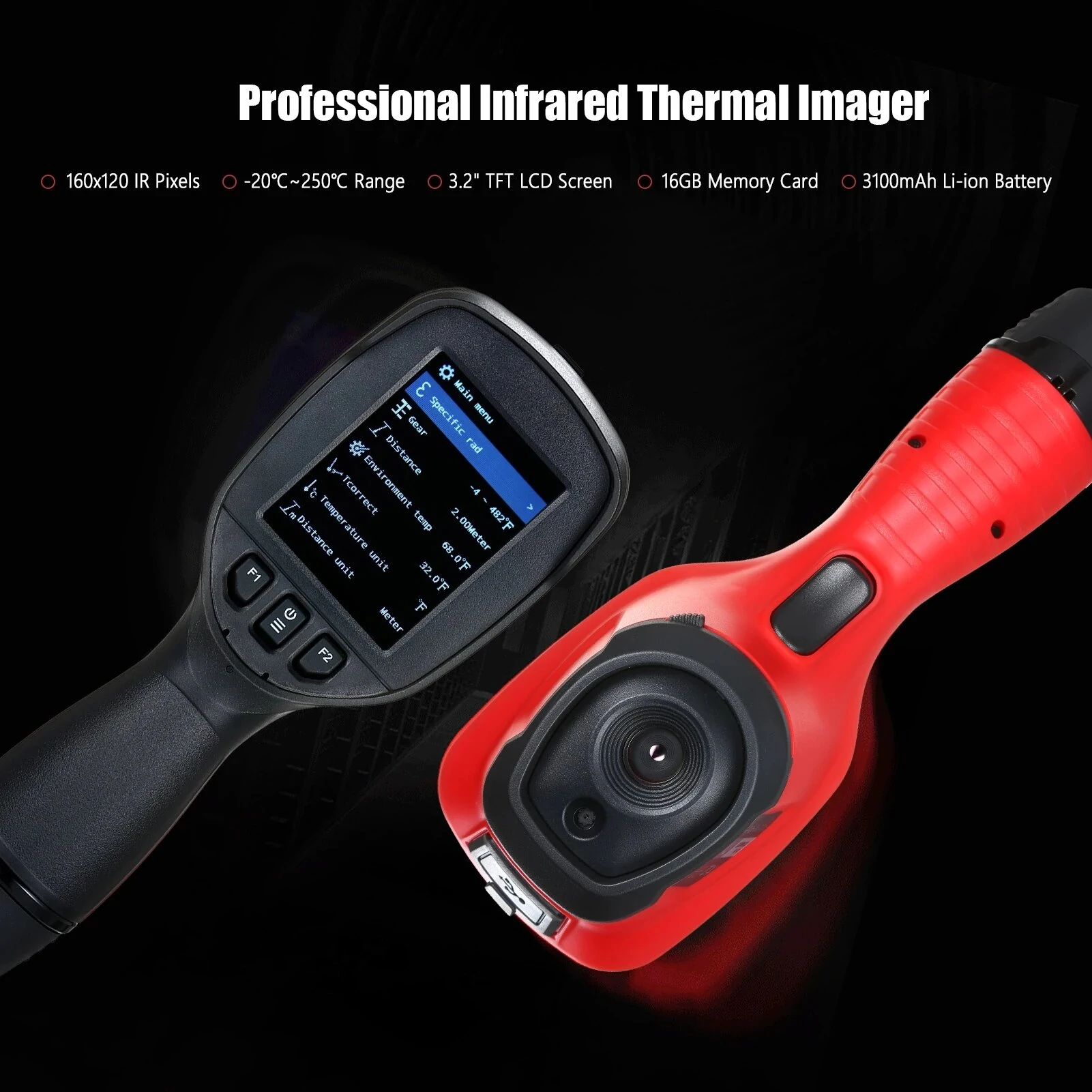

[160x120 Pixels Thermal Imager with Alarm]-- With 160x120 pixels detector, -20~250?? (-4~482?H) temperature range and 3 kinds of temperature measurement display including center point, high temperature and low temperature. With high/ low temperature alarm function, and the alarm temperature is adjustable (37/ 98.6?H default), more convenient to use.[3.2" TFT LCD Screen & 4 Color Modes]-- Clear LCD screen displays data, image and different kinds of interfaces clearly, easy to read. And the temperature unit can be switched between ??, ?H and K, the color mode can be switched between Iron Oxide Red, Rainbow, Incandescent, Black Hot. Otherwise, it's also a visible light camera which supports 640x480 pixels.[Image Save, USB Transmission & Data Analysis]-- Built in 16GB memory card, easy to save and browse pictures in the thermal imager. Picture format: BMP/ DLV. Or you can export pictures to computer via Type-C USB interface and do the analysis report in free PC software. It also supports analog video with 3.5mm video interface.[Rechargeable Battery & Auto Shutdown]-- Built-in 3100mAh large capacity rechargeable li-ion battery, with strong endurance, easy and quick to be charged via Type-C USB cable after connecting to power adapter, laptop, power bank and more. Auto shutdown and auto screen off to save battery, 3 levels of brightness adjustable, more humanized to use.[Premium Quality & Wide Application]-- Made of reliable quality material and is ergonomically designed, with wear resistant and high-durability shell, anti-slip and comfortable handle, IP54 waterproof and dustproof protection grade. This professional thermal imager can be widely used in home inspections, fire fighting, farming, electronics manufacturing, studying traffic, archaeology and any other business, hobby, or science.
Specification:
Detector type: Un-cooled FPA micro-bolometerArray size/format: 120*120 80*80Detector pixel: 160X120
Pixel size: 25umSpectral range: 8-14umThermall sensitivity: <0.06??@30??Frame frequency: 50HZField of view/min focus distance: 33*33?? 23??*23??Spatial resolution (IFOV): 5mradFocus range: 0.5mFocus: Focus freeBuilt-in CCD camera: 0.3 million pixelsLCD display: 3.2"TFT LCD, 240*320palette: 4 palettes changeableImage control: AutoImage type: IR&CCD seitch,IR&CCD fusionTemperature range: -20??~+250??Accuracy: ??2??C or ??2% of reading. Whichever is greaterMeasurement correction: Automatic/manualMeasurement mode: 1 centeal spot, Hottest spot/coldest spot tracking Alarm(voice,color)Setup functions: Date/time, temperature unit, languageEmissivity,correction: Varuable from 0.01 to 1.0Storage card: Built in flash,max 5000 imagesStorage mode: Manual saving,IR image saving, IR&visual image fusion savingFile format: JPEG with original thermal measurement data includedVoice annotation: Input via built-in microphone up to 60 seconds of digital voice clip per image stored with imageBattery type: Ll-lon,recharge ableoperating time: 3 hoursBattery charging mode: USBPower saving: Auto-sleep and auto-shut downOperating temperature: -15??~+50??Storage temperature: -25??~+60??Operating and storage humidity: <90% non-condensing

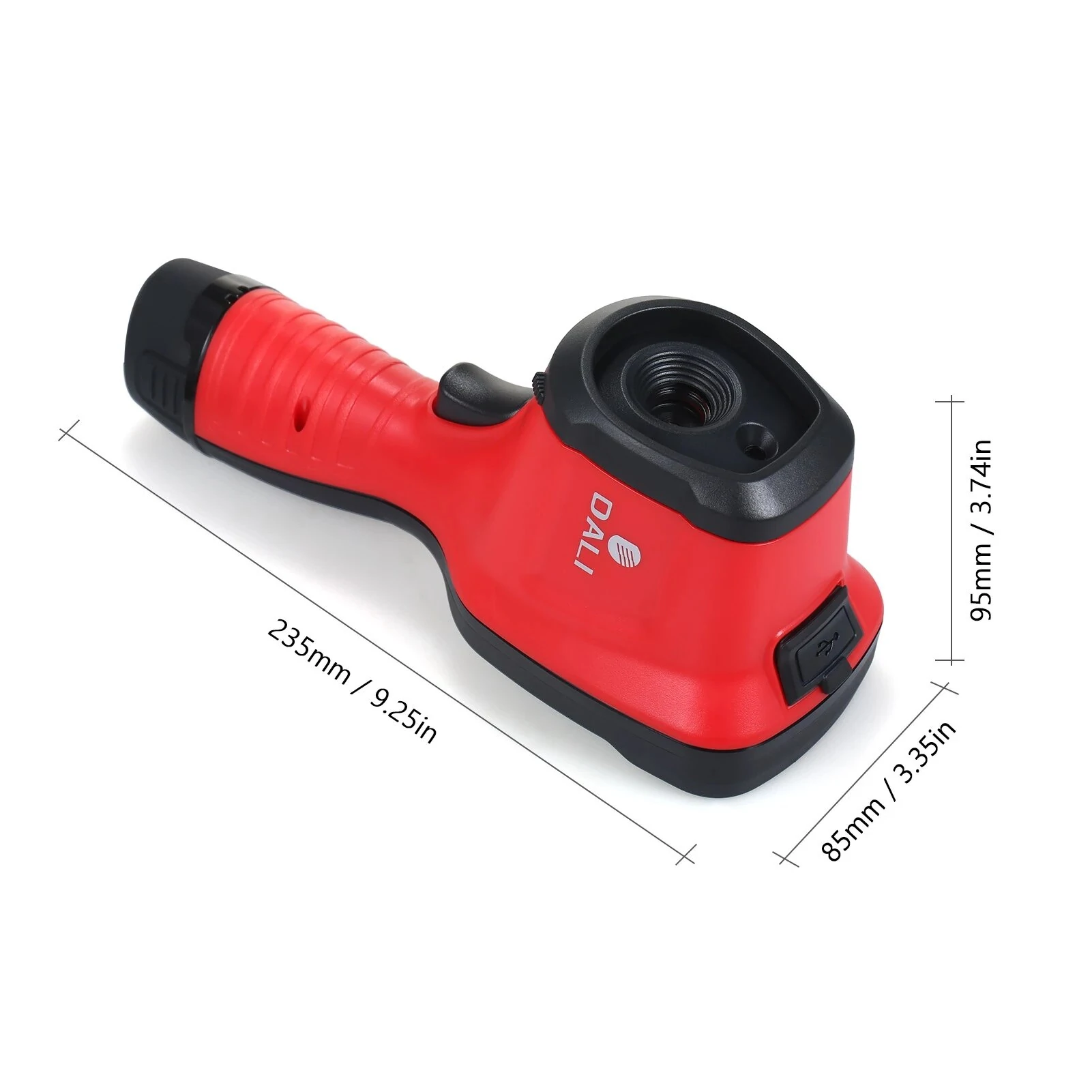

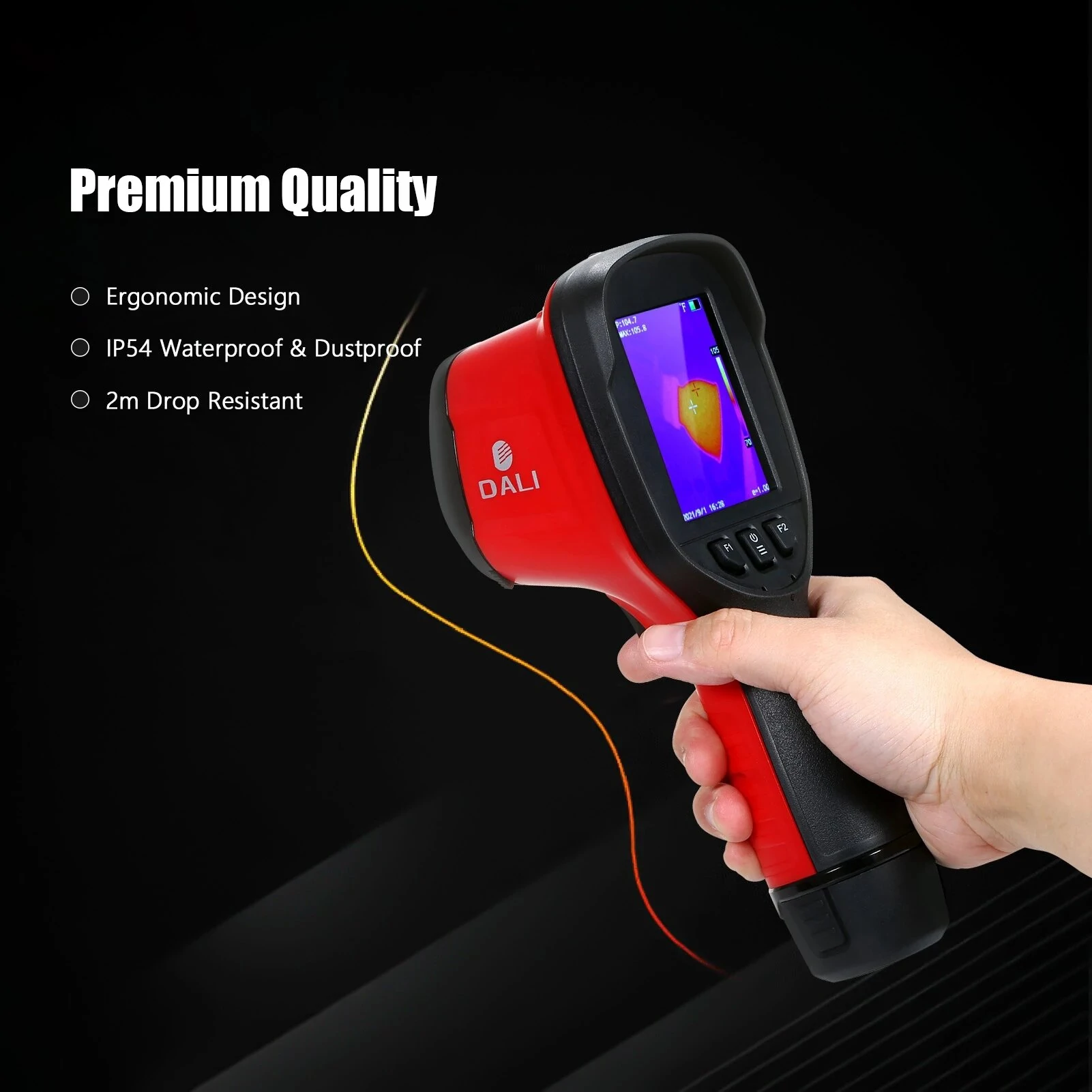

Encapsulation: IP54Vibration: 2G, JEC68-2-6Shock: 25G, JEC68-2-29EMC: CE/FCC compliantWeight: 485gDimension: 240 x 86 x 132mm(L x W x H)Mini-USB: Power supply/Date transmission
Package included:
1 x Infrared Thermometer1 x User manual1 x USB Cable (Type-C)
