AV TOOLTOP T220/T220PRO Thermal Imager | 256x192 IR 3D Image -15°C to +600°C | 30mm Macro Lens, High-Temp Alarm & Leak Inspection

Product Description

Description

The PCBA infrared thermal imaging analysis system is a system that can operate on the computer system for analyzing issues of the circuit board, the software can collect on-line Inspect data. and then, it can judge short-circuit point, leakage element of the circuit board, and judge whether the main board's structure is reasonable. So that the equipment can be assessed.

Software :

Suitable for Windows system, recommended to use Win10 or Win11, It is not recommended Win7 or other systems Features: Professional Maintenance Software: Professional PC software, 5 color palette effects display, editable pictures, taking photos ,videos and analysing temperature data by chart which can be stored in files and opened in Excel Fast PCB Fault Location: Fast leakage current short-circuit Inspect, can Inspect current leakage as low as 6mA, quickly locate high-temperature areas, abnormally high-temperature components, etc.

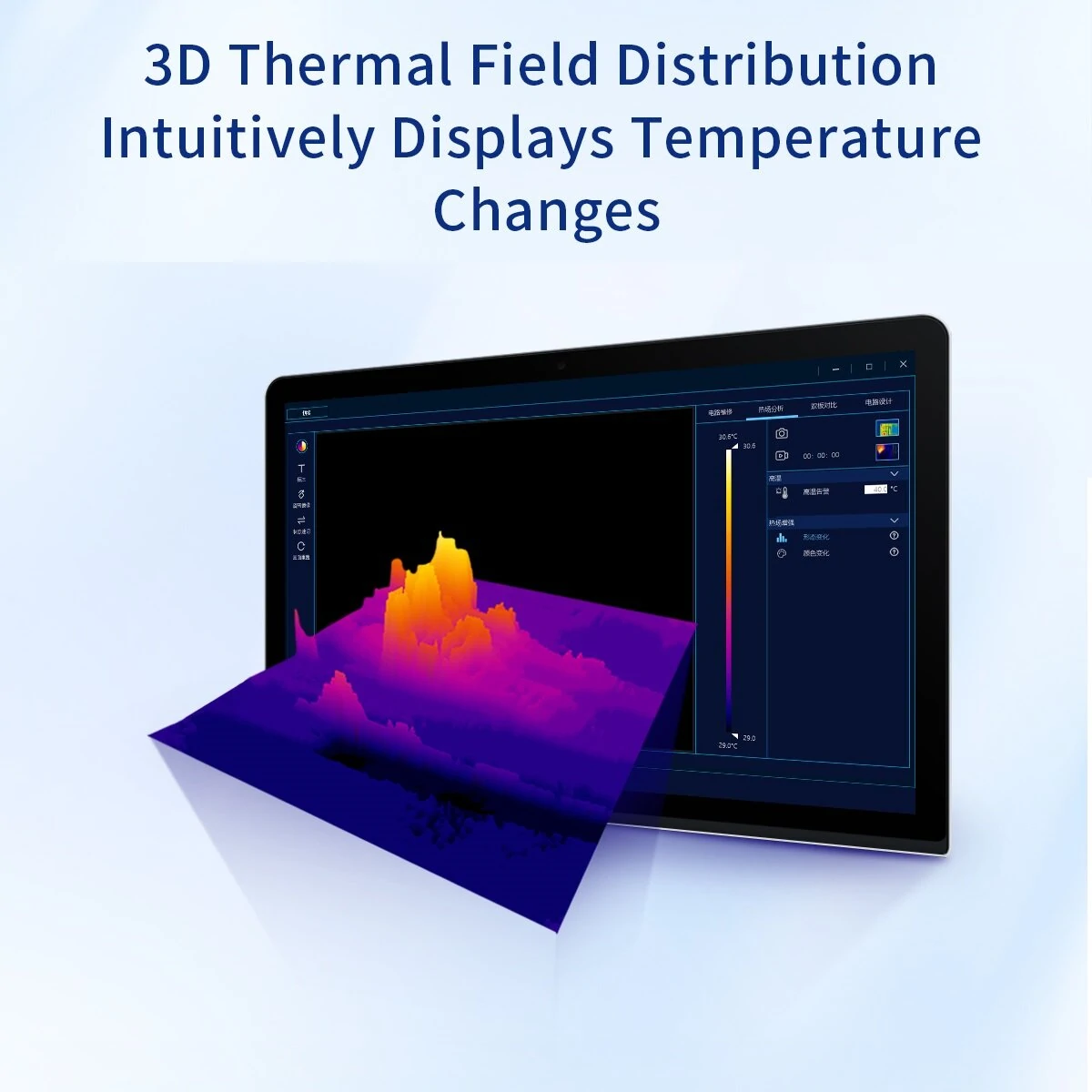

Intuitive 3D Imaging: supports viewing main boards in 3D mode, which is more intuitive for small current changes. The three-dimensional thermal field distribution intuitively displays temperature changes, suitable for industry, electronics and other industries.

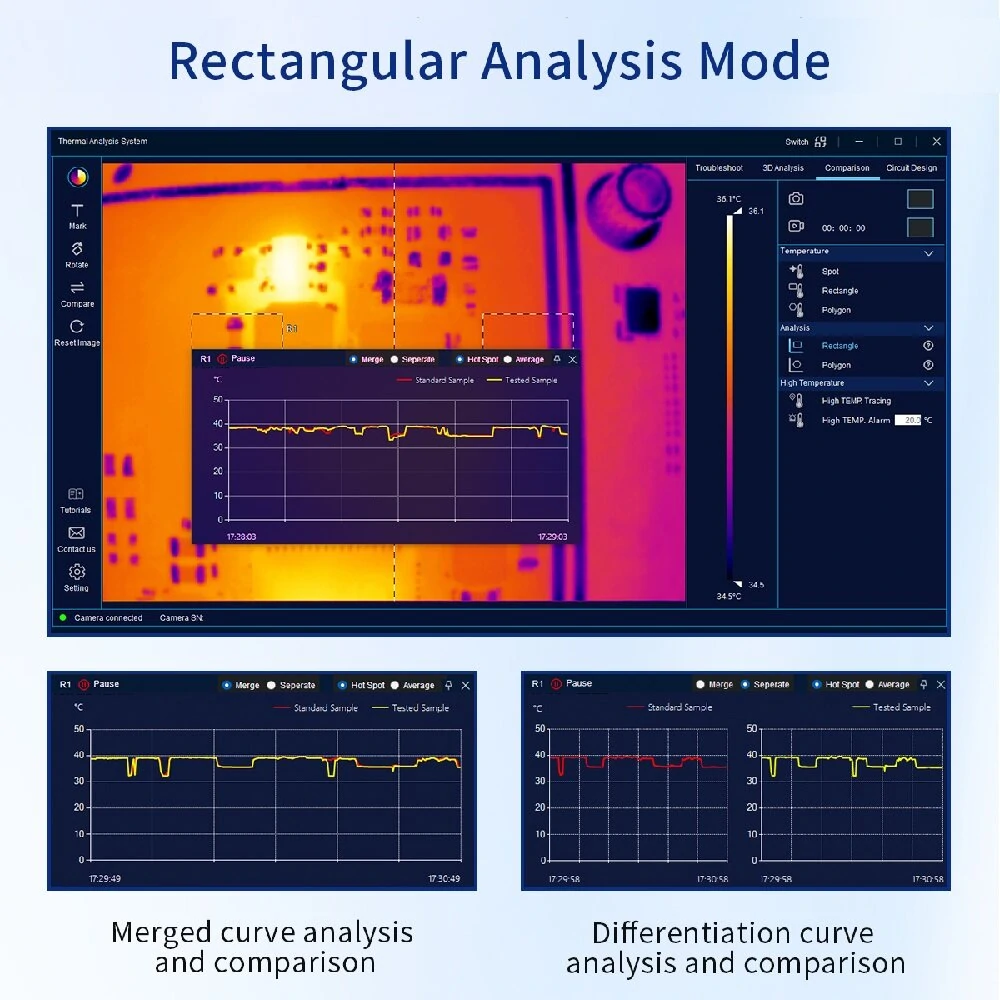

Rectangular analysis mode: supports detailed comparison and detailed inspection of image color changes in different areas, and can display the temperature curve within the frame to facilitate viewing of temperature history data.

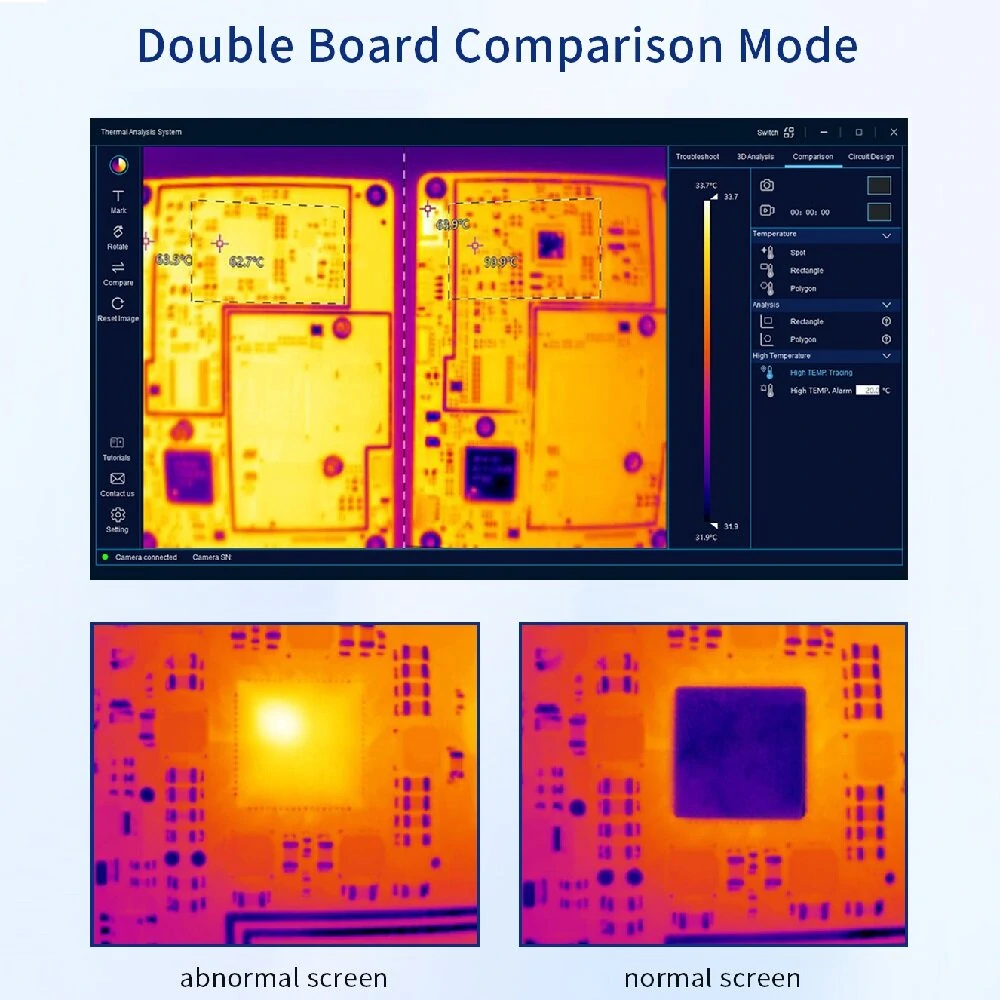

Double-board comparison mode: supports comparison of good and bad boards, places items that need to be observed and compared on both sides of the dividing line, and performs comparison and analysis under the same conditions to quickly locate faulty main boards.

Macro lens (optional): Optional high-definition 30mm macro lens supports magnifying local details of objects, making the image clearer, and can clearly distinguish 0.3mm devices or pins

Temperature measurement: supports the measurement range of -15??C~+600??C(5??F~+1112??F), users can set the high temperature alarm temperature by themselves

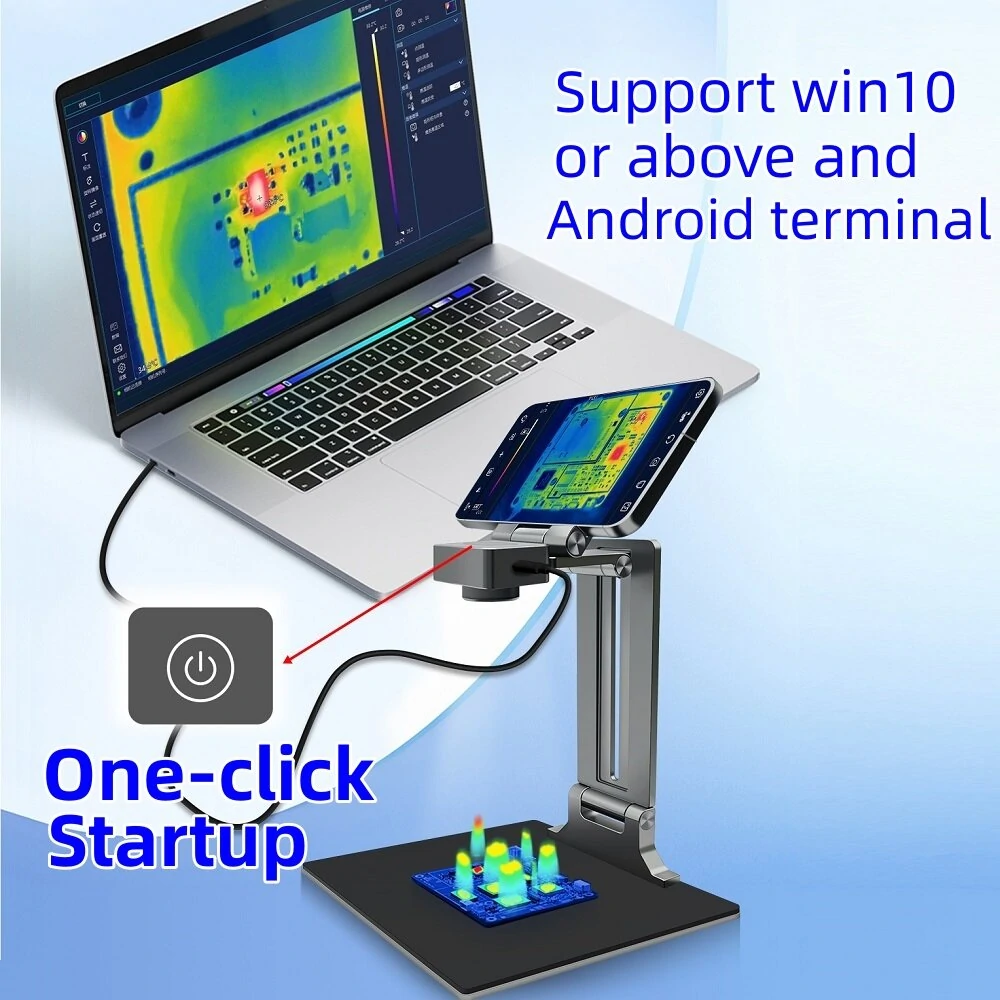

Adjustable Stand: high-quality metal stand with high-temperature resistant workbench, easy to install, flexibly adjustable and rotating, and the measuring distance can be fine-tuned

Specifications: Resolution:256x192 pixel Frame frequency:25Hz The range of temperature measurement:-15??C~+600??C(5??F~+1112??F) View field angle of the lens:56??x42?? The distance of temperature measurement:30mm -150mm The device interface: USB Type C Storage format of the pictures: JPG Storage format of the videos: MP4 The input voltage: DC 5V The temperature range for storage :-20??C~60??C Working temperature:0C~50??C The humidity:95% relative humidity Package included: 1 X Thermal lmager Analyzer 1 x Bracket 1 x User Manual 1 x Data cable 1 x Box
