PWM DC Motor Speed Controller 12V-48V | Digital Display Adjustable 0-100% | Reversible Remote Control
$33.00
$41.02
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

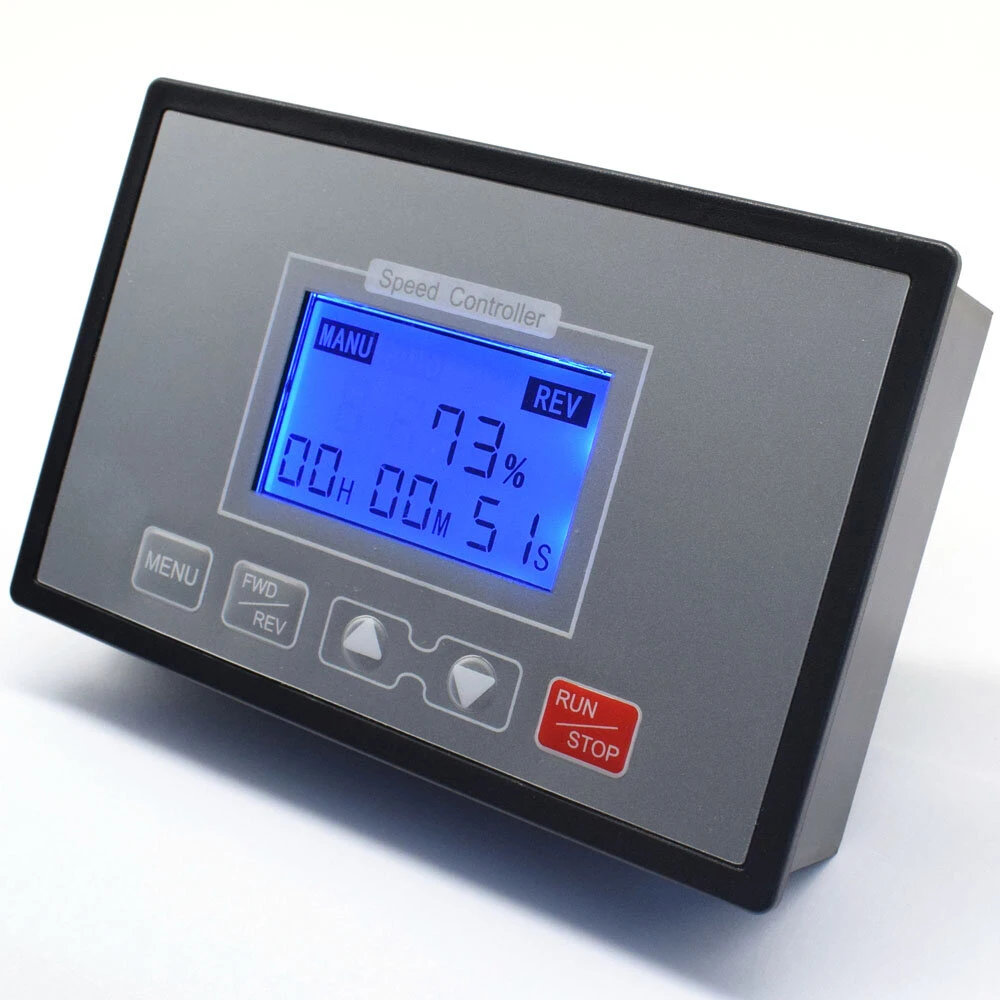

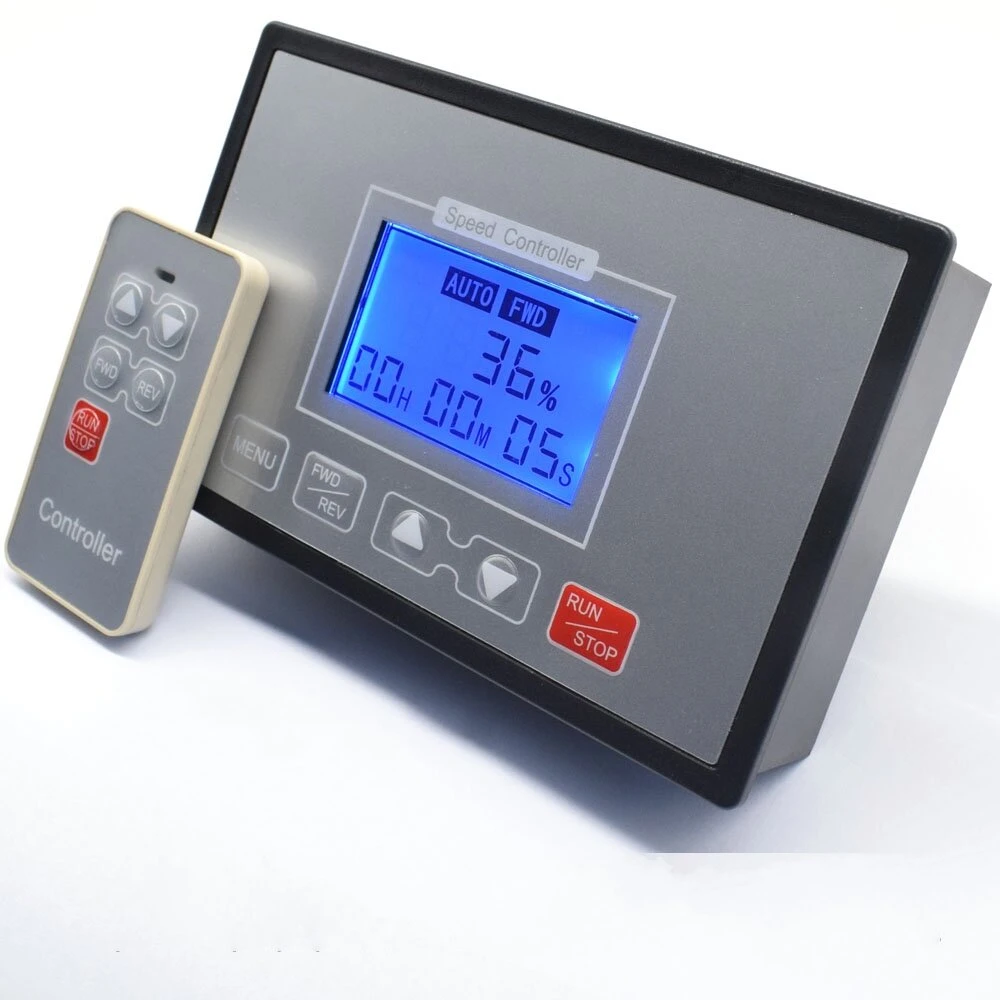

Features:1. LCD screen with backlight, can display working time, percentage of rotation speed, current mode, forward rotation, reverse rotation status2. Equipped with wireless remote control3. Multiple limit modes available4. Can be set to start slowly5.Upper and lower speed limits can be set6.Can set the total working time7.Support separate speed regulation of forward speed and reverse speed8.Two modes, manual and automatic, are available9.Touch switch to switch forward and reverse, jog acceleration and deceleration solve the problem of the traditional potentiometer
Specification:
Input voltage | DC10-55V (the specific voltage is equal to the rated voltage of the motor) |
Output voltage | linear under load |
Instantaneous current | 60A |
Continuous current | Within 40A |
Forward rotation | Support |
Wireless remote control | Support |
Timing timing | Yes |
Limit function | Yes |
Slow start slow stop | can be set |
Speed digital display | 0-100 percentage table |
Speed regulation type | Flow regulation |
Speed regulation mode | Jog +- |
Speed range | 0-100% |
Control frequency | 15KHZ |
Wiring type | Fence type terminal |
Support motor | Brushed motor |
Module size | length * width * height 148mm * 95mm * 36mm |
Product net weight | 255g |
Panel opening | length * width 142mm * 88mm |
Note: 1.Press and hold the FWD / REV button to turn off the backlightFor reverse start, press FWD / REV to reverse start2.The input must be divided into positive and negative. The input voltage must be equal to the rated voltage of the motor (within 10-55V).
0-1-2-3-4-5-6-7-8-9-E functions are set as follows
Manual automatic mode selection Function 0: 1 is manual mode 2 is automatic mode The default is 1 manual mode.
Slow start time setting Function 1: 000-100 Slow start to 100% speed time adjustable between 0-10 seconds The default is 1 second.
Slow stop time setting Function 2: 000-100 Slow stop time is adjustable between 0-10 seconds. The default is 1 second.
Speed lower limit setting Function 3: 000-080 The minimum speed is adjustable between 0-80% and less than the maximum speed setting value. The default is 0.
Speed upper limit setting Function 4: 000-100 The maximum speed is adjustable between 0-100% and is greater than the minimum speed setting value. The default is 100%.
Acceleration / deceleration value setting Function 5: 001 002 005 010 015 020 025 Each time the key is pressed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Total motor running time setting Function 6: 1 second minimum-99 hours 59 minutes 59 seconds maximum The default is 99 hours 59 minutes 59 seconds.
The following function 7.8.9. Is time setting in full automatic mode
Forward rotation time setting Function 7: 0 seconds minimum-99 hours maximum Default is 10 seconds
Stop time setting Function 8: 0 seconds minimum-99 hours maximum Default is 10 seconds
Reverse time setting Function 9: 0 seconds minimum-99 hours maximum Default is 10 seconds
Limit mode selection Function E: E1 Unlimited bit Default unlimited bitE2 Press to start the motor to rotate forward.
E3 Press to start the motor, forward rotation, forward rotation to positive limit motor, reverse rotation, reverse rotation to reverse limit motor, stop
E4 Press the start motor to rotate forward.
Manual and automatic mode selection Press the MENU button 1 to display 0 to enter manual and fully automatic mode selection 1 for manual mode 2 for automatic mode Press the plus and minus keys to switch Press RUN / STOP to save and exit
Slow start time setting Press the MENU key 2 to enter the function 1 setting key surface Press the plus and minus key to set the time
Slow stop time setting Press the MENU key 3 to enter the function 2 setting key surface Press the plus and minus keys to set the time Press RUN / STOP to save and exit (10 is 1 second and 100 is 10 seconds)
Speed lower limit setting Press MENU key 4 to enter function 3 key surface Press plus and minus keys to set Press RUN / STOP to save and exit
Speed upper limit setting Press the MENU key 5 to enter the function 4 key surface Press the plus and minus keys to set the value
Acceleration / deceleration value setting Press the MENU key 6 to enter the function 5 key surface Press the plus / minus key to switch Press RUN / STOP to save and exit
Motor total running time setting
Press MENU key 7 to enter function 6 key surface. The default is 99 hours, 59 minutes, and 59 seconds. FWD / REV key switching hours, minutes, and seconds
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit
Function 7 Forward rotation time setting in fully automatic mode Press the MENU key 8 times to enter the function 7 key surface. The default is the maximum time 0 hours 0 minutes 10 seconds. FWD / REV key switching hours minutes seconds
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit
Function 8 Stop rotation time setting in fully automatic mode
Press the MENU key 9 times to enter the function 8 key surface. The default is the maximum time 0 hours 0 minutes 0 seconds.
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit
Function 9 Reverse time setting in fully automatic mode Press the MENU key 10 times to enter the function 9 key surface. The default is the maximum time 0 hours 0 minutes 10 seconds. FWD / REV key switching hours minutes seconds
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit
Function E limit mode selection E1 E2 E3 E4Press MENU key 11 to enter the function E key surface. The default is E1 infinite position. Press plus or minus to switch E1 E2 E3 E4 Press RUN / STOP to save and exit
E2 function: Press to start the motor to rotate forward.
E3 function: press start motor forward rotation forward rotation to positive limit motor reverse rotation reverse rotation to reverse limit motor stop
E4 function: Press to start the motor and rotate forward.

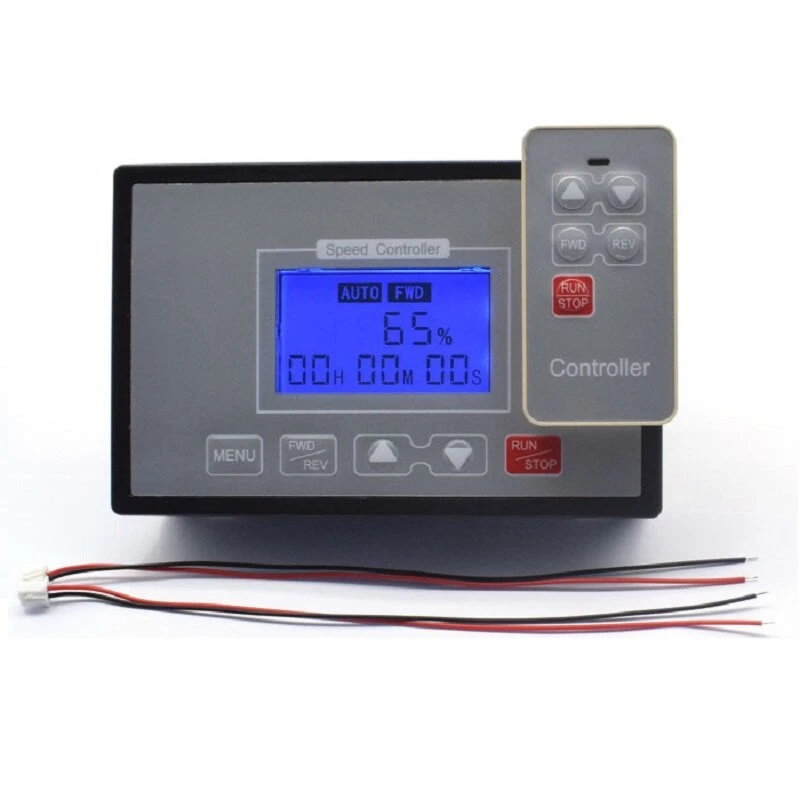

Package included : 1 x PWM DC Motor Speed Controller 2 x Cable
NOTE:Does not include remote control
