Zeenko UM Series Low Noise Amplifier - 20dB Gain, 100kHz-10GHz, USB-C

Product Description

Specifications:

Model: Zeenko UM Series

Frequency Range: 100kHz-4GHz/6GHz/10GHz

Gain: 20dB

Interface: USB Type-C

Power Supply: USB (UM Series)

Current Consumption: 210mA

Noise Figure: Low noise

High PSRR LDO: Reduces power noise effectively

Shielding: System shielding cover

Optional Type: ZK04-UM/ZK05-UM/ZK06-UM/ZK09-UM

Features:

Wide Frequency Range: Supports frequencies from 100kHz to 4GHz, 6GHz, or 10GHz, providing extensive application coverage.

USB Type-C Interface: Convenient power supply using USB Type-C, designed for low noise and minimal background interference.

High Gain Performance: Consistent 20dB gain ensures strong signal amplification suitable for various applications.

Portable Design: Compact size with low power consumption and built-in battery in the BM series, making it ideal for portable use.

Effective Noise Reduction: High PSRR LDO reduces power noise, offering clearer signal reception compared to similar modules on the market.

Package Included:

Type A:

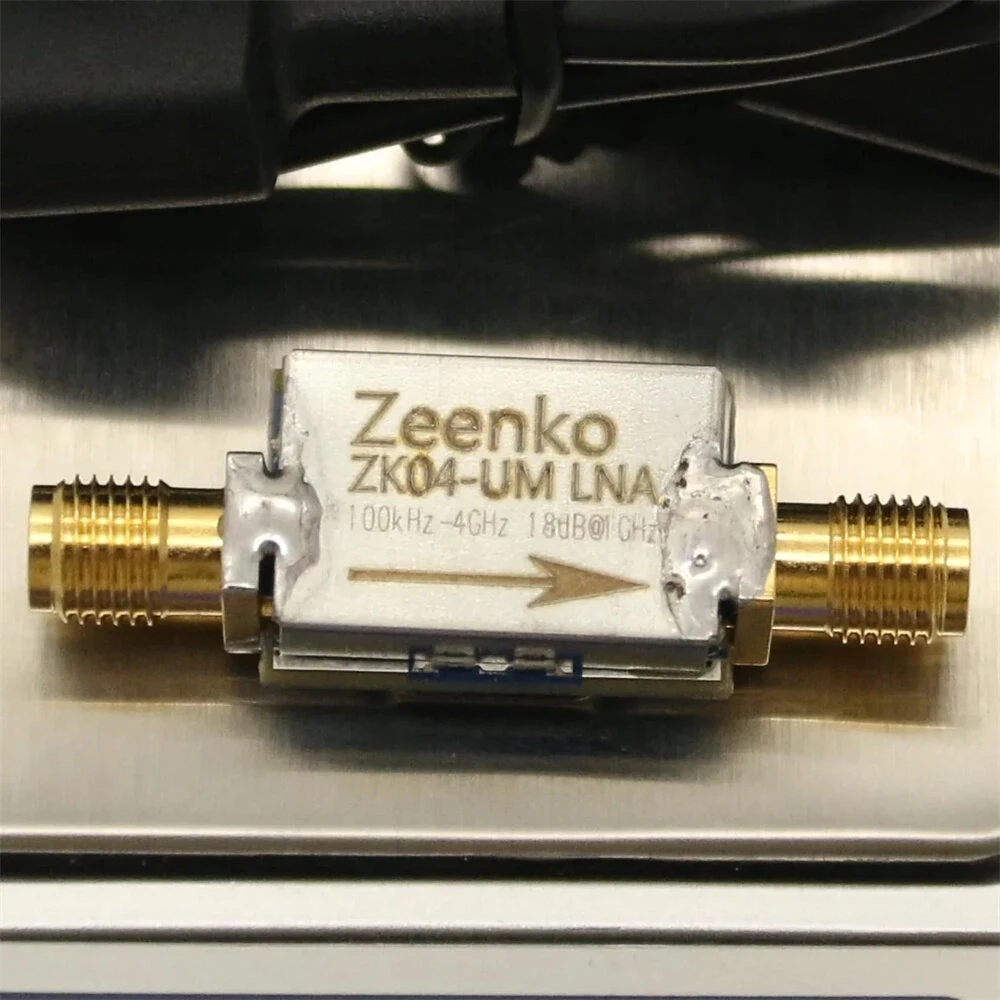

1 x ZK04-UM Low Noise Amplifier (100kHz-4GHz)

1 x USB Cable

Type B:

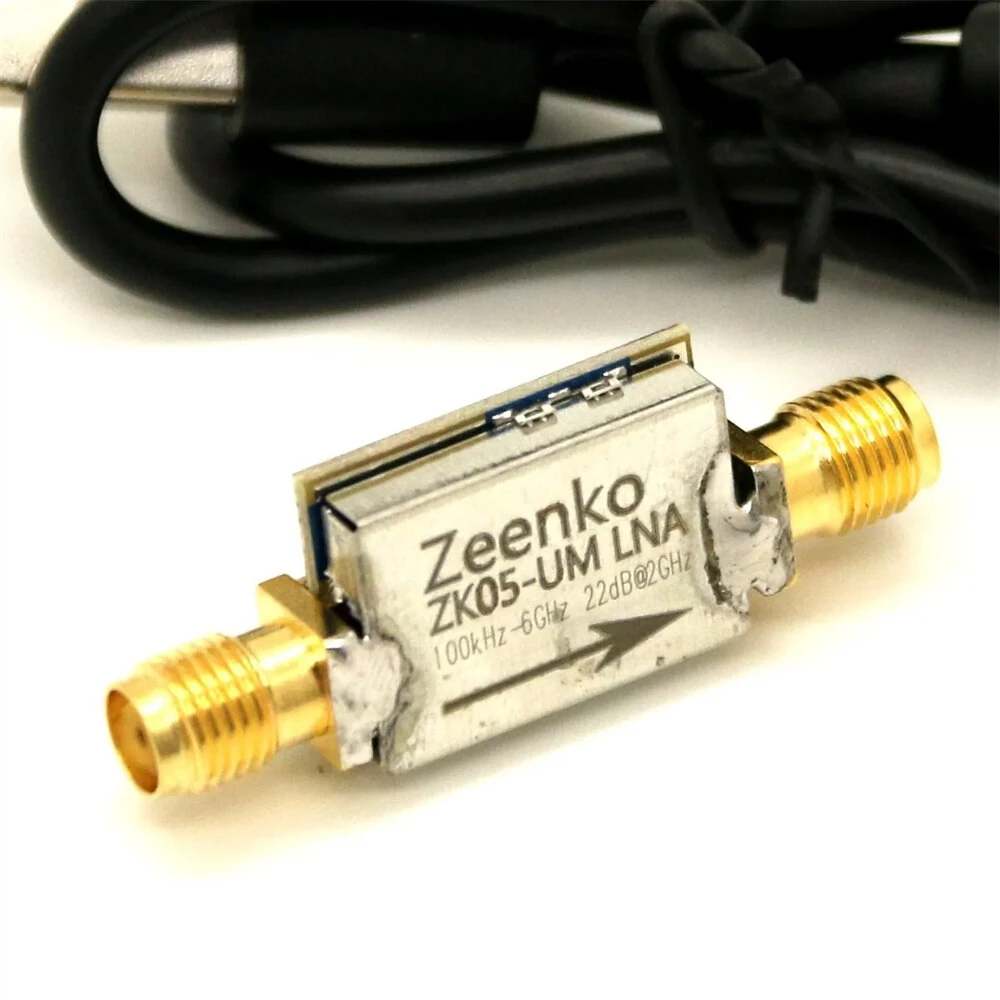

1 x ZK05-UM Low Noise Amplifier (100kHz-6GHz)

1 x USB Cable

Type C:

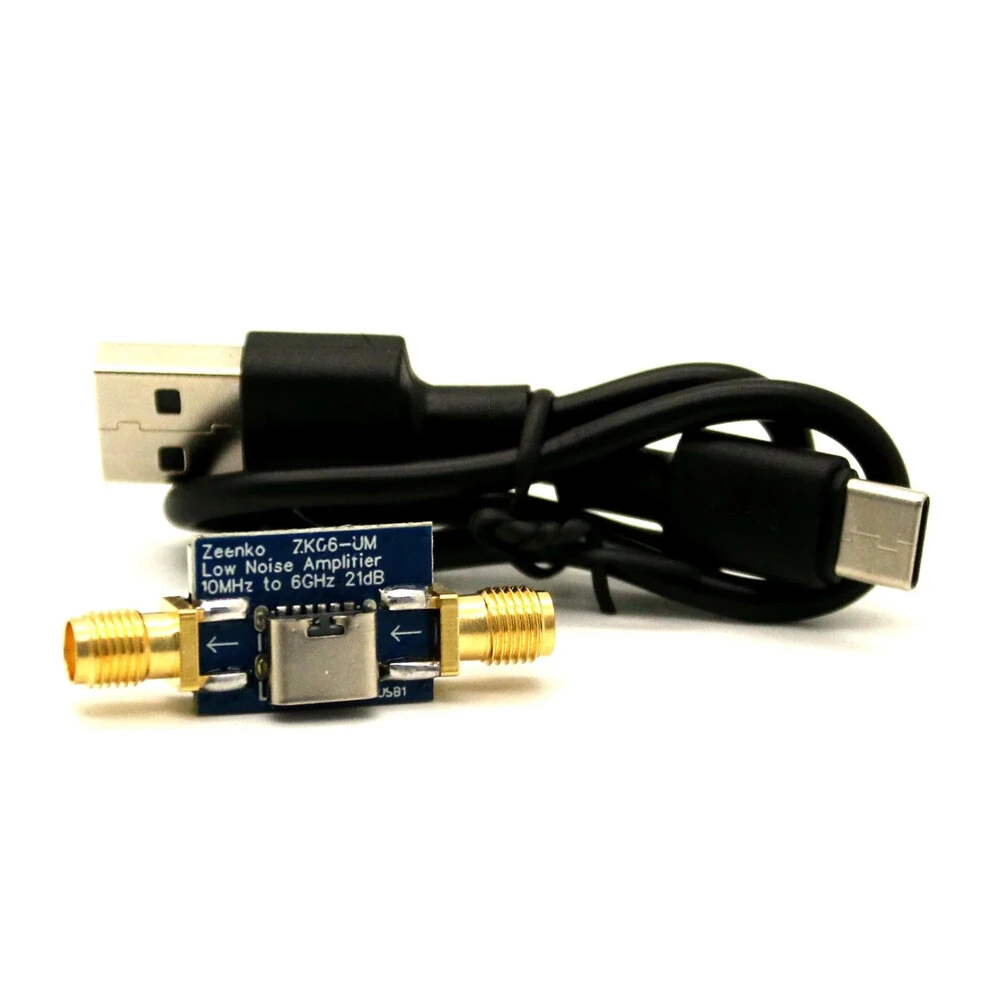

1 x ZK06-UM Low Noise Amplifier (100kHz-6GHz)

1 x USB Cable

Type D:

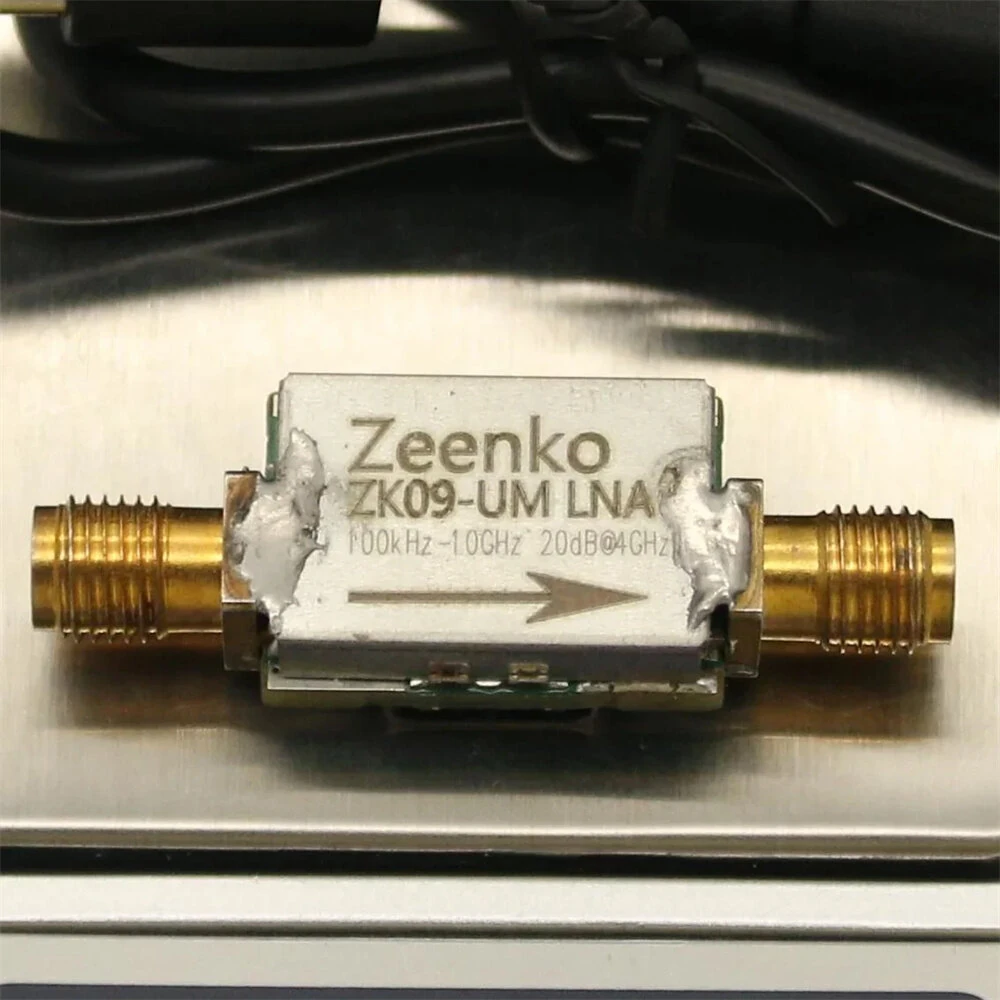

1 x ZK09-UM Low Noise Amplifier (100kHz-10GHz)

1 x USB Cable
