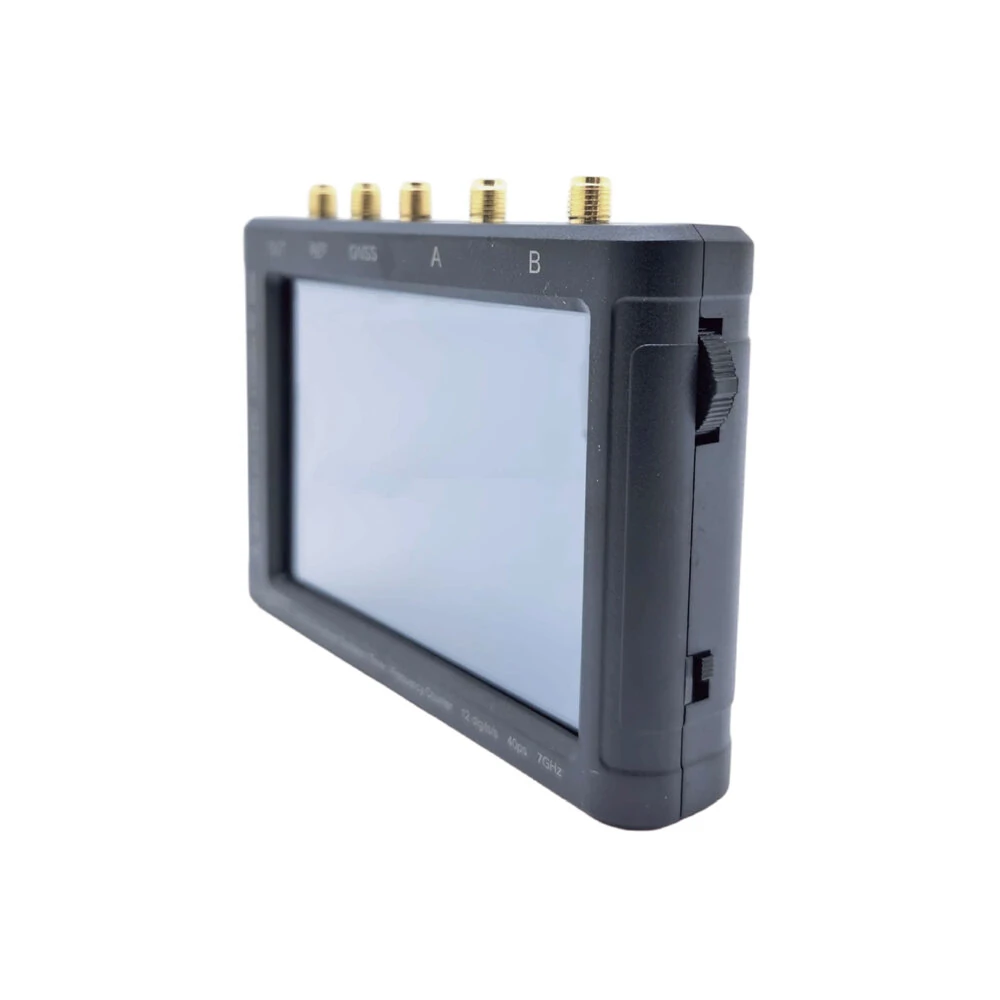

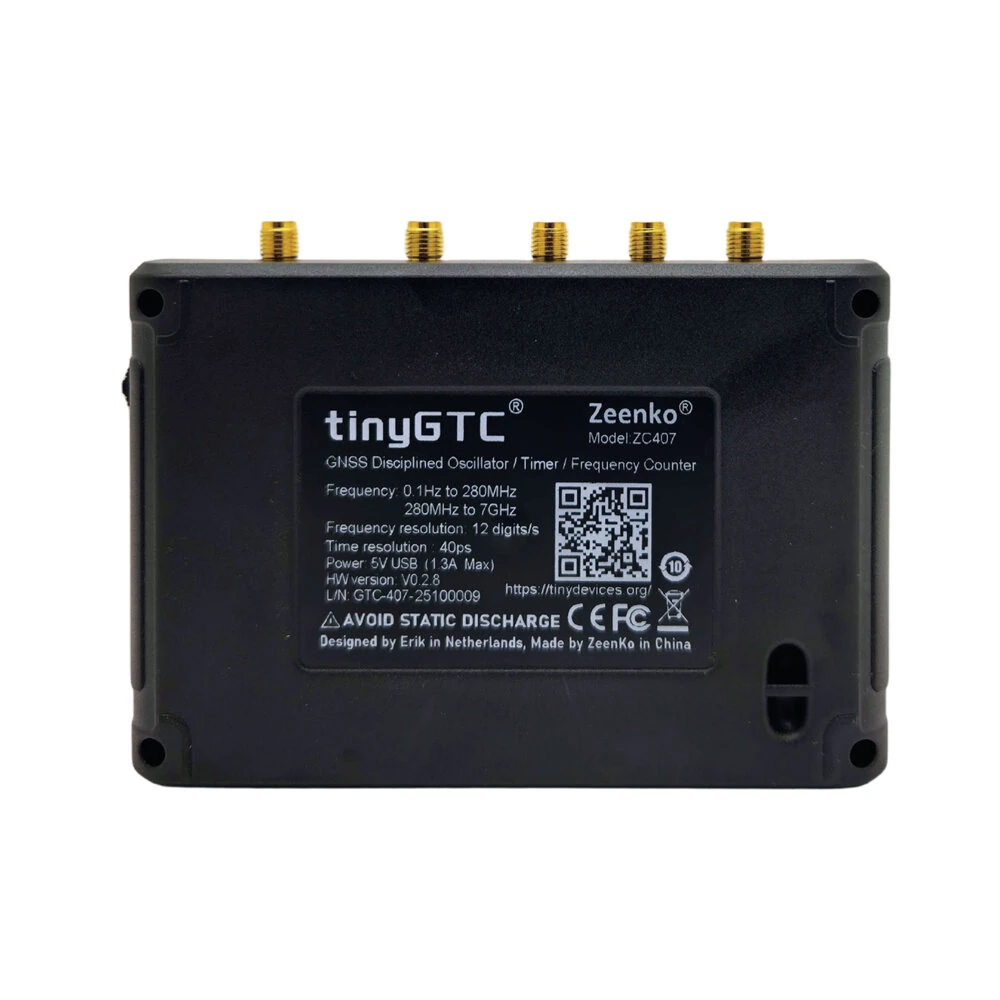

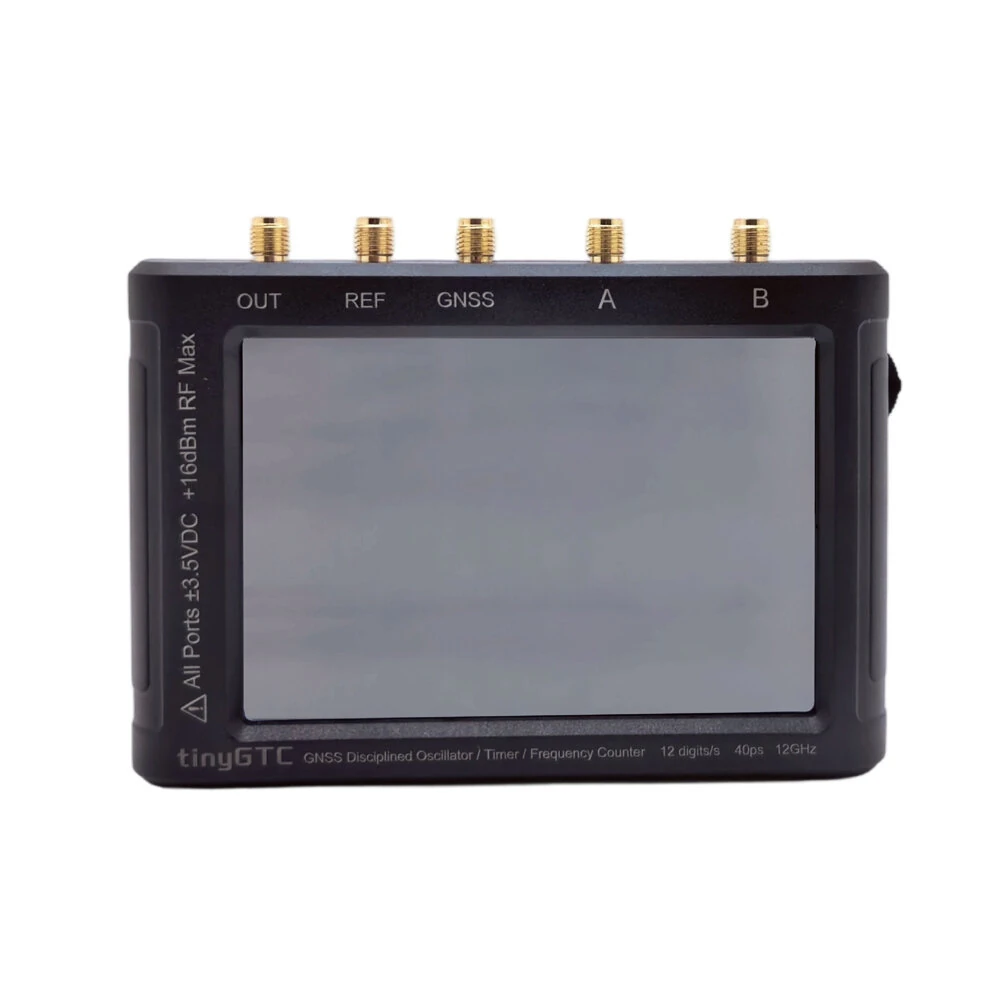

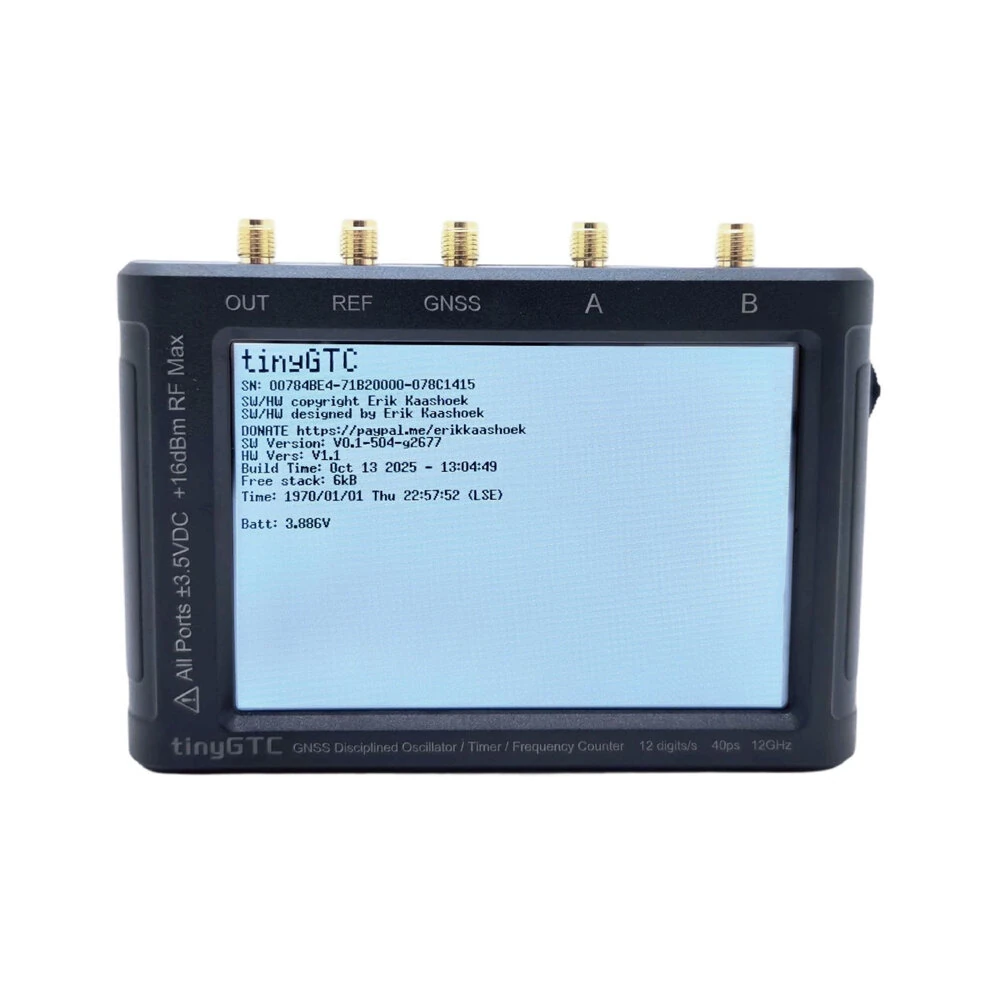

tinyGTC ZC407 High Precision Frequency Counter | 40ps Resolution & GNSS Disciplined Oscillator | 4 Inch Touchscreen

Product Description

Specifications:Model: tinyGTC ZC407, tinyGTC ZC412Input Coupling: Input A and B: DC, REF input: ACSMA Connections:SMA A: 0.1Hz ?C 7 GHz (ZC407) / 12.8 GHz (ZC412), 1 M?? / 25 pF or 50 ??SMA B: 0 ?C 300 MHz (DC), 1 M?? / 2 pF or 50 ??SMA OUT: 0.1 Hz ?C 100 MHz, 3 Vpp AC coupled square or pulse, 50 ??SMA REF: 10 MHz +5 dBm to +15 dBm or output 8 kHz ?C 150 MHz, 3 Vpp AC coupled square, 50 ??SMA GPS: Active GNSS antenna input, permanent +3 V biasInput Impedance: 0 ?C 100 kHz: 1 M?? / 2 pF; 50 ?? optionalResolution: 40 psTrigger Level: 0 ?C 3.5 VDisplay: 4" touchscreenFunctions: Frequency, time, phase, countPower Supply: Built-in Li-ion battery 4000mAh, USB 5V 1.3A MaxMax. Input Voltage: ?? 3.5 Vdc; 3.5 Vpp or 16 dBm in 50 ??Interfaces: USB, OUT pulse or square, EXT Ref in/output, active GPS antenna, A and B measurement inputs
Features:1.High Precision Measurement:With a resolution of 40 ps, the device offers exceptional measurement accuracy in frequency, time, and phase monitoring, ensuring reliable performance for high-standard applications.2.GNSS Disciplined Oscillator Embedded:The built-in GNSS oscillator provides long-term measurement stability, while supporting frequency outputs ranging from 8 kHz to 150 MHz, ideal as a high-precision clock source.3.Compact and User-Friendly Design:The 4-inch touchscreen provides intuitive controls and displays essential operational data, making configuration and monitoring simpler than standard alternatives.4.Flexible External Signal Compatibility:Equipped with SMA REF and SMA GPS inputs, the frequency counter supports external reference signals, enabling integration with atomic clocks or high-accuracy GNSS systems.5.Data Recording and Connectivity Options:Built-in USB interface allows remote operation and data retrieval, while the micro SD card slot (up to 32GB) ensures adequate storage for collected measurements and analysis.
Package Included:1 x tinyGTC Frequency Counter
