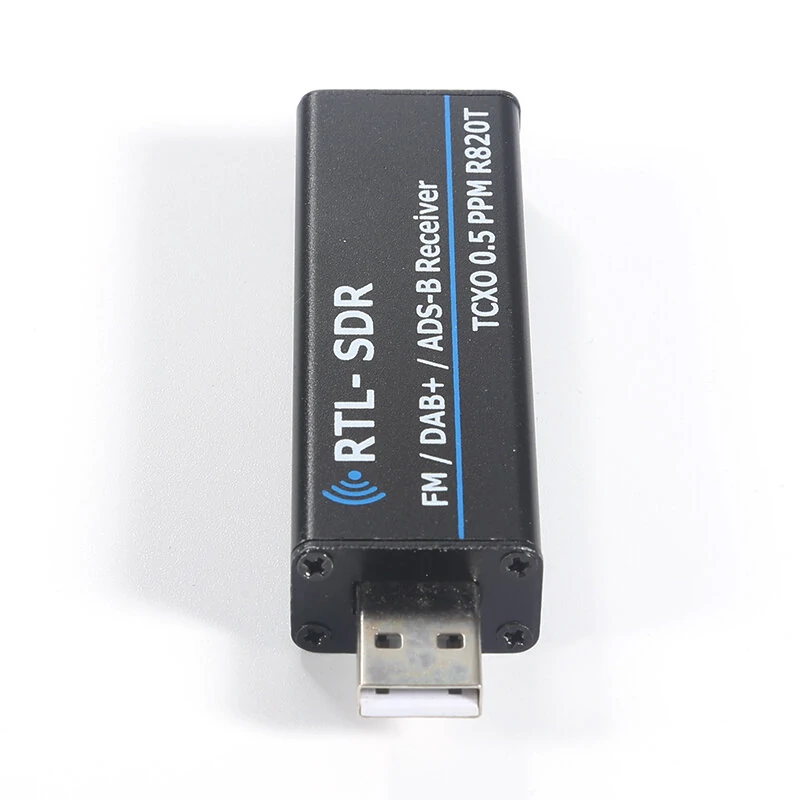

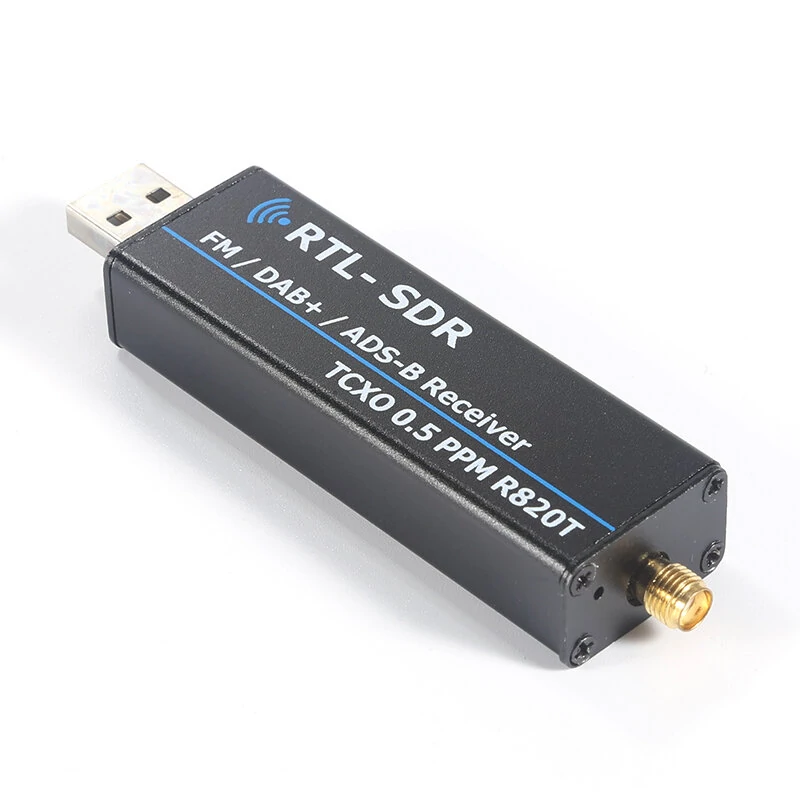

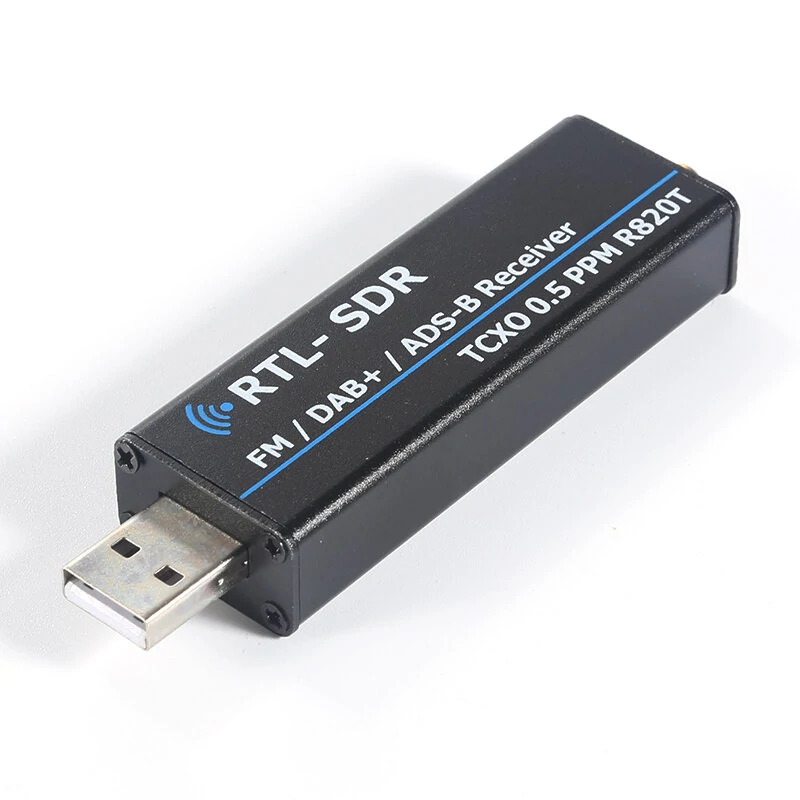

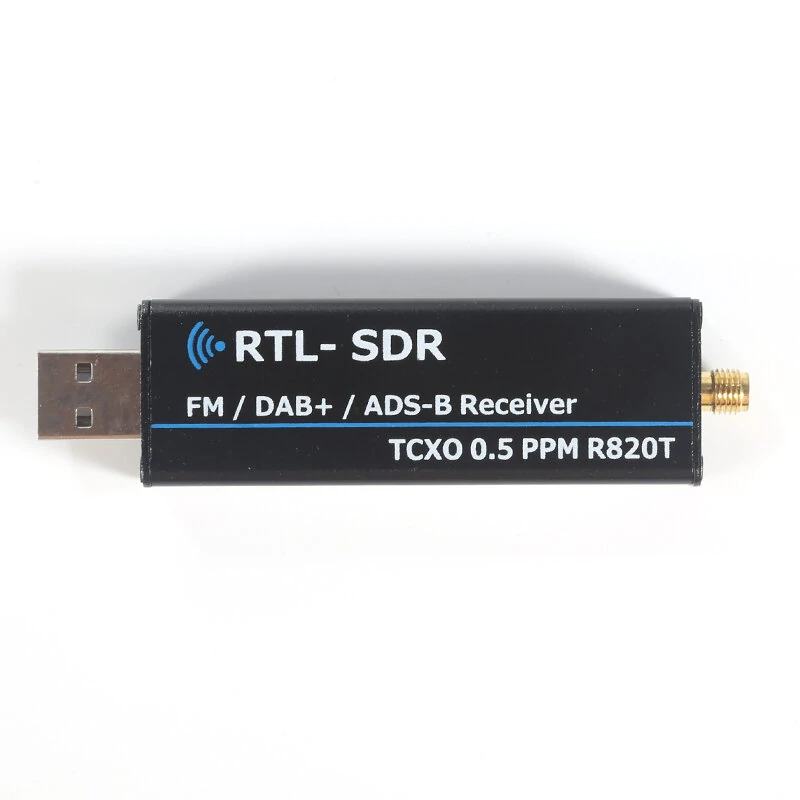

RTL-SDR USB Receiver Tuner with RTL2832U+R820T2 Chipset | 100KHz-1766MHz

Product Description

Features:

1. High-Performance Chipset: The RTL SDR receiver uses an RTL2832U+R820T2 chipset, ensuring efficient and reliable operation.

2. Extensive Operating Frequency: With an exceptional range of 100KHz to 1766MHz, this device covers all HF amateur bands, making it versatile for different applications.

3. Multiple Receiver Modes: It supports multiple receiver modes including AM, NFM, FM, DSB, USB, LSB, and CW, providing versatility and flexibility in use.

4. Direct Sampling: Offering features like HF Shortwave Q branch direct sampling, the device works with an 8-bit ADC, giving a dynamic range of ~50dB.

5. Independent Antenna Inputs: The SDR receiver has separate antenna inputs for Shortwave and VHF, maximizing the efficiency of signal reception.

Specifications:

- Material: PCB Board

- Operating Frequency: 100KHz to 1766MHz

- Receiver Modes: AM, NFM, FM, DSB, USB, LSB, and CW

- ADC: 8-bit, ~50dB Dynamic Range

- Input Impedance: 50 Ohm

- Connection: USB (Mini USB)

- Size: Approx. 15x 7x 4cm/ 5.91x 2.76x 1.57inch

- Color: As Shown in Pictures

Package Included:

Type A:

1 x USB Tuner Receiver

Type B:

1 x USB Tuner Receiver

1 x Cable

Please note that color may vary due to display differences, and allow a 1-3mm error margin due to manual measurement.
