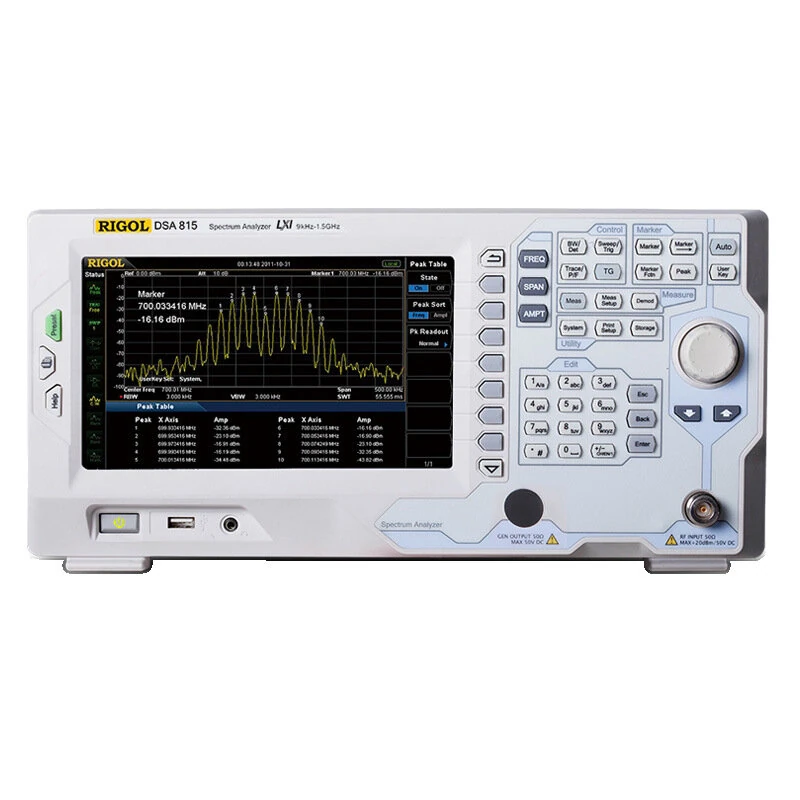

Rigol DSA815-TG Spectrum Analyzer | 9kHz-1.5GHz with Tracking Generator & Preamp

Product Description

Specifications:
Frequency Range: 9 kHz to 1.5 GHz
Internal Tracking Generator: Up to 1.5 GHz
Displayed Average Noise Level (DANL): -155dBm
Display Resolution: 800 x 480 pixels, 8" widescreen display
Frequency Resolution: Minimum resolution bandwidth down to 100 Hz
Item Weight: 9.35 pounds
Dimensions: 14.24 x 5.04 x 7.04 inches
Built-in Functions: AM/FM demodulation, pre-amplifier, auto tuning
Features:
1.High Precision Frequency Analysis: Offers exceptional frequency resolution with a minimum resolution bandwidth of 100 Hz, enabling the precise identification of signals in crowded RF environments.
2.Improved Signal Detection: Equipped with a built-in RF pre-amplifier and digital IF filter technology, allowing measurement of weaker signals with reduced noise levels.
3.Versatile Measurement Tools: Incorporates functions like multiple markers, marker tables, and a peak table for quick and efficient signal analysis across various applications.
4.Integrated Tracking Generator: Enables comprehensive testing and characterization of RF components and systems over a wide frequency range up to 1.5 GHz.
5.User-Friendly Interface: Features a graphical user menu navigation coupled with intuitive auto functions such as "Auto Tune," "Auto Range," and "Auto Scale," simplifying signal parameter adjustments.
Package Included:
1 x DSA815-TG Spectrum Analyzer
