OWON XSA805-TG Spectrum Analyzer 9kHz-500MHz | 9-Inch LCD with Tracking Generator
Product Description
?Features:Model: XSA805-TG
Frequency range 9kHz-500MHz-160 dBm Displayed Average Noise Level (DANL)Phase noise -80 dBc/Hz @lGHz and counteractat 10 kHzTotal amplitude accuracy <0.7 dB1 Hz minimum resolution bandwidth (RBW)EMI pre-compliance test kit, optional EMC test softwareOptional tracking generator (standard tracking generator hardware, can be remotely upgraded according to needs)Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions.Standard Pass/Fail on-site test and alert functionAdopt all-digital intermediate frequency technologyMultiple interfaces: USB Host, USB Device, LAN, earphone interface, 9-inch LCD, high resolution 1280X800 pixels
Specification:
Model No. | XSA805(-TG) | XSA810(-TG) | XSA815(-TG) |
Frequency | |||
Frequency Range | 9kHz-500MHz | 9kHz-1GHz | 9kHz-1.5GHz |
Frequency Resolution | 1Hz | ||
Frequency Span Range | 0 Hz, 100 Hz to the max. frequency range | ||
Aging Rate | <1 ppm/year | ||
Frequency Counter Resolution | 1Hz, 10 Hz, 100 Hz, 1 kHz | ||
Resolution Bandwidth (-3 dB) | 1Hzto 1MHz@ 1 - 10 step, 1 MHz, 3MHz | ||
Video Bandwidth (-3 dB) | 1Hzto 1MHz | ||
Phase Noise (20 ?? to 30 ??, c = 1 GHz) | |||
<-80 dBc/Hz @ 10 kHz counteract | |||
Phase noise | <-100dBc/Hz@ 100 kHz counteract | ||
<-115dBc/Hz@ 1 MHz-500MHz counteract | |||
Level Unit | dBm, dBuW, dBpW, dBmV, dBuV, W, V | ||
Trace Detectors | positive-peak, negative-peak, sample, normal, RMS, average, quasi-peak | ||
Trace Functions | clear write, max hold, min hold, view, blank, average, trace math | ||
VSWR | 300 kHz to 1.5 GHz when input > 10 dB | ||
nominal when input < 1.5dB | |||
Tracking Generator
Frequency Range | 100kHz to 500MHz |
Output Power Level Range | -40dBm to 0 dBm |
Output Power Level Resolution | 1dB |
General
Display | 9" 1280x800 pixels TFT LCD |
Communication Interface | USB host, USB device, LAN, earphone port, |
1 x Spectrum Analyzer1 x USB cable1 x Power cord1 x Manual
>>Please click here to download the English manual<<

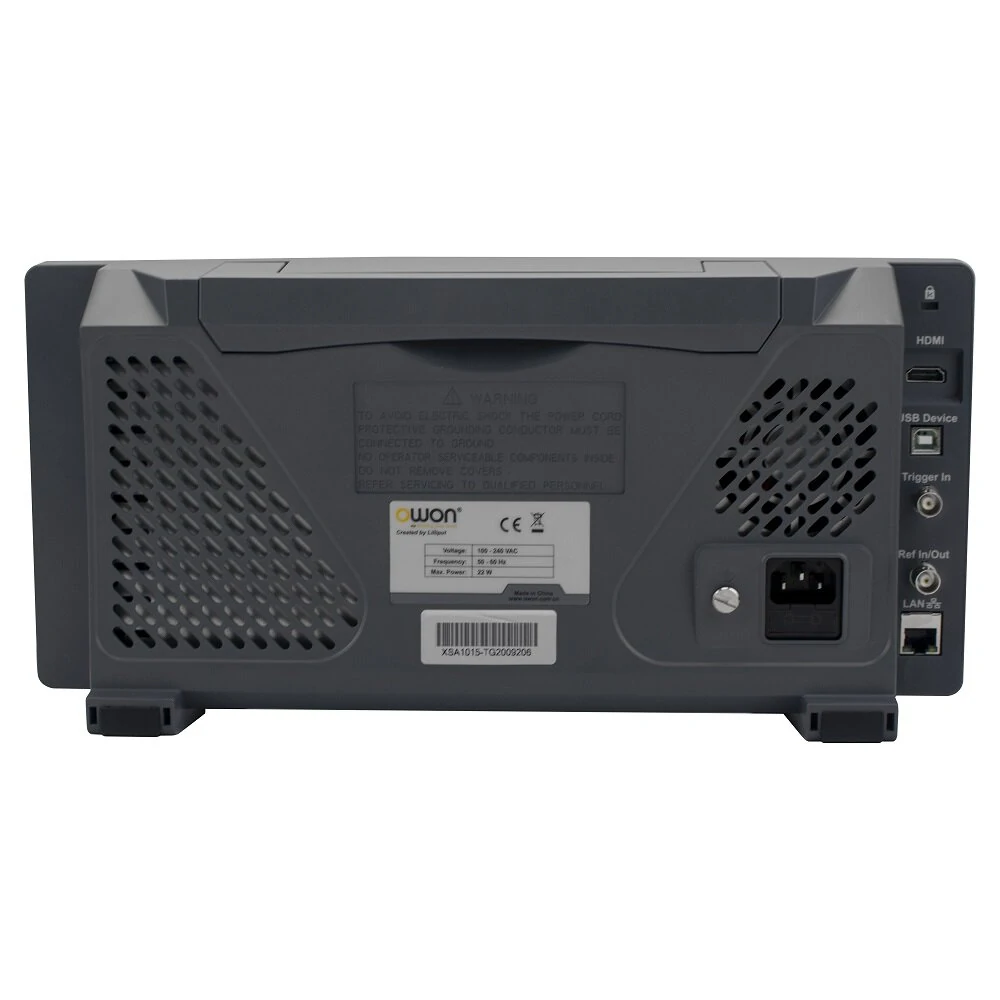

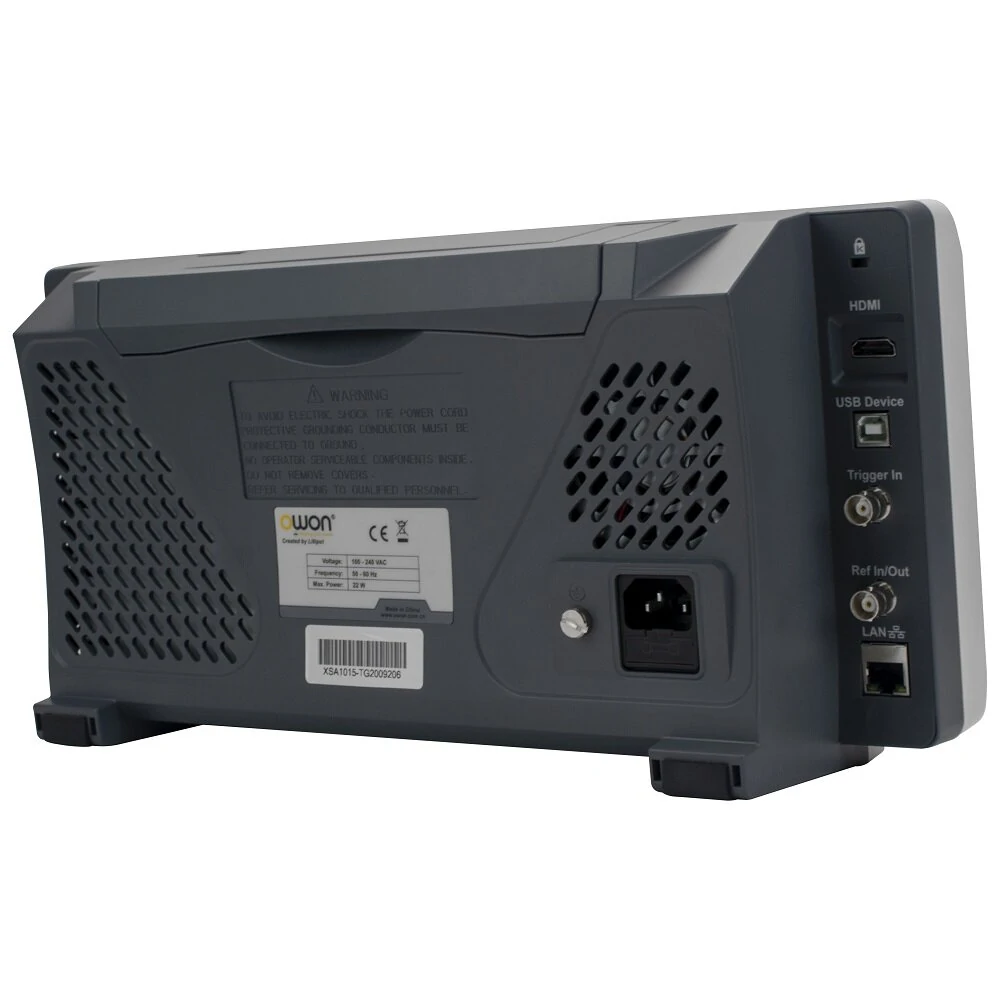

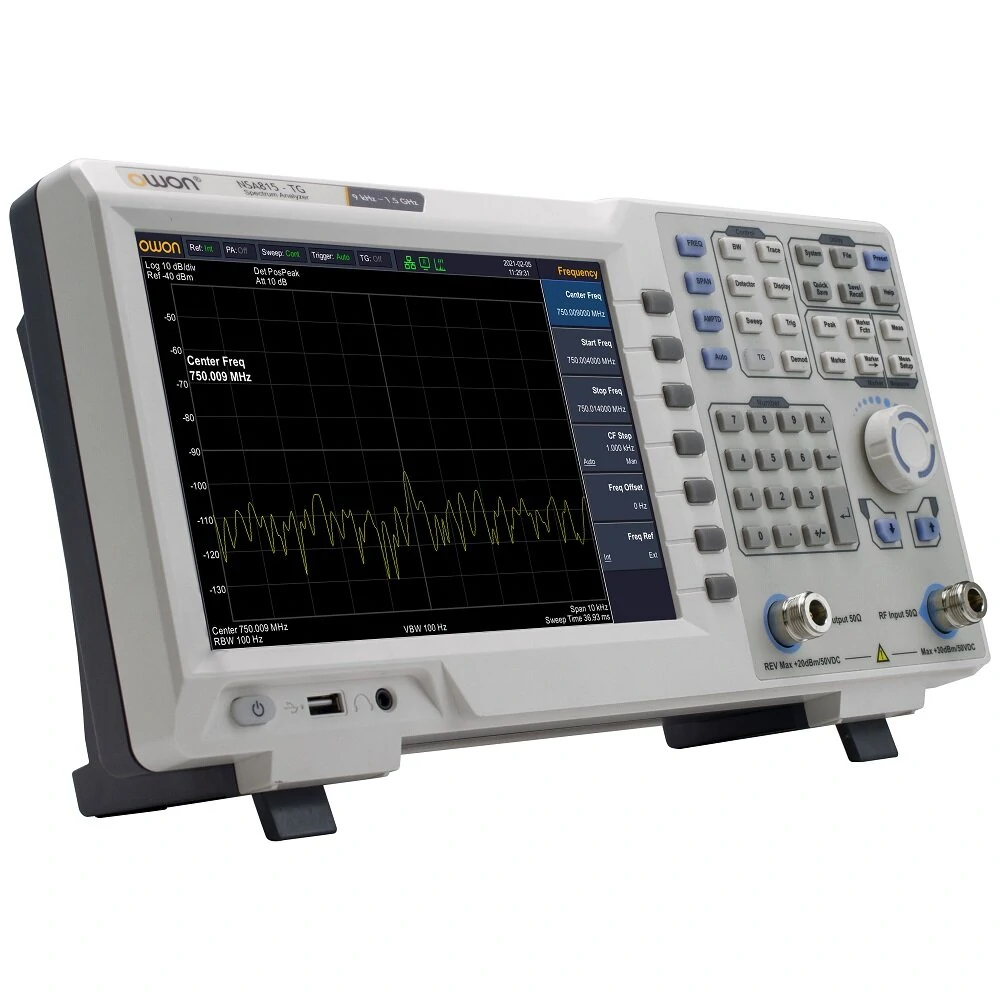

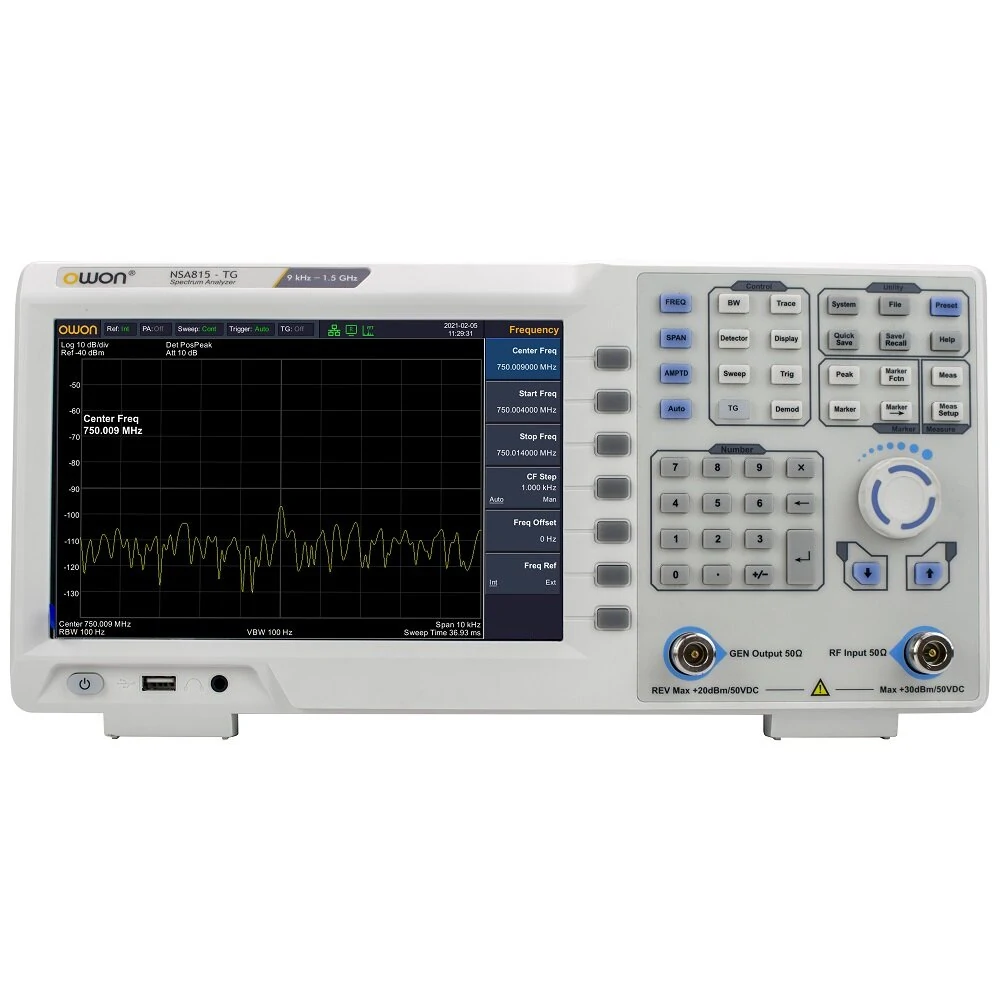

Details Pictures:
