NanoVNA V2 Antenna Analyzer | 50KHz-3GHz HF VHF UHF | 4 Inch Display
$123.00
$151.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
>>Software download address<<Features:

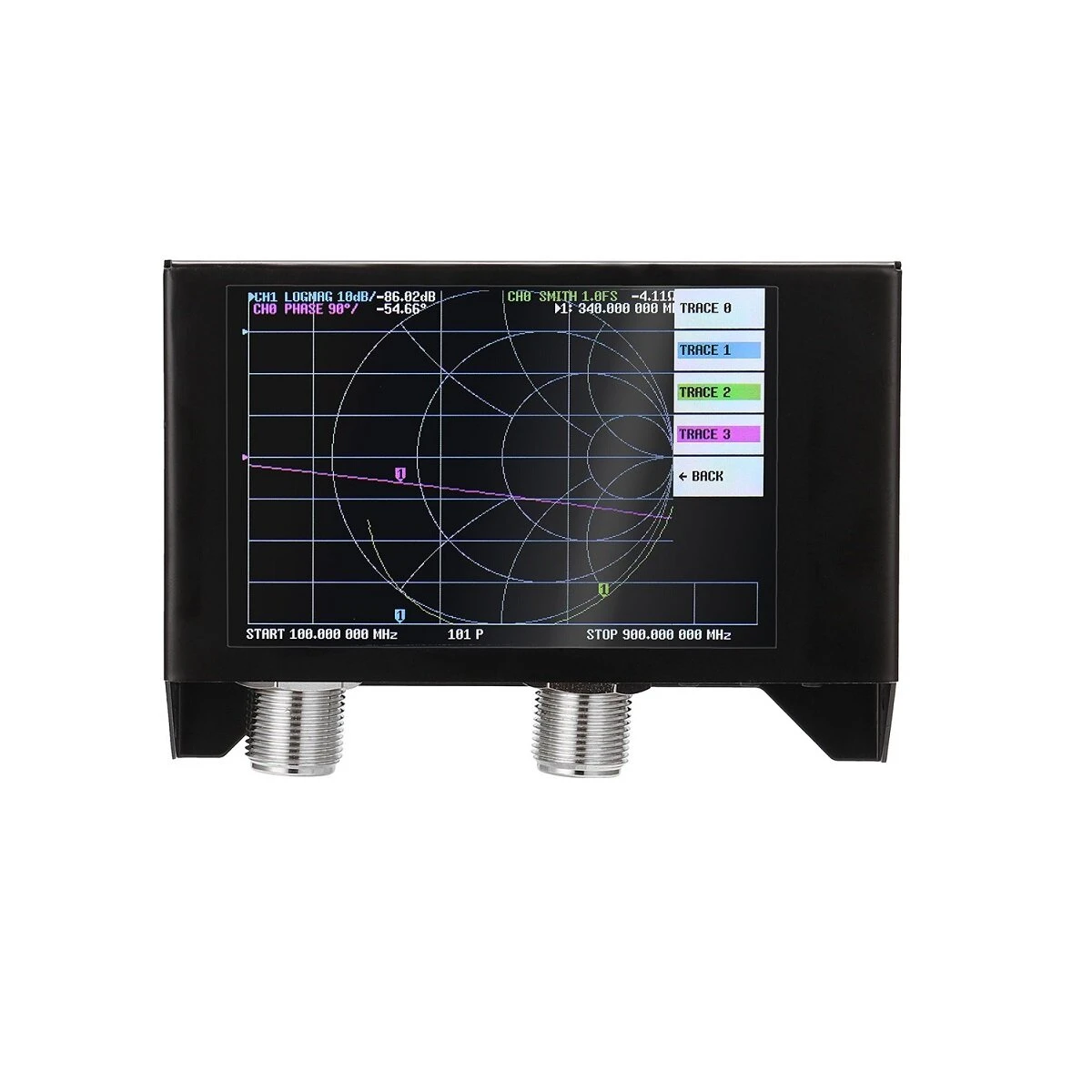

Made of high-quality materials, strong practicability and long service life.Portable and compact, easy to operate and carry.4.0 inch TFT LCD touch screen.The measurement frequency range is 50KHz-3GHz.High stability, high sensitivity, high precision, improved performance.Convenient EVA storage bag for storage and transportation.
Specification:
Main material: PCB + ironColour: BlackBattery: 1 * Lithium battery, 3000mAh (included)Measuring frequency range: 50KHz-3GHzFrequency tolerance: <2ppmFrequency stability: <0.5ppmSystem dynamic range (calibration): 70dB (up to 1.5 GHz), 60dB (up to 3GHz)S11 noise floor (calibration): -50dB (up to 1.5 GHz), -40dB (up to 3GHz)Scanning speed: 100 points/secScreen: 4.0 inches, 320 * 480USB interface: micro USBPower supply: USB, maximum charging current 1ABattery connector: JST-XH 2.54mmMaximum scanning points (on the device): 201Maximum scanning point (USB): 1024Port 2 return loss (1.5 GHz): 20dB (typical value)Port 2 return loss (3GHz): 13dB minimumItem size: 117 * 85 * 25 mm / 4.6 * 3.3 * 1.0 inch itemsWeight: 368g/13.0ozPacking size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3 inchesPackage weight: 972g / 2.1lb
VNA-QT software download: Https: //github.com/nanovna/NanoVNA-QT/releases

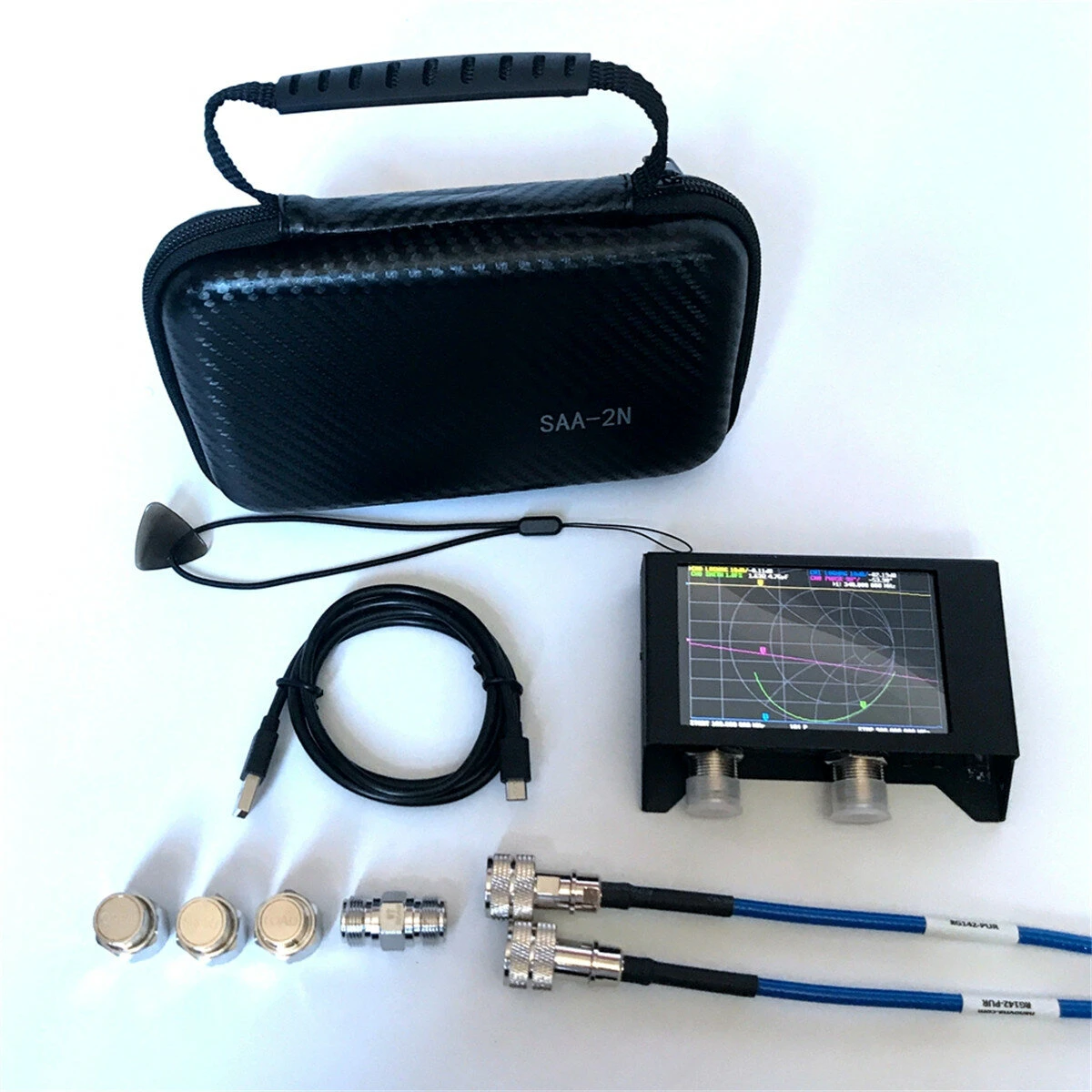

Package included:

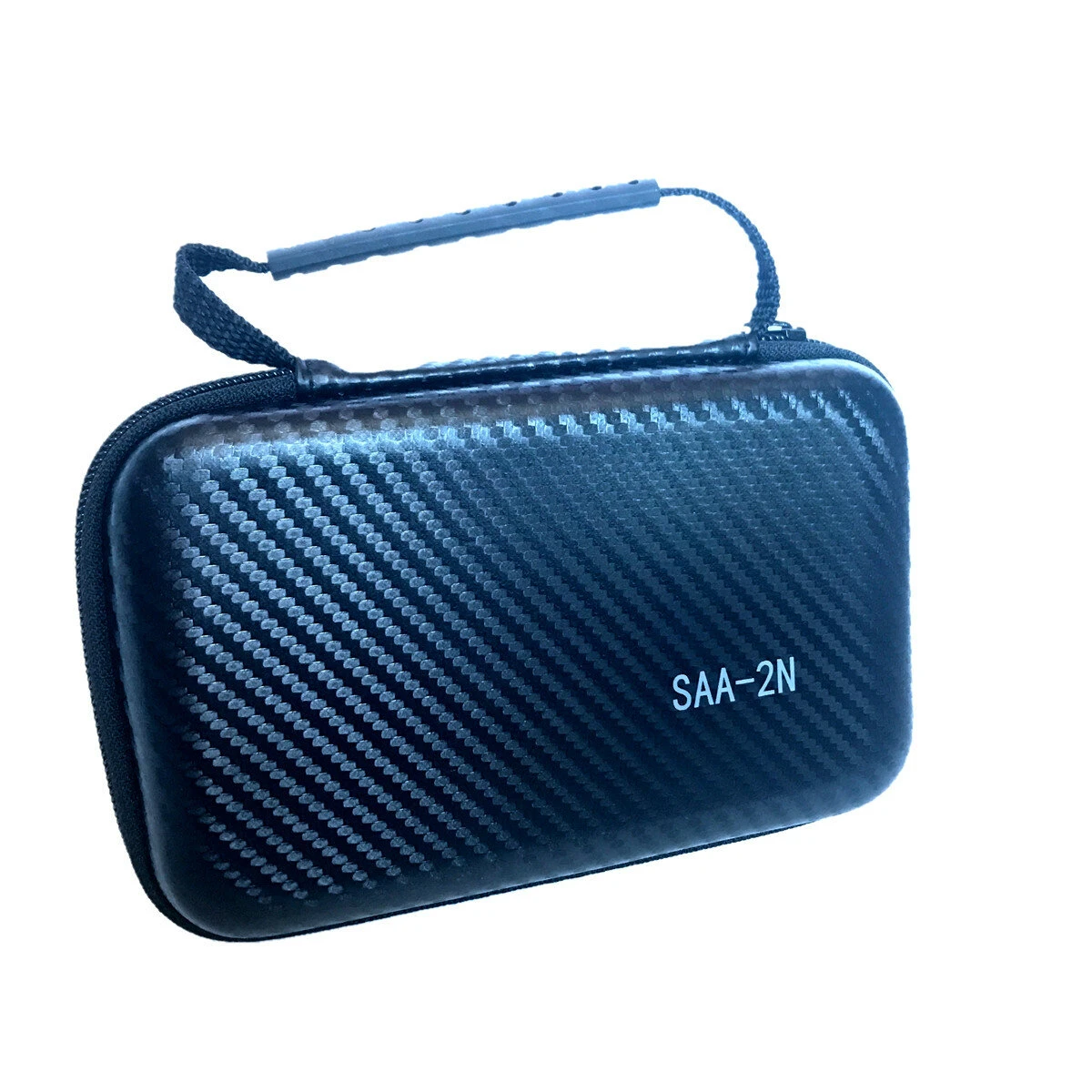

1 x SAA-2N host1 x Micro USB data cable2 x 500mm N type male to male RG142-PUR RF cable1 x N-open1 x Male type calibration kit N short1 x N type metric calibration kit N type1 x EVA storage bag1 x Touch screen paddle and lanyard
Details pictures:
