NanoVNA V2 3G | 50KHz-3GHz Vector Network Analyzer | Antenna & Cable Tester

Product Description

Features:
Made of fine quality material, practical, has a long service life.Portable and compact, easy to operate and carry.2.8 inch TFT LCD touching screen display.Measurement frequency range is 50KHz~3GHz.High stability, high sensitivity, high accuracy, greatly improved performance.
Specifications:
Main material: PCBMain color: redMeasurement frequency range: 50KHz-3GHzSystem dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (up to 3GHz)S11 noise floor (after calibration): -50dB (up to 1.5GHz); -40dB (up to 3GHz)Sweep rate: 100 points / secondSweep points (on device): 10-201 points, adjustableSweep points (USB): 1-1024 points, adjustablePower supply: USB, 4.6V?C5.5VRF port: SMAUSB interface: Micro USBDisplay screen: 2.8-inch TFT (320 * 240)Battery: not included. Includes charging circuitry. User can install a 1000mAh-1800mAh 3.6V / 3.7V lithium battery with maximum dimensions 6 * 40 * 60mm.Battery connector: JST-XH 2.54mmPort 2 return loss: ??13dB (up to 3GHz), 20dB (up to 1.5GHz)Display tracking: 4, Marking: 4, Setting save: 5Operating ambient temperature: 0-45??Package size: 100 * 70 * 25mm / 3.9 * 2.8 * 1.0inPackage weight: 120g / 4.2ounce
Note:
1. Recommended SMA cable: SS405, RG316, or RG405.2. VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases3. User guide: https://github.com/nanovna/NanoVNA-QT/r-a-w/master/ug1101.pdf
Packing List:

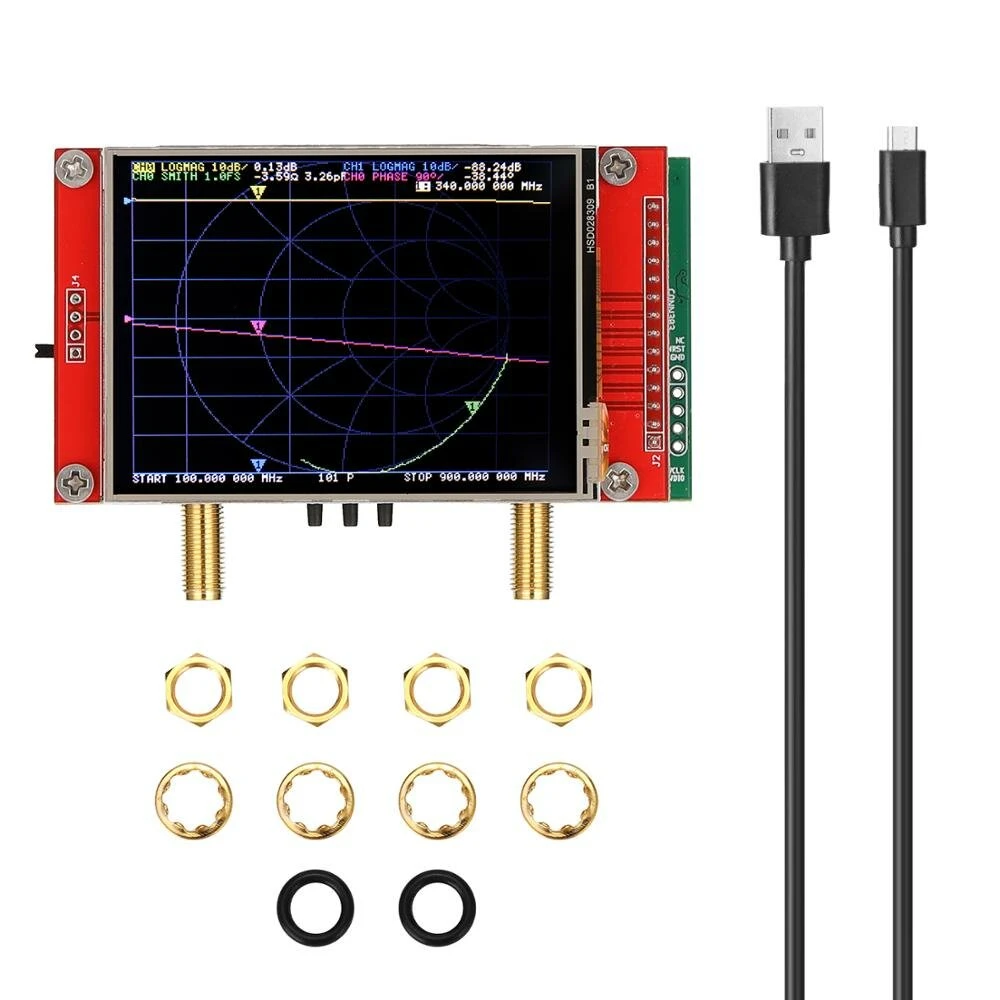

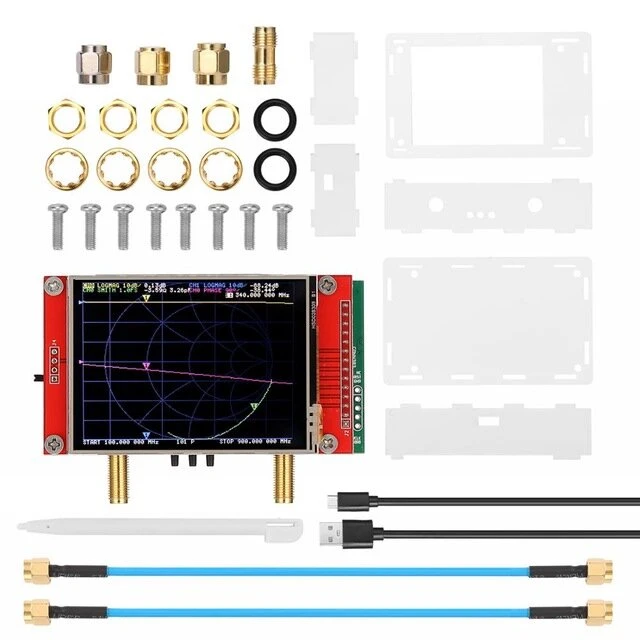

Type A: 1 * Vector Network Analyzer Type B: 1 * Vector Network Analyzer 2 * Cable 4 * Calibration piece Type C: 1 * Vector Network Analyzer 2 * Cable 4 * Calibration piece 1 * Housing

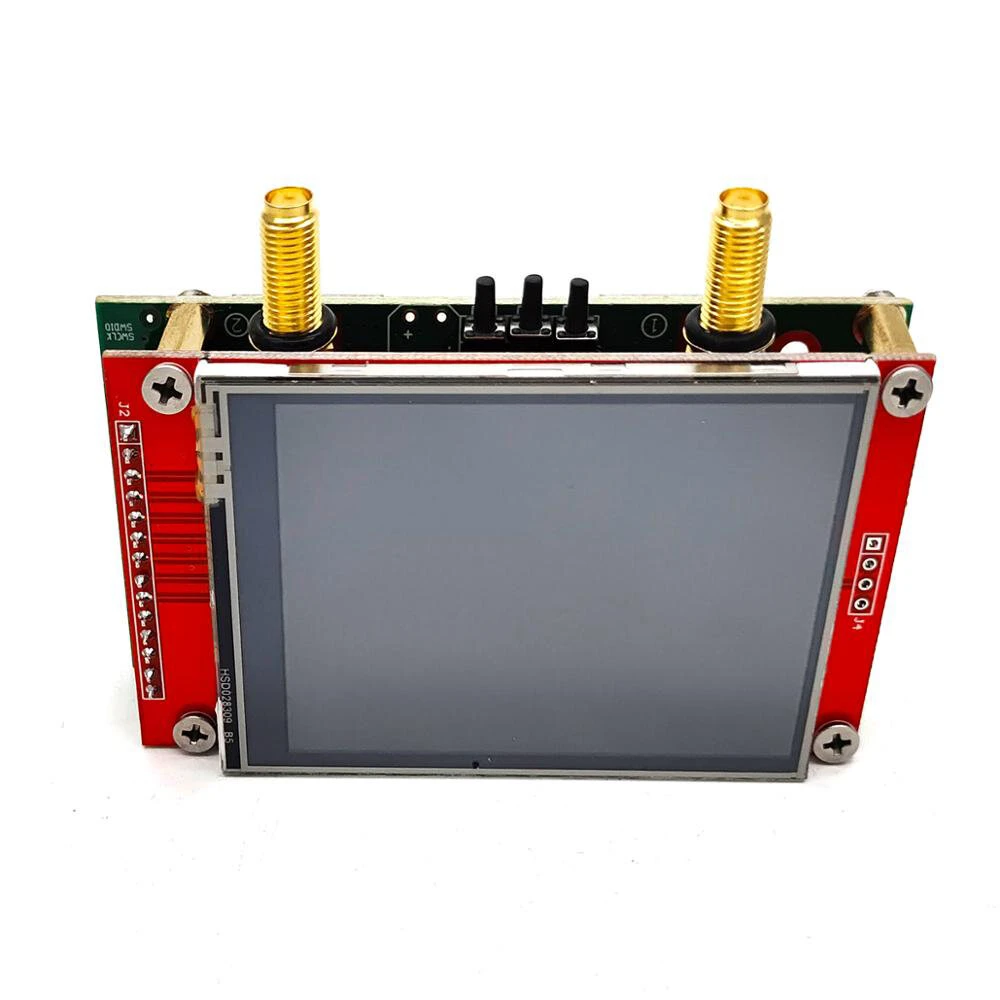

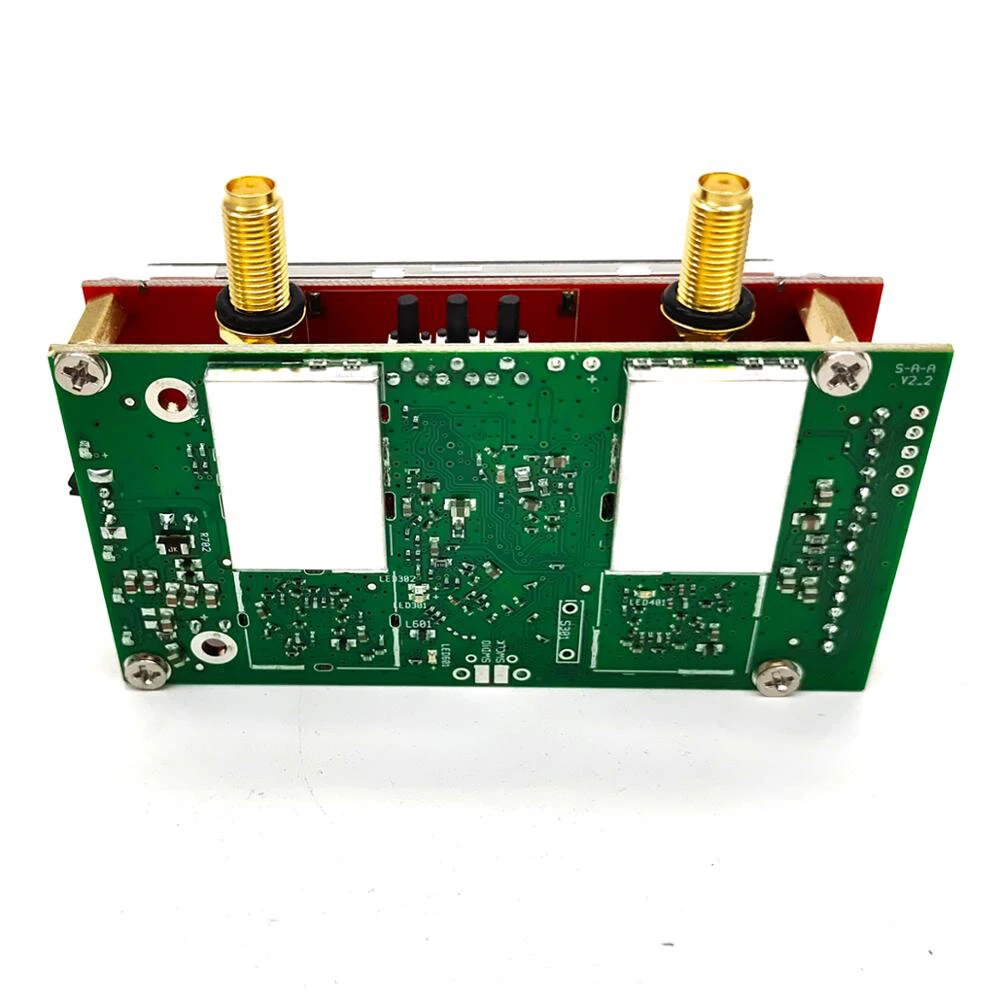

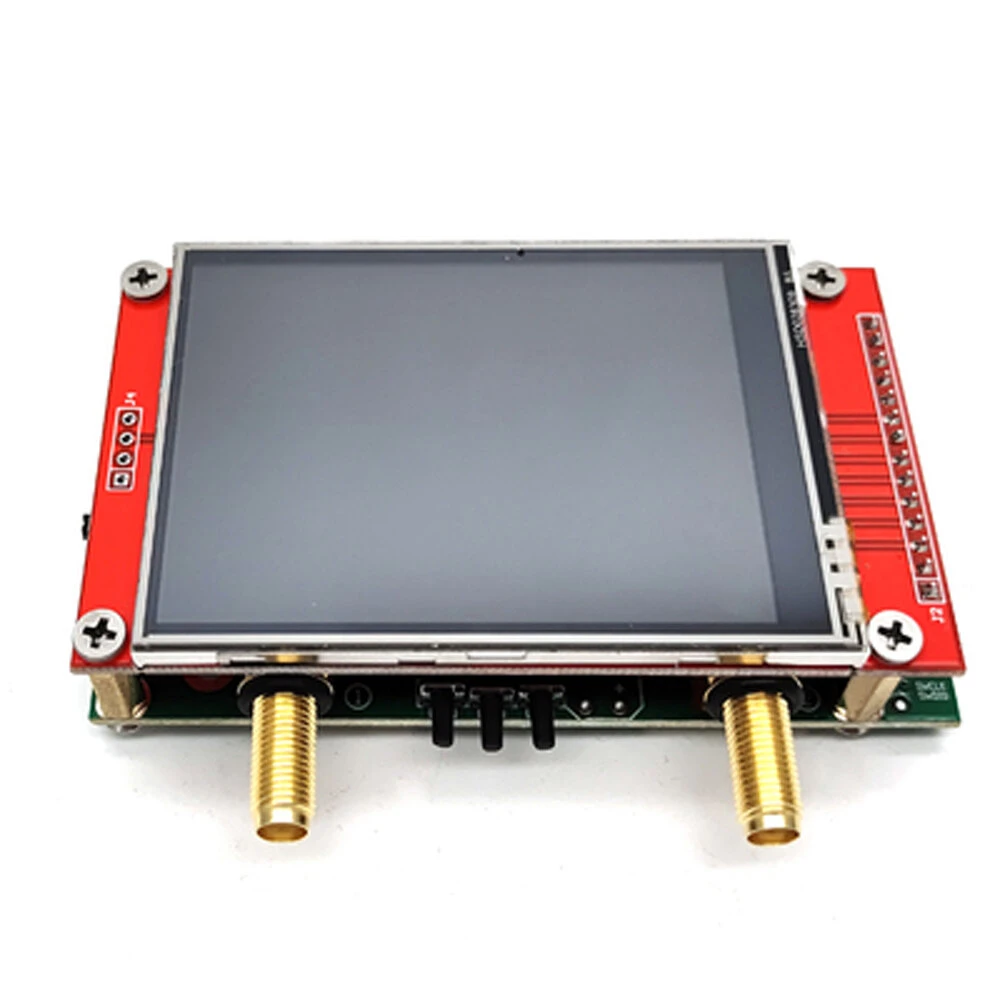

Details Pictures:
