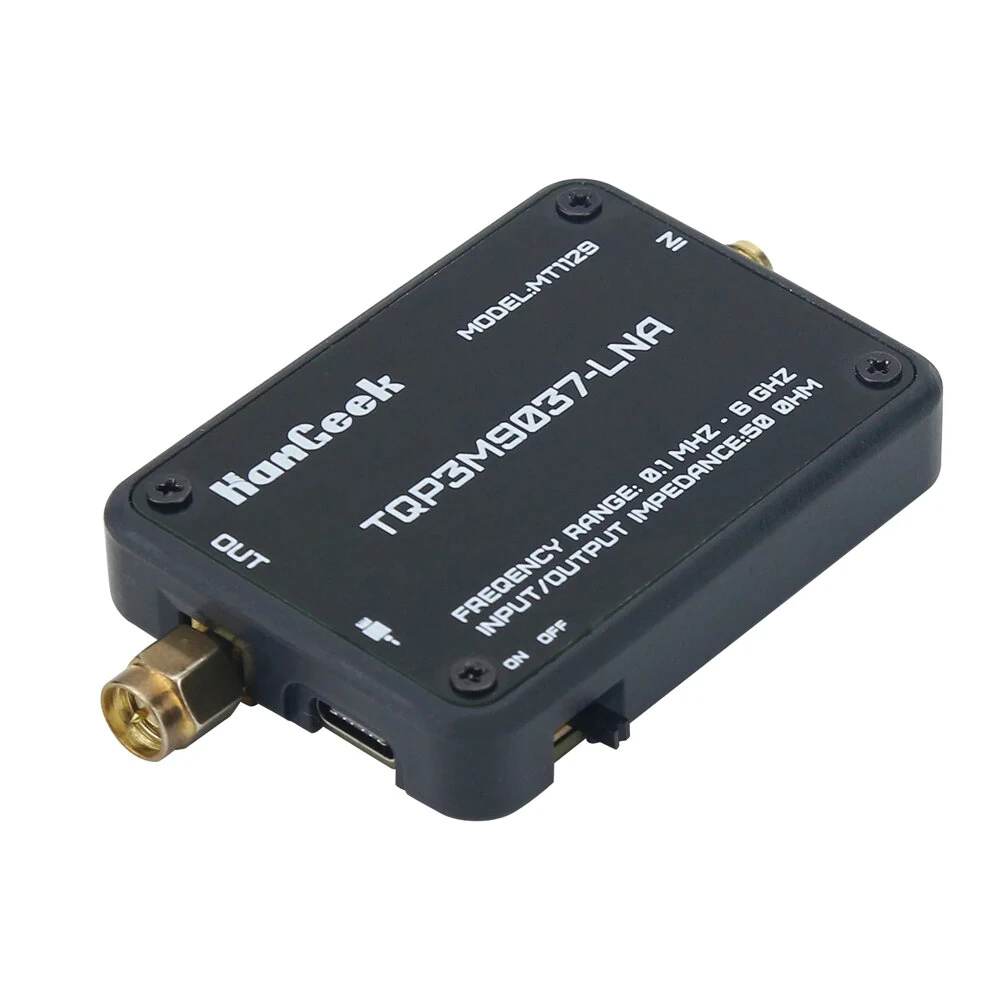

MT1129 Low Noise Amplifier 100KHz-6GHz | Ultra Low Noise High Gain | SMA Rechargeable SDR Receiver

Product Description

Specifications:
Model Number: MT1129
Dimensions: 78 x 46 x 45mm (including connectors)
Charging Voltage: DC 5V
Battery: 4.2V 350mAh

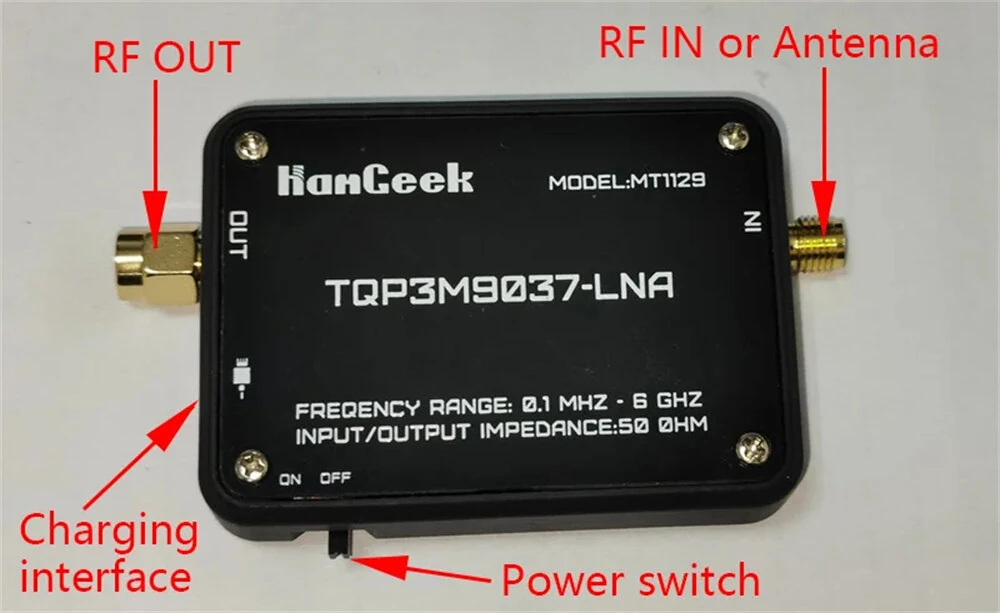

Antenna/Input Interface: SMA-K
Output Interface: SMA-JE
Charging Connector: Type-C
Frequency Range: 100KHz - 6GHz
Noise Figure: < 0.8dB NF
Gain: 20-35dB
Impedance: 50??
Net Weight (with battery): 36g
Features:

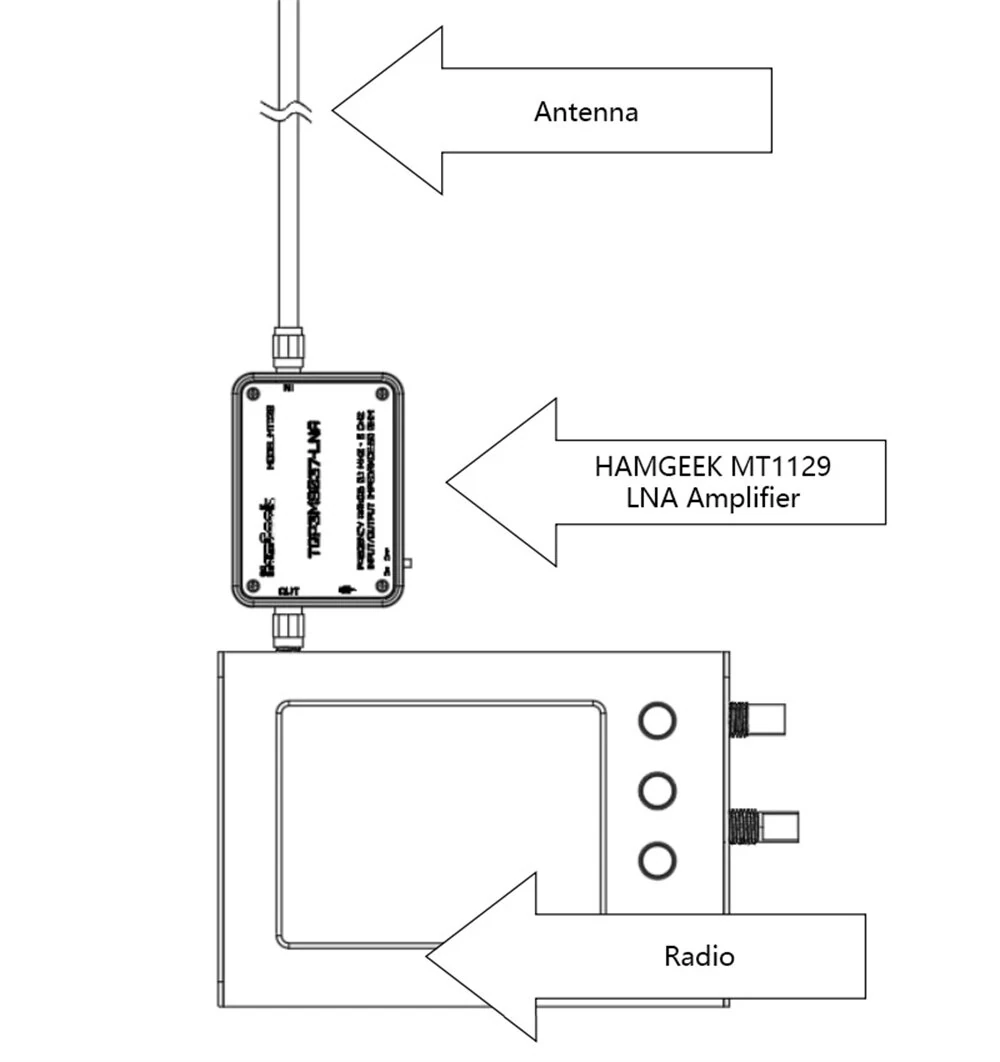

1.Wide Frequency Range: Supports a broad spectrum from 100KHz to 6GHz, making it compatible with a variety of radio receivers, SDRs, and spectrum analyzers.
2.Ultra-Low Noise Performance: Equipped with TQP3M9037 chips from Qorvo for superior signal clarity and a noise figure of < 0.8dB.
3.High Gain Levels: Adjustable gain of 20-35dB ensures amplified signals for enhanced reception and performance.
4.Compact and Lightweight Design: Measuring just 78 x 46 x 45mm and weighing 36g, it is easy to integrate into any setup.
5.Convenient Charging: Features a Type-C charging interface for reliable and fast power delivery using a standard 5V DC input.

Package Included:
1 x Low Noise Amplifier
