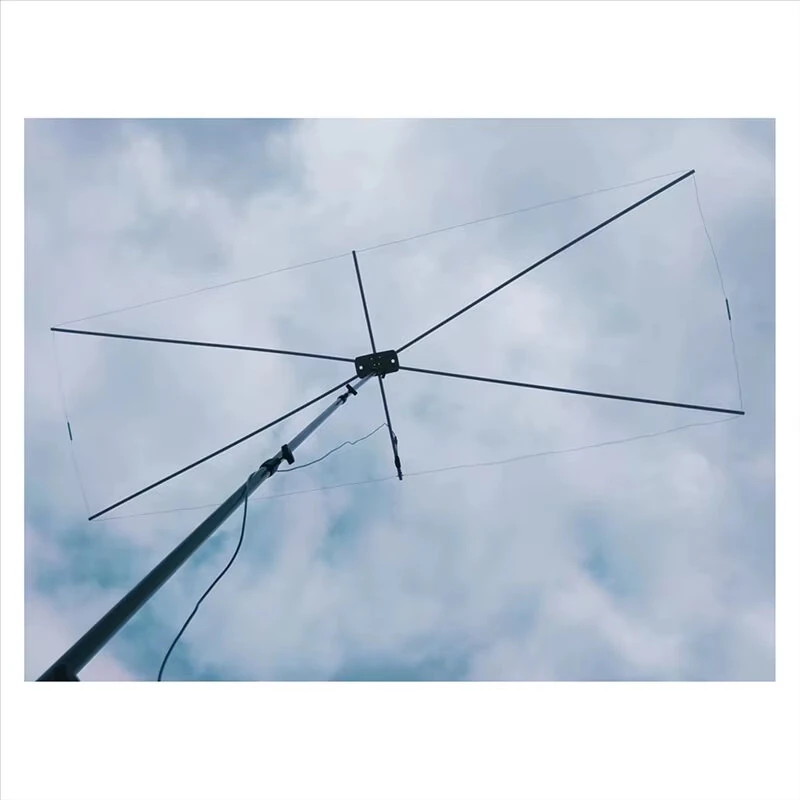

MOXON Shortwave Antenna Kit - High Gain 25dB F/B Ratio - CNC Machined Stainless Steel

Product Description

Specifications:
Product Name: Shortwave MOXON Antenna Kit

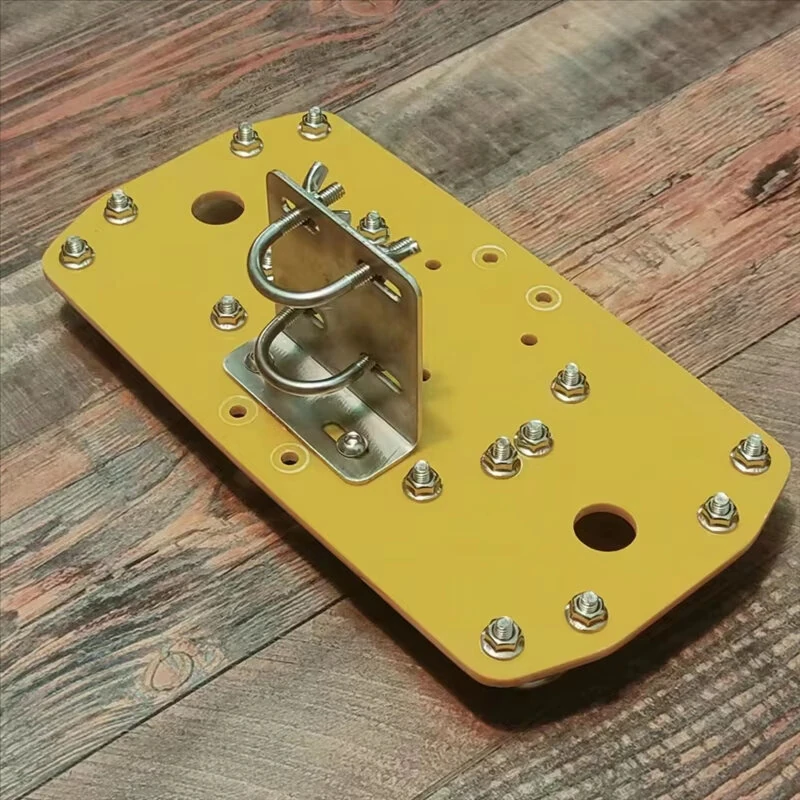

Base Plate Material: 5mm epoxy
Base Plate Dimensions: 270mm x 140mm
Hole Design: CNC machining for precise alignment
Fixation Mechanism: 2.5mm stainless steel
Accessories: 12 sets of U-clamps with screws and nuts (stainless steel)

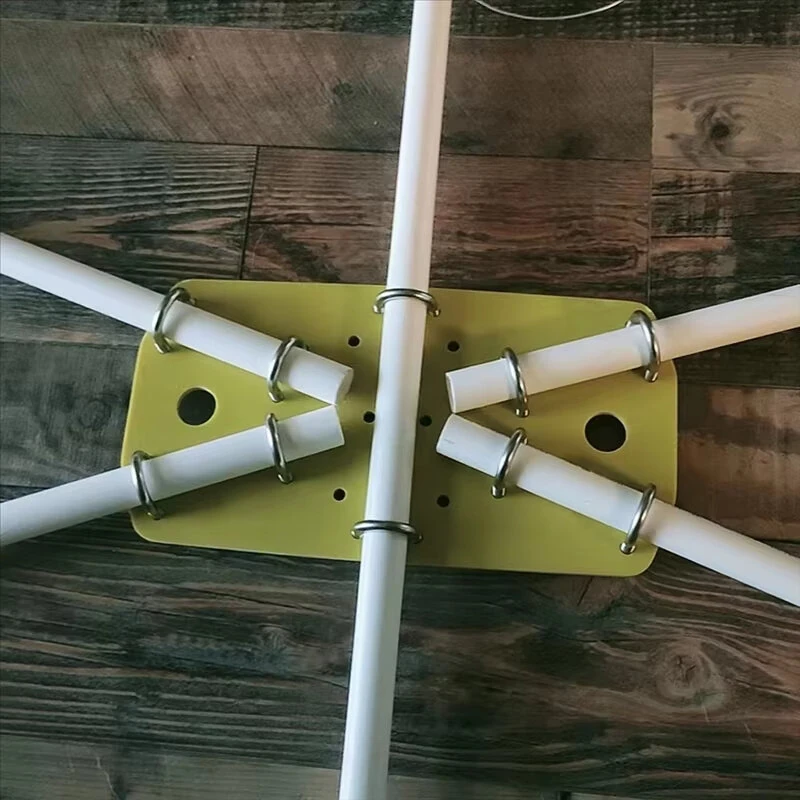

Recommended Support Rod Diameter: 20mm
Impedance: 50 ohms

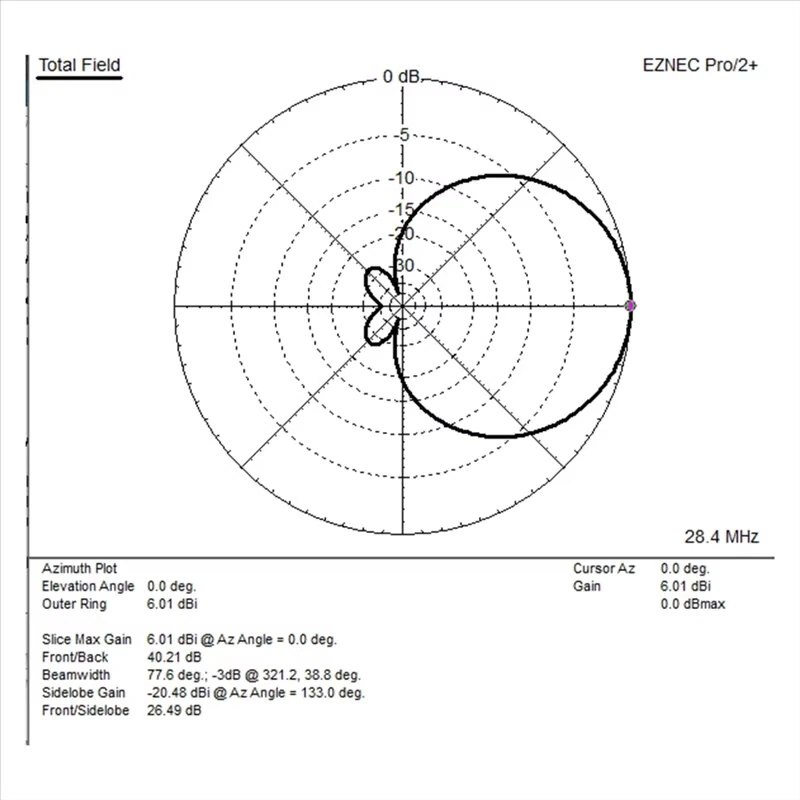

Maximum Gain: Approximately 6dBi
Front-to-Back Ratio (F/B): Over 25dB
Bandwidth: Wide
Radiation Angle: Greater than 70??
Features:
1.Precision Engineering: The CNC-machined base plate ensures precise hole positioning for easy and accurate assembly of your MOXON antenna, saving time in setup.
2.Enhanced Stability: The 2.5mm stainless steel fixation mechanism and U-clamps provide secure attachment for long-lasting performance without compromising structural integrity.
3.Exceptional Signal Properties: Capable of impressive front-to-back ratio exceeding 25dB, this antenna kit enables clear transmission and reception, ideal for amateur radio contests and competitive use.
4.Lightweight and Versatile Design: Suitable for constructing on both high-wave and lower-band frequencies, with adjustable support options including PVC pipes for portability and low-cost builds.
5.Wide Applicability: Compatible with 20mm support rods or tubes, accommodating various setups and customization to meet specific frequency requirements.
Package Included:
1 x Shortwave MOXON Antenna Kit
