Malahit SDR DSP Receiver 50kHz-2GHz | AM SSB NFM WFM | 1.10D Firmware

Product Description

Features:

1. The radio is built on the principle of SDR-the function is determined by loaded software;

2. Supported frequency range: 50KHz-2GHz (250MHz-400MHz is blocked by the author)

3. All types of analog modulation: AM, SSB, NFM, WFM;

4. Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer;

5. Use cheap but fully functional chip msi001;

6. The powerful stm32h743 with a clock frequency of 480 MHz is applied;

7. There is a built-in UHF;

8. Controls: 2pcs; encoders with buttons and touch screen;

9. Consumption: 300mA when listening to headphones;

10. Connect to computer via TYPE-C, which can transfer CAT, IQ and audio.

11. 160kHz span, with scalability;

12. Sensitivity: Under the condition of up to 250MHz, s/w is 0.3??V = 10dB; due to lack of measurement equipment, so the above measurements were not taken;

13. Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.

14. With backlight control;

15. SMA female antenna socket;

16. Size: about 100 x 75 x 32mm (without the sizes of connectors).

Specifications:

- 3.5-inch capacitive screen

- 4-layer board structure, higher performance than two-layer PCB

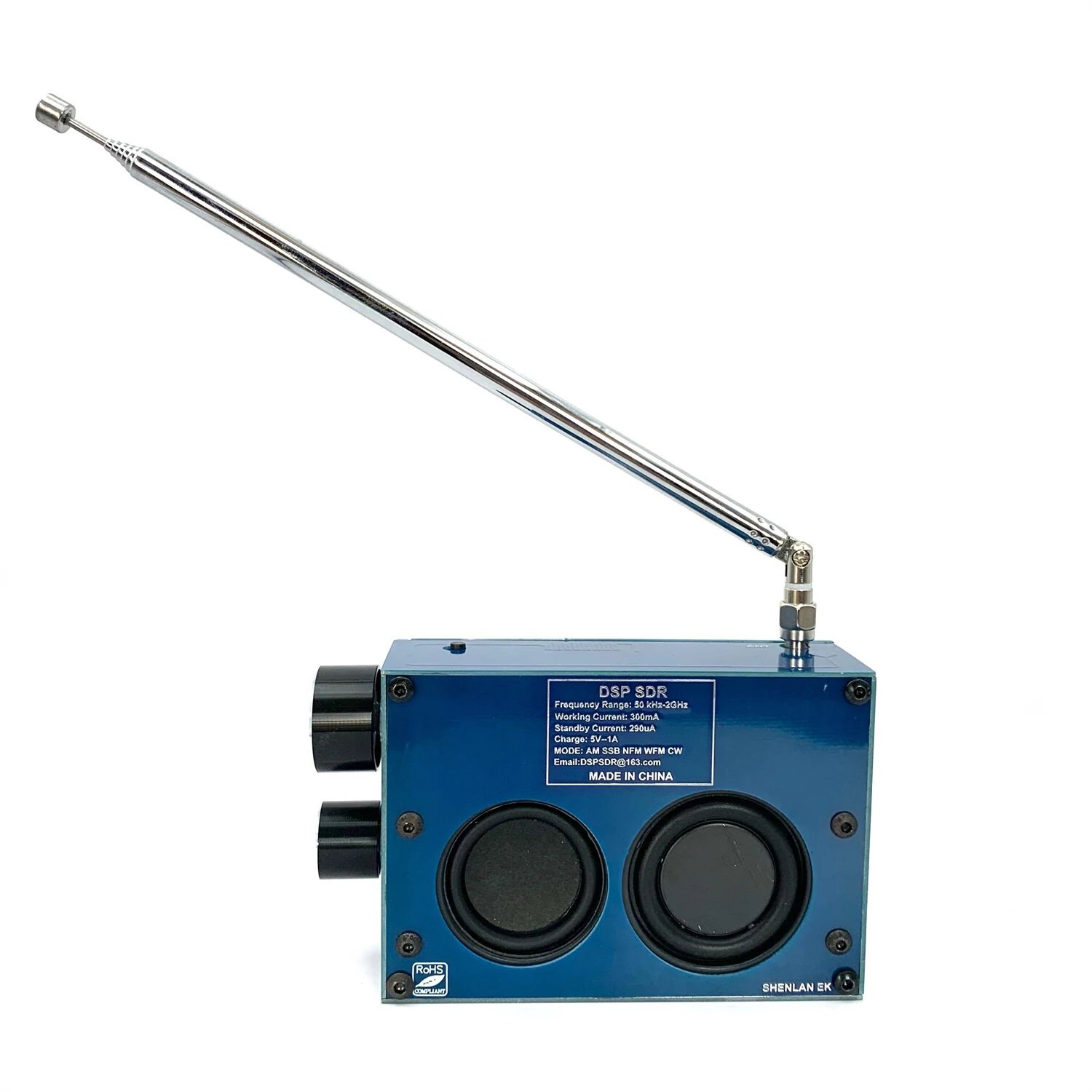

- Adopt a sound unit, 2 vibrating chambers, the speaker comes with a sound chamber, the bass sound quality is very full

- 4-layer board structure, higher performance

- 3.5-inch IPS capacitive screen

- Built-in 3000mA rechargeable lithium battery

- Using bass diaphragm sound cavity speakers, better sound quality

- Flash via USB cable

- Supported frequency range: 50KHz-2GHz (250MHz-400MHz is blocked by the author)

- Demodulation mode: AM, SSB, NFM, WFM

- Firmware version: 1.10D

- Optional Version: Standard

- Optional Color: Red / Blue

Package Included:

Type A:

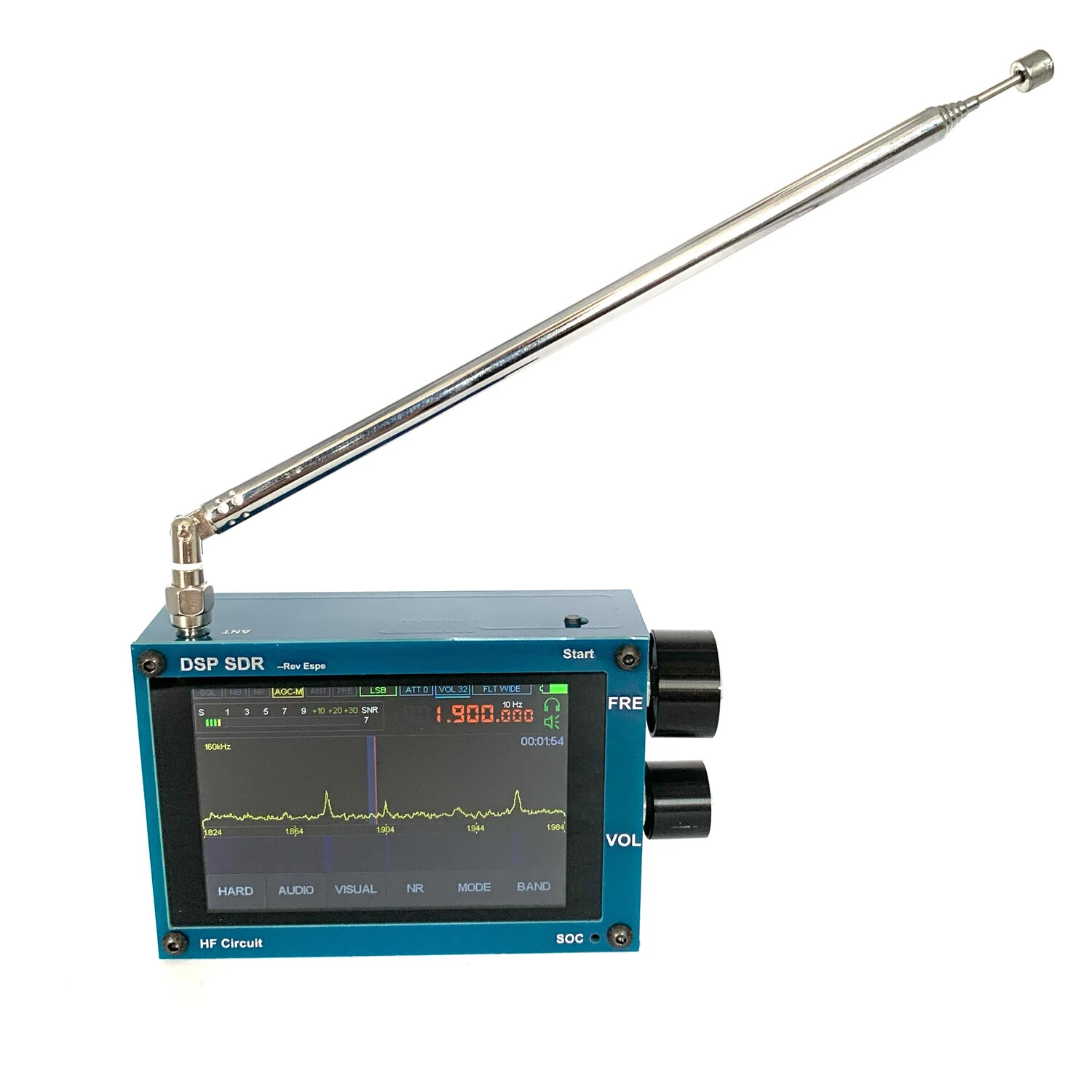

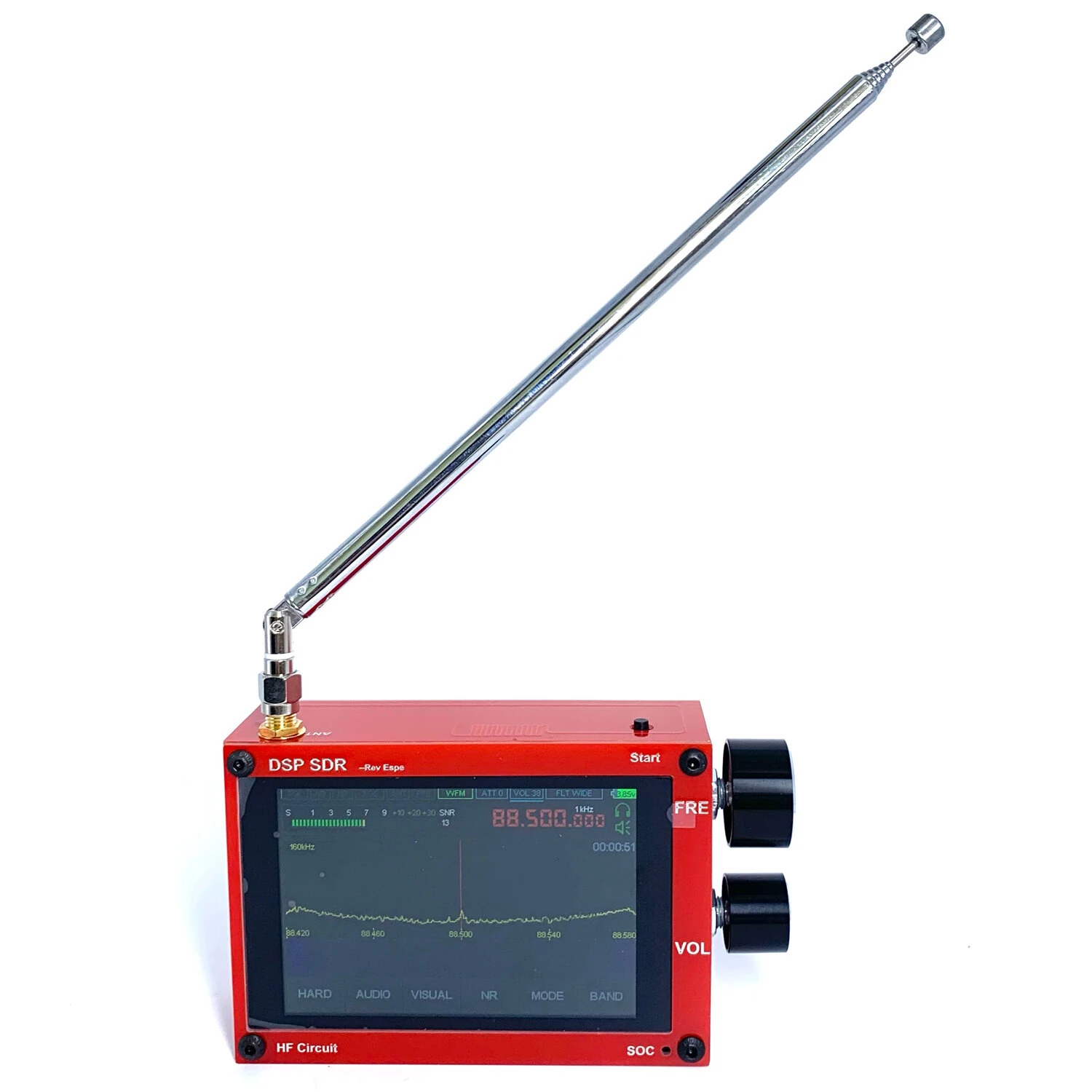

1 x Red SDR Receiver(Standard Version)

1 x SMA Antenna

Type B:

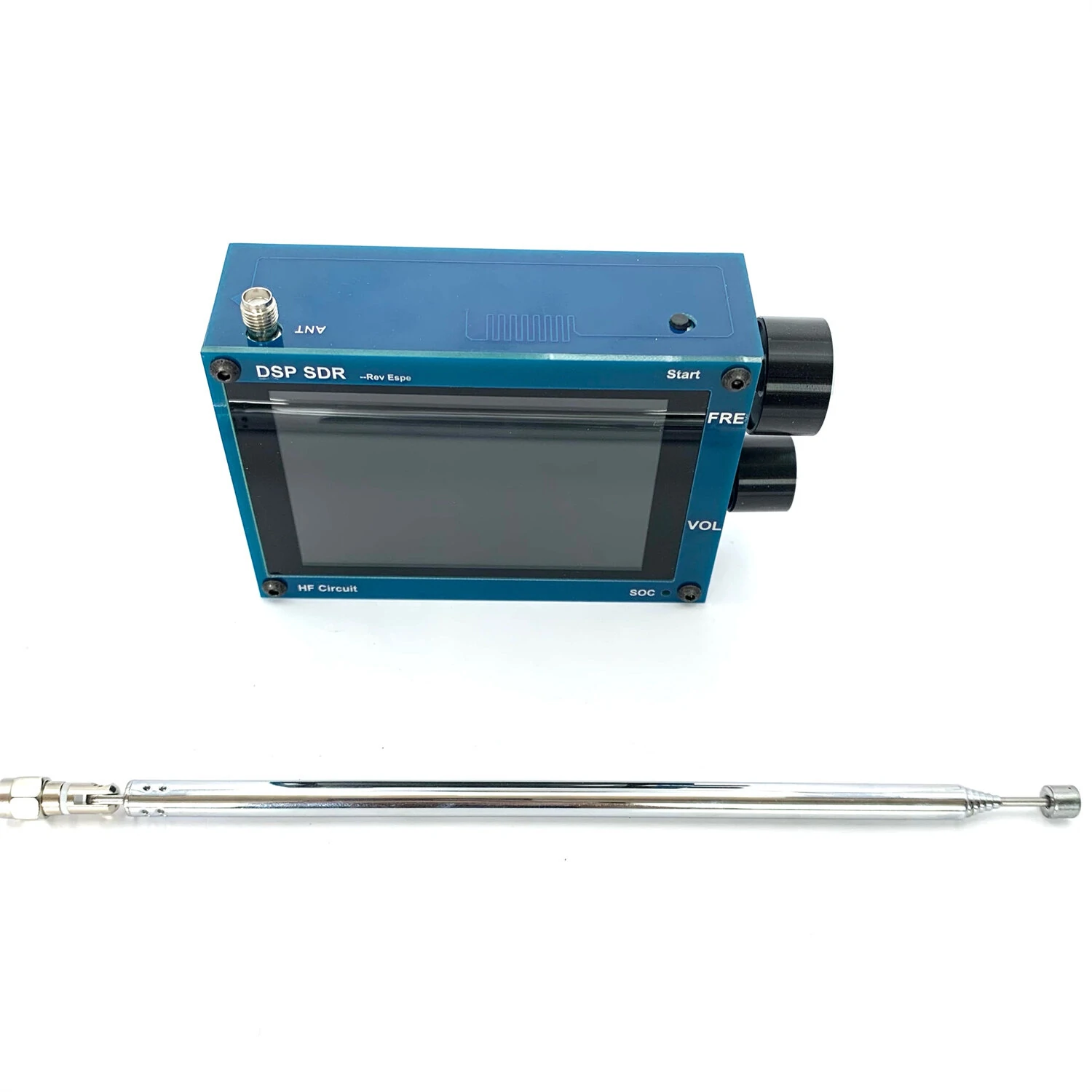

1 x Blue SDR Receiver(Standard Version)

1 x SMA Antenna
