Malachite DSP SDR Receiver | 50kHz-2GHz Software Radio | HAM Wireless
$273.00
$335.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

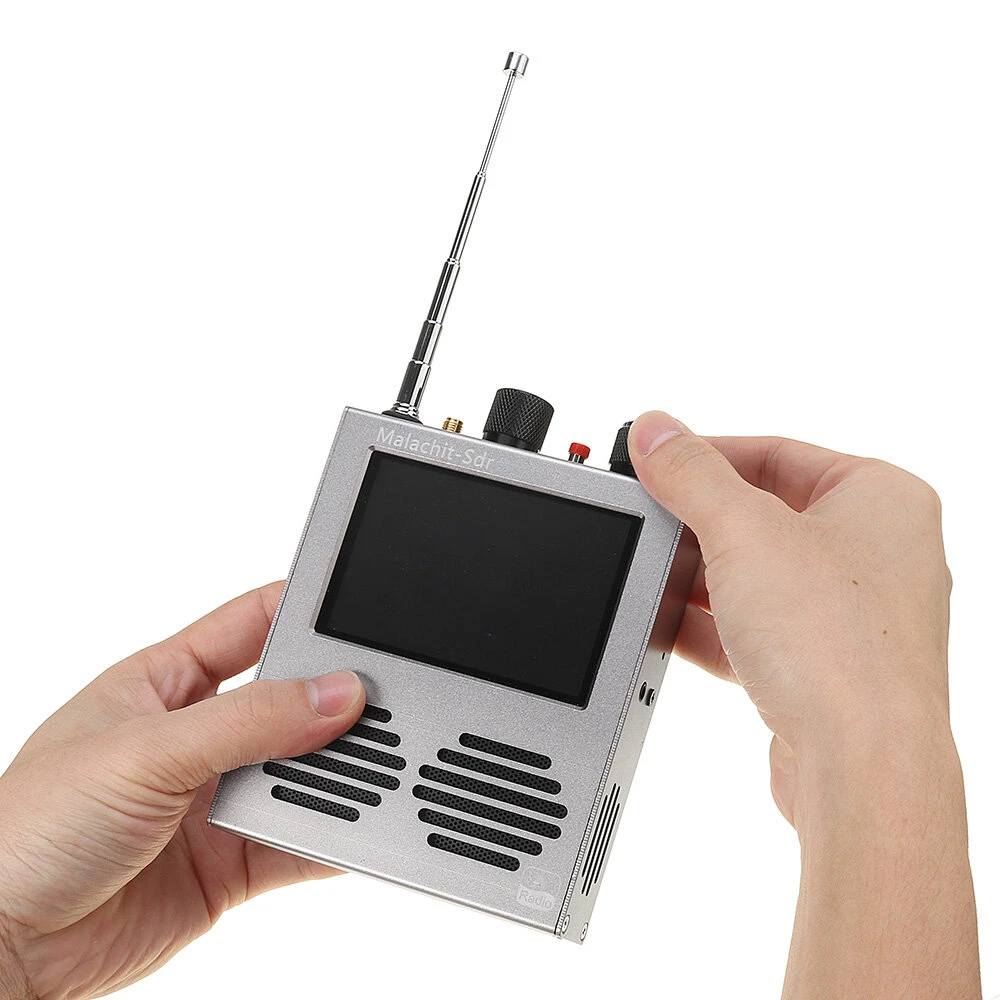

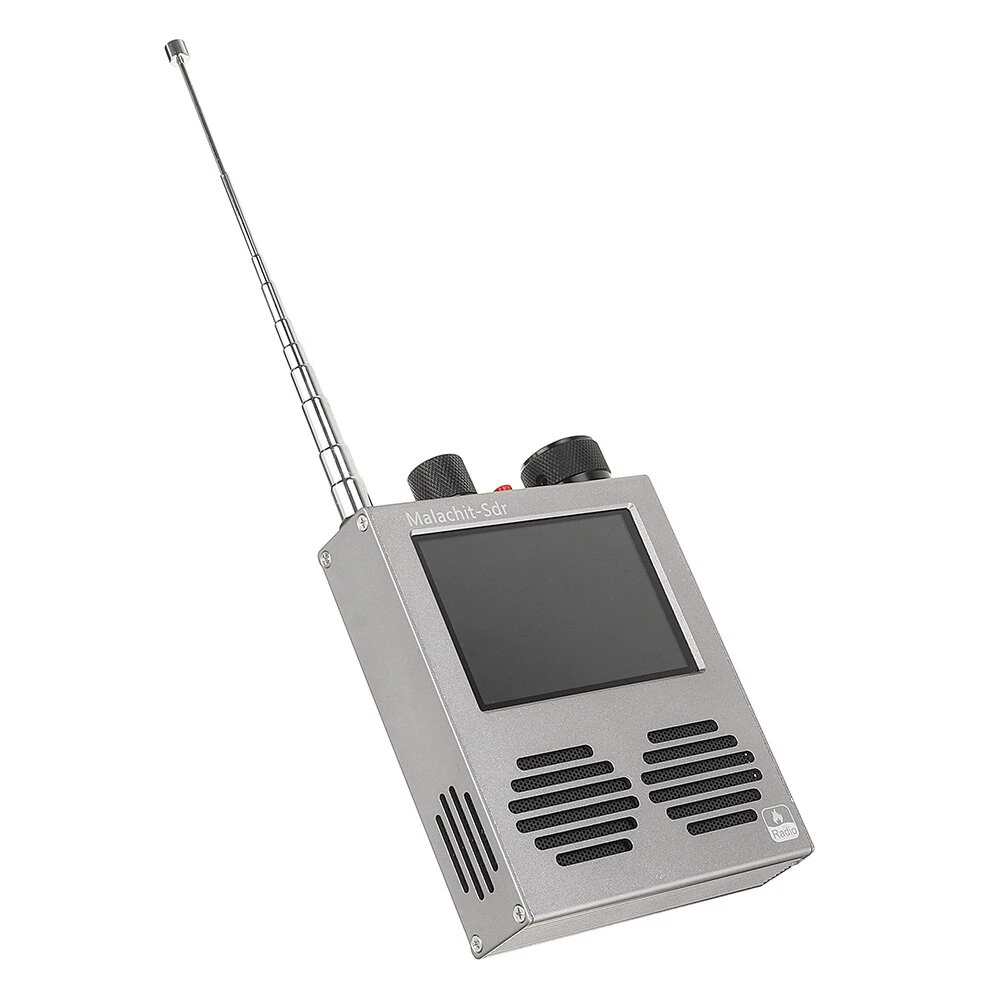

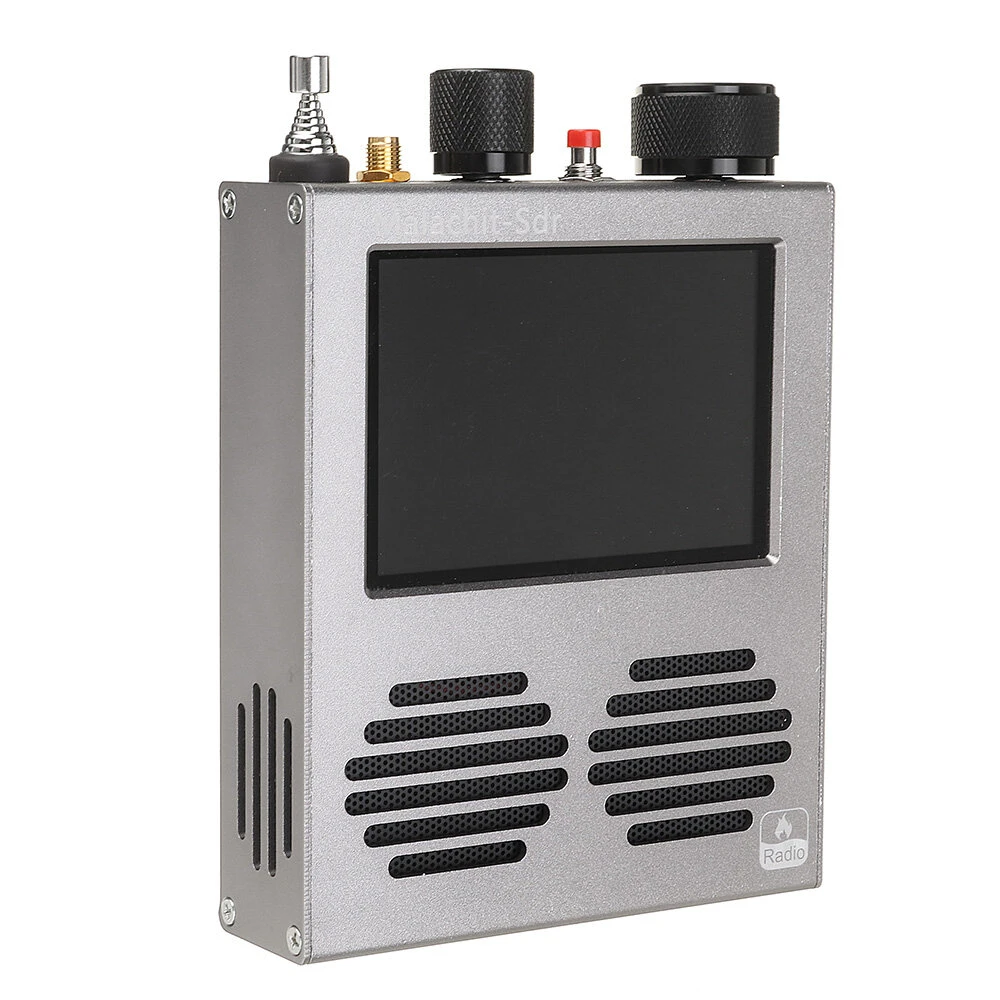

Features:1. The built-in whip antenna is convenient to carry and use, and it can be used with one hand, which is very convenient.2. The built-in battery increases by 4000 mA, the normal volume is 50-75, and the standby time can be up to 12-14 hours3. The sound adopts 4 ohm 2W+ diaphragm speakers, the most vigorous when the volume is 80, and the volume of 80 is the best sound effect.4. Built-in power-off button, hands that need it can directly power off the whole machine without disassembling the shell.5. The knob is made of exquisite all-aluminum material, which has an excellent feel.
Parameter:

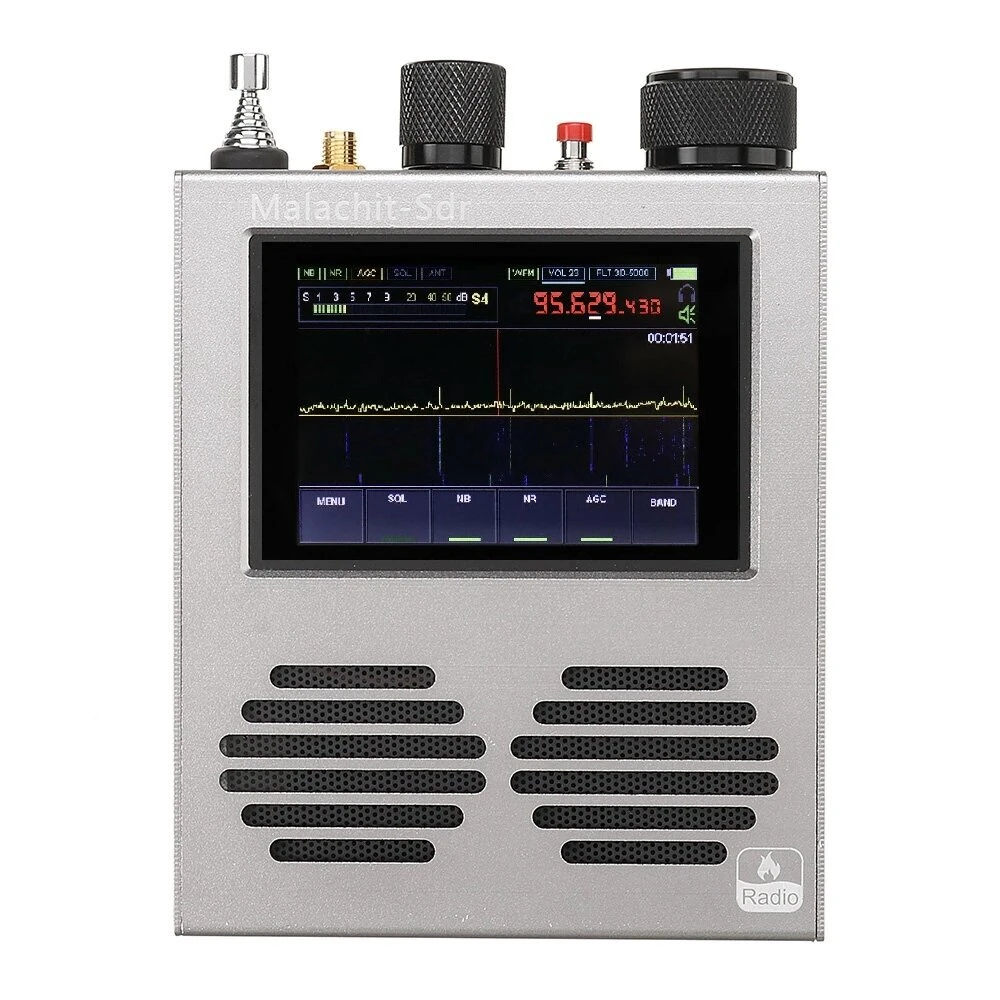

1) The receiver is based on the SDR principle architecture, and the function is determined by the loaded software;2) The frequency range is from 50kHz-200MHz, 400MHz--2GHz;3) Support demodulation analog modulation: AM, SSB, NFM, WFM, CW;4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, NoiseBlanker, AGC, equalizer;5) Use msi001 in the RF front-end;6) The processor core uses STM32H743 clocked at 480MHz;7) 3.5-inch IPS display with touch screen;8) The machine supports UHF UHF frequency band;9) Operation mode includes two EC11 pulse encoders and capacitive touch screen;10) It is powered by built-in battery and USB, and has linear lithium battery charging management, which can be charged through TYPE-C. The capacity of the built-in battery is not less than 4000mA/h.11) The receiver power consumption is about 300mA;12) The built-in LNA is used to improve the dynamic range of the receiver, and an extended version is designed to improve the shortwave HF band. The board will be planned to be built into the receiver.13) Connect to the computer via USB, you can transmit CAT, IQ and audio.14) The screen display bandwidth is 160kHz, and can be zoomed and displayed;15) The sensitivity is 0.3??V under the condition of 250MHz;16) Due to the characteristics of the msi001 chip used, the dynamic blocking range is about 85dB.17) The screen backlight can be controlled;18) Adopt high-quality sound cavity with bass diaphragm;19) The total length of the built-in whip antenna is 680mm, the thickest is 11mm, and the external SMA antenna socket;20) Appearance size: high-quality sound cavity version 102 x121 x 29mm21) The motherboard PCB adopts a double-layer circuit board process, and impedance matching is carried out on the circuit; and a variety of optimizations.
Package included:

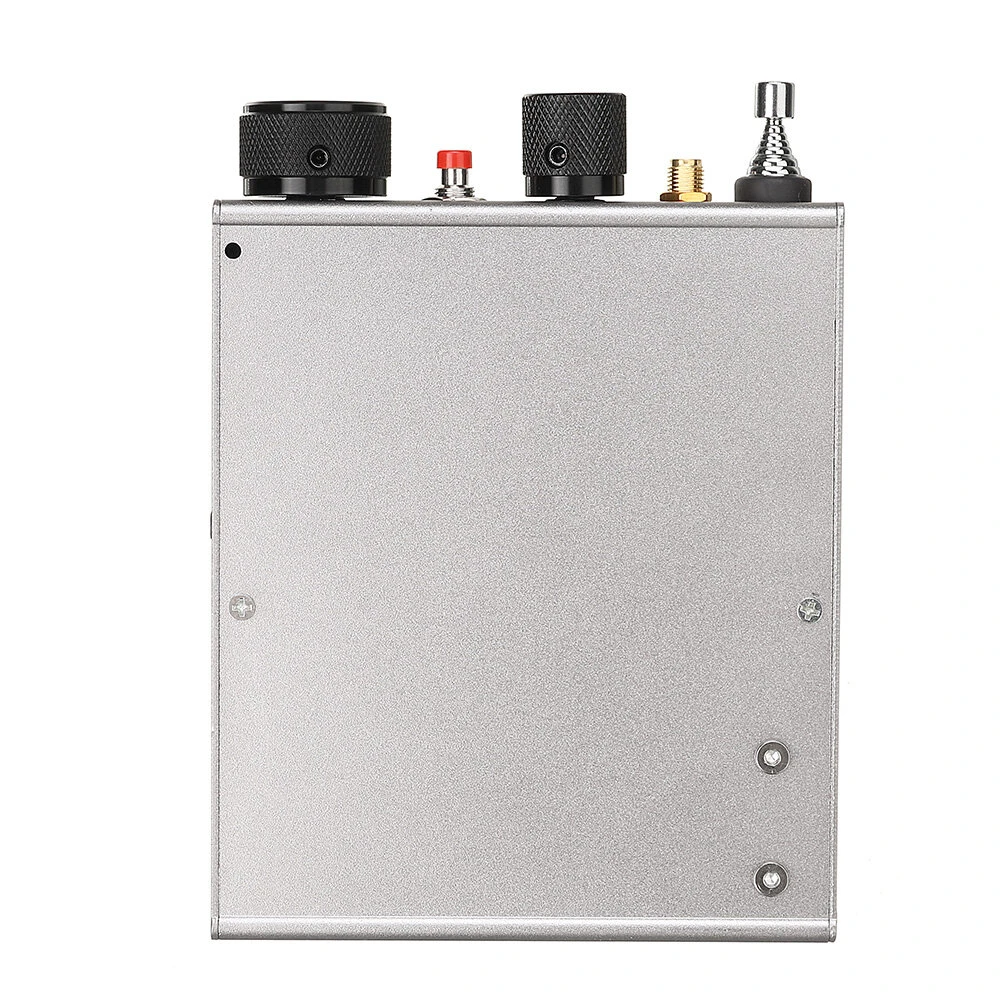

1 x HAM Wireless Malachite Receiver
