KCX TFT2.8 PLAYER02 Bluetooth 5.3 Audio Decoder Board | 2.8 Inch IPS Screen | MP3 FLAC Playback

Product Description

Specifications:

Model: KCX_TFT2.8_PLAYER02_V2.1

Weight: 110g (main body, excluding accessories)

Dimensions: 13.5 * 6.95 * 3.5 cm

Screen: 2.8-inch IPS color display, 320 x 240 pixels

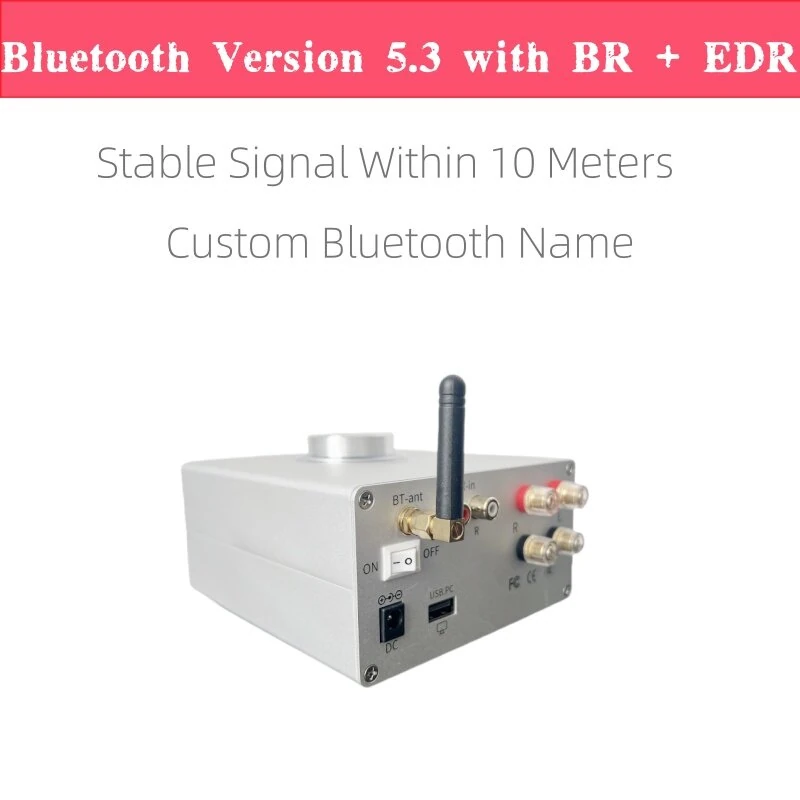

Bluetooth Version: V5.3 + BR + EDR

Bluetooth Name: Bluetooth Audio (customizable by users)

Bluetooth Range: Up to 10 meters

Audio DAC Bit Width: 24-bit

Audio Channels: Two-channel stereo output

Signal-to-Noise Ratio: ??104db

Output Signal Power: ??50mW

Working Voltage: 4.5-5.0V (requires a stable power supply)

Standby Current: 20mA

Working Current: 30-180mA (mainboard only, depending on operational state)

Features:

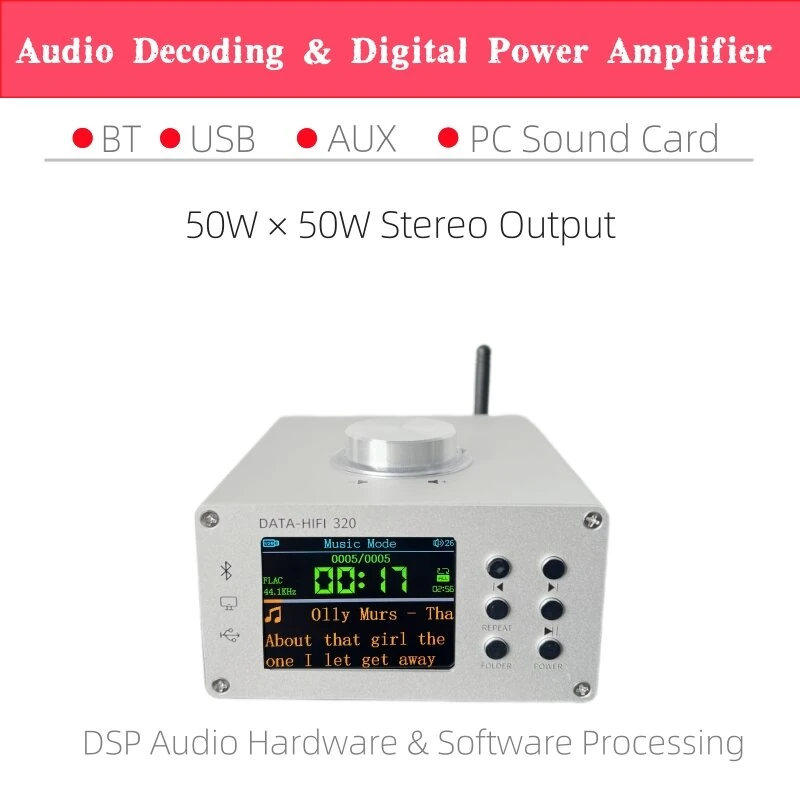

1. Decoding & Playback Options

This device integrates Bluetooth audio decoding, U disk, TF card music playback, USB sound card functionality, and LINE audio input, offering comprehensive audio compatibility in one compact design.

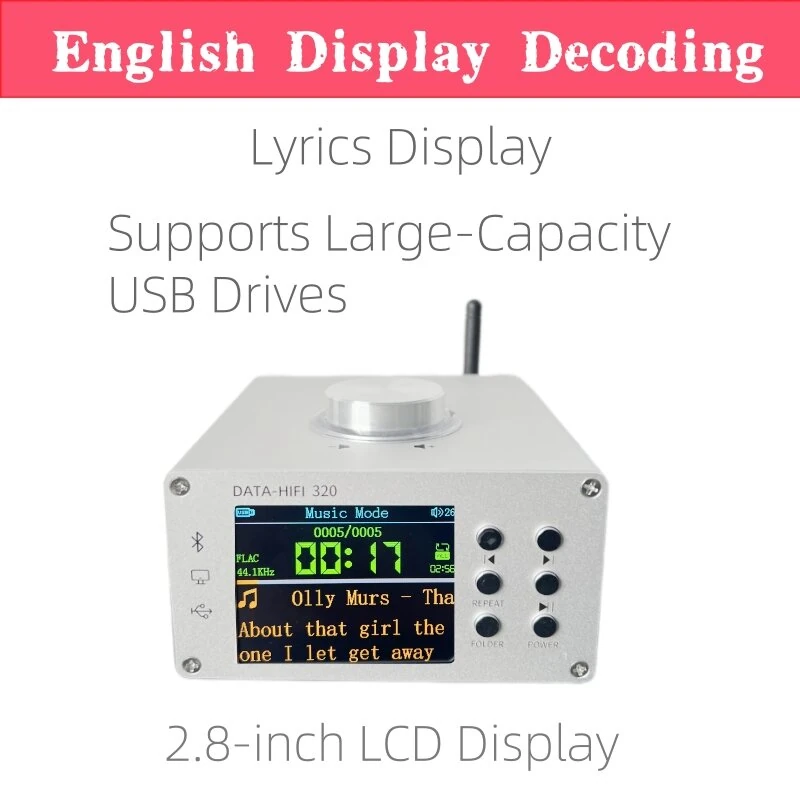

2.Advanced Display Functionality

The 2.8-inch IPS color screen provides vivid visuals for playback status, decoding information, lyric synchronization, real-time dynamic spectrum, and Bluetooth song metadata, enhancing the user experience.

3.Comprehensive Audio Format Support

Supports MP3, WAV, WMA, FLAC, and APE decoding for U disk/TF card playback, ensuring users can enjoy high-quality music in various formats, accommodating diverse media preferences.

4.Customizable Sound Profiles

Equipped with 7 preset equalizer modes and 1 customizable EQ mode, users can tailor sound profiles to match speaker setups or personal listening preferences with ease.

5.Built-In Multi-Functional Rotary Encoders

Two 360?? rotary encoders allow precise control, including track switching, volume adjustment, fast forward/rewind, and menu navigation, delivering intuitive functionality.

Package Included:
