HackRF One PortaPack H2 - SDR with 3.2-inch Touchscreen, GPS & Aluminum Case

Product Description

Features:

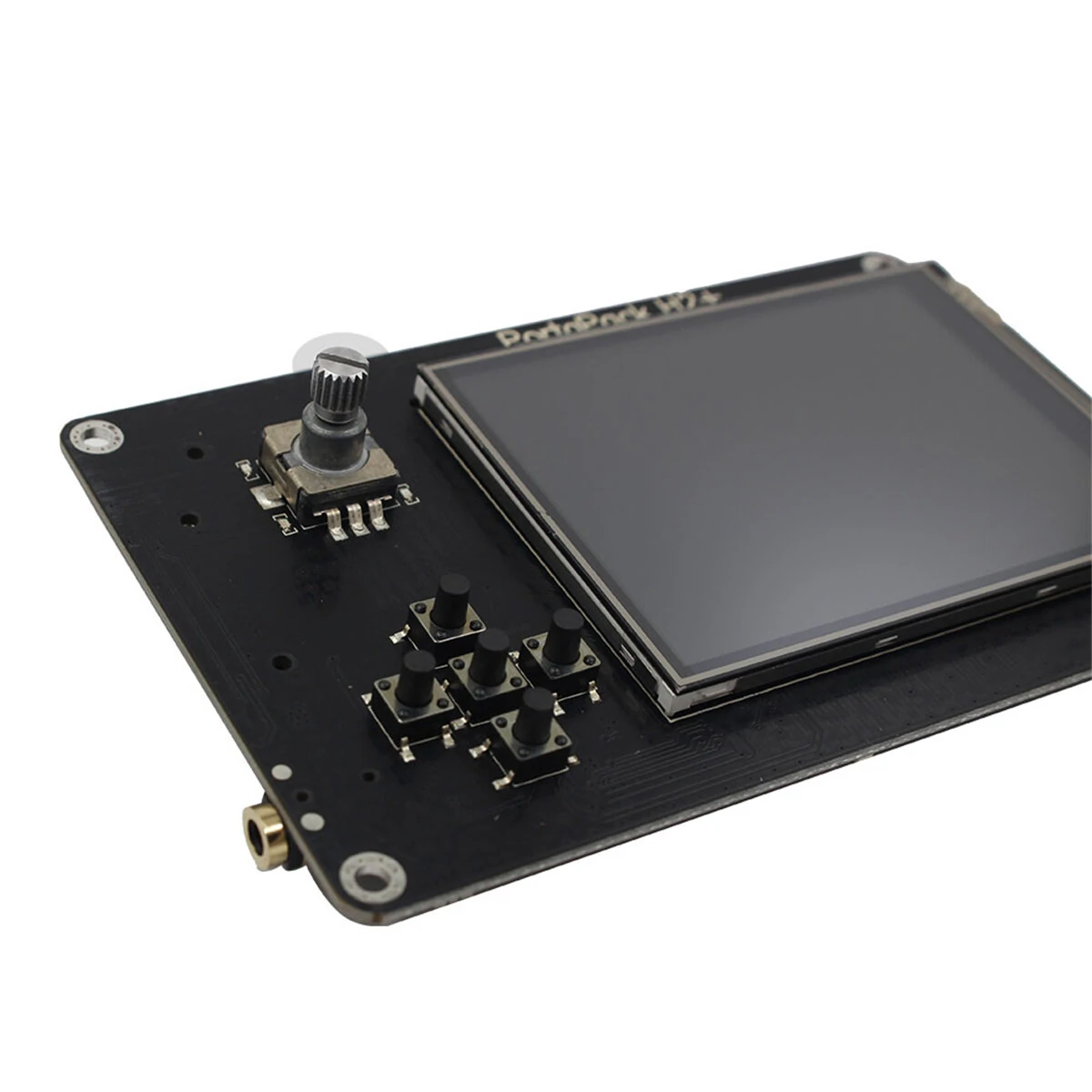

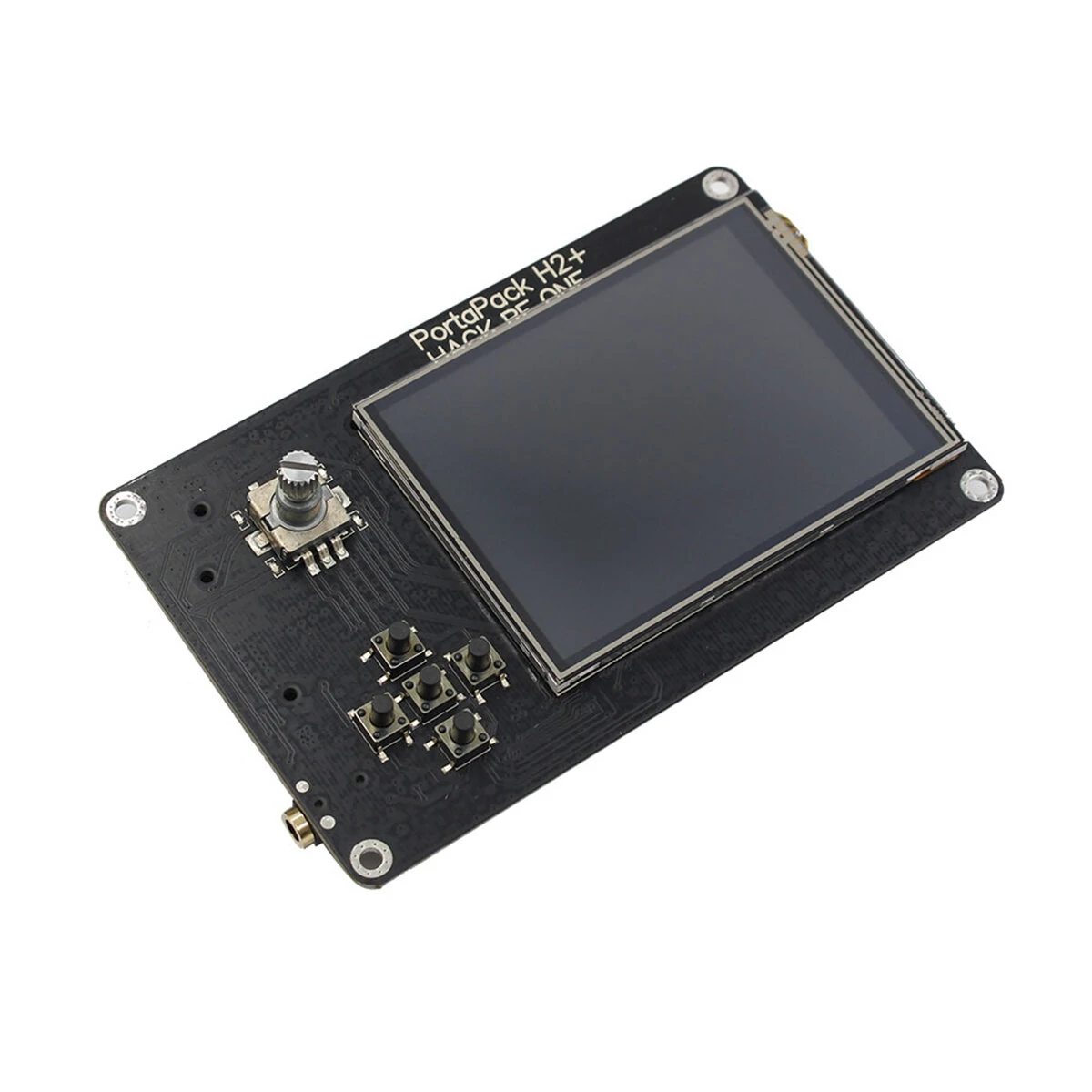

Integrated Portability & User Interface: The PortaPack H2 transforms the HackRF into a stand-alone software-defined radio. With an intuitive LCD touchscreen and user interface navigation controls, you're not just getting an SDR; you're getting an all-in-one portable solution. Say goodbye to lugging around a separate computer for signal processing.



Multifunctional Audio Capabilities: Featuring both audio input and output, the device is well-equipped for versatile operations. Whether you're decoding signals or transmitting voice, the audio functionality will come in handy.



High Precision & Frequency Accuracy: Built with an internal TCXO clock, which boasts an impressive 0.5ppm accuracy, your frequency measurements and operations will be as accurate as premium transceivers. Additionally, the device can automatically switch to an external TCXO, granting users even more flexibility.



Data Storage & Playback: With an embedded TF card slot, storing data or playing back previous recordings becomes a simple matter. Need to recall a past transmission or save a specific frequency? You've got ample storage right at your fingertips.



Durable Design & Protection: The new aluminum casing ensures both the PortaPack and HackRF are protected from external elements. Whether you're in the field or at a desk, this device is built to last.



Specifications:

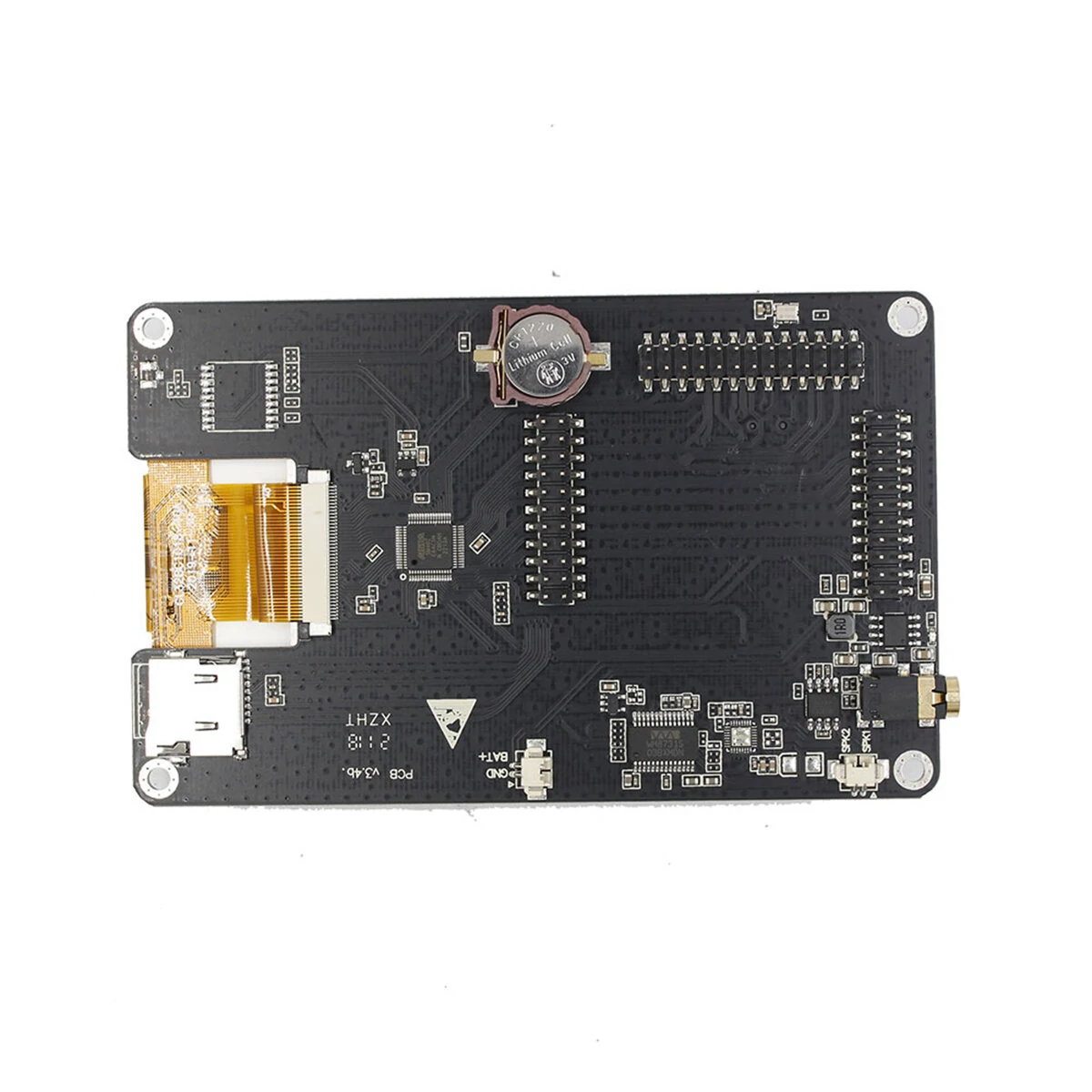

Main Chipset: Core Chip: 8731, Audio: 5M40Z, Crystal: 3225 10MHZ.

Display: 3.2-inch touchscreen with voice input and output functionality (ADC, DAC).

Power & Battery: Built-in CR1220 battery with RTC clock functionality. 2100mAh lithium battery.

Additional Features: Supports offline GPS simulation. Equipped with a TCXO high precision clock (0.5ppm).

PortaPack H2:

Weight: 180 grams

Dimensions: 16cm x 10cm x 6.5cm

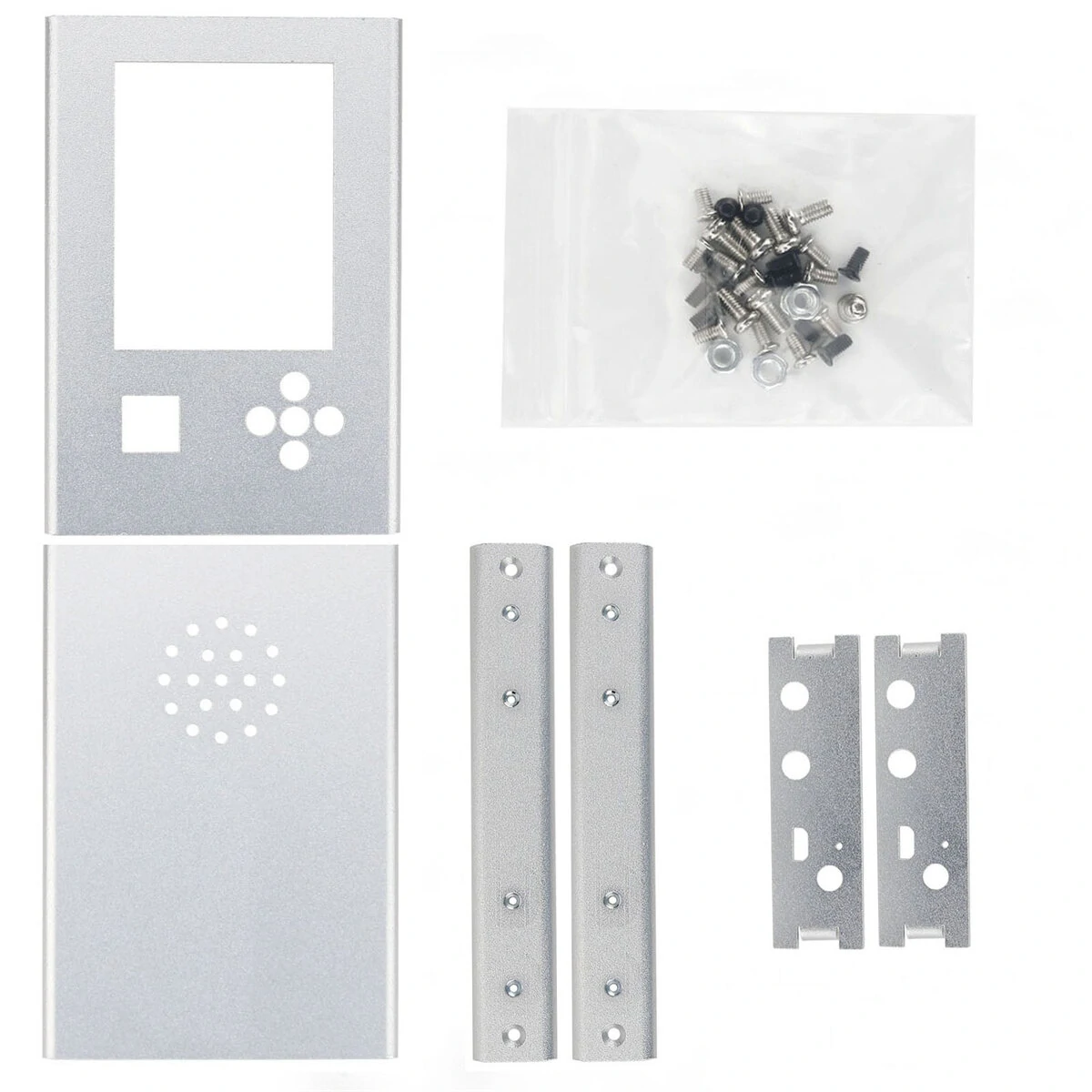

Protective Case:

Name: Metal Shell

Material: Aluminum

Suitable for: PortaPack H2, HackRF



Package Included: ??optional??

#1:

1 x PortaPack H2

1 x PortaPack Button

5 x Switch Covers

1 x 2000mAh battery

1 x Speaker



#2: Silver Aluminum Protective Case

1 x Shell Kit
