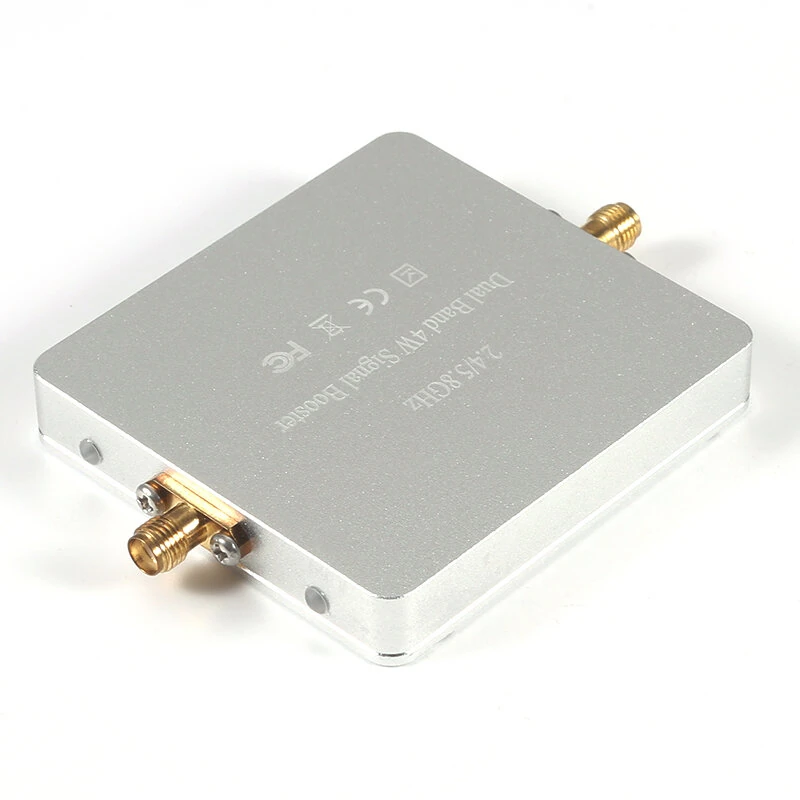

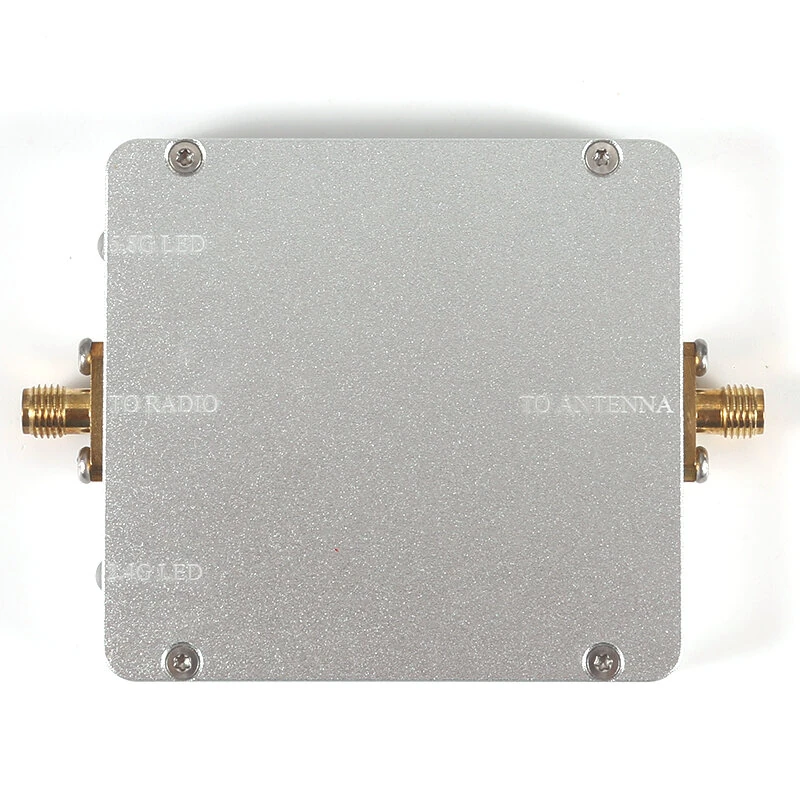

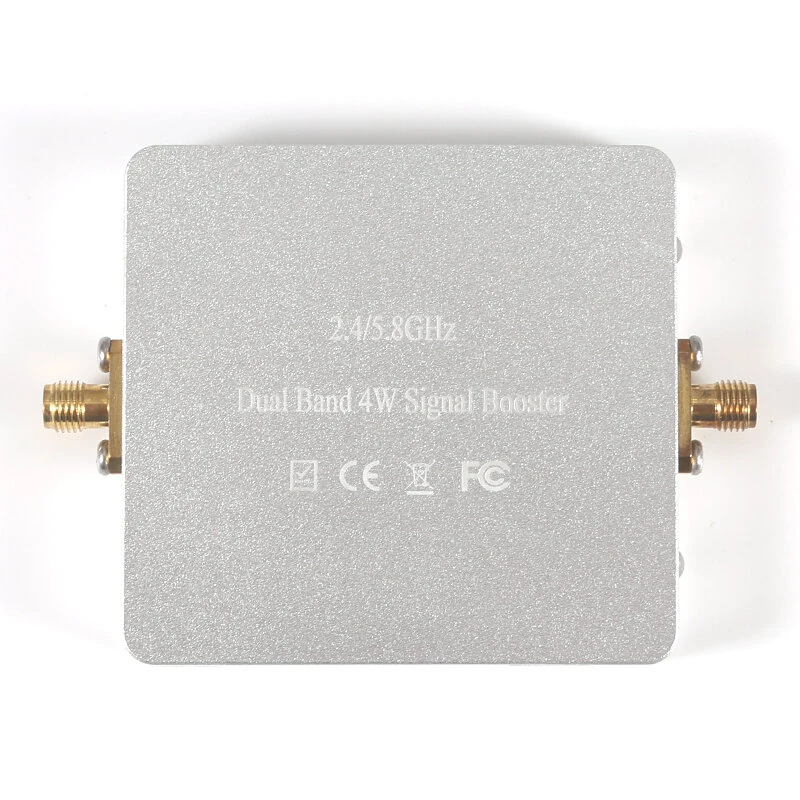

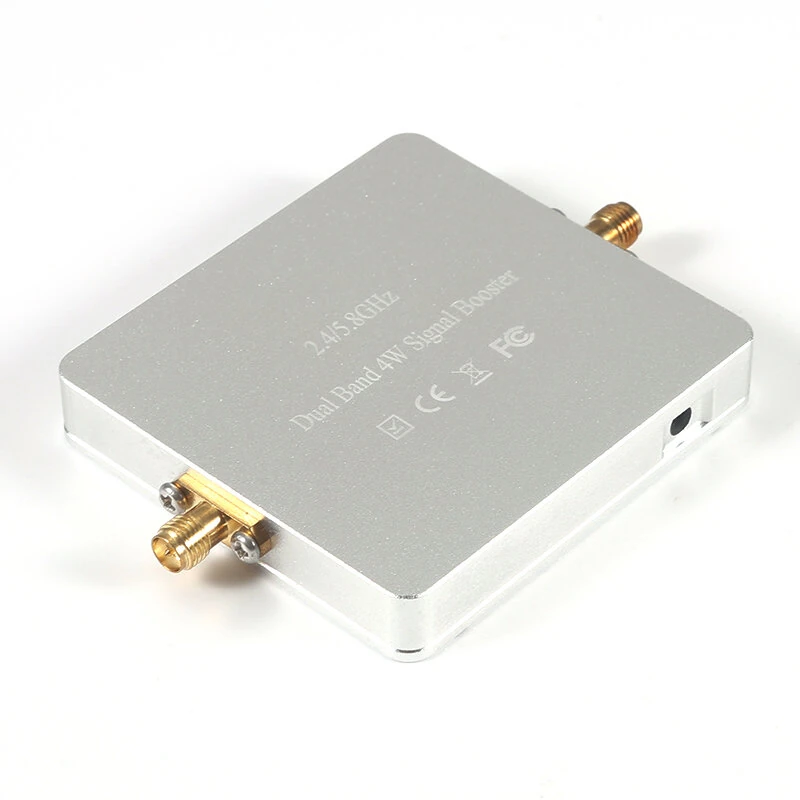

EDUP WiFi Booster Signal Amplifier - 4000mW Dual-Band 2.4GHz & 5.8GHz | Plug and Play

Product Description

Features:

Dual-Band Capability: Supports both 2.4GHz and 5.8GHz frequencies with automatic switching, enhancing signal stability and range for diverse applications including smart home systems and UAVs.

High Output Power: Provides an impressive maximum output power of 4000mW, ensuring strong and reliable signal transmission over long distances.

Versatile Power Support: Operates within a wide voltage range of 6-16V, accommodating various power supply options and ensuring consistent performance.

Robust Design: Encased in CNC-machined aluminum alloy for effective anti-interference properties and efficient heat dissipation, ensuring reliable operation even in challenging environments.

Easy to Use: Plug-and-play functionality requires no software installation, allowing for quick and straightforward setup with certified IEEE 802.11a/b/g/n/ac Wireless LAN devices.

Specifications:

Booster Model: EP-AB015

Operating Range: 2.4~2.5 GHz, 5.0~5.875 GHz

Operating Mode: Bi-directional, half-duplex, time division duplex

Connector Type: SMA Receptacle 50ohm, To radio SMA female (hole inside), To antenna RP-SMA female (pin inside)

Input Power: 5~23 dBm

Transmit Gain: 15~18dB

Output Power: 4000mW (36dBm)

Receiver Gain: 15~17 dB

Noise Figure: ??3.5 dB typical

Frequency Response: ??1dB over operating range

Supported Voltages: 6V~16V

Operating Temperature: -30??C to + 70??C

Operating Humidity: Up to 75% relative humidity

Material: Cast Aluminum

Booster Weight: 100g

Booster Size: 85x60x13(mm)

Weight: 375g

Package Size: 225x165x50mm

Optional Plug Type: EU / US Plug

Package Included:

1 x WiFi Booster Signal Amplifier (Plug Type As Your Choice)

1 x USB Cable
