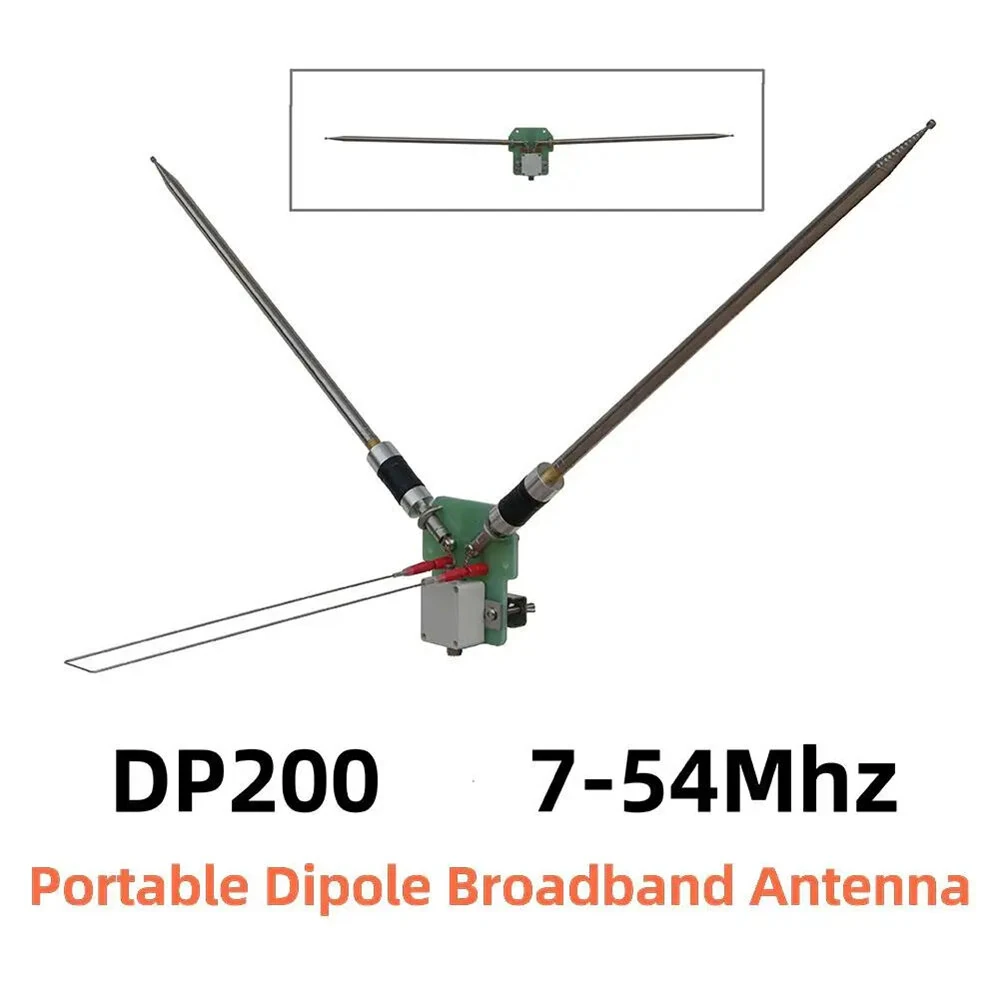

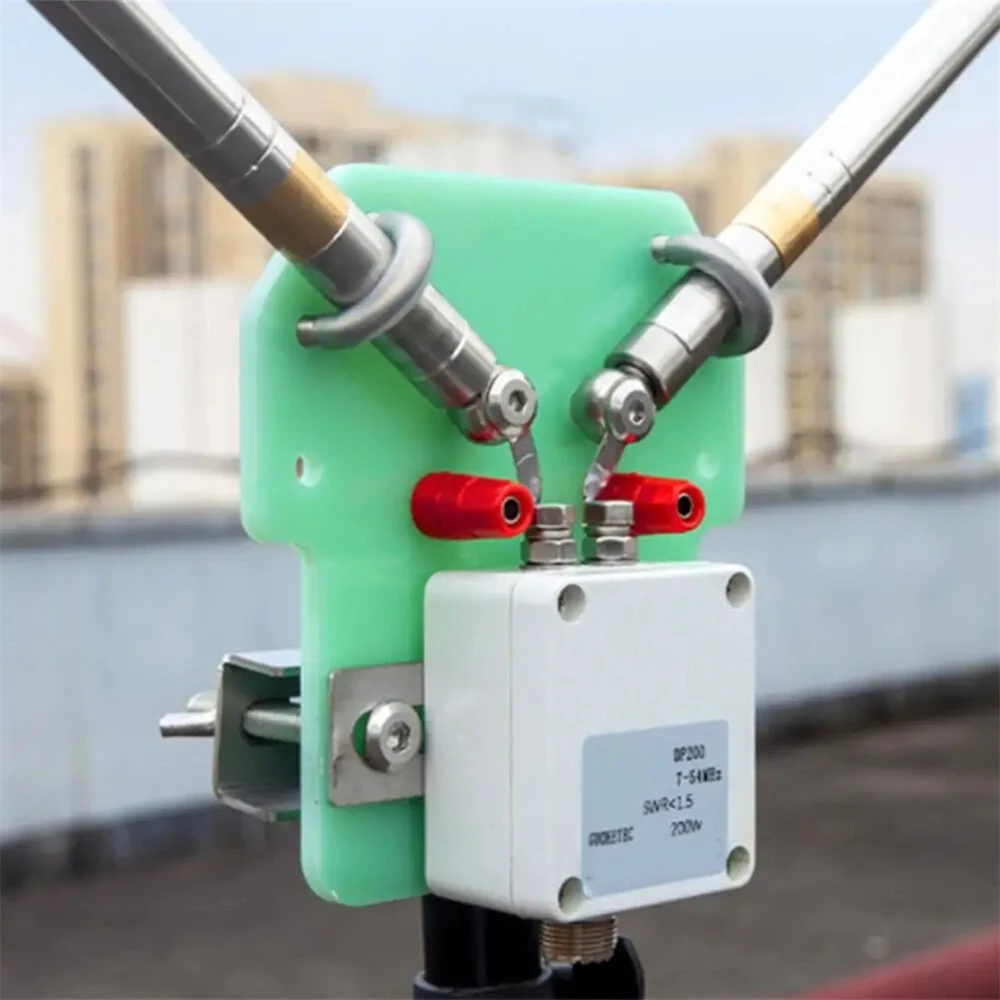

DP200 Portable Dipole Antenna - 7-54MHz 200W - Stainless Steel Telescopic for UV Band

Product Description

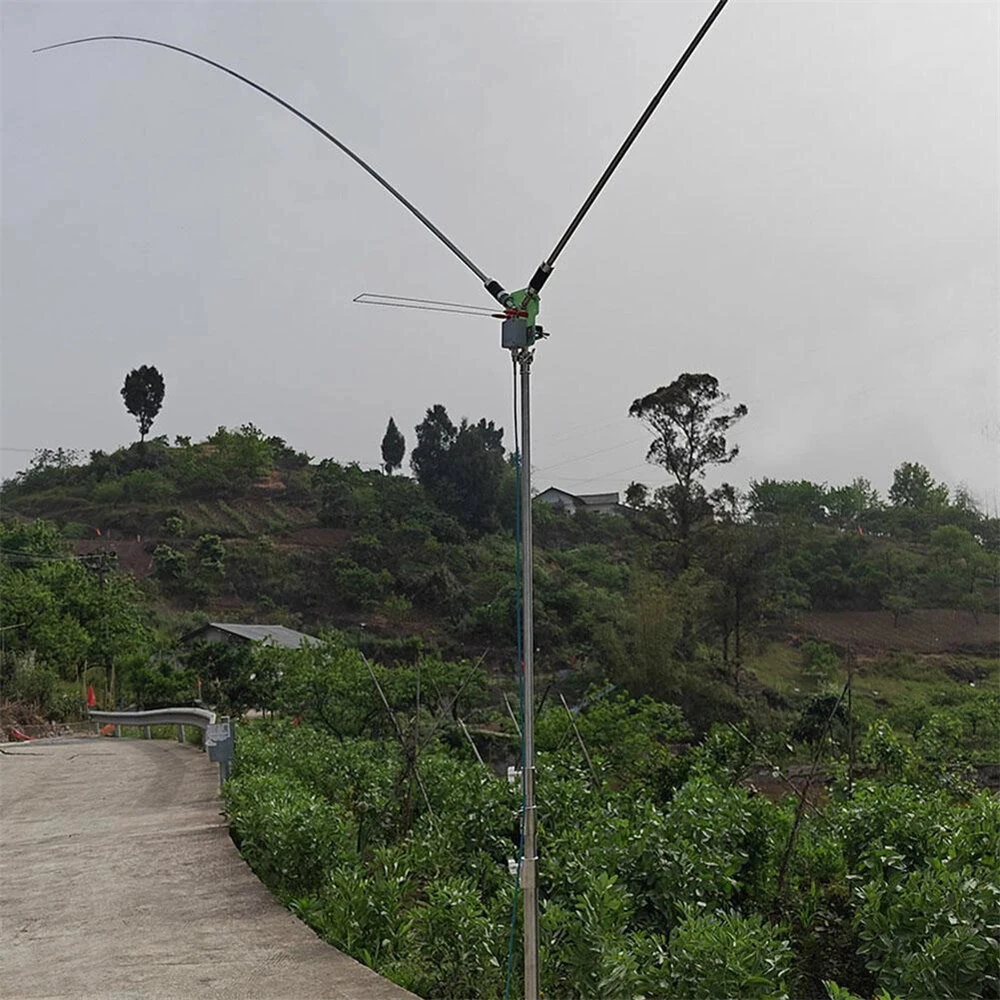

Features:1.The DP200 is a portable dipole antenna, weighing less than 2kg/lb (excluding the tripod).2.Due to its dipole design, it boasts higher efficiency and gain than for GP antennas. Due to its directional gain, its floor noise is lower than that of for GP antennas.3.It also exhibits lower common-mode interference than for GP antennas. For long-range communication, the antenna can be mounted facing forward.4.For short-range communication, the antenna can be mounted horizontally. By adjusting the antenna dipole length, it can accommodate bandwidths from 7 to 54 MHz. It is for ideal for temporary deployments, especially for point-of-sale (POTA) applications.
Specifications:Part Name: DP200 7-54MHz 200W Portable Dipole Broadband AntennaMaterial: Stainless SteelModels: 7M-54M VersionBandwidth: 7-54MHz (operable in the UV range by adjusting the length of the antenna)SWR: <1.5Polarization: HorizontalInput Impedance: 50??Continuous Power Handling: 200WMaximum Power Handling: 500WFolded Dimension: 0.52m/1.7ftMaximum Extended Dimension: 11.3m/37.1ftMaximum windward for surface: 0.026m2

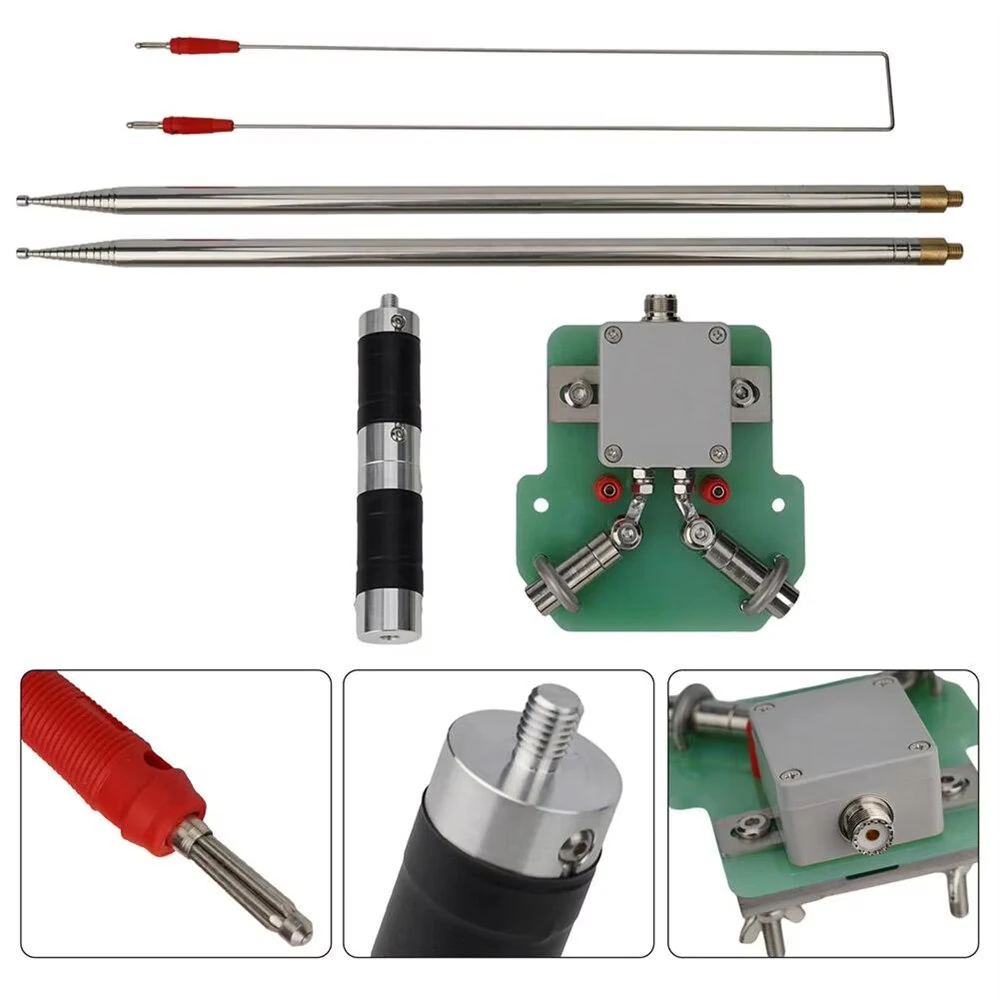

Package Included:1 x Bracket1 x Light Stand Connector2 x Telescopic Antennas2 x 7M Ready-Made Loading Coils
