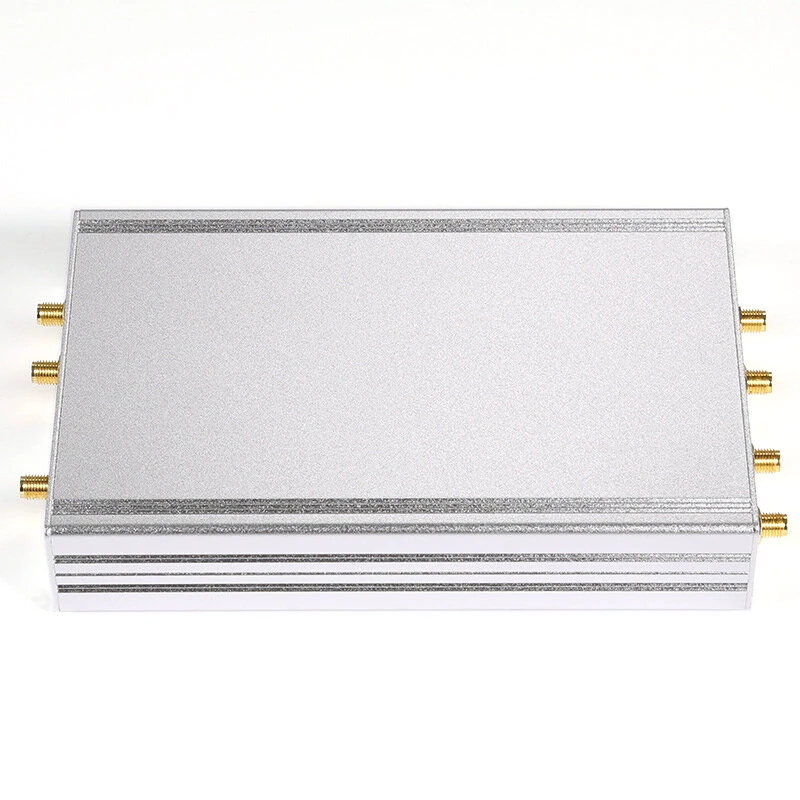

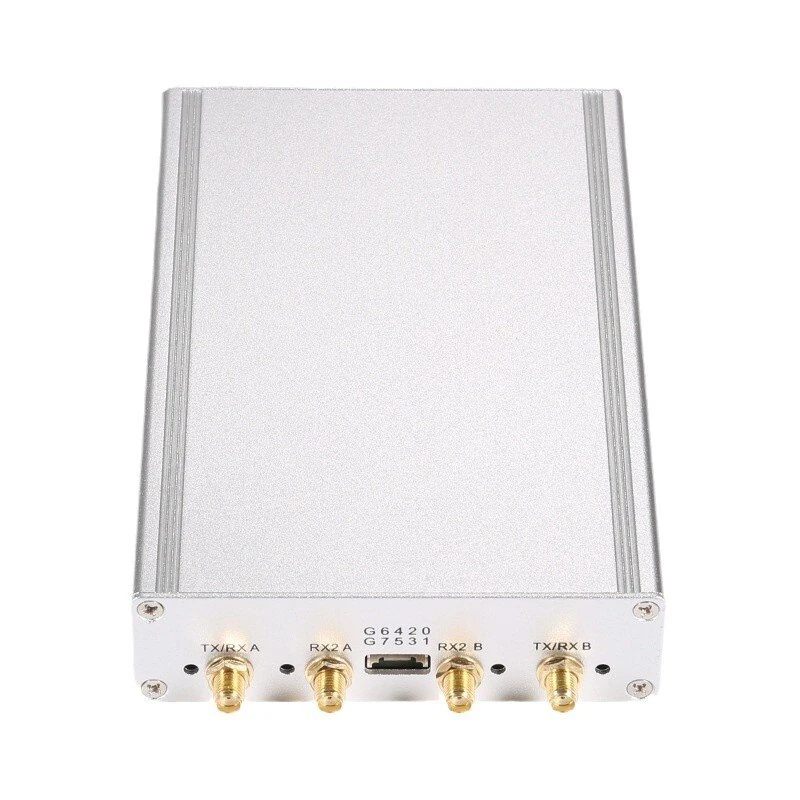

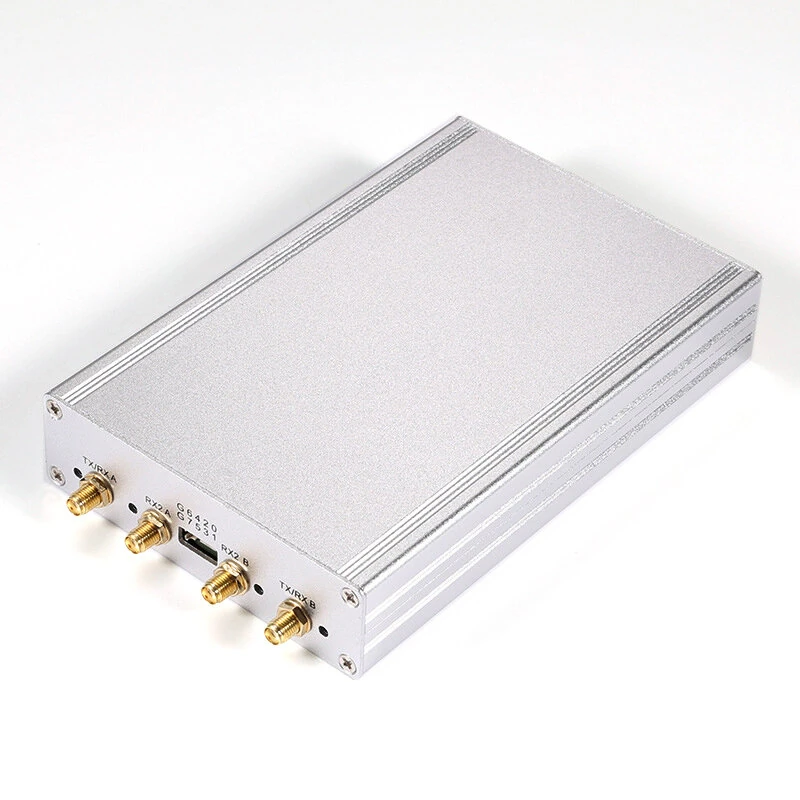

B210mini SDR | 70MHz-6GHz Range, 61.44MHz Sampling | USB 3.0 Type-C | Matlab Gnuradio Compatible

Product Description

Specifications:

Model: B210mini

Frequency Range: 70MHz - 6GHz

Maximum Sampling Rate: 61.44MHz

Transmit/Receive Support: Maximum 2R2T

Quantization: 12-bit AD/DA

Interface: USB 3.0 Type-C

Transmit Power:

6GHz: 2dBm max

5GHz: Significant attenuation

2.4GHz: >10dBm

1GHz: 15dBm max

Features:

Broad Compatibility: Fully compatible with Windows and Linux using a simple bin file replacement or automatic scripts.

Extensive Software Support: Fully supports Matlab, Gnuradio, SDRangel, and 0AI, offering diverse usage scenarios for development and research.

Advanced FPGA Technology: Utilizes Xilinx ARTIX7 series FPGA, available in both 7A200T and 7A100T models, optimized for power efficiency and rich resources.

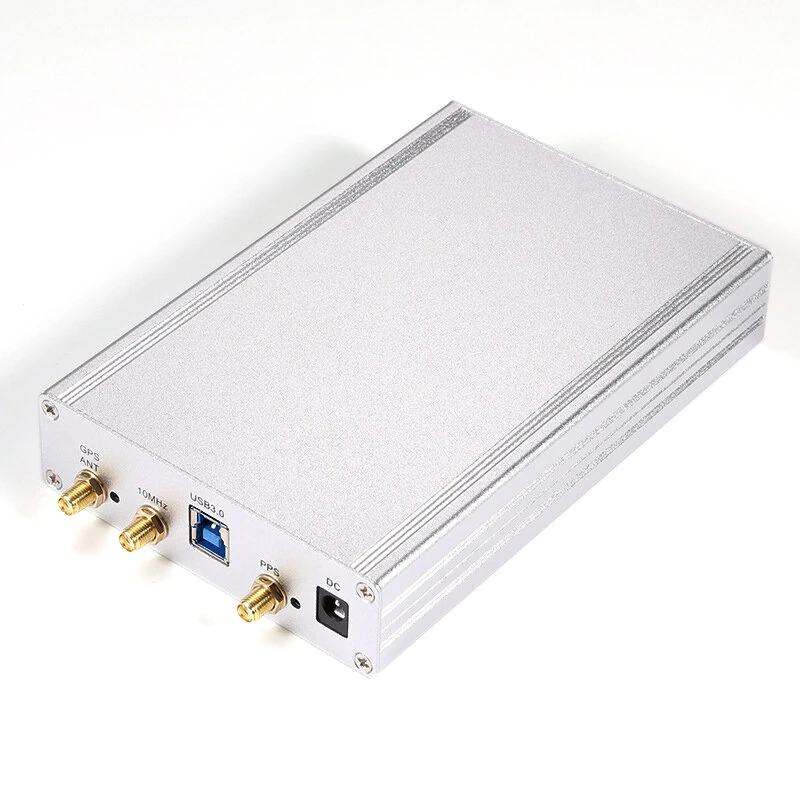

External Synchronization Support: Supports PPS/10M reference frequency synchronization and PPS phase synchronization for high-precision applications.

Enhanced Connectivity and Power Efficiency: Equipped with a USB 3.0 Type-C interface and uses ADI model PA to convert power supply efficiently.

Package Included:

1 x B210mini SDR Device

1 x USB Type-C Cable

1 x User Manual
