ATU100 Automatic Antenna Tuner 100W | 1.8-30MHz HF | With Internal Battery | Assembled

Product Description

Features:

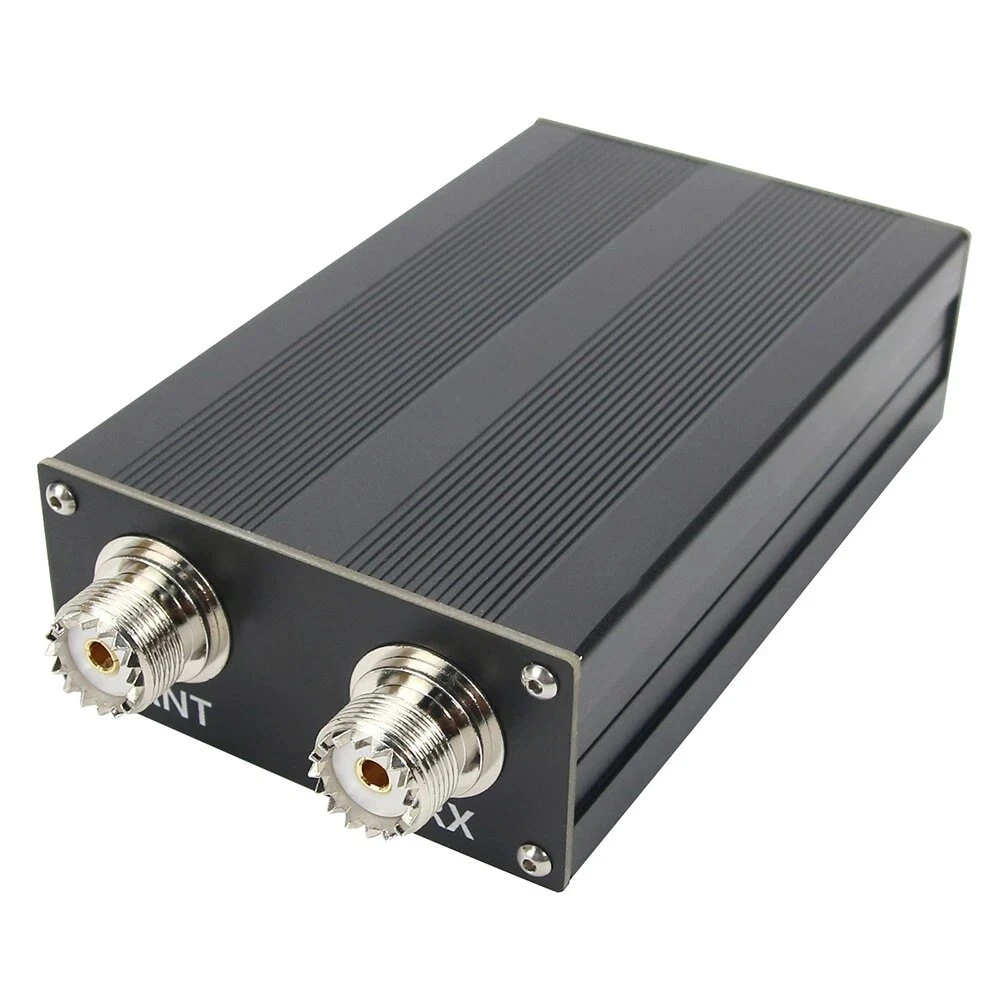

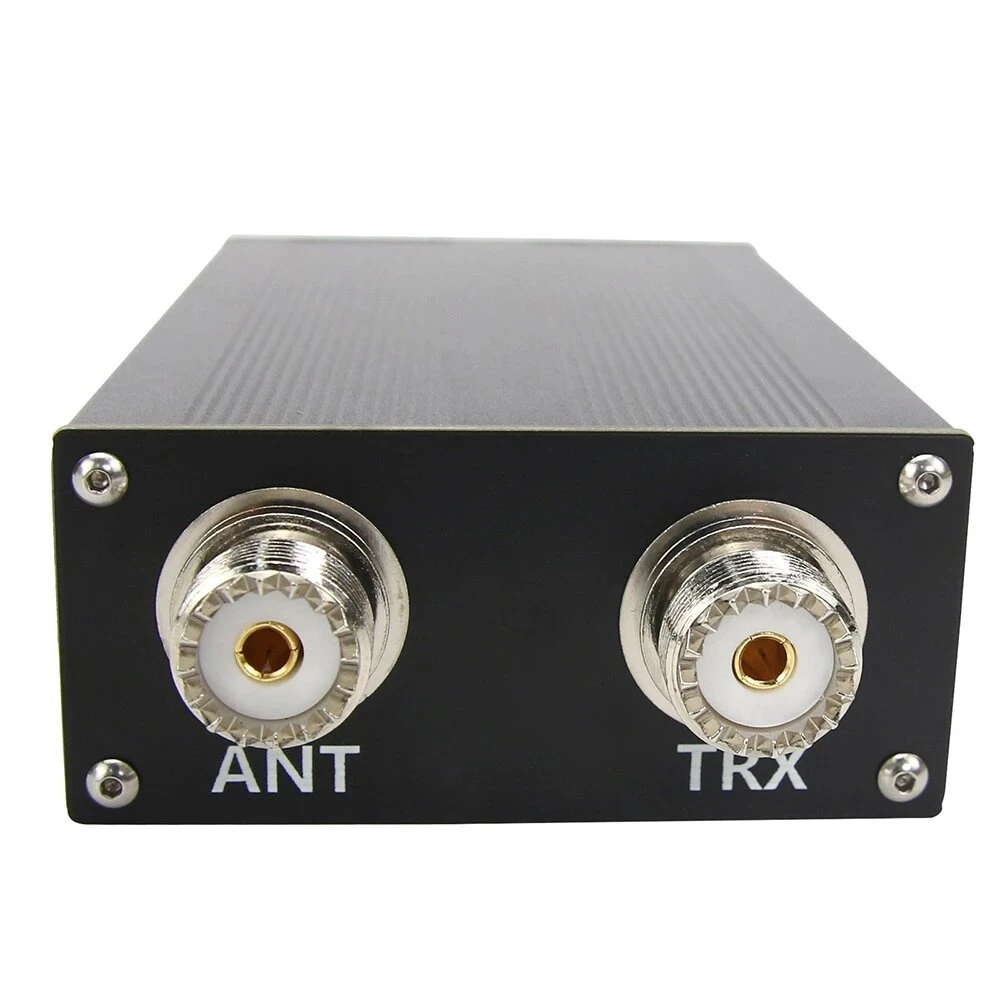

- Mini short-wave automatic antenna tuner.- TYPE-C charging interface, M connector.- With a 0.91-inch OLED display.- This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations.- The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.

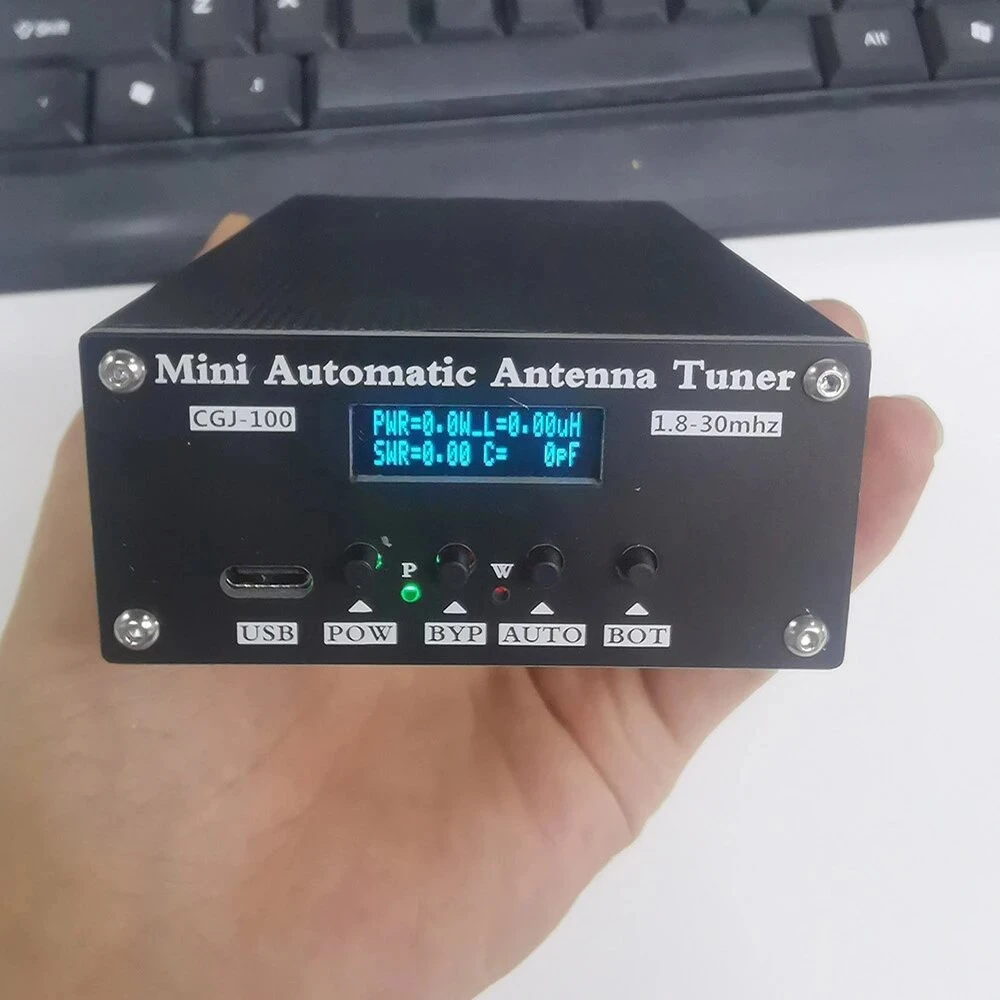

Specifications:- Power supply voltage: USB charge and discharge- Maximum current consumption: 400ma- Maximum working throughput: 100W- Maximum possible measurement power: 150W- Minimum power required to start tuning: 5W- Minimum possible measurement power: 0.1W- Measurement steps for power up to 10W: 0.1W- Measurement steps for power higher than 10W: 1W- Power measurement accuracy: 10%- Maximum installation inductance: 8.53uH- Minimum installation inductance step size: 0.05uH- Maximum installation capacitance: 1869pF- Minimum installation capacitance step: 10pF- 4pcs panel buttons: POW, BYP, AUTO and BOT function- Display: 0.91" OLED
Package included:- 1 x Automatic Antenna Tuner
Note:It is assembled and ready to use.- The device does not consider its own efficiency.- Supply voltage is 5V standard voltage.-This Tuner can install battery inside,if you need battery,please choose the one with battery

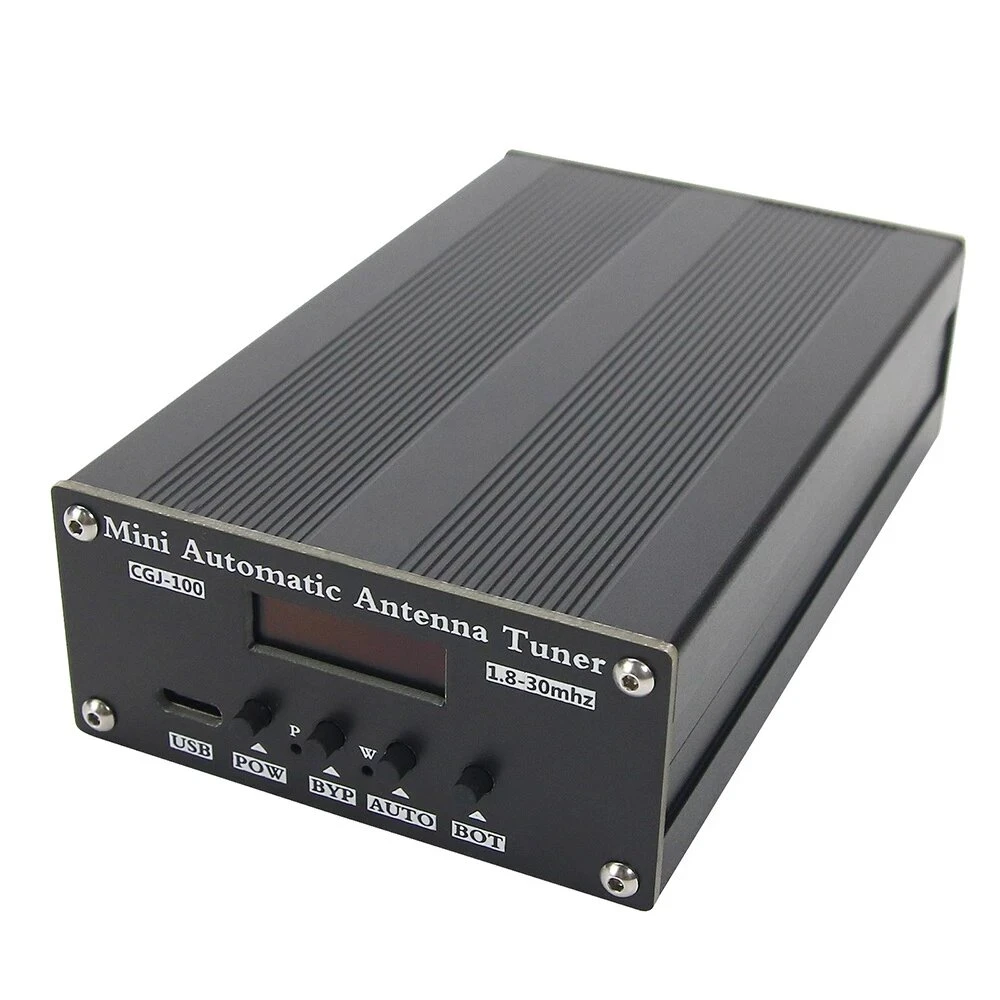

- CGJ-100 1.8-30MHz Mini Automatic Antenna Tuner 0.91" OLED Display For 5-100W Shortwave Radio Stations- CGJ-100: For high-power shortwave radio stations using 5-100W.

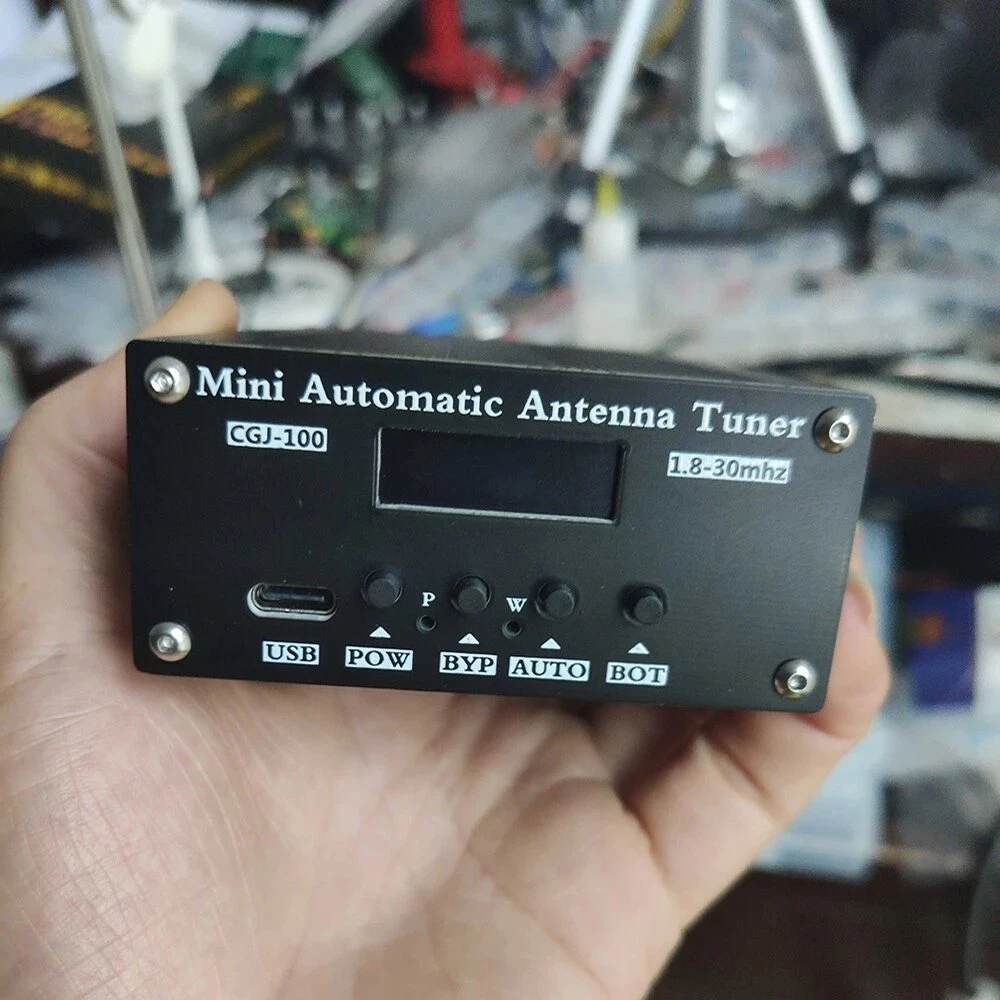

Details picture:
