ATU-60 60W HF Antenna Tuner | Automatic 3.5-54MHz for Shortwave Radio
$100.00
$123.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:60W shortwave machine automatic sky adjustment finished productSmall size, 88*120*38mm.MAX 100W (SSB)It is recommended to use for a long time of 60w (AM, FM, CW).This is an upgraded version of mini, 0.45uH and 1uH inductors respectively use two sets of T68-2 dual magnetic cores. The endurance power has been improved compared with the original version, the temperature rise is smaller, and it is more stable.3.5-54MHz (specifically affected by the antenna length and the degree of deviation of the standing wave).Tuning impedance range: 5????1.0K??
Simple instructions:Connect the power cord 11-14vDC power supply,Connect the shortwave machine to the IN radio frequency line of the automatic antenna adjustment,Antenna connected to the sky tuning ANT (BNC seat)AM, FM, CW small power 5-15w tuned (within swr1.5), you can use high power.Manual mode is required. You can press auto once, and the small dot in the middle of the screen LC disappears, which is manual mode. Press again to switch to automatic mode.In special cases, press tune to reset, and the LC combination is set to zero.
Package Included:
1 x Shortwave Automatic Antenna Tuner

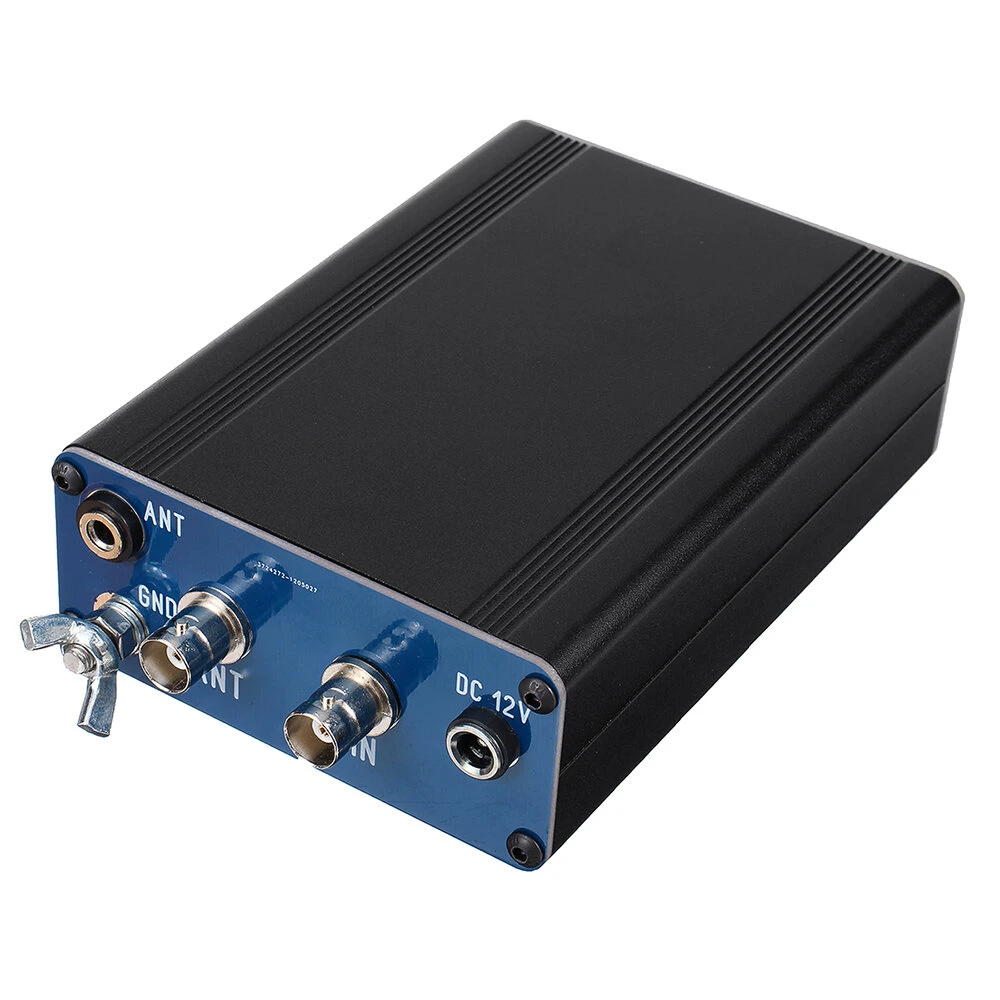

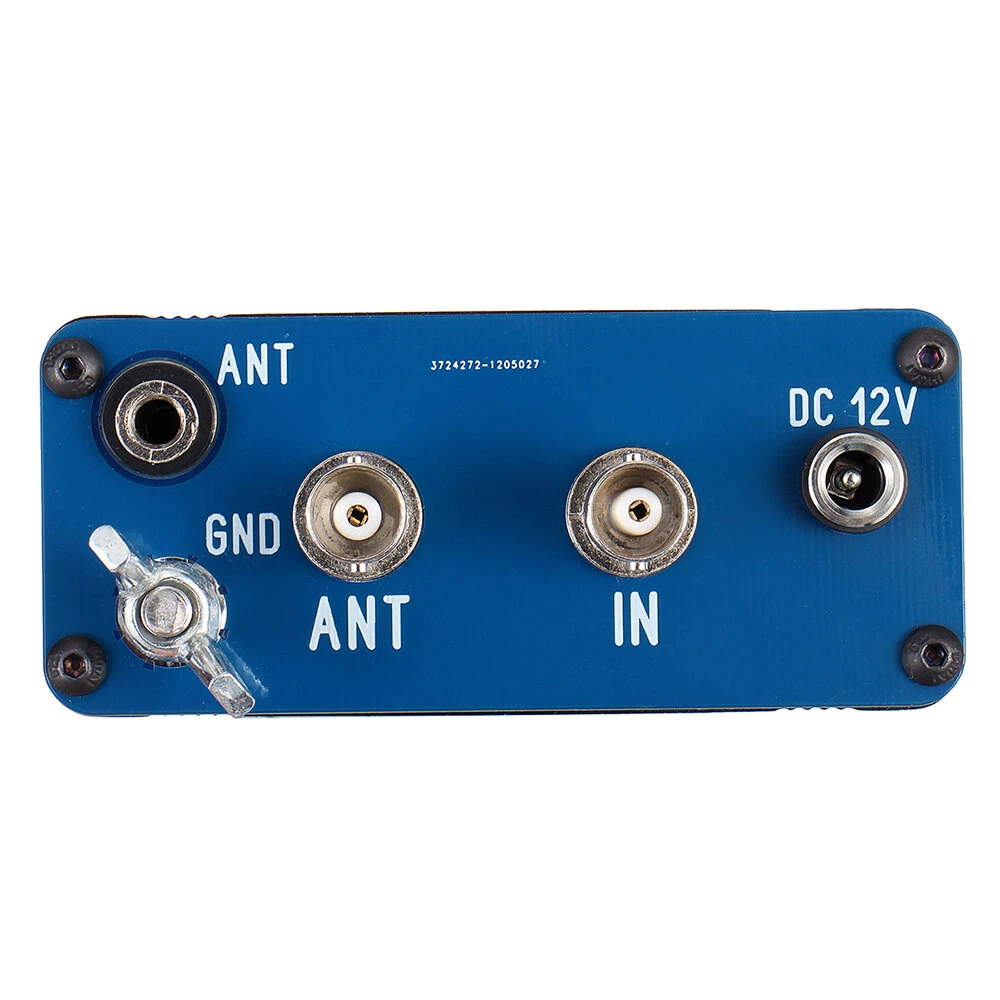

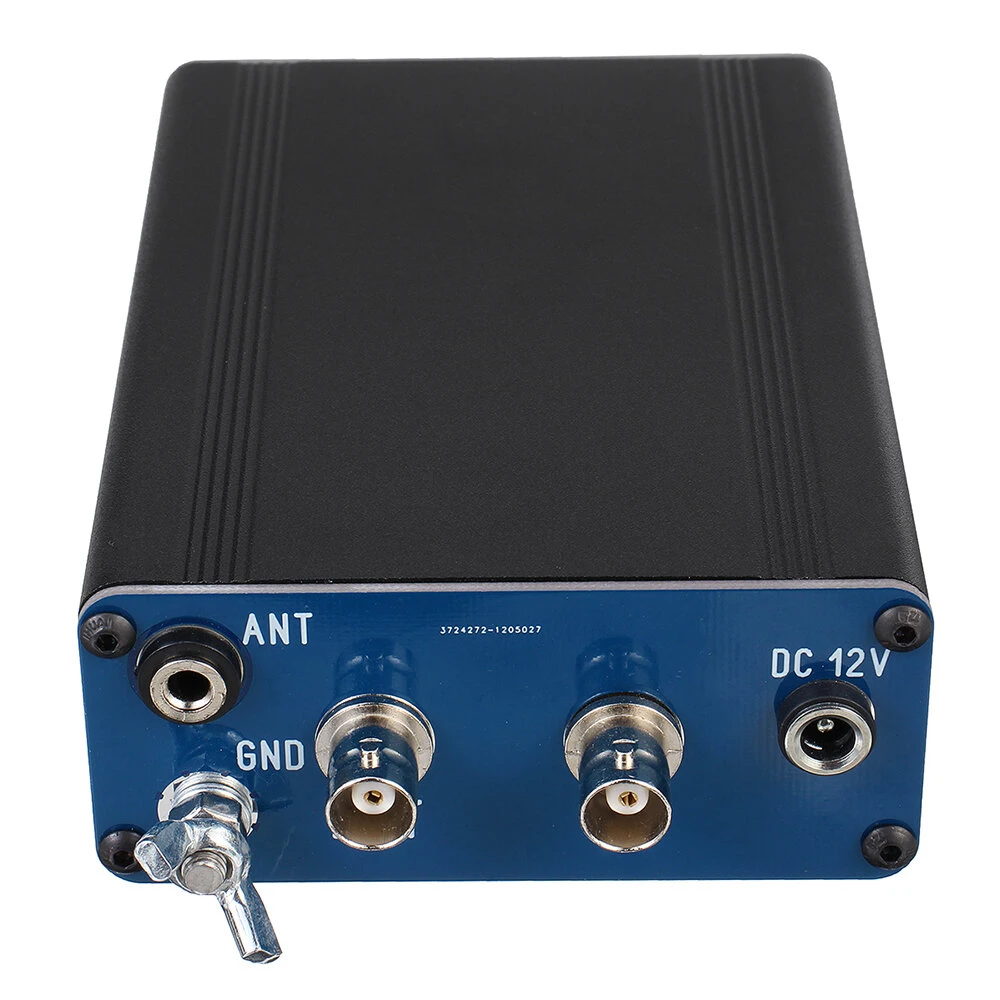

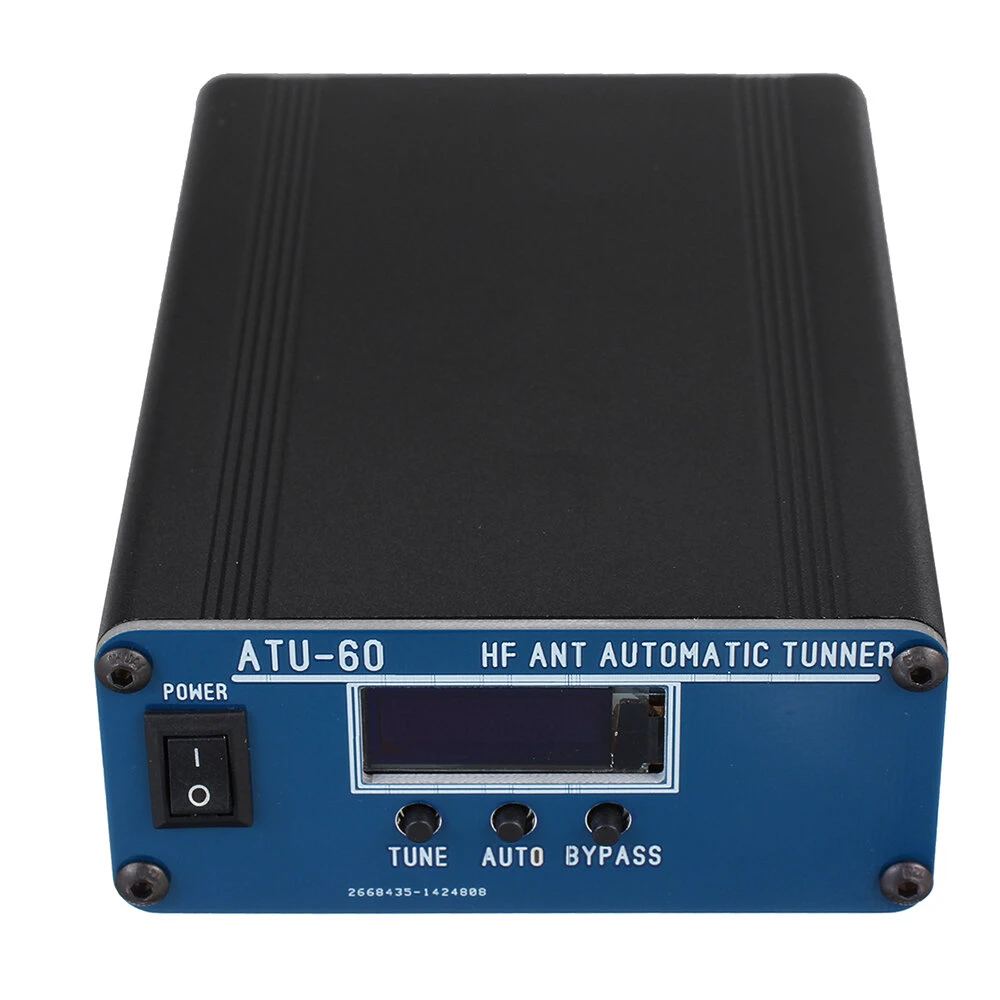

Details Picture:
Customer Reviews
No reviews yet. Be the first to review this product!
