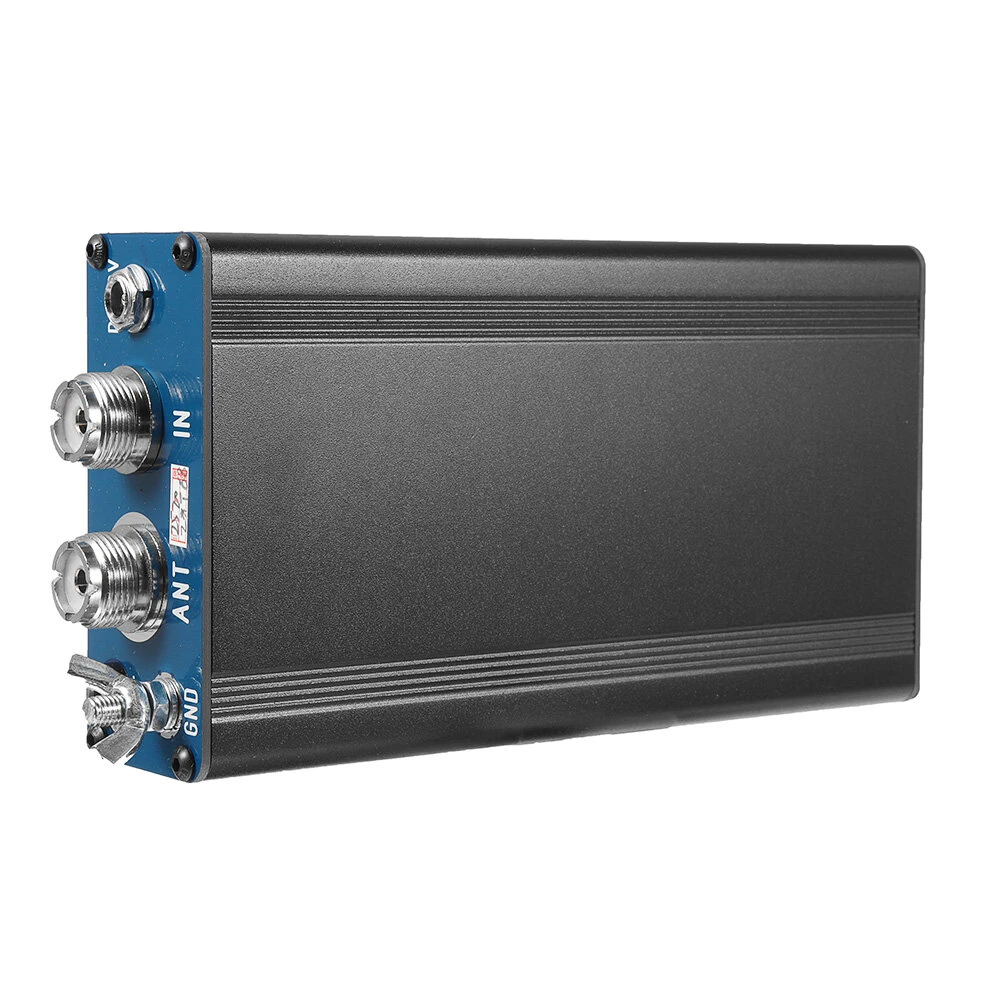

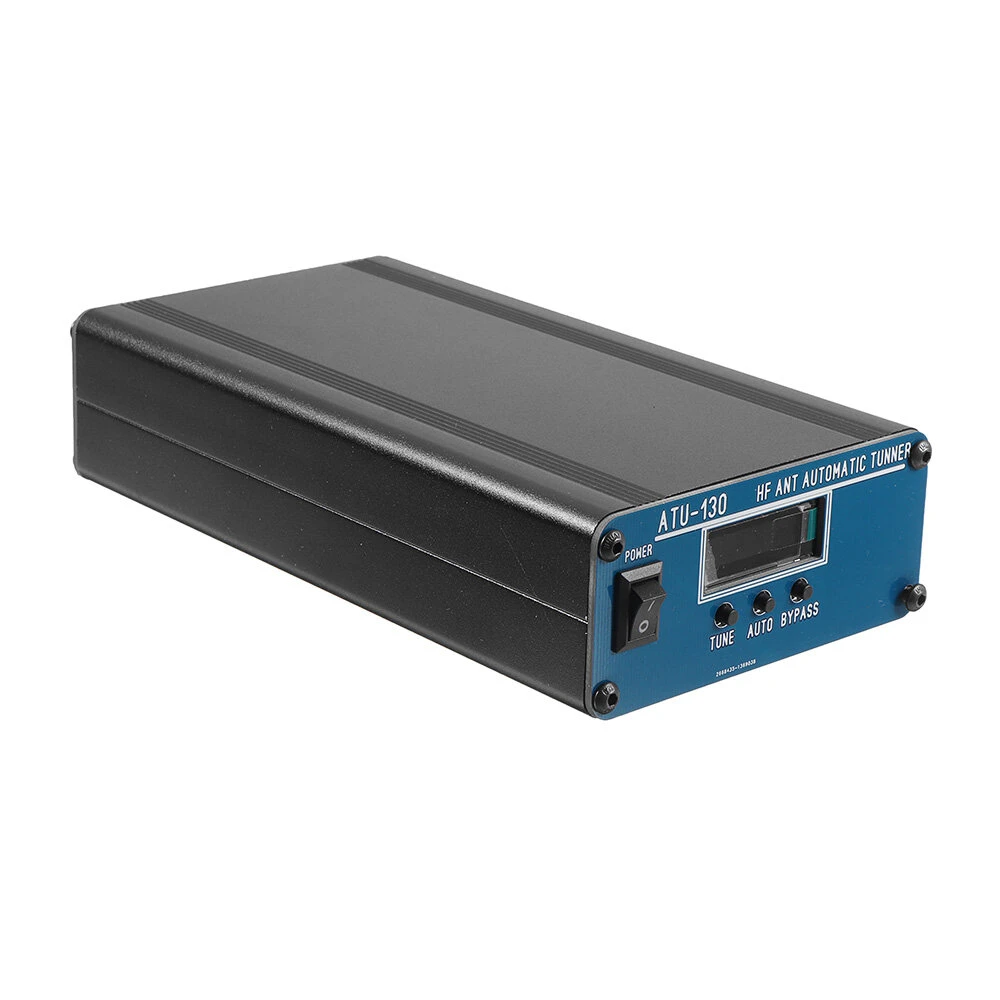

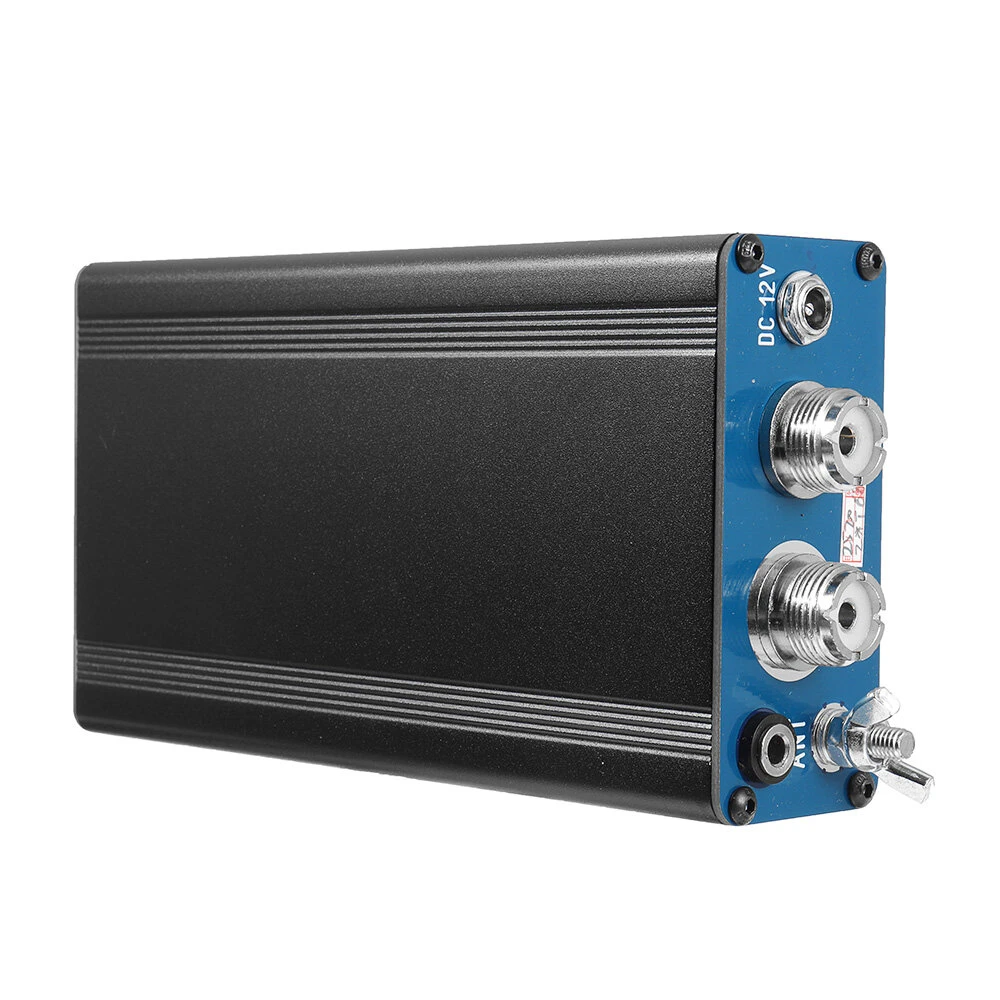

ATU-130 HF Antenna Tuner 1.9-54MHz 120W | Automatic Shortwave ATU-100 Plus
$142.00
$174.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:Using PIC18F2520 MCU.Automatic antenna tuning for shortwave radio, miniature automatic antenna tuner5-15W tuningThe second version uses an 8-magnetic ring inductor design, which generates less heat than the original version.Use HF32, 10A, HF33, 5A relays.Using 6KV, high-voltage ceramic capacitors.MAX, SSB 150W, CW, AM, FM 100WIt is recommended to use SSB not more than 120W for a long time.Small size, 88*150*38mm.1.9---54MHz (specifically affected by the length of the antenna and the degree of deviation of the standing wave).Tuning impedance range: 5????1.2K??

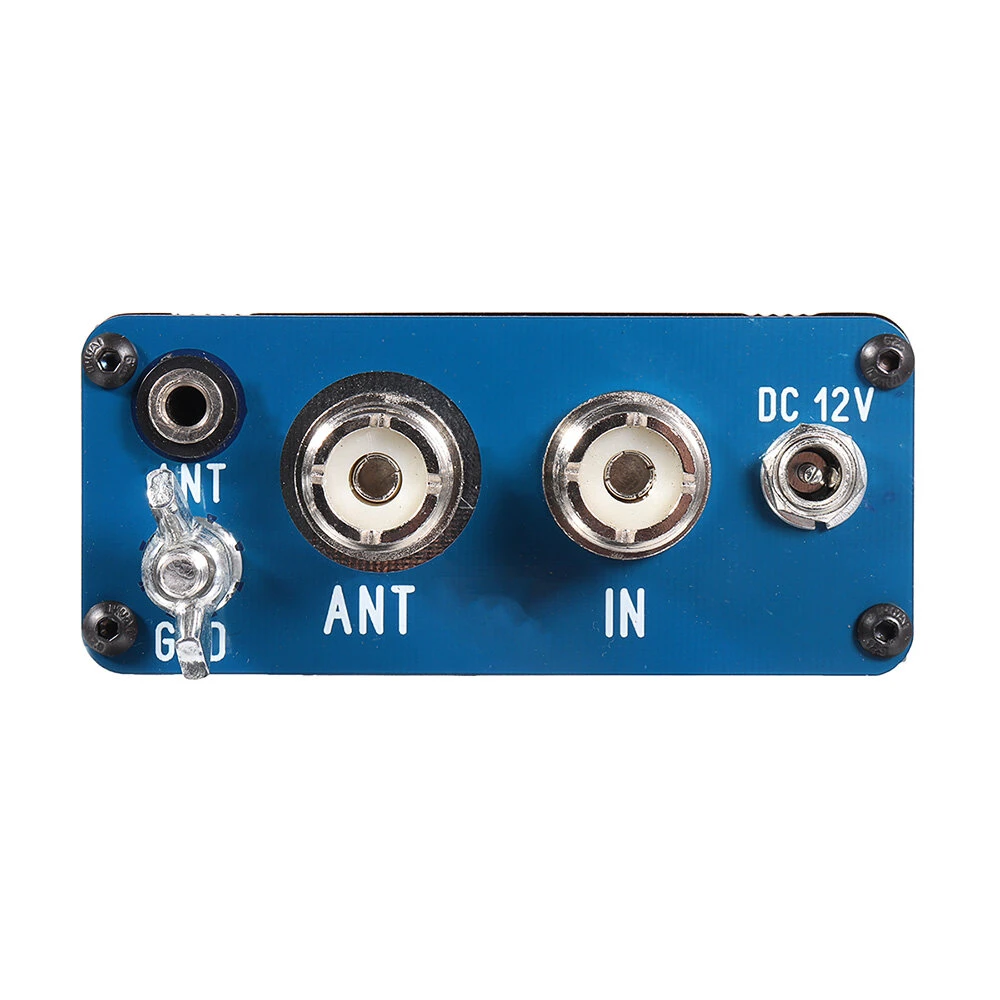

Simple instructions:Connect the power cord 11-14vDC power supply,Connect the shortwave machine to the IN radio frequency line of the automatic antenna adjustment,Antenna connects to the antenna ANT (M seat, or quick socket),Am, fm, cw small power 5-15w tuned (within swr1.5), you can use high power.Manual mode is required. You can press auto once, and the small dot in the middle of the screen LC disappears, which is manual mode. Press again to switch to automatic mode.In special cases, press tune to reset, and the LC combination is set to zero.
Package Included:
1 x Shortwave Automatic Antenna Tuner
