2.8 Inch Spectrum Analyzer | Fast Scanning & User-Friendly Controls | Signal Monitoring & Emissions Testing

Product Description

Features:

1. High Resolution Display: Equipped with a 2.8" screen, our Spectrum Analyzer offers exceptional resolution of 320x240 pixels, thus enabling clear, detailed results viewing during your testing phase.

2. Versatile Input Frequency Range: Boasting an input frequency range from 100kHz to 960MHz, our Analyzer is a versatile device for a broad range of applications. From monitoring radio signals to testing device emissions, this analyzer is your tool of choice.

3. Comprehensive Power Detector: With a power detector that offers a resolution of 0.5dB and a linearity versus frequency of +/-1dB, this Spectrum Analyzer ensures you get highly accurate, reliable results every time.

4. Fast Scanning Speed: The Analyzer illustrates the high-speed scanning of over 1000 points/second, ensuring all your test results are received quickly - vital in time-sensitive settings.

5. User-friendly Control: This device provides a resistive touch control and jog switch for convenient and flexible operation. Additionally, it supports USB serial port control for automated test environments.

Specifications:

Display Resolution: 320*240 pixels

Screen Size: 2.8"

Input Frequency Range: Low mode: 100kHz to 350MHz, High mode: 240MHz to 960MHz

Input Impedance: 50 ohm (when input attenuation set to 10dB or more)

Power Detector Resolution: 0.5dB

Power Supply: Linear

Battery: Chargeable, Max 1 hour charging time

Charging: via USB Port

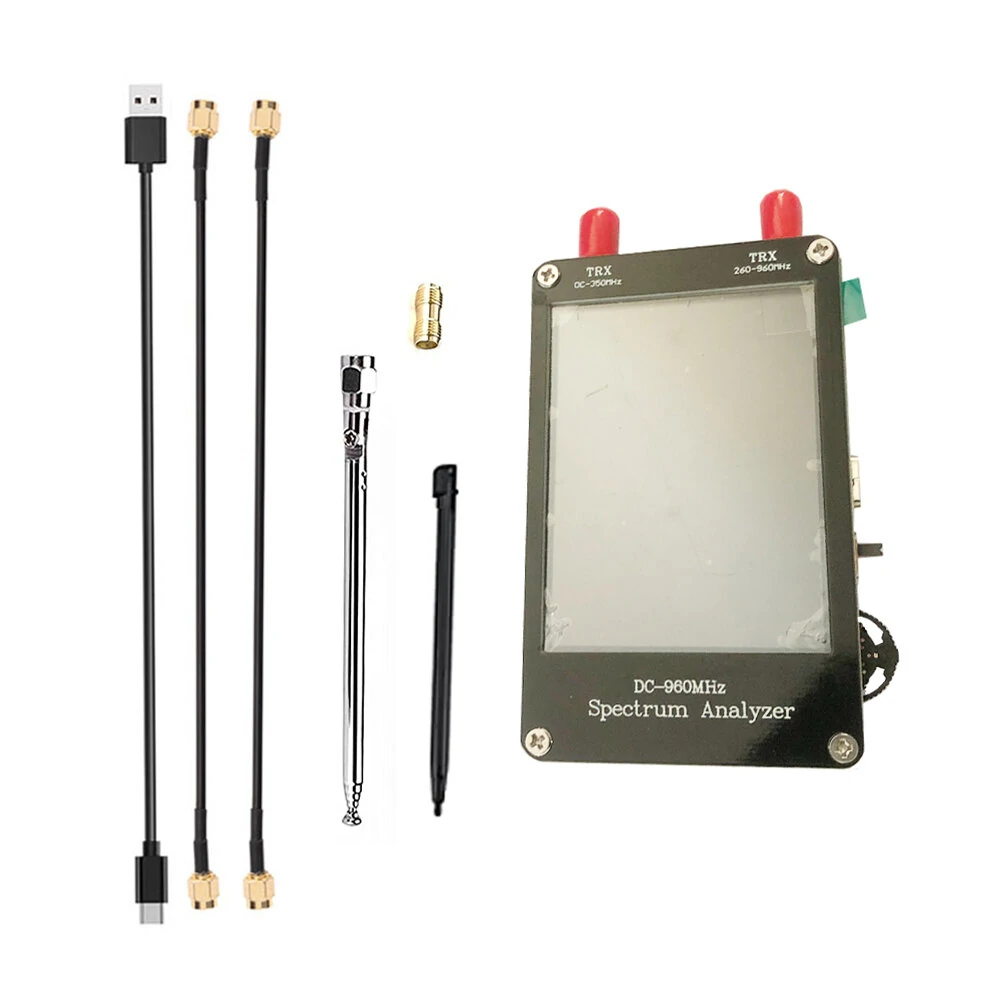

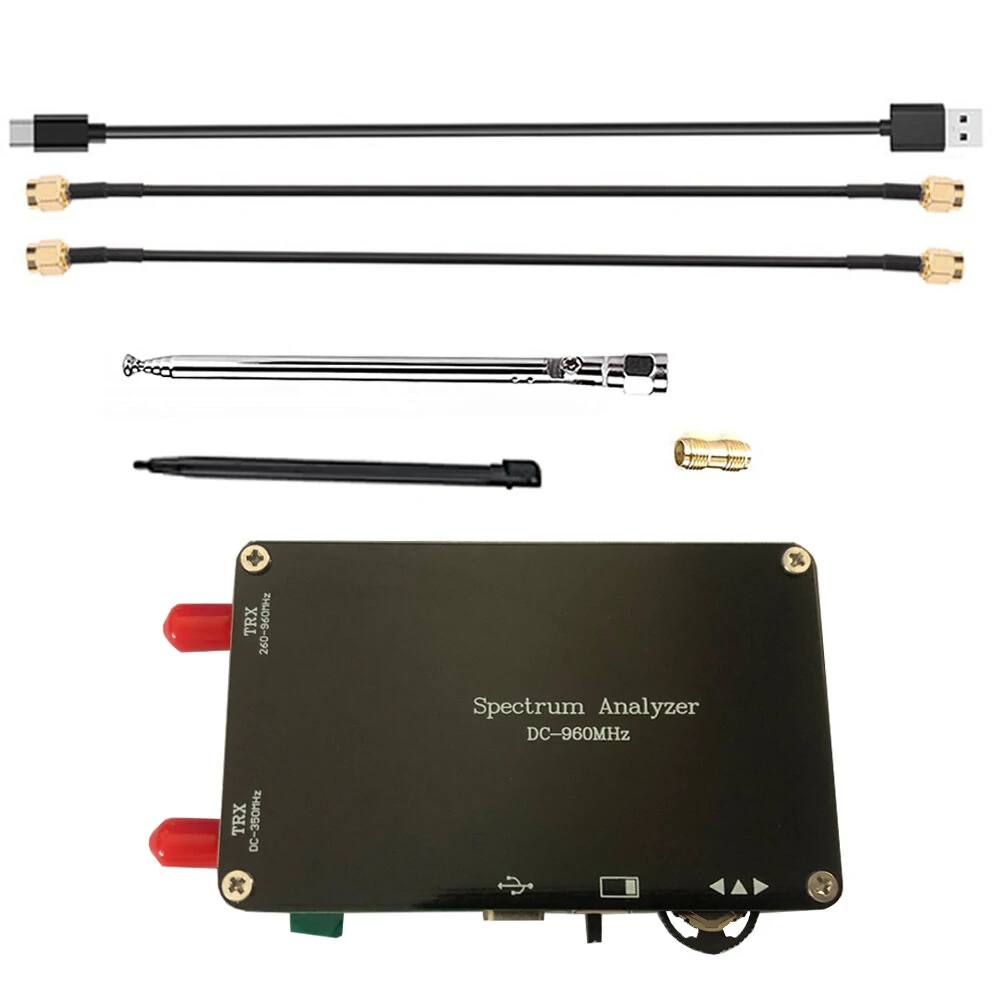

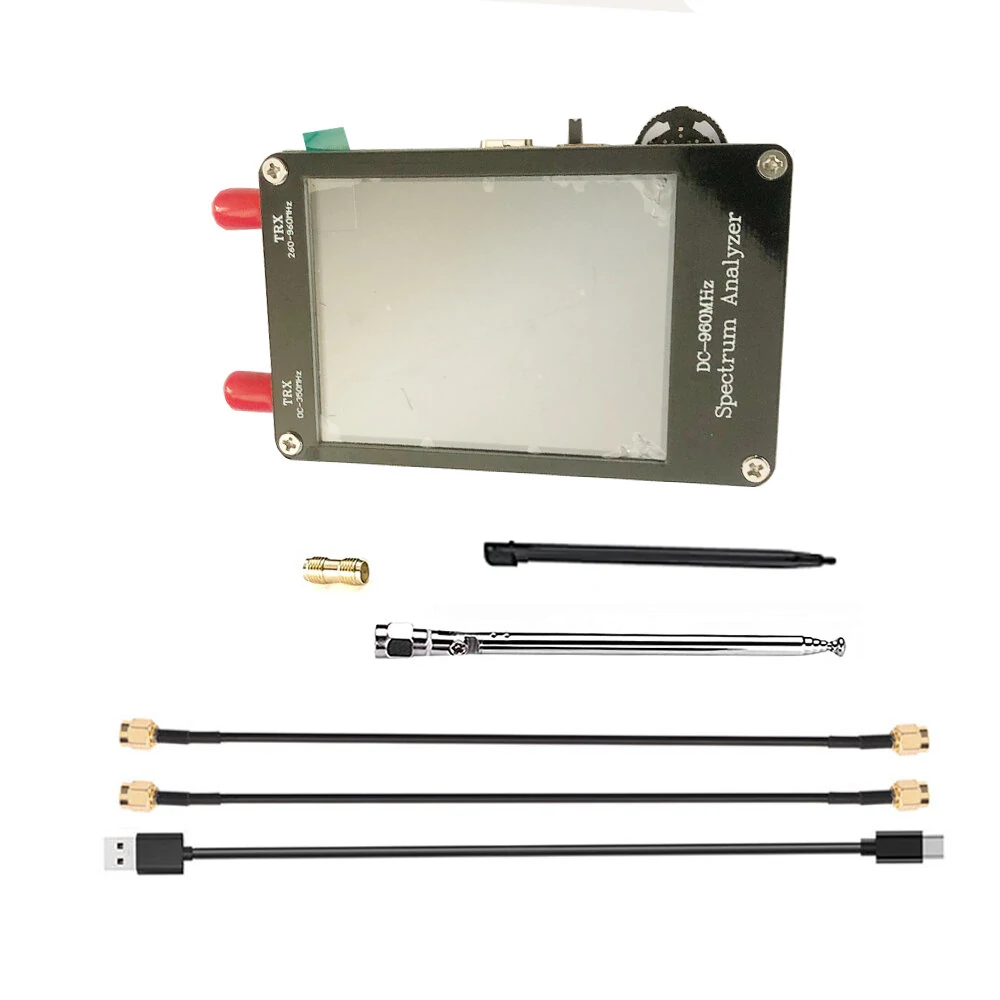

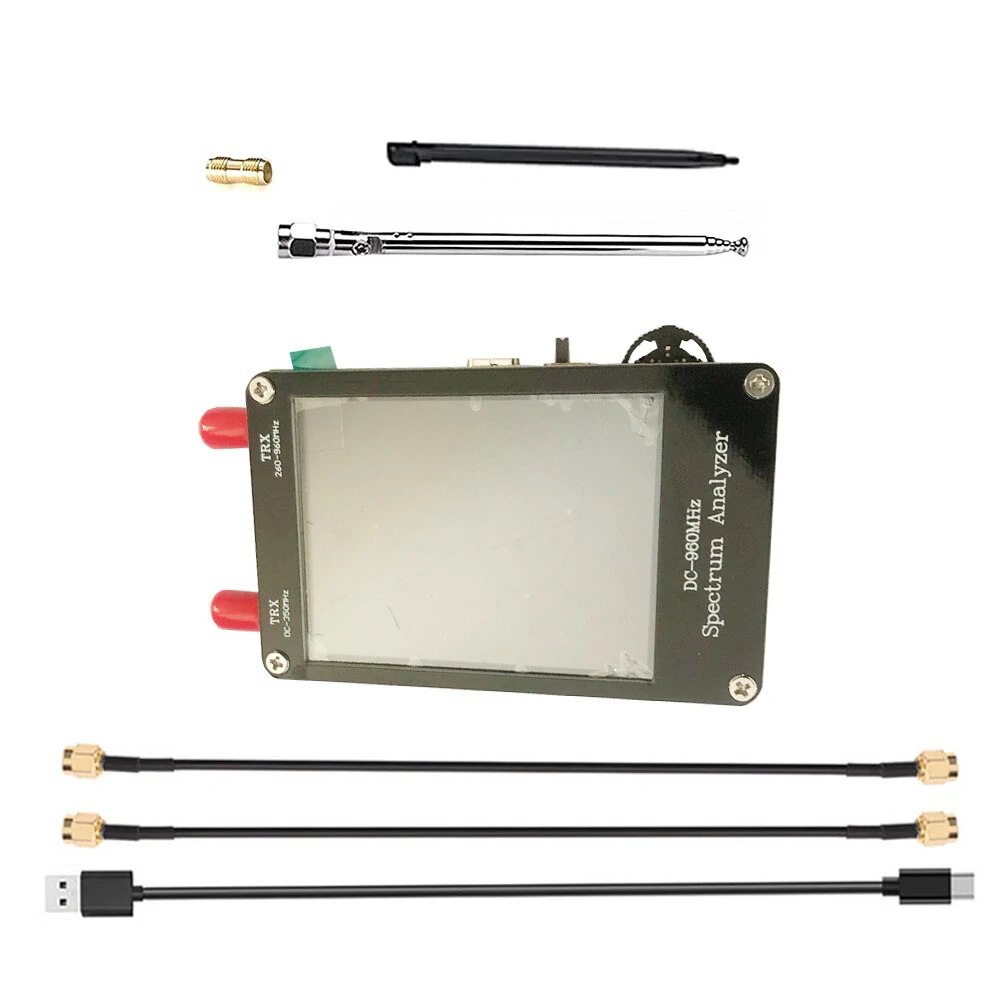

Package Included:

1 x 2.8" Spectrum Analyzer

2 x 20cm SMA-SMA RG174 RF Cable

1 x USB Type-C Data Cable

1 x SMA Female to Female Connector

1 x SMA Telescopic Antenna

1 x Pointing Pen
