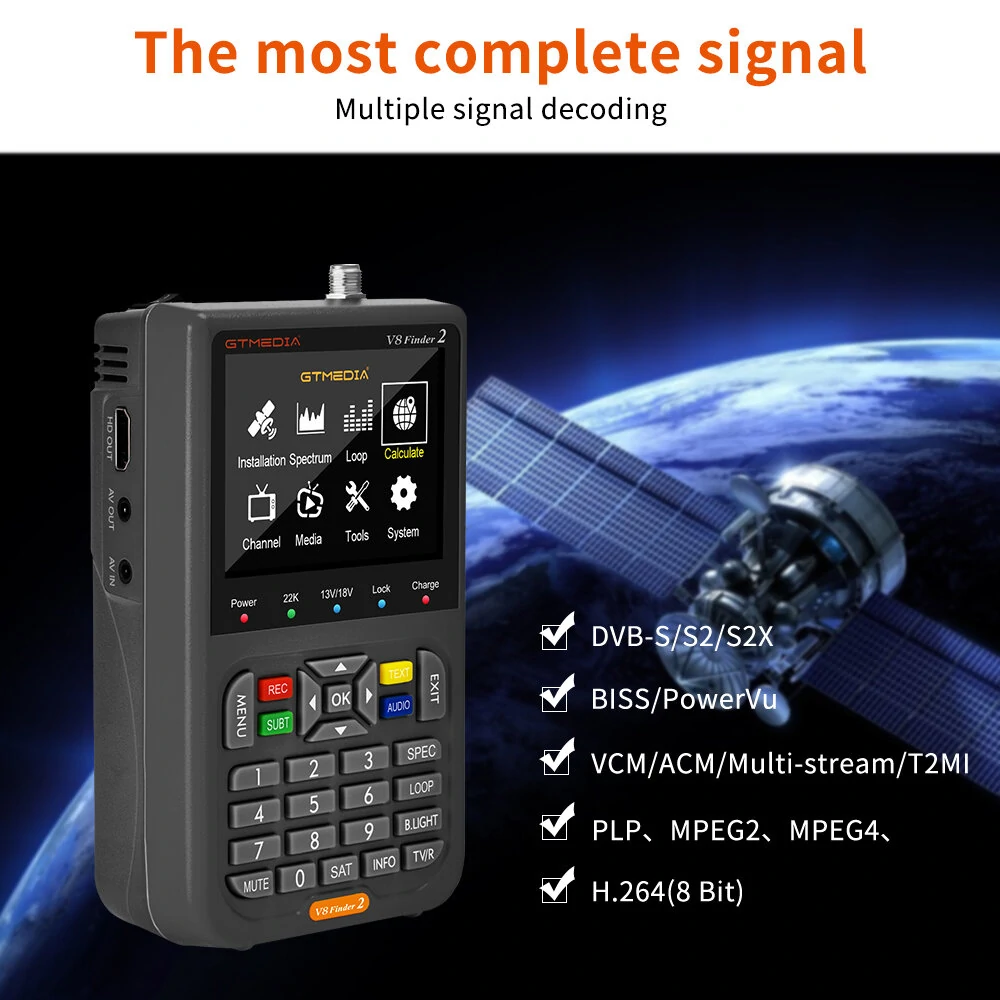

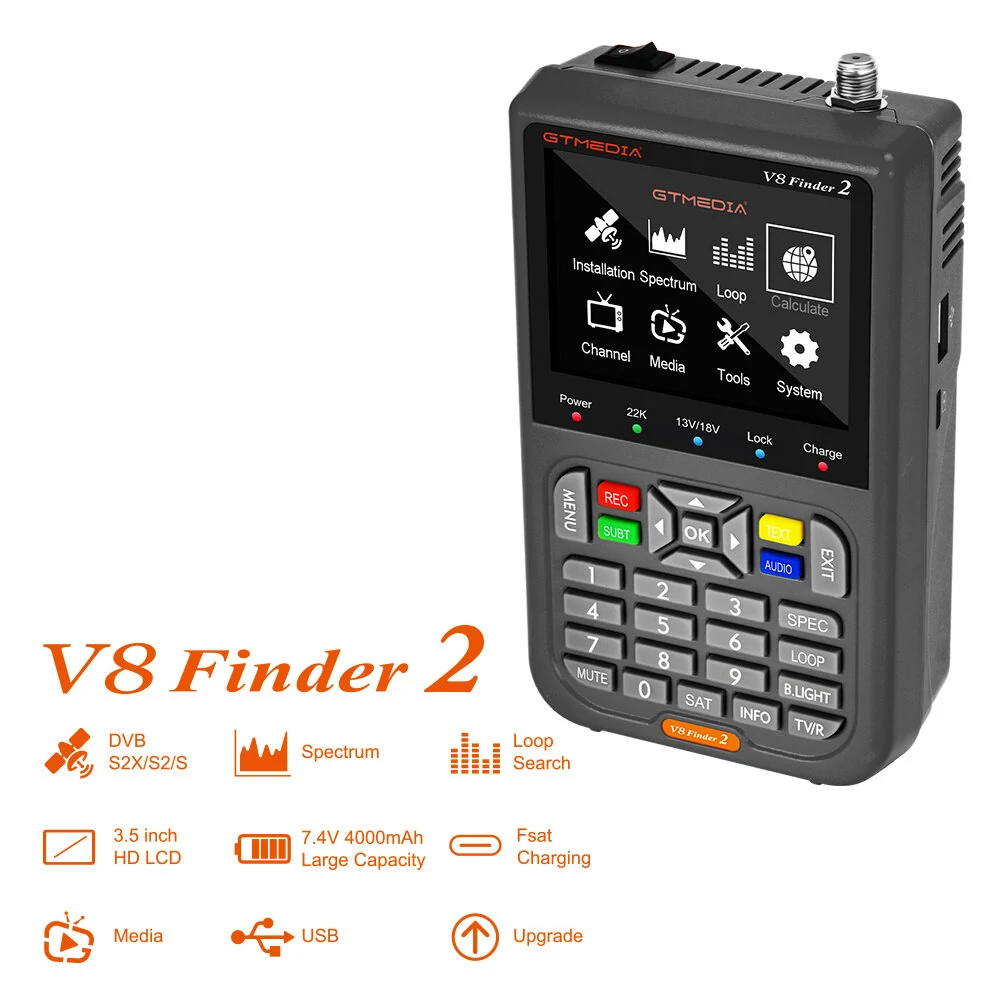

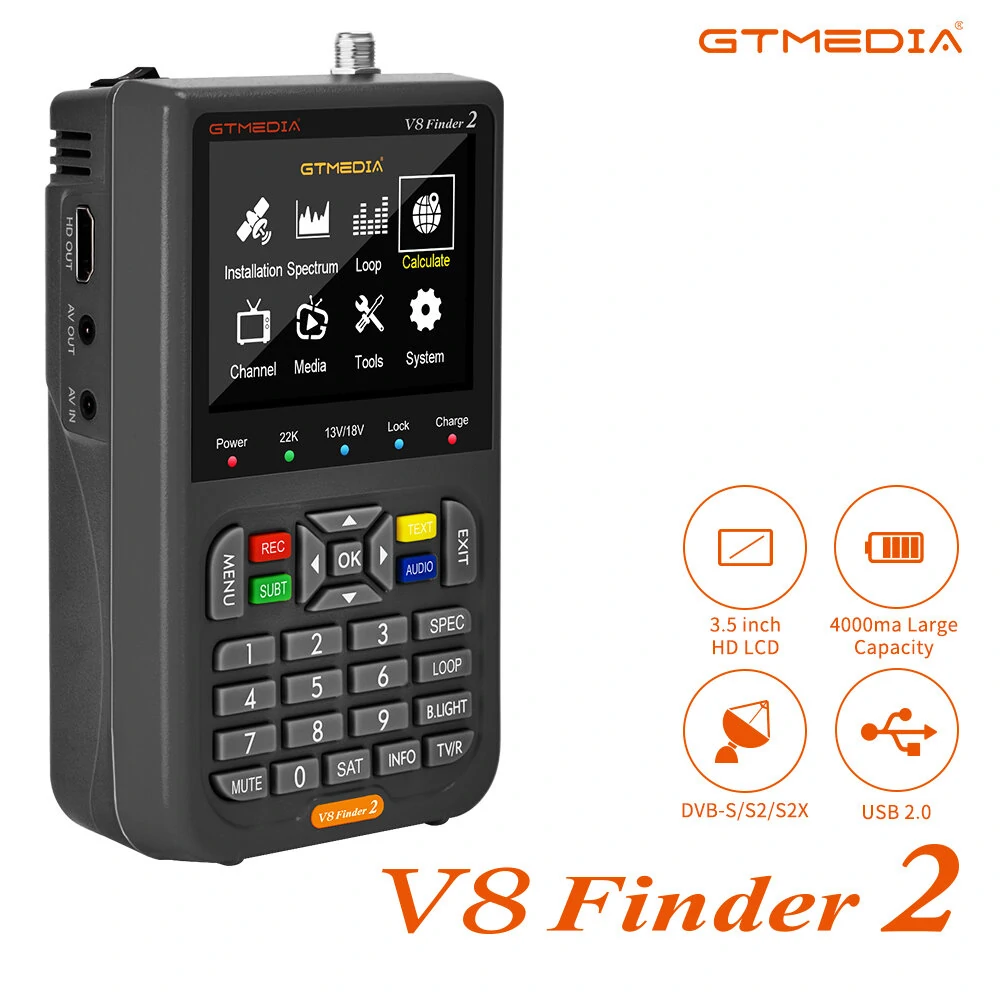

GTMEDIA V8 Finder2 Handheld Satellite Meter | 3.5 Inch HD LCD | DVB-S/S2 | 4000mAh Battery
$73.00
$89.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
| Key Features | |
| ?? 3.5 Inch High Definition LCD Screen, | |
| ?? Fully DVB-S2X/S2/S, MPEG-2/MPEG-4 compliant | |
| ?? Support H.264 (8 Bit) Hardware decoding | |
| ?? Digital measuring device for signal strength and quality.Supports presetting all satellite information | |
| ?? Support Loop Search | |
| ?? Spectrum analyzer | |
| ?? Supports scan of Auto, Blind, Manual or NIT | |
| ?? Sound for Locking Signal | |
| ?? Auto Calculate Angle of AZ,EL | |
| ?? Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone | |
| ?? Speaker Integrated | |
| ?? Support both AV out and AV in | |
| ?? Support both HDMI out | |
| ?? Support real-time power display, with low power reminder | |
| ?? Supports Youtube for USB wifi 2.4G | |
| ?? LNB short protect | |
| ?? 7.4V/4000mAh Li-ion Battery Included | |
| ?? Support Type-C charging interface, support multi-protocol fast charging, max 18W | |
| ?? Support TypeC reverse charging | |
| ?? Software upgrade via USB port | |
| ?? Easy to carry | |
| Specifications | |
| TRANSMISSION STANDARDS | |
| DVB-S2X/S2/S,MPEG-2,MPEG-4,H.264 | |
| Supports softcam: Fastest BISS auto roll, PowerVu auto roll | |
| Support CCM,VCM, ACM, multi-stream, T2-MI, Single/Multi-PLP | |
| SATELLITE INPUT/DEMODULATION | |
| Connector Type | F Type |
| Input Frequency | 950 to 2150 MHz |
| Signal Input Level | ?\65 to ?\25 dBm |
| Band Switch Control | 22KHz |
| LNB Supply | 13V/18V, Max 350mA |
| Demodulation Type | DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
| Symbol Rate | 2<Rs<45Mband(SCPC/MCPC) |
| LCD FEATURES | |

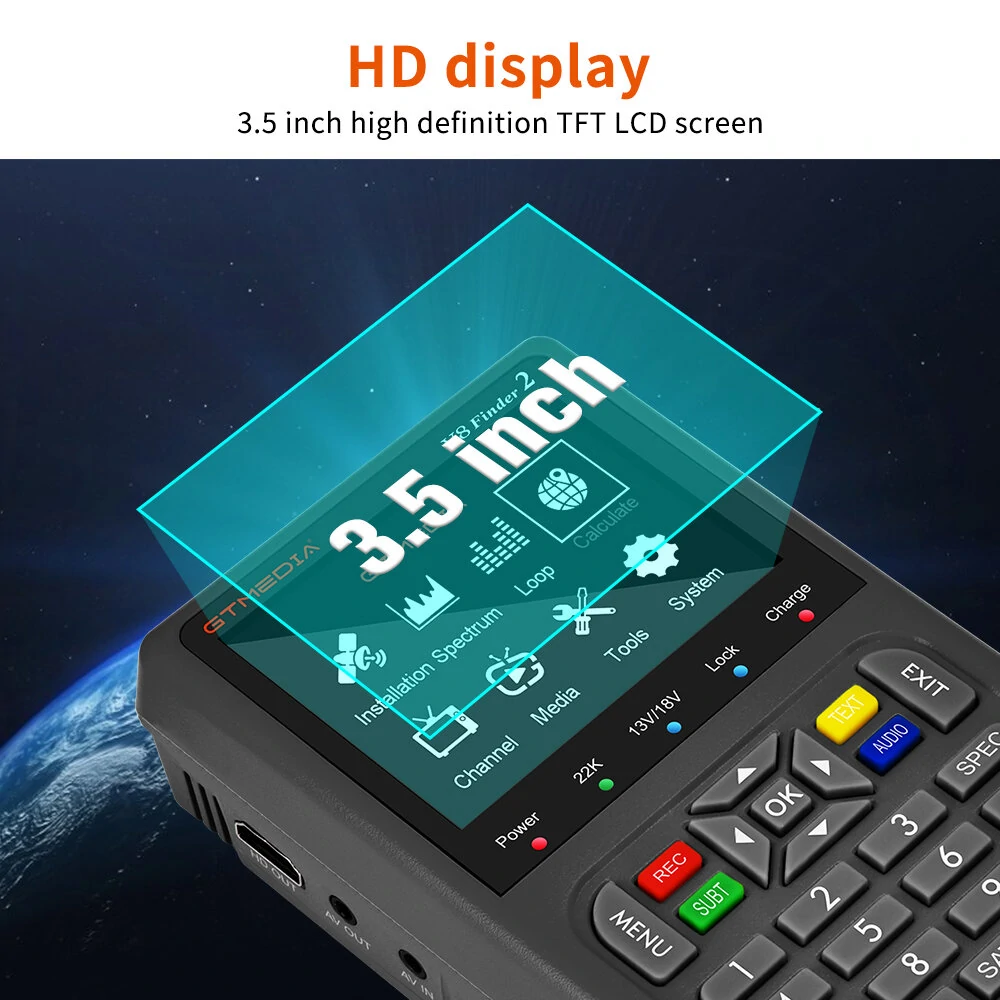

| LCD Type | 3.5??high-resolution digital display LCD |
| Number of Dots | 320 RGB*240 |
| Active area (W*H) | 70.08(H)*52.56(V)MM |
| AV output interface | |
| Connector Type | 3.5 mm jack |
| Video Output | CVBS |
| Audio Output | Stereo Audio L/R output |
| HDMI output connecter | |
| Format | HDMI 1.3a |
| Resolution | Optional 480i,480P 576i,576P,720P,1080i,1080P |
| AV input interface | |
| Connector Type | 3.5 mm jack |
| Video Input | CVBS |
| Audio Input | Stereo Audio L/R input |
| AUDIO/VIDEO PROCESSING | |
| Video decompression | MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 MP&HP@L4, HW JPEG decoder |
| Resolving rate | PAL-25 frame@720*576, NTSC -30 frame@720*480 |
| Singnal compatibility | Support conversion for different video formats |
| Video Format | 4:3, 16:9, By Pan & Scan and Letter Box conversion |
| Audio Decompression | MPEG-1 Layer I/II, MPEG-2 Layer I/II |
| Audio Output Mode | Stereo, Mono, R/L |
| DATA SERVICE PORT | |
| Conector | USB |
| Data Protocol | USB 2.0 interface |
| File Management System | NTFS, FAT32, FAT16 |
| File Format | Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp Audio: wma,mp3 Photo: jpg,jpeg,bmp,img |
| PVR Option | Support software upgrade and PVR ??Supports external HDD via USB, power wanted if necessary |
| WIFI Option | Support networking via USB WIFI |
| POWER SUPPLY | |
| Li-Lon Battery | 7.4V/4000mAh(The machine behind labeling shall prevail) |
| Battery power | Build-in Lithium battery find satellite around 4 hours Battery play time(AV input): about 6 hours |
| Adapter (Optional) | Support fast charge, MAX 20W |
| Power Consumption | Rated 8W (No external equipment) |
| PHYSICAL CHARACERSTICS | |
| Product Dimension Size(W*D*H) | 95*155*45 MM??L*W*H?? |
| Product Net Weight | 0.45kg |
| Packing box size(W*D*H) | 204*160*57(mm) |
| Package weight (Standard) | 0.6kg |
| Carton Qty&Weight | 345*295*435MM (20 pcs/Carton??, 13KG |
| Accessories | Digital satellite meter, User Manual, Warranty Card, Adapters*1 Optional accessories: charging head*1, backpack*1 |
| Temperature | Operation 0??+45??; Storage -10~+60?? |
| Humidity | 20~90%, non-condensed |
