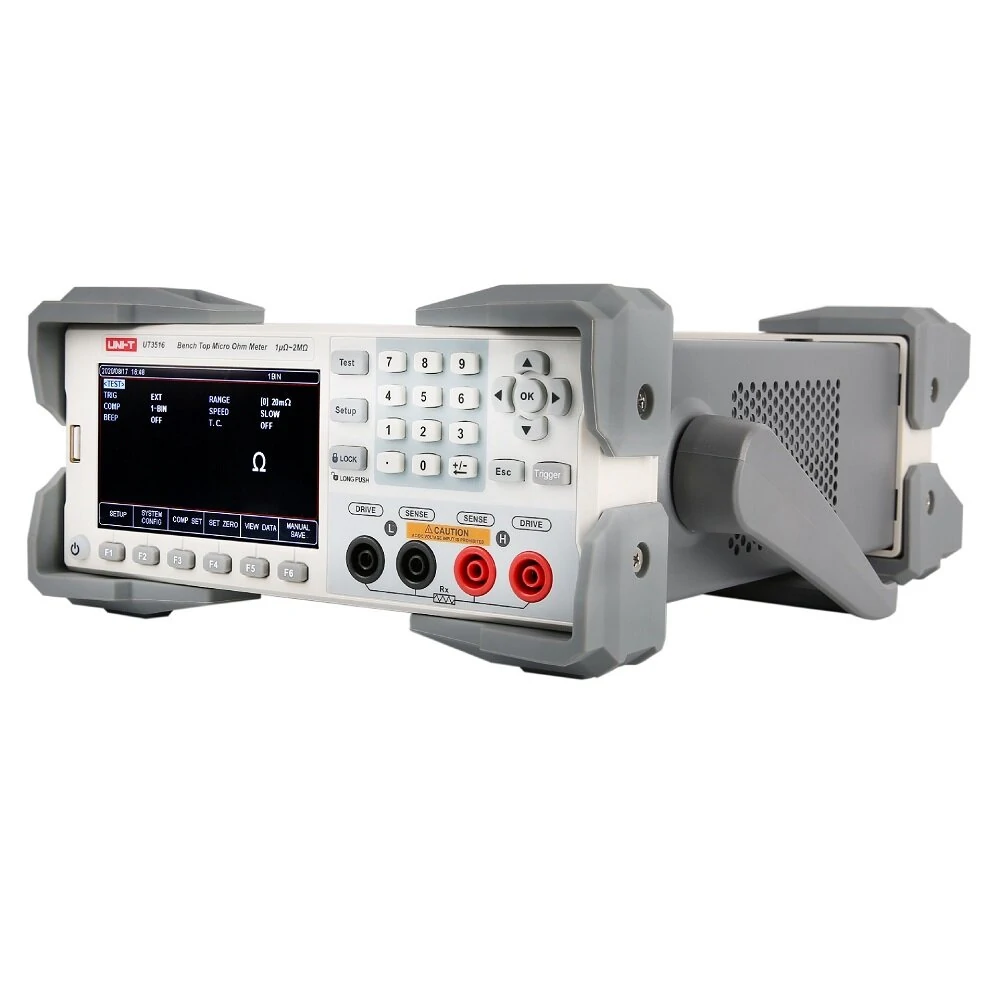

UNI-T UT3516 Microohmmeter | 4.3 Inch LCD | Cable Coil Motor Resistance Tester
Product Description
Features:
1. Professional sorting function, can judge HI/IN/LO resistance.
2. With efficient processing of remote control and data acquisition functions.
3. Three test modes: automatic, manual, and nominal range can be realized.
4. Three test speeds are available: Slow speed: 3 times per second. Medium speed: 18 times/sec. Fast: 60 times/sec.
5. Equipped with a 4.3-inch LCD screen for easy reading.
6. File management, save and browse data functions.
7. Configure rich interfaces.
Specifications:
Model | UT3516 |
Resistance range | 20m Q /200m Q /20 Q /200 Q /2k Q /20k Q/200k Q/2MQ |
Resolution | 1 u Q/10 u Q/100 u Q/lmO/lOmQ/lOOmQ/1 Q/10Q/100Q |
Test current | 1A/1A/100mA/10mA/1mA/1mA/100 uA/10 u A/l uA |
Testing terminal opencircuit voltage | |
Measured parameter | DC resistance |
Basic accuracy | Slow:0.05% Medium:0.1% Rapid:0.5% |
Maximum reading | 22000 |
Range mode | Auto/Manual/nominal |
Calibration | Short-circuit full range zeroing |
Sorting function | 3types of resistance and voltage input: exceeds upper limit/exceeds lower limit/within the range,2 types of sorting result output: PASS/FAIL |
Comparing method | Absolute tolerance, percentage tolerance, direct-reading comparison |
Trigger mode | Internal, external |
Test terminal | Four-terminal measurement |
Button functions | Lock һһ keyboard lock, OK һһ screenshot |
System setup | Language: Chinese/English, key tone setting |

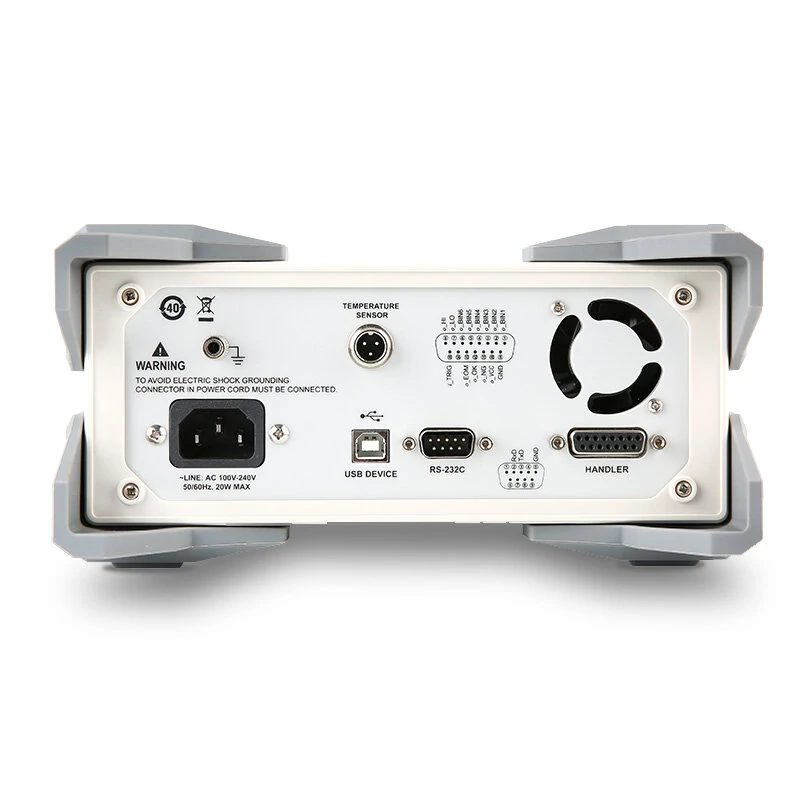

Interfaces & protocols | Handler interface, RS232, USB DEVICE and USB HOST communication interface,SCPI and Modbus protocol |
Upper computer software | V |
Power | AC 100~240V 50/60Hz |
Display | 4.3-inches LCD |
Package Included:
1 x UT3516 DC Resistance Tester (AU Plug)
Note: we will send the plug adapter according to your country.
