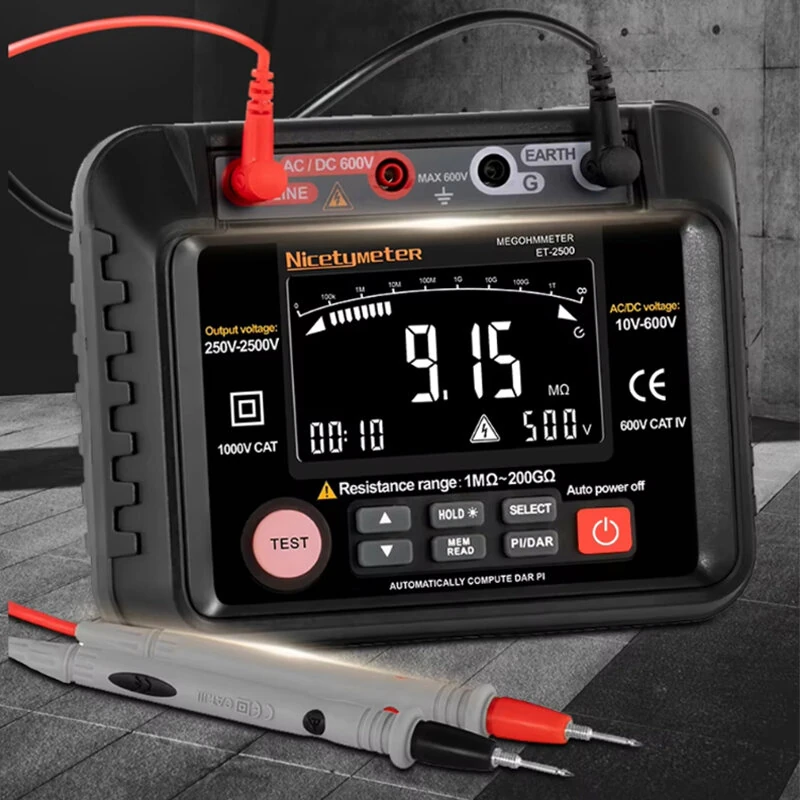

Megohmmeter Insulation Resistance Tester 250V-2500V | 40GΩ Digital Display | Auto Range AC DC Voltage Measurement

Product Description

Specifications:

- Output Voltage Range:

- 250V: 1M???C10G??

- 500V/1000V: 2M???C20G??

- 2000V/2500V: 5M???C40G??

- Accuracy: ??(5% + 10 digits)

- Short Circuit Current: 1.8mA

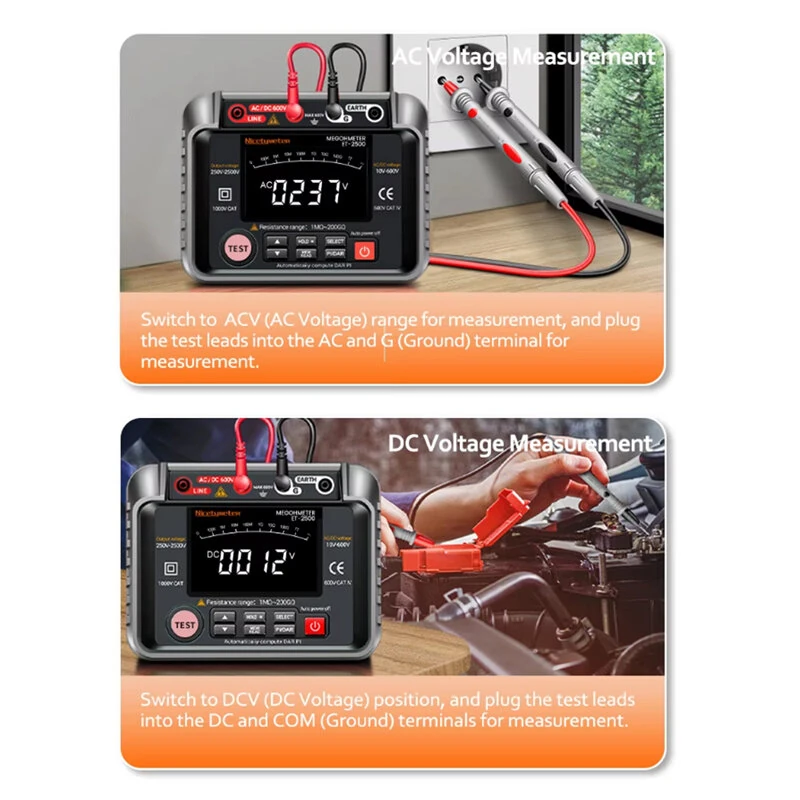

- AC Voltage Measurement: 10?C600V (??1% + 5 digits)

- DC Voltage Measurement: 10?C600V (??0.8% + 5 digits)

- Resistance Measurement Range: 1M???C200G??

- Max Display Count: 2000 counts

- Power Supply: 8 x AA batteries

- Material: Silicone rubber and ABS

- Product Weight: 640g

- Test Leads Material: PVC/Brass

- Test Leads Length: 108cm

Features:

1. Wide Voltage and Resistance Range

Offers precise insulation resistance testing with adjustable voltage options from 250V to 2500V, suitable for different industrial and electrical applications.

2. High-Resolution LCD Display

Equipped with a clear LCD screen, which provides easy-to-read data, including test voltage, resistance measurements, and time tracking for enhanced operational efficiency.

3. Data Storage Functionality

Can store up to 100 groups of test data, allowing professionals to retrieve and compare historical measurements effortlessly.

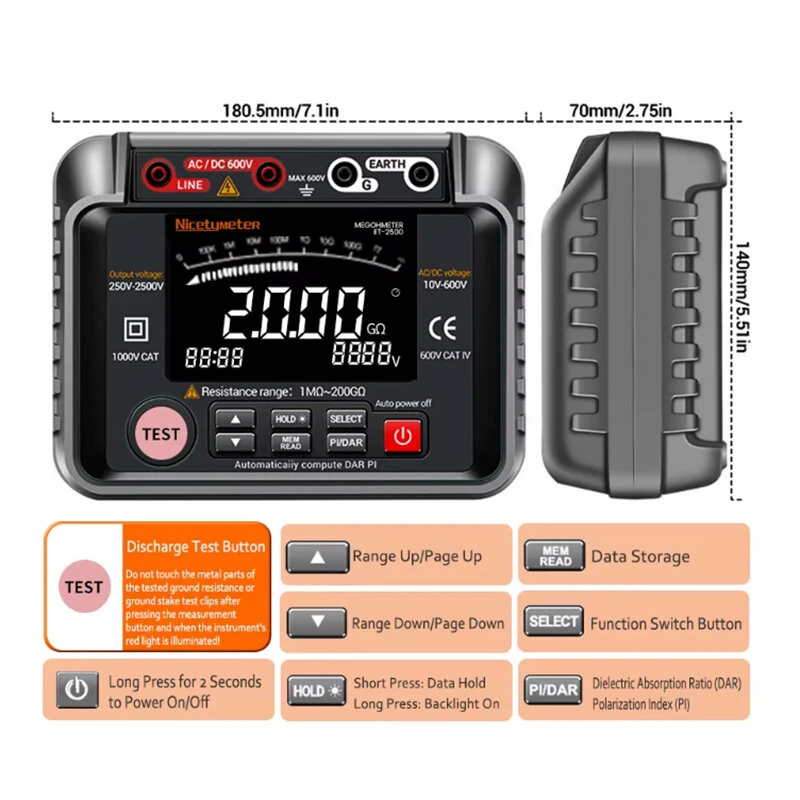

4. Auto-Ranging and Discharge Protection

Automatically adjusts to the optimal range and safely discharges residual voltage post-testing to ensure user safety during and after operation.

5. Compact & Design

Built with lightweight materials including ABS and silicone rubber, providing both portability and sturdy construction for daily field use.

Package Included:

1 x Insulation Resistance Tester

2 x Alligator Clips
