ETCR3000B Digital Ground Resistance Meter - 30KΩ 9000KΩM Auto Range
$588.00
$723.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:ETCR3000B Earth Resistance Soil Resistivity Tester is specially designed and manufactured for measuring ground resistance, soil resistivity, ground voltage, AC voltage. Adopting the latest digital and micro-processing technology, precise 4-pole, 3-pole and simple 2-pole method for earth resistance measurement, importing FFT and AFC technology, with a unique function of anti-interference capability and the ability to adapt to the environment, consistency of repeat testing, to ensure high precision, high stability and reliability for prolonged measure, which is widely used in electric power, telecommunications, meteorology, oil field, construction, fulmination protection, industrial electrical equipment and other earth resistance, soil resistivity, earth voltage, AC voltage measurement.
ETCR3000B Earth Resistance Soil Resistivity Tester is composed of host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires and others. The large LCD display of host machine is with blue backlight and bar graph indicating that can be seen clearly. At the same time it can store 300 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, alarm indicator, and with the functions like historical data access, reading, preservation, report forms, printing and so on.
Specification:
2/3/4-wire method measure earth resistance, Range 0.00??-30.00k??Soil resistivity measurement, Range 0.00??m-9000k??mEarth voltage measurement, Range AC 0-600VData storage: 300 setsAlarm function: audible and visual alarm
| Power Supply | DC 9V Zi-Mn dry battery LR14 1.5V 6 PCS (Not include) |
| LCD | 124mm??67mm (black light) |
| Range | Ground Resistance??0.00????30.00k????Automatic shift?? |
| Soil resistivity??0.00??m??9000k??m??Automatic shift?? | |
| Ground Voltage??AC 0??600V | |
| Resolution | Resistance??0.01?? |
| Soil resistivity??0.01??m | |
| Voltage??1V | |
| Accuracy | ??2%rdg??3dgt |
| Date Storage | 300 sets |
| Data upload function | RS232 interface, software supervision, storage data can be uploaded to computer, preserved and printed. |
| Auto Power-off | No |
| Power Consumption | Open Backlight??45mA Max |
| Close Backlight??20mA Max | |
| measurement??100mA Max(without backlight) | |
| Working environment | -10??~40?棻below 80%rh |
| Store environment | -20??~60?棻below 70%rh |
| Measurement method | Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement |
| Soil Resistivity: 4-pole measurement (Wenner method) | |
| Earth Voltage: average rectification(between P(S)-ES) | |
| Data Mode | Average value, maximum, minimum |
| Cable resistance verification | Automatic calibration |
| Measurement Time | Ground Voltage??0.33 S/time ?? |
| Ground Resistance??Soil resistivity??5 S/time?? | |
| Measuring Times | Over 5000 times (Short-circuit test, measured 1, stop 30 seconds and then measured) |
| Test frequency | 128Hz/111Hz/105Hz/94Hz(AFC) |
| Short circuit test current | AC 20mA max |
| Open circuit test voltage | AC 40V max |
| Test the voltage waveform | Sine wave |
| Electrode spacing range | Can be set 1m ~ 100m |
| voltage between lines | Measuring ground voltage : measuring below AC 600V |
| Data Hold display | ??HOLD?? |
| Data Read display | ??READ?? |
| Overflow Display | ??OL?? |
| Auxiliary ground test | Auxiliary grounding resistance test function: 0.00K????30k??(100R+rC<50k????100R+rP<50k??) |
| Interference judgment | Automatic identification of interference signals, interference voltage is higher than 5V "NOISE" symbol indicates |
| Alarm Function | When measuring value exceeds alarm setting value, there is "Toot-toot-toot"alarm hint |
| Battery Voltage | When battery voltage decreases to about 7.5V, battery voltage low icon " "will display, reminding to replace battery. |
| Overload Protection | ground resistance: between each interfaces of E-P,E-C, AC 280V/3 seconds |
| Insulation Resistance | Over 20M??(between circuit and enclosure it is 500V) |
| Withstanding Voltage | AC 3700V/rms (Between circuit and enclosure) |
| Electromagnetic Features | IEC61010-4-3,Wireless frequency electromagnetic field??1V/m |
| Protection Type | IEC61010-1(CAT ?? 300V??CAT IV 150V??Pollution 2)?? |
| IEC61010-031?? | |
| IEC61557-1(ground resistance)?? | |
| IEC61557-5(Soil Resistivity)?? | |
| JJG 366-2004?? | |
| Weight | 3445g |
| Dimension | 212mm??175mm??76mm |
1 x Resistance Tester (Battery not included)
4 x Earth Rod4 x Testing Wire1 x Simple Testing Wire1 x USB Data Transmission Line1 x Software Disk1 x Suitcase1 x User Manual

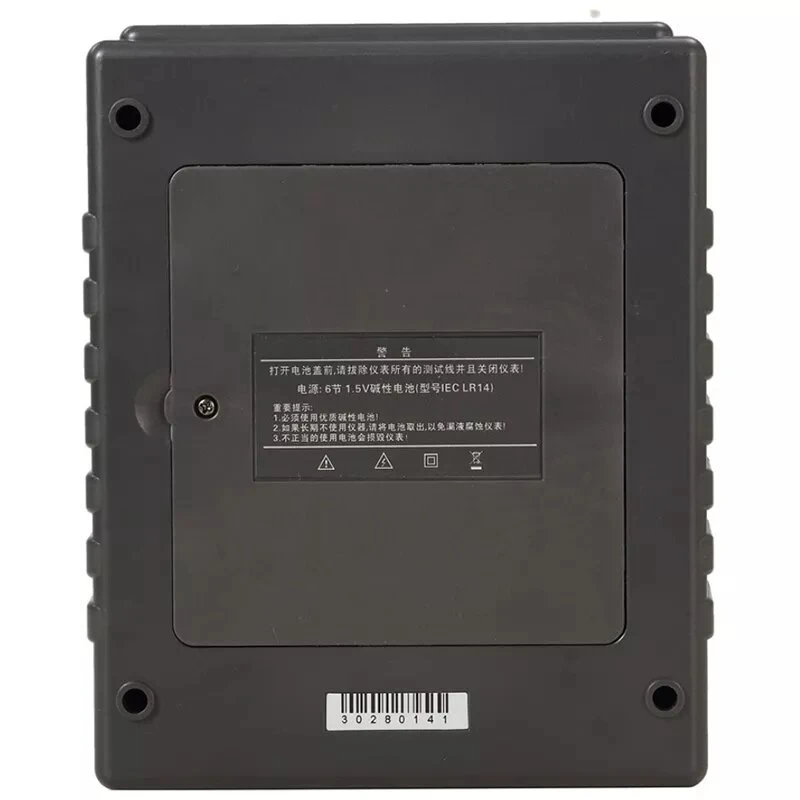

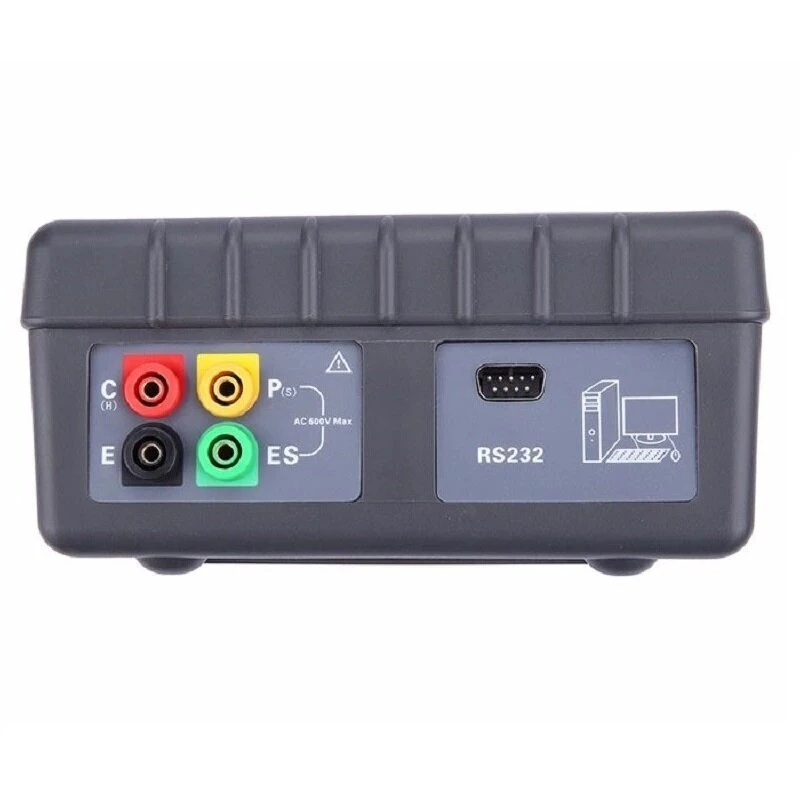

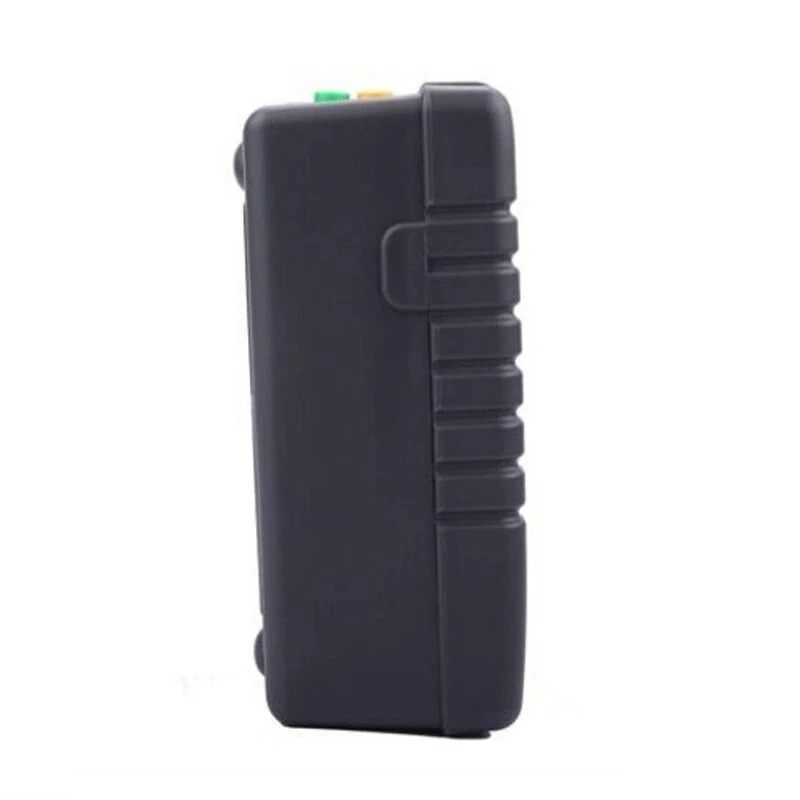

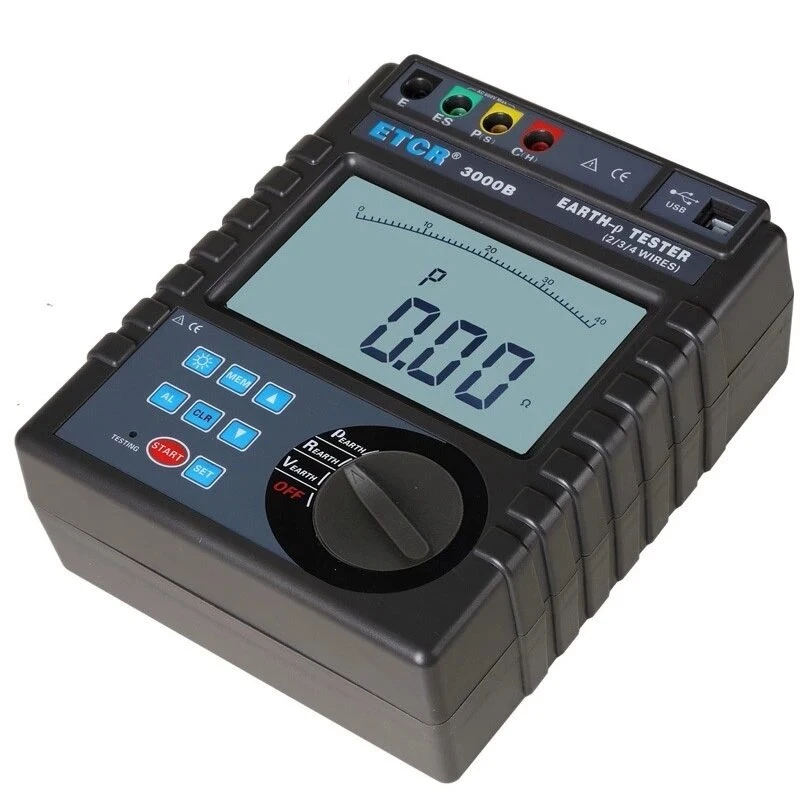

Details Picture:
