KOPPACE 3.5X-90X Trinocular Stereo Microscope | 21MP Camera & 13.3 Display

Model

KP-HD1200

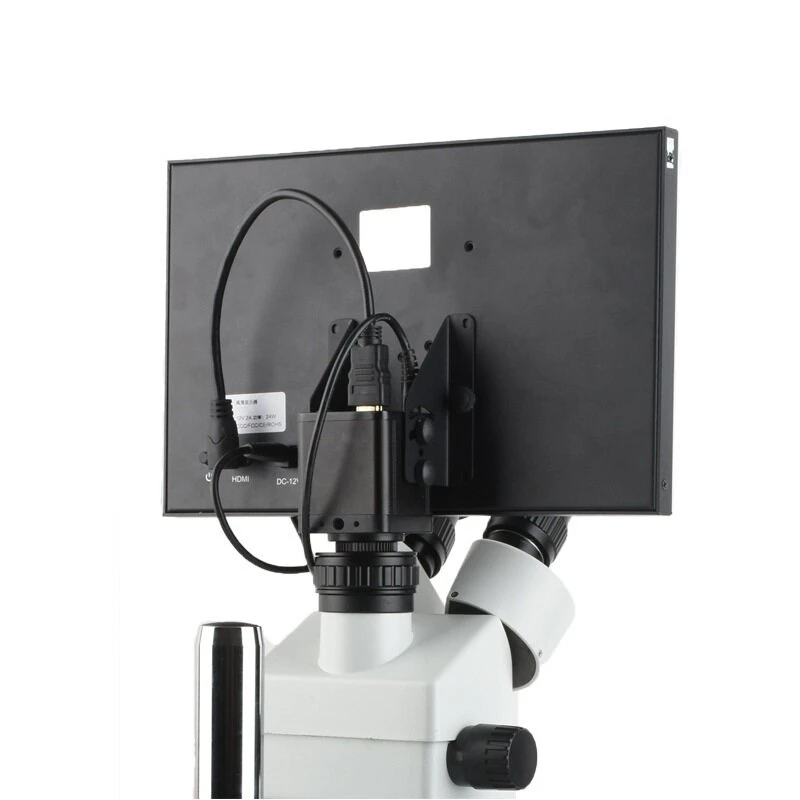

Monitor

13.3 inches

Optical Enlargement

3.5X-90X

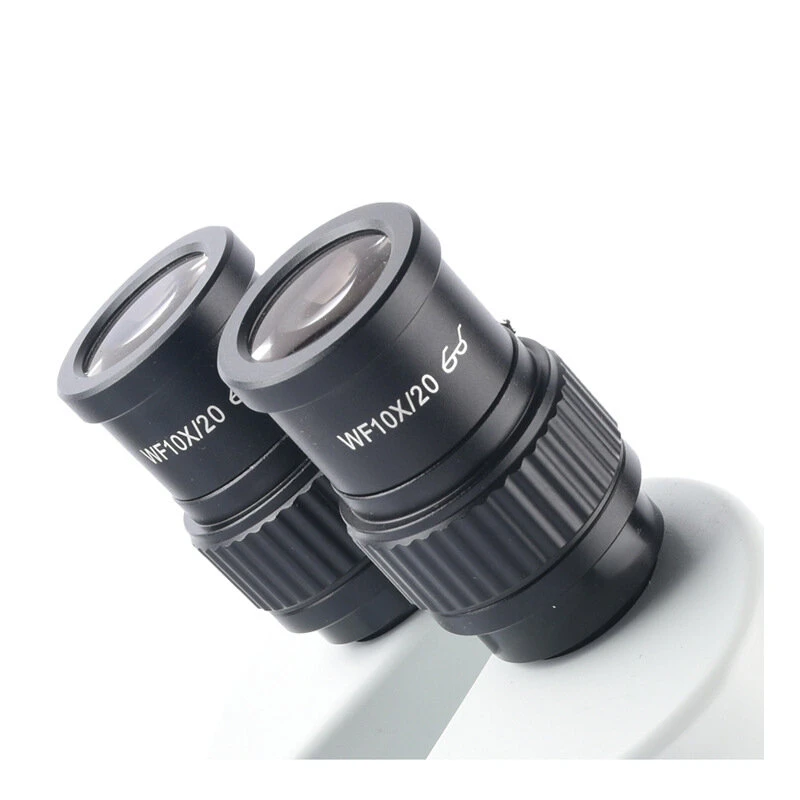

Eyepiece

High eyespots wide-field eyepieceWF10X/20

Objective lens

0.7X-4.5X

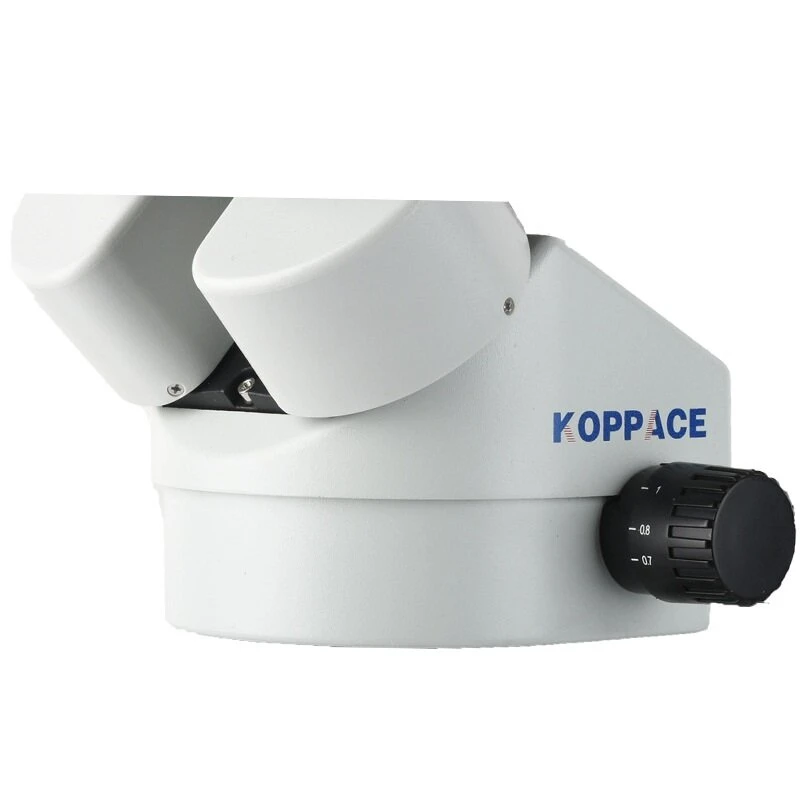

Viewing Head

Trinocular stereomicroscope view head inclined at 45??.

The pupil distance adjusting range 54mm-76mm

Stage into the circular plate

95mm Black and white board

Working Distance

30mm-165mm

Focusing bracket

Focusing handwheel tightness is adjustable,lifting range 50mm

Base Plate size

200X255X22mm

LED light source

LED Qty 144,Internal diameter size 64mm,Diameter size 94mm,Input voltage AC90??240V,Maximum output power 4.5W,Voltage 12V0.5A

Camera eyepiece interface

Dedicated interface 0.5X CTV

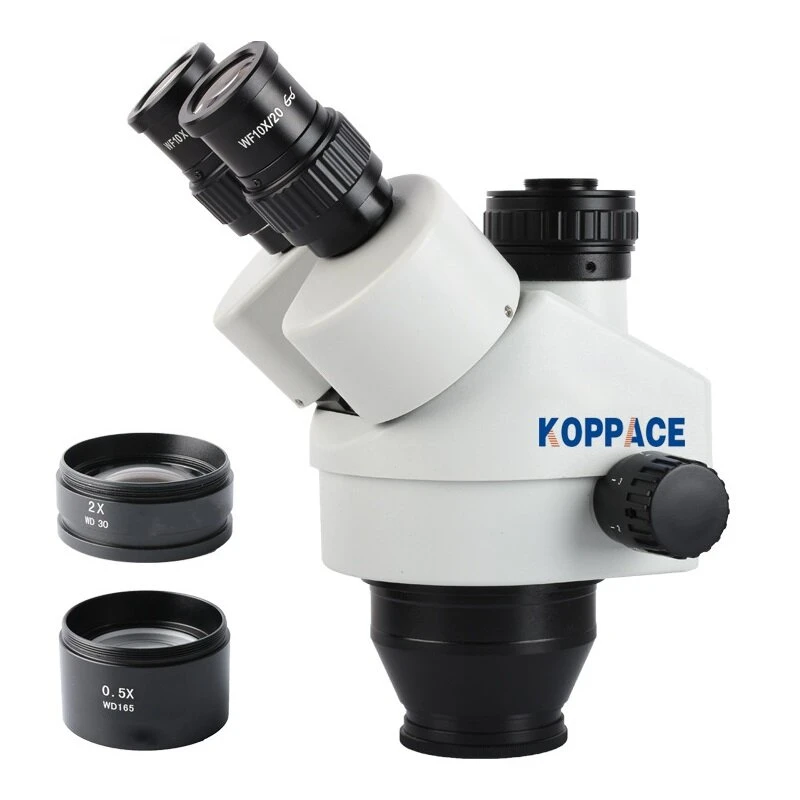

Auxiliary lens

0.5X/165mm,2X/30mm

Output Interface

HDMI,USB

Sensor

21 million pixels CMOS Sensor

Optical format

1/2.3 inch

Pixel size

1.335??m ?? 1.335??m

Interface

HDMI(Type A),USB(Type B),TF Card

Image resolution

5488*4112 (for TF Card), 1920x1080(for TF Card),

Video record resolution

1080p@60FPS

HDMI Resoltion

1920*1080p 60FPS

HDMI proportion

Support 4:3, 16:9, 16:10 screen

USB2.0(Drive free)

1920*1080@30 1280*720@30 640*480@30

TF card

MAX 64GB

White balance

White balance color correction/Auto/Manual

R,G,B value setting independent

Exposure

Auto/Manual.AE value can set

Sharpness Contrast Color gain

Support

Mono Negative

Support

Mirror

Horizontal vertical mirror
